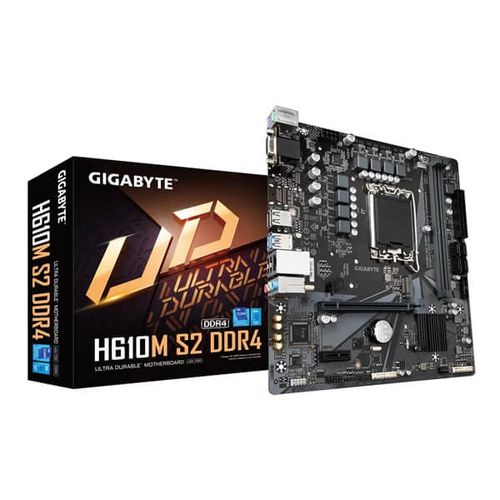

GIGABYTE H610M S2 DDR4 Intel Motherboard
MPN GIGABYTE-H610M-S2 · Brand Gigabyte · mATX
The Gigabyte H610M S2 DDR4 Micro ATX motherboard supports 12th Gen Intel LGA1700 CPUs, dual-channel DDR4 up to 64 GB, PCIe 4.0 x16, M.2 NVMe storage, and Realtek GbE LAN with Smart Fan 6 cooling control
Inclusive of GST · GST invoice available
Overview
The Gigabyte H610M S2 DDR4 is a Micro ATX motherboard designed for 12th Generation Intel Core, Pentium Gold, and Celeron processors using the LGA1700 socket. Powered by the Intel H610 Express Chipset, it delivers a dependable foundation for home, office, and entry-level workstation builds without unnecessary complexity. The board uses a 6+1+1 Hybrid Digital VRM design with low RDS MOSFETs and solid capacitors, ensuring stable and efficient power delivery to the CPU under sustained loads. An 8-pin solid-pin ATX 12V CPU power connector provides additional headroom during demanding tasks. Memory support covers DDR4 modules running at 2133, 2400, 2666, 2933, 3000, and 3200 MHz across two DIMM slots in a dual-channel configuration, with a maximum capacity of 64 GB (up to 32 GB per single DIMM). XMP profiles are also supported for straightforward performance tuning. For storage, there is one M.2 Socket 3 connector (M key, types 2260/2280) operating at PCIe 3.0 x4, plus four SATA 6 Gb/s ports for traditional drives. Expansion is handled by one PCIe 4.0 x16 slot for discrete graphics and one PCIe 3.0 x1 slot for additional cards. Connectivity includes Realtek GbE LAN (1 Gbps) with bandwidth management, Realtek HD Audio with 2/4/5.1/7.1-channel output, and onboard video via a D-Sub port at up to 1920×1200 @ 60 Hz. The rear I/O panel provides 2× USB 3.2 Gen 1, 4× USB 2.0/1.1, RJ-45, 3 audio jacks, and PS/2 keyboard and mouse ports. Smart Fan 6 offers up to seven fan curve control points, PWM/DC support on each header (up to 24 W per header), slope and stair dual-curve modes, and FAN STOP to silence fans below a user-set temperature threshold. Anti-sulfur resistor protection helps extend board longevity in humid or polluted environments. The AMI UEFI BIOS (256 Mbit flash) supports Q-Flash for easy firmware updates and EasyTune for system tuning within Windows. GIGABYTE APP Center and Xpress Install simplify driver and utility management. Verified Specifications: - Socket: LGA1700 | Chipset: Intel H610 Express - Form Factor: Micro ATX (23.0 cm × 21.5 cm) - Memory: 2× DDR4 DIMM, up to 64 GB, DDR4-2133–3200, dual-channel, XMP support - Storage: 1× M.2 PCIe 3.0 x4 (2260/2280), 4× SATA 6 Gb/s - Expansion: 1× PCIe 4.0 x16, 1× PCIe 3.0 x1 - USB: 4× USB 3.2 Gen 1, 8× USB 2.0/1.1 (back panel + internal headers) - LAN: Realtek GbE (1 Gbps/100 Mbps) - Audio: Realtek HD Audio, up to 7.1-channel - Video Out: 1× D-Sub (max 1920×1200 @ 60 Hz) - VRM: 6+1+1 Hybrid Digital phases - OS Support: Windows 11 64-bit, Windows 10 64-bit - Warranty: 3 Years

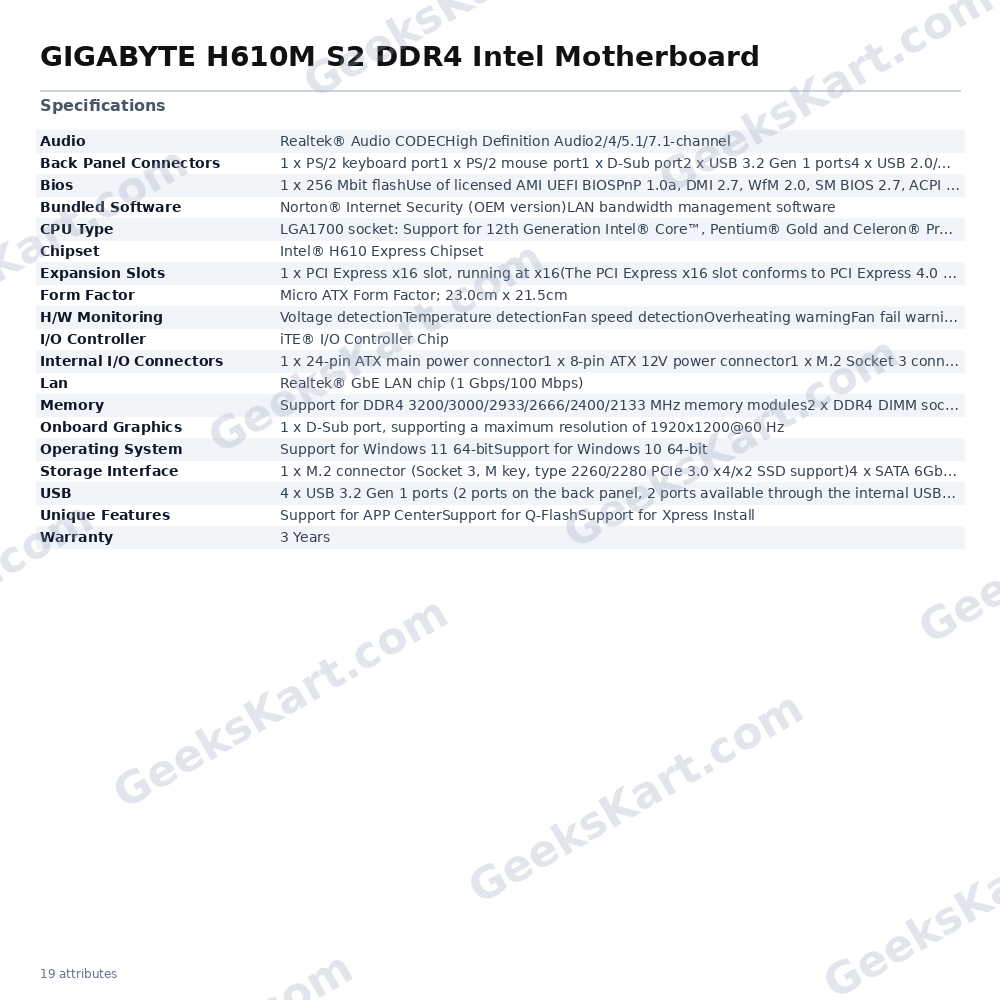

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® H610 Express Chipset |
| CPU Type | LGA1700 socket: Support for 12th Generation Intel® CoreTM, Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPU |
| Lan | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| USB | 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)4 x USB 2.0/1.1 ports on the back panel4 x USB 2.0/1.1 ports available through the internal USB headers |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel |
| Memory | Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)1 x PCI Express x1 slot(The PCI Express x1 slot conforms to PCI Express 3.0 standard.) |
| Unique Features | Support for APP CenterSupport for Q-FlashSupport for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Onboard Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz |
| Operating System | Support for Windows 11 64-bitSupport for Windows 10 64-bit |
| Storage Interface | 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)4 x SATA 6Gb/s connectors |
| Back Panel Connectors | 1 x PS/2 keyboard port1 x PS/2 mouse port1 x D-Sub port2 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors1 x CPU fan header2 x system fan headers1 x RGB LED strip header1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x Clear CMOS jumper |
