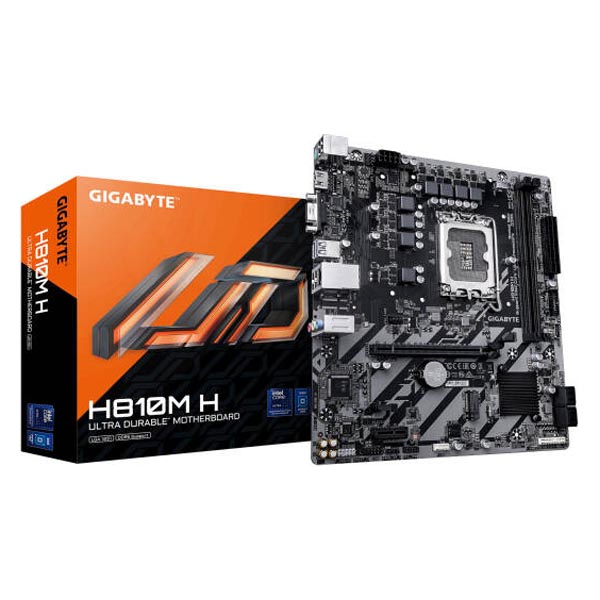

Gigabyte H810M H LGA 1851 Micro ATX Motherboard – Intel Core Ultra Series 2, DDR5

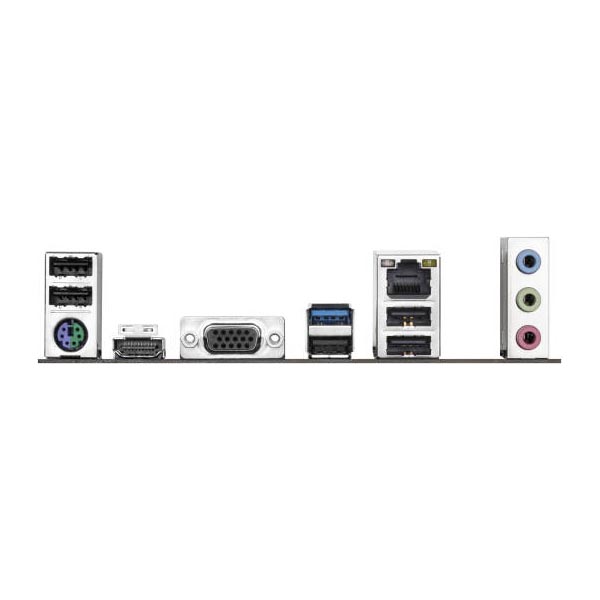

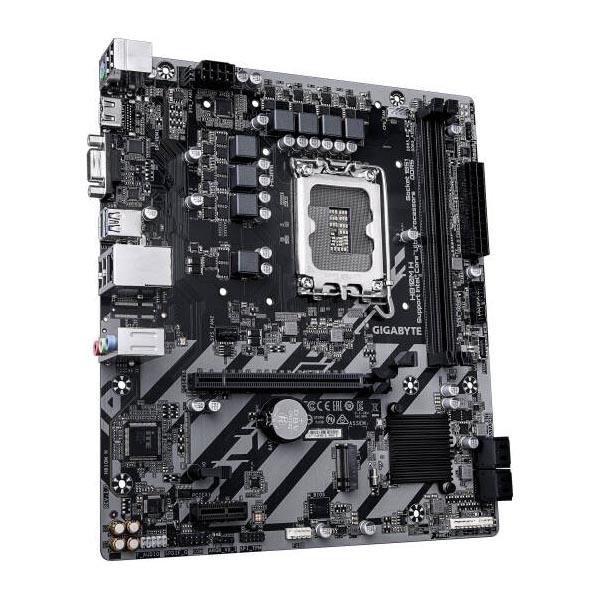

The Gigabyte H810M H is a Micro ATX motherboard built on the Intel H810 chipset and the LGA 1851 socket, designed to support Intel Core Ultra processors (Series 2). It targets system builders who need a compact, capable foundation for an Intel Arrow Lake platform without the overhead of a full-ATX form factor. At the heart of the board’s power delivery is a Hybrid 4+1+2 phase VRM solution, which distributes current efficiently across CPU and auxiliary rails to maintain steady operation under everyday productivity and light workloads. The board carries two DDR5 DIMM slots supporting dual-channel memory with speeds up to 6400 MT/s and a maximum capacity of 128 GB, including compatibility with XMP profiles and ECC Un-buffered DIMM modules operating in non-ECC mode. Storage is handled through one M.2 Socket 3 connector running PCIe 4.0 x4 for NVMe SSDs, complemented by four SATA 6 Gb/s connectors for traditional drives. For discrete graphics, a single PCIe 4.0 x16 slot is provided; note that this slot can also host an NVMe SSD as an alternative. An additional PCIe 3.0 x1 slot is available for expansion cards. Connectivity on the rear I/O panel includes one HDMI port, one D-Sub (VGA) port, one USB 3.2 Gen 1 Type-A port, five USB 2.0/1.1 ports, one RJ-45 GbE LAN port, three audio jacks, and a PS/2 keyboard/mouse port. Internally, the board provides one USB Type-C header (USB 3.2 Gen 1), one USB 3.2 Gen 1 header, one USB 2.0/1.1 header, one front panel audio header, one S/PDIF Out header, two addressable RGB Gen 2 LED strip headers, one CPU fan header, two system fan headers, and a TPM header for the optional GC-TPM2.0 SPI V2 module. The BIOS includes Gigabyte’s UC BIOS interface with multi-theme support and Q-Flash Auto Scan, which automatically detects BIOS update files on a connected USB drive. EZ-Latch on the PCIe x16 slot simplifies graphics card installation and removal. A Clear CMOS jumper and EZ Debug Zone LEDs assist with system troubleshooting during builds. Key Verified Specifications: – Socket: LGA 1851 – Chipset: Intel H810 – Form Factor: Micro ATX (mATX) – CPU Support: Intel Core Ultra (Series 2) – Memory: 2x DDR5 DIMM, dual-channel, up to 6400 MT/s, max 128 GB – PCIe Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1 – Storage: 1x M.2 PCIe 4.0 x4, 4x SATA 6 Gb/s – Rear USB: 1x USB 3.2 Gen 1, 5x USB 2.0/1.1 – Display Output: 1x HDMI, 1x D-Sub – LAN: 1x GbE RJ-45 – Warranty: 3 Years – Color: Black – GTIN: 4719331869540
