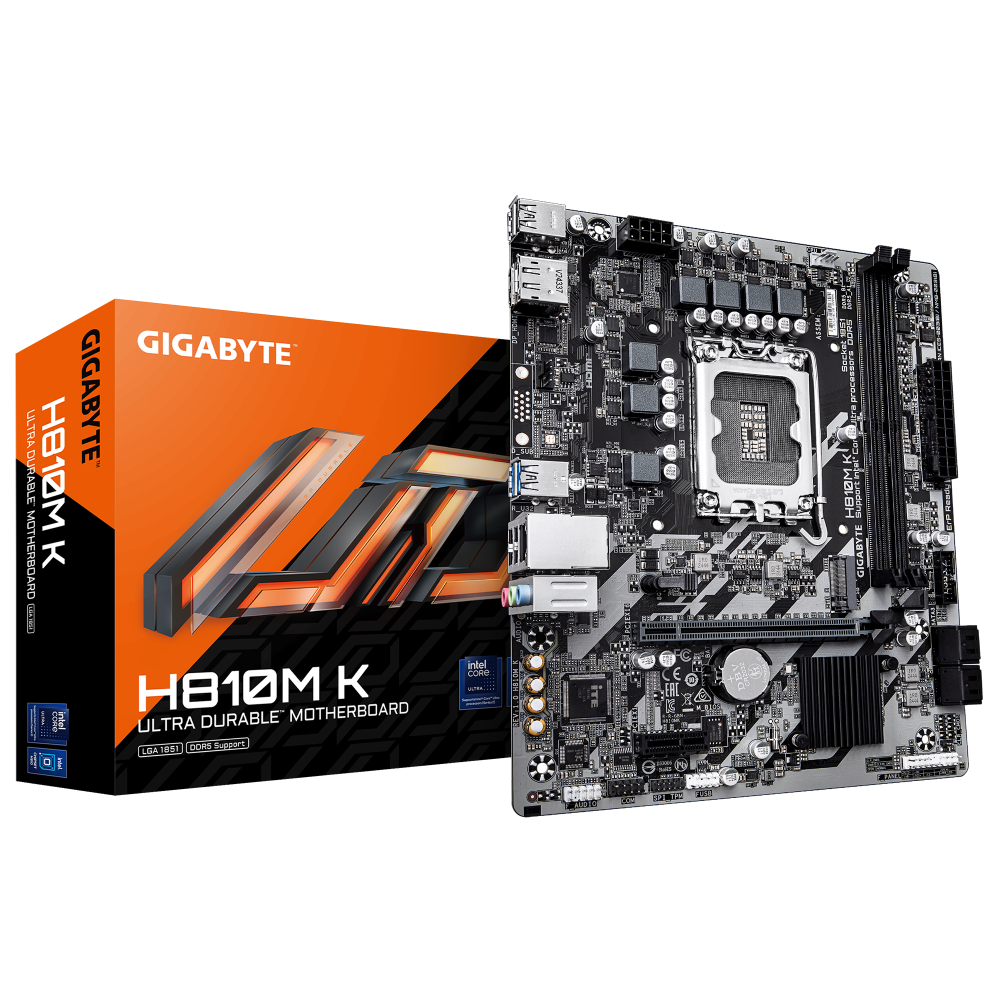

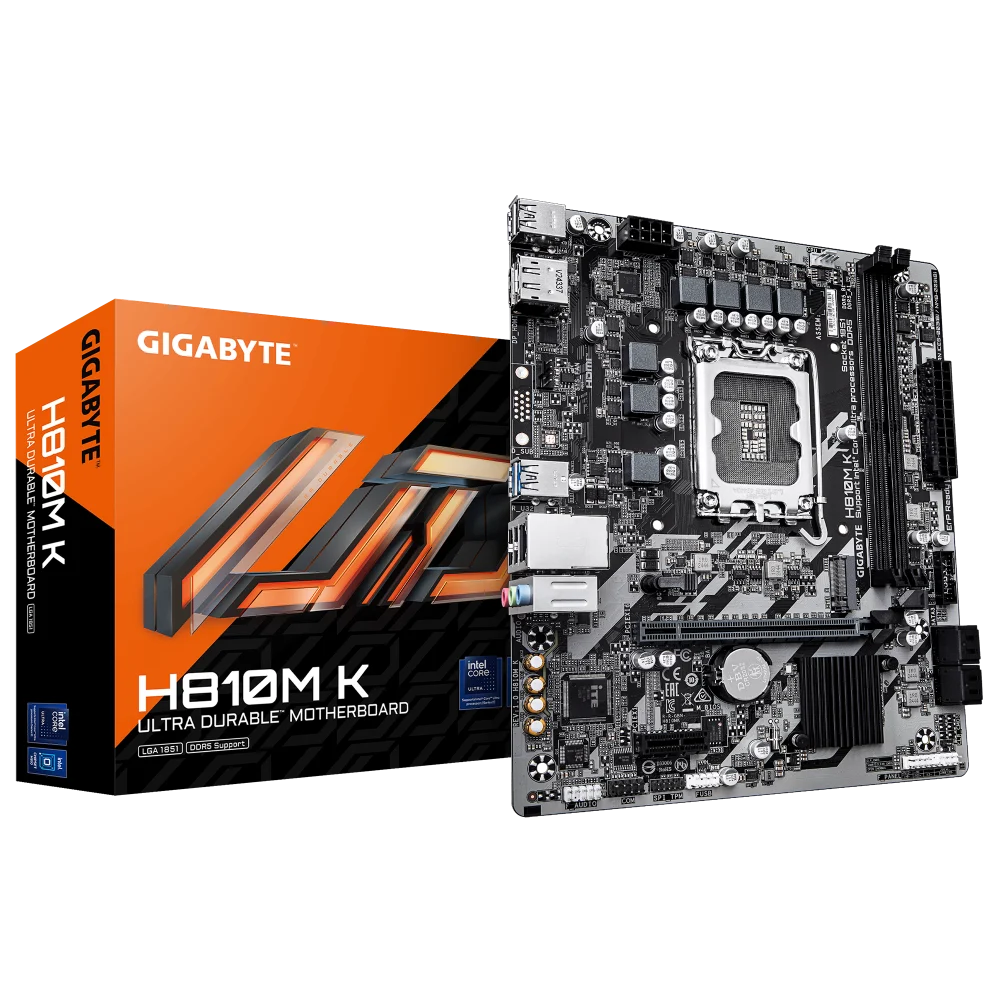

GIGABYTE H810M K DDR5 Intel Motherboard

The GIGABYTE H810M K DDR5 is a Micro-ATX form-factor motherboard built on Intel’s H810 chipset and designed for the LGA 1851 socket. It supports Intel Core Ultra processors (Series 2), making it a practical entry point into the Intel Arrow Lake platform without sacrificing the key connectivity and storage features that modern builds demand. Memory performance is handled by a dual-channel DDR5 configuration supporting speeds up to 6400 MT/s and a maximum capacity of 128 GB across its DIMM slots. The board accommodates ECC Un-buffered DIMM modules in 1Rx8 and 2Rx8 configurations (operating in non-ECC mode), standard non-ECC Un-buffered DIMMs in 1Rx8, 2Rx8, and 1Rx16 configurations, and Extreme Memory Profile (XMP) modules for straightforward performance tuning. Storage is served by a single M.2 Socket 3 connector running at PCIe 4.0 x4 speeds, complemented by four SATA 6 Gb/s ports for traditional drives. Expansion is provided through one PCIe 4.0 x16 CPU-connected slot — which also supports NVMe SSDs — and one chipset-connected PCIe 3.0 x1 slot. Display output options on the rear panel include one HDMI port and one DisplayPort, catering to systems that rely on Intel’s integrated graphics. Networking is handled by a Gigabit Ethernet (GbE) LAN port. The rear I/O panel also carries two USB 3.2 Gen 1 ports, four USB 2.0/1.1 ports, and three audio jacks backed by GIGABYTE’s Audio Noise Guard circuit isolation. Power delivery uses a 3+1+2 phase hybrid VRM design fed by a standard 24-pin ATX main connector and an 8-pin ATX 12V connector. Thermal management is handled by GIGABYTE’s Smart Fan 6 system, which supports both PWM and DC fans as well as water-cooling pumps, with up to 24 W (12 V × 2 A) per header and built-in over-current protection. Fan curves are fully configurable via the BIOS with seven adjustable control points, slope and stair graph modes, and a fan-stop function for silent operation at low loads. The BIOS features GIGABYTE’s UC BIOS interface with Q-Flash Auto Scan, which automatically detects BIOS files on a USB drive during flash operations. The PCIe x16 slot uses GIGABYTE’s EZ-Latch quick-release mechanism for tool-assisted GPU removal. Key Verified Specifications: – Model: H810M-K – Socket: LGA 1851 – Chipset: Intel H810 – CPU Support: Intel Core Ultra (Series 2) – Memory: DDR5 dual-channel, up to 128 GB, up to 6400 MT/s, XMP supported – Form Factor: Micro-ATX – Storage: 1× M.2 PCIe 4.0 x4, 4× SATA 6 Gb/s – Expansion: 1× PCIe 4.0 x16 (CPU), 1× PCIe 3.0 x1 (Chipset) – Display Output: 1× HDMI, 1× DisplayPort – Rear USB: 2× USB 3.2 Gen 1, 4× USB 2.0/1.1 – LAN: Gigabit Ethernet – Warranty: 3 Years
