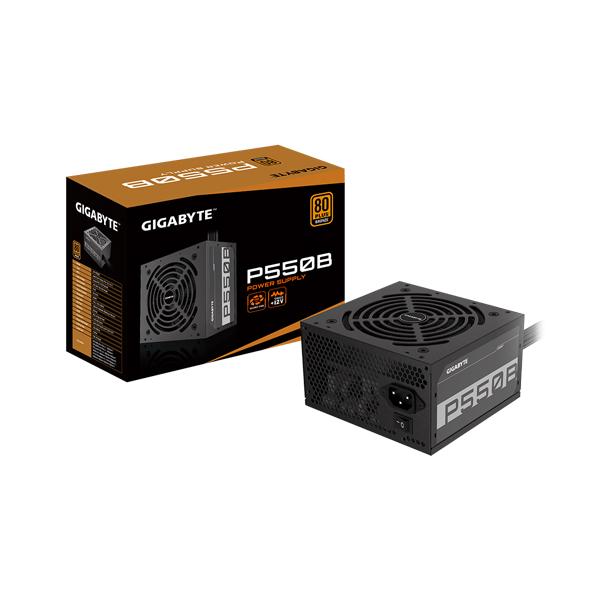

GIGABYTE P550B 550W 80+ Bronze Non Modular ATX 2.0 Power Supply
MPN GIGABYTE-P550B · Brand Gigabyte
Features of GIGABYTE P550B 550W 80+ Bronze Non Modular ATX 2.0 Power Supply 80 PLUS Bronze certified 120mm Silent Hydraulic Bearing (HYB) Fan Reliable flat cable Single +12V rail OVP/OPP/SCP/UVP/OCP/OTP protection 3 years warranty (Adjusted according to different regions) 80 PLUS BRONZE CERTIFIED Reliable Flat Cable 120mm Silent Hydraulic Bearing (HYB) Fan SINGLE +12V RAIL PROTECTION Specifications of GIGABYTE P550B 550W 80+ Bronze Non Modular ATX 2.0 Power Supply Model No GP-P550B Type Intel Fo
Inclusive of GST · GST invoice available
Overview
| Model No | GP-P550B |
| Type | Intel Form Factor ATX 12V v2.31 |
| PFC | Active PFC(>0.9 typical) |
| Input Voltage | 100-240 Vac(full range) |
| Input Current | 8-4 A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 550W |
| Dimension | 150 x 140 x 86 mm |
| Fan Type | 120 mm Hydraulic Bearing (HYB) Fan |
| 80 PLUS | Bronze |
| Efficiency | 85% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-500ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All black |
| Connectors | ATX/MB 20+4 Pin x 1: 550mm*1 CPU/EPS 4+4 Pin x 1: 600mm*1 PCI-e 6+2 Pin x 2: 550mm+150mm*1 SATA x 6: 500mm+120mm+120mm*2 4 Pin Peripheral x 3 + 4-Pin floppy x 1: 500mm+120mm+120mm+120mm*1 |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice |
Datasheet
| Warranty | 3 Years |
|---|---|
| Pfc | Active PFC(>0.9 typical) |
| Mtbf | >100,000 hours |
| 80 Plus | Bronze |
| Fan Type | 120 mm Hydraulic Bearing (HYB) Fan |
| Model | GP-P550B |
| Dimension | 150 x 140 x 86 mm |
| Cable Type | Flat, All black |
| Connectors | ATX/MB 20+4 Pin x 1 : 550mm*1CPU/EPS 4+4 Pin x 1 : 600mm*1PCI-e 6+2 Pin x 2 : 550mm+150mm*1SATA x 6 : 500mm+120mm+120mm*24 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1 |
| Efficiency | 85% at typical load |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Hold Up Time | >16ms |
| Input Current | 8-4 A |
| Input Voltage | 100-240 Vac(full range) |
| Input Frequency | 60-50 Hz |
| Output Capacity | 550W |
| Power Good Signal | 100-500ms |
