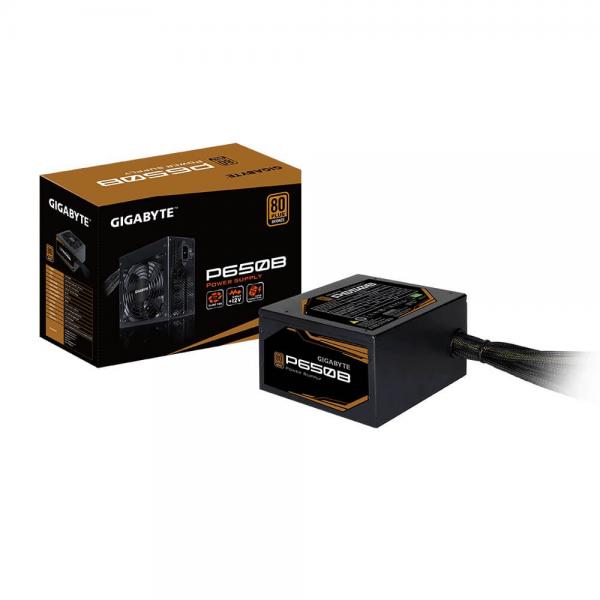

GIGABYTE P650B 650W 80+ Bronze Non Modular ATX 2.0 Power Supply
MPN GIGABYTE-P650B · Brand Gigabyte
Features of GIGABYTE P650B 650W 80+ Bronze Non Modular ATX 2.0 Power Supply 80 PLUS bronze certified: up to 89% efficiency 100% Japanese Capacitors 120mm Hydraulic Bearing (HYB) Fan Single +12V rail Meet ErP LOT6 2013 (< 0.5W at standby mode) OPP/UVP/OVP/SCP/OCP protection 80 Plus Bronze Certified Reliable Mesh Braided Cable 100% Japanese Capacitors Single +12V Rail 120mm Hydraulic Bearing (HYB) Fan Specifications of GIGABYTE P650B 650W 80+ Bronze Non Modular ATX 2.0 Power Supply Model GIGA
Inclusive of GST · GST invoice available
Overview
Features of GIGABYTE P650B 650W 80+ Bronze Non Modular ATX 2.0 Power Supply
- 80 PLUS bronze certified: up to 89% efficiency
- 100% Japanese Capacitors
- 120mm Hydraulic Bearing (HYB) Fan
- Single +12V rail
- Meet ErP LOT6 2013 (< 0.5W at standby mode)
- OPP/UVP/OVP/SCP/OCP protection
- 80 Plus Bronze Certified
- Reliable Mesh Braided Cable
- 100% Japanese Capacitors
- Single +12V Rail
- 120mm Hydraulic Bearing (HYB) Fan
Specifications of GIGABYTE P650B 650W 80+ Bronze Non Modular ATX 2.0 Power Supply
| Model | GIGABYTE P650B |
| Type | Intel Form Factor ATX 12V v2.31 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 9A-4A |
| Input Frequency | 50-60 Hz |
| Output Capacity | 650W |
| Dimension | D150 x W140 x H86 mm |
| Fan Type | 120mm Hydraulic Bearing Fan |
| Efficiency | Up to 85% at typical load |
| MTBF | >100,000 hours |
| Protection | OPP/UVP/OVP/SCP/OCP |
| Regulatory | CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE |
| Connectors | ATX/MB 20+4 Pin x 1 CPU/EPS 4+4 Pin x 1 PCI-e 6+2 Pin x 4, SATA x 6 4 Pin Peripheral x 3 4 Pin Floppy x 1 |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice |
Datasheet
| Warranty | 3 Years |
|---|---|
| Pfc | Active PFC (>0.9 typical) |
| Mtbf | >100,000 hours |
| Model | GIGABYTE P650B |
| Fan Type | 120mm Hydraulic Bearing Fan |
| Dimension | D150 x W140 x H86 mm |
| Connectors | ATX/MB 20+4 Pin x 1CPU/EPS 4+4 Pin x 1PCI-e 6+2 Pin x 4, SATA x 64 Pin Peripheral x 34 Pin Floppy x 1 |
| Efficiency | Up to 85% at typical load |
| Protection | OPP/UVP/OVP/SCP/OCP |
| Regulatory | CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE |
| Input Current | 9A-4A |
| Input Voltage | 100-240 Vac (full range) |
| Input Frequency | 50-60 Hz |
| Output Capacity | 650W |
