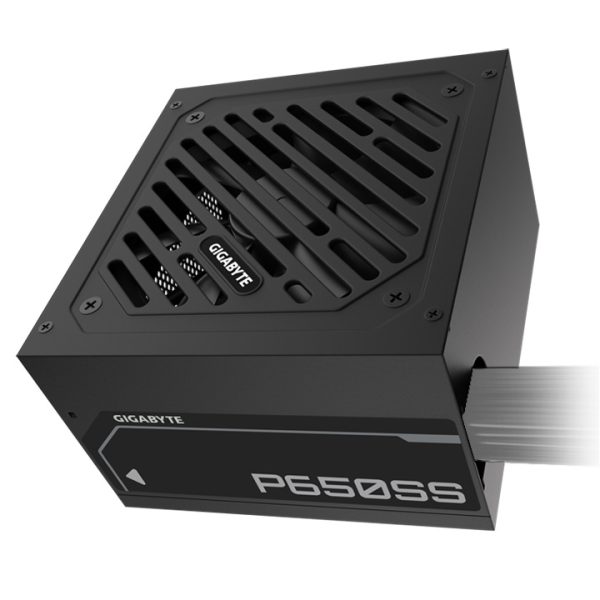

Gigabyte P650SS 650W 80 Plus Silver ATX Power Supply

The Gigabyte P650SS is a 650-watt ATX power supply carrying the 80 Plus Silver certification for the 230V EU standard, which translates to a minimum 90% efficiency at 50% load. Running at that efficiency level reduces wasted heat output and keeps the unit operating quietly under typical workloads — a meaningful advantage in everyday desktop and gaming builds alike. The P650SS supports the Intel ATX 3.0 standard and is compatible with ATX 3.1, making it ready for current-generation graphics cards that can draw sharp transient spikes during rendering and gaming. Specifically, the unit can sustain excursions up to twice its rated output, and the Intel PSDG ATX 3.0 / ATX 3.1 standard it conforms to supports transient excursions of up to 200% of rated power, along with 70% low-load efficiency and compliant power supply timing standards. Cooling is handled by a 120mm Fluid Dynamic Bearing (FDB) fan. FDB technology uses an oil-film layer between the shaft and bearing sleeve, which absorbs vibration, reduces audible noise compared with conventional sleeve-bearing fans, and delivers a significantly longer operational lifespan. The fan speed is regulated automatically based on detected load and internal temperature, so the unit runs near-silently during light use. Power delivery is organized around a single +12V rail, a topology that concentrates available amperage on one channel rather than splitting it across multiple rails. This simplifies cable management decisions, improves stability under dynamic loads, and is a preferred architecture for overclocking-oriented builds. Six protective circuits are built into the design: Over Current Protection (OCP), Over Temperature Protection (OTP), Over Voltage Protection (OVP), Over Power Protection (OPP), Under Voltage Protection (UVP), and Short Circuit Protection (SCP). These guard the connected components against abnormal electrical conditions. Verified Specifications: • Wattage: 650W • Efficiency Certification: 80 Plus Silver (230V EU) • Form Factor: ATX • ATX Standard: ATX 3.0 (ATX 3.1 compatible) • Fan: 120mm Fluid Dynamic Bearing (FDB) • Rail Configuration: Single +12V • PCIe Connectors (6+2-pin): 2 • SATA Connectors: 5 • Peripheral (4-pin Molex): 3 • Cable Design: Flat (non-modular) • Protection: OCP, OTP, OVP, OPP, UVP, SCP • Warranty: 3 Years • GTIN: 4719331554095
