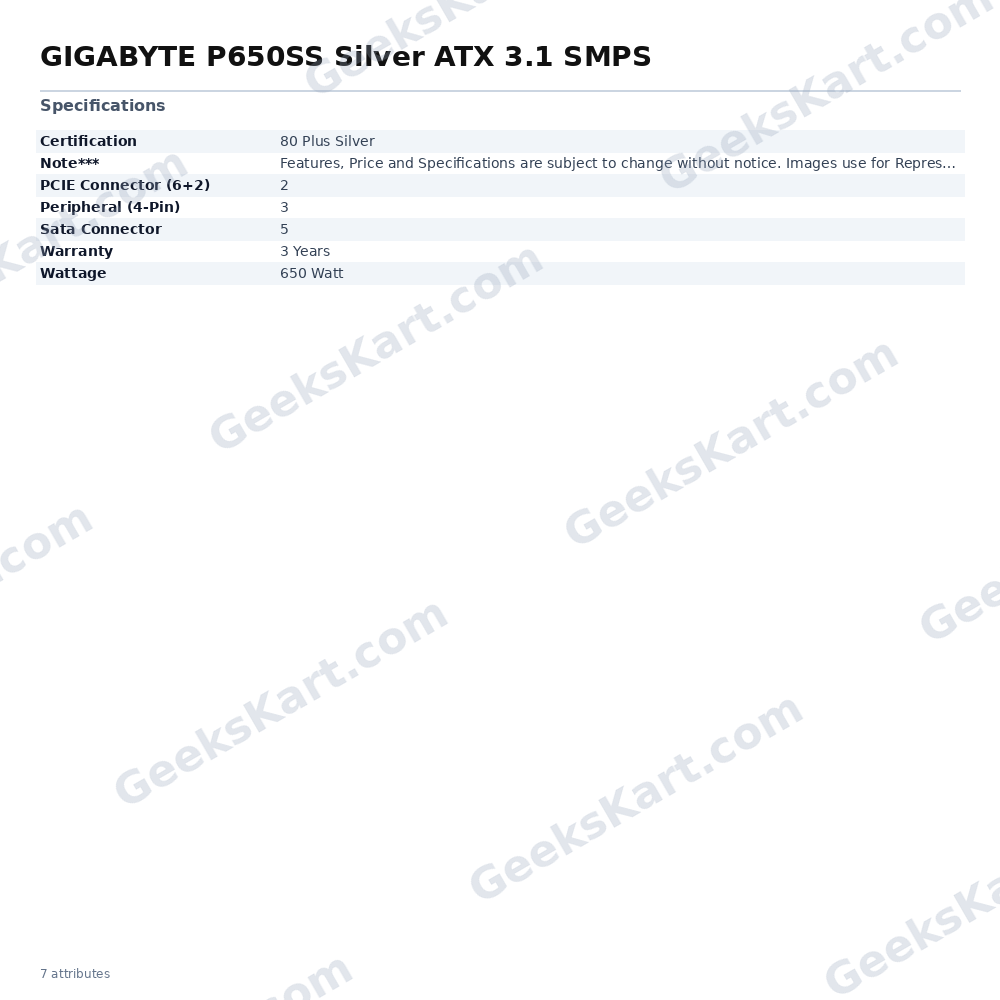

GIGABYTE P650SS Silver ATX 3.1 SMPS

The GIGABYTE P650SS is a 650-watt ATX 3.1-compliant power supply designed for modern desktop builds that demand reliable, efficient power delivery. Certified 80 Plus Silver (230V EU), it achieves up to 90% efficiency at 50% load, reducing wasted energy, lowering heat output, and keeping acoustic levels in check during everyday use. Full compliance with Intel's ATX 3.1 Power Supply Design Guide means the P650SS can handle up to 200% power excursion events — spikes that occur when a modern GPU suddenly demands a large burst of power. This makes it a practical choice for systems equipped with current-generation graphics cards that draw transient peak loads well above their sustained TDP. The unit also meets the 70% low-load efficiency threshold and adheres to the timing standards specified in the ATX 3.1 specification. A 120mm Fluid Dynamic Bearing (FDB) fan sits at the heart of the thermal management system. FDB technology uses an oil-film shock-absorption mechanism that reduces friction, lowers noise output compared to conventional sleeve-bearing fans, and extends operational lifespan to more than twice that of standard sleeve fans. The fan automatically scales its speed in response to system load and internal temperature, so the PSU remains quiet during light workloads and ramps up only when necessary. The flat cable design keeps interior airflow unobstructed and makes cable routing tidier inside ATX and Micro-ATX chassis. A single high-amperage +12V rail distributes power to connected components with minimal voltage drop across the rail. Six independent hardware protection circuits — Over-Current Protection (OCP), Over-Temperature Protection (OTP), Over-Voltage Protection (OVP), Over-Power Protection (OPP), Under-Voltage Protection (UVP), and Short-Circuit Protection (SCP) — continuously monitor the system and cut power automatically if an unsafe condition is detected, protecting your GPU, CPU, storage drives, and motherboard. Verified Specifications: - Rated Output Power: 650 W - Efficiency Certification: 80 Plus Silver (230V EU) - ATX Standard: Intel ATX 3.1 - Fan: 120mm Fluid Dynamic Bearing (FDB) - Rail Configuration: Single +12V rail - PCIe Connectors: 2 × (6+2)-pin - SATA Connectors: 5 - Peripheral (4-pin) Connectors: 3 - Protection: OCP, OTP, OVP, OPP, UVP, SCP - Cable Style: Flat (non-modular) - Warranty: 3 Years
