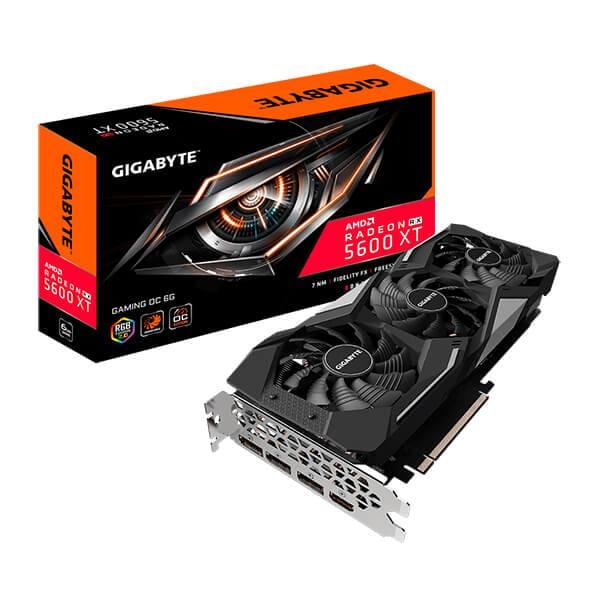

Features of GIGABYTE Radeon RX 5600 XT Gaming OC 6GB AMD Graphic Card
- Powered by GIGABYTE Radeon RX 5600 XT Gaming OC 6GB AMD graphics card for pc
- Integrated with 6GB GDDR6 192-bit memory interface
- WINDFORCE 3X Cooling System with alternate spinning fans
- RGB Fusion 2.0 – 16.7M colors synchronize with other AORUS devices
- Metal Back Plate
- PCI-Express 4.0 Support
WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning fan, 5 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
ALTERNATE SPINNING
The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of three fans. The biggest problem with the three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
HEAT PIPES DIRECT TOUCH GPU
The shape of the pure copper heat pipes maximize the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal plate contact to ensure proper cooling.
COMPOSITE HEAT-PIPE
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.game in style

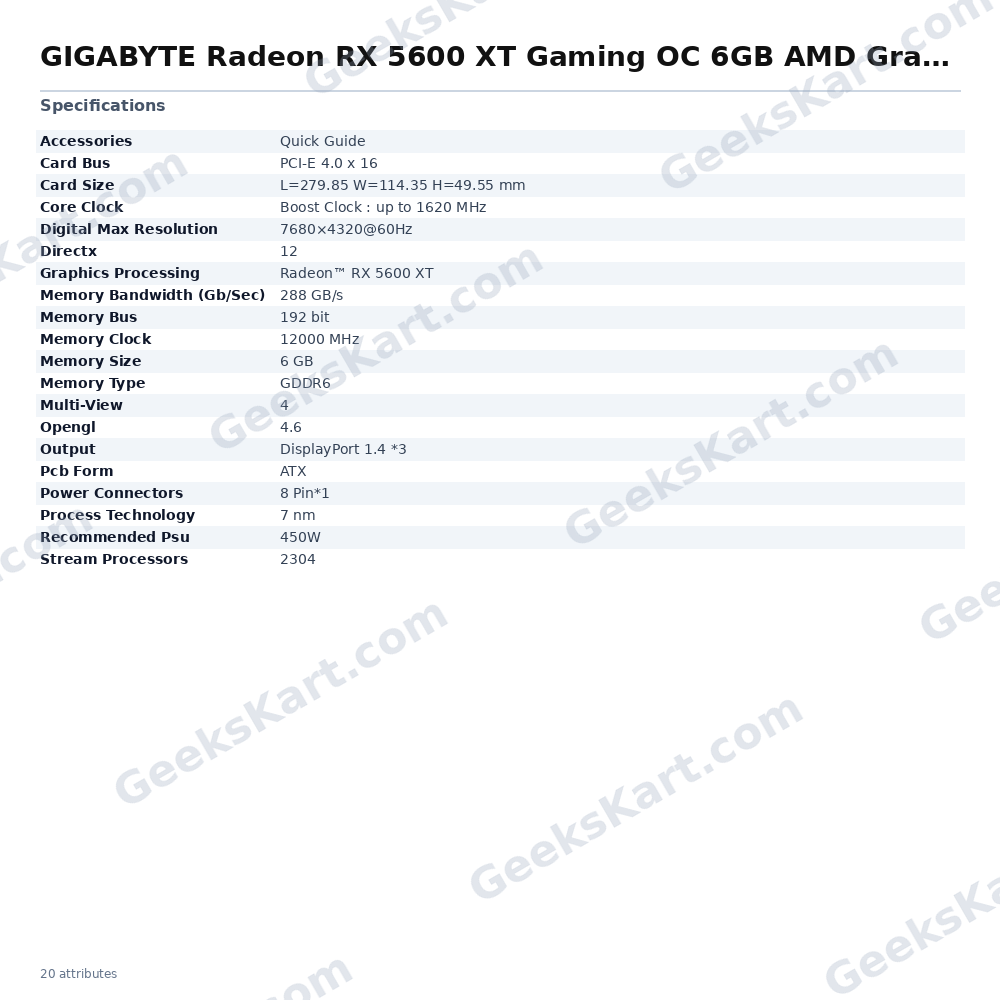

Specifications of GIGABYTE Radeon RX 5600 XT Gaming OC 6GB AMD Graphic Card
| Graphics Processing | Radeon™ RX 5600 XT |
| Core Clock | Boost Clock: up to 1620 MHz |
| Game Clock*: 1560 MHz | |
| Stream Processors | 2304 |
| Process Technology | 7 nm |
| Memory Clock | 12000 MHz |
| Memory Size | 6 GB |
| Memory Type | GDDR6 |
| Memory Bus | 192 bit |
| Memory Bandwidth (GB/sec) | 288 GB/s |
| Card Bus | PCI-E 4.0 x 16 |
| Digital max resolution | 7680×4320@60Hz |
| Multi-view | 4 |
| Card size | L=279.85 W=114.35 H=49.55 mm |
| PCB Form | ATX |
| DirectX | 12 |
| OpenGL | 4.6 |
| Recommended PSU | 450W |
| Power Connectors | 8 Pin*1 |
| Output | DisplayPort 1.4 *3 |
| HDMI 2.0b *1 | |
| Accessories | Quick Guide |
| Note | *Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. |
