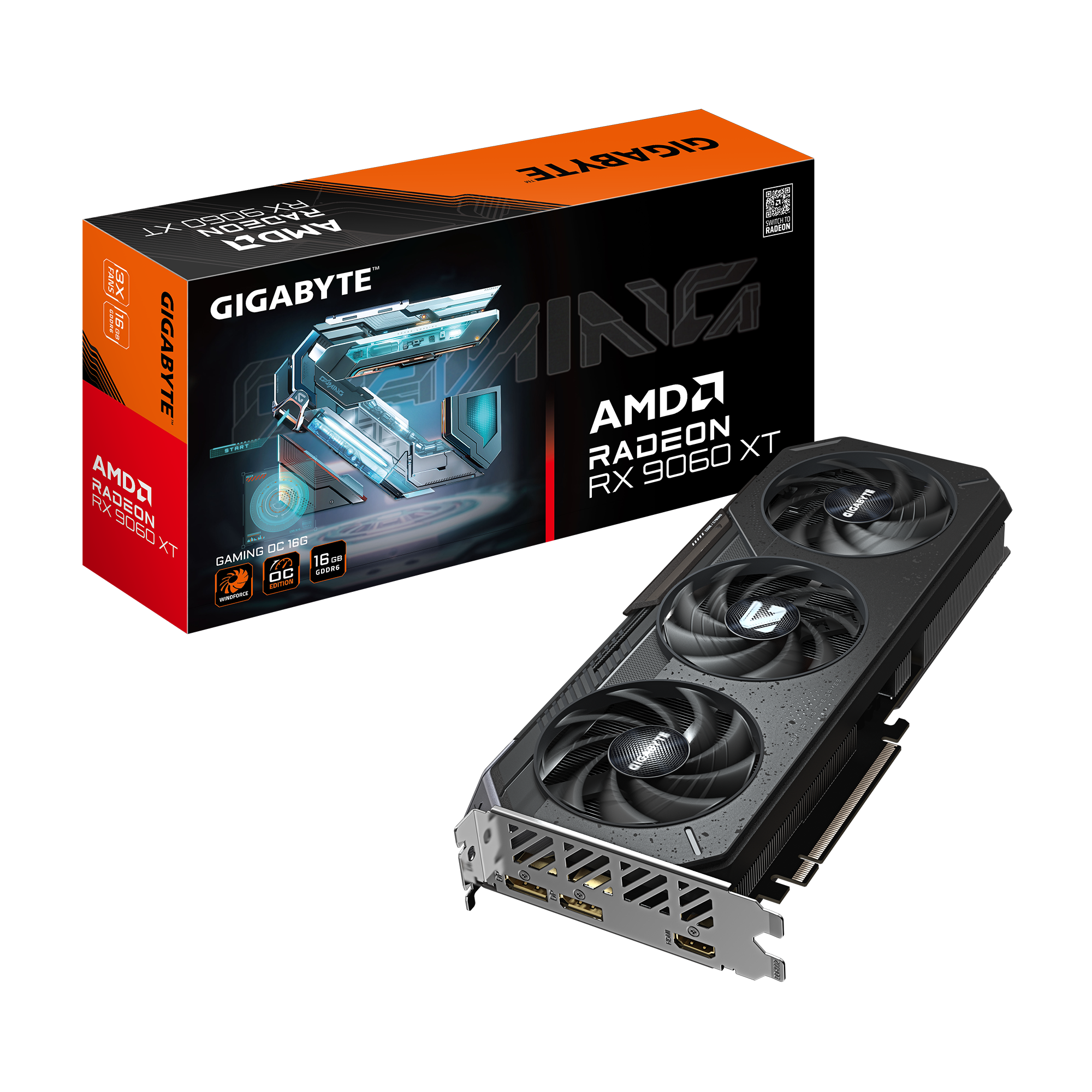

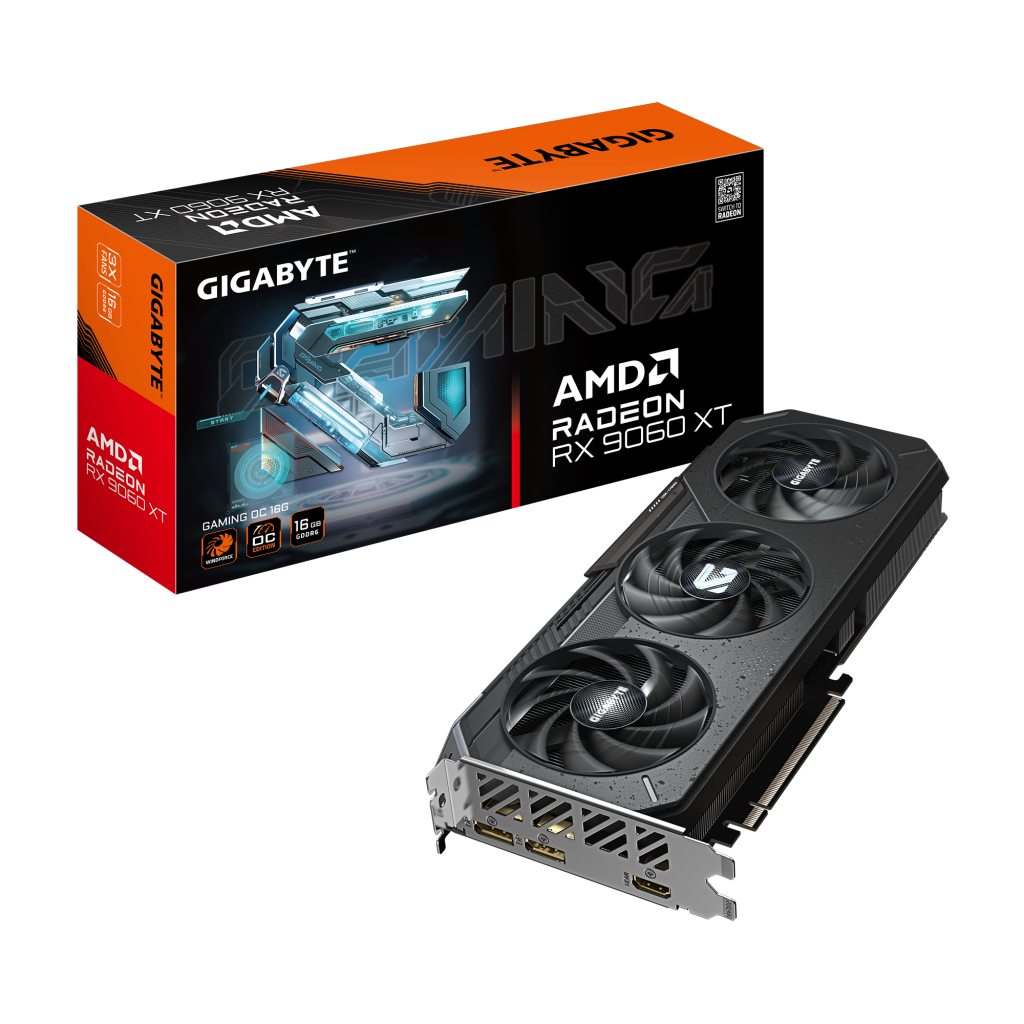

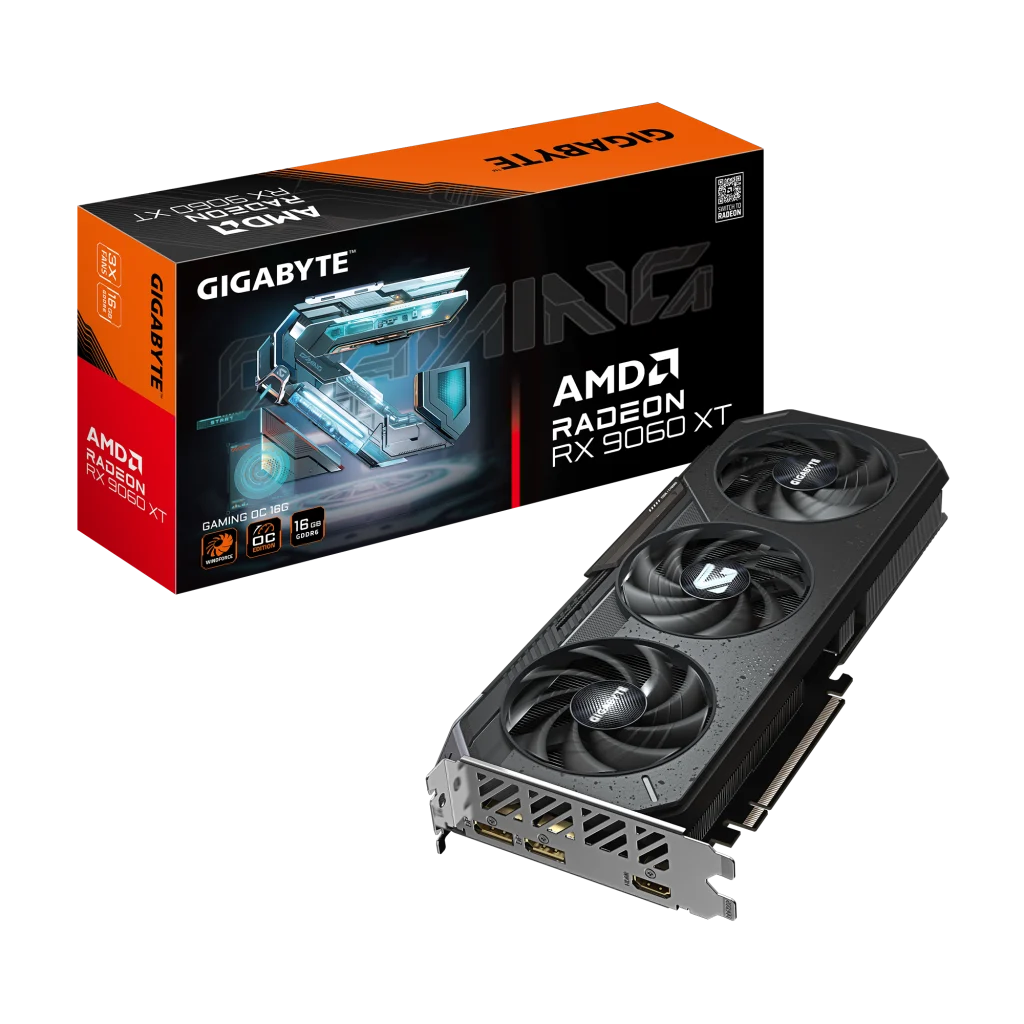

GIGABYTE Radeon RX 9060 XT Gaming OC 16GB AMD Graphic Card

The GIGABYTE Radeon RX 9060 XT Gaming OC 16GB (model GV-R9060XTGAMING-OC-16GD) is a factory-overclocked AMD graphics card built around the Radeon RX 9060 XT GPU. With a boost clock of up to 3320 MHz — compared to the reference card’s 3130 MHz — and a game clock of up to 2780 MHz versus the reference 2530 MHz, this OC variant delivers measurably higher sustained frequencies out of the box. The card carries 16 GB of GDDR6 memory running at 20 Gbps across a 128-bit bus, and it connects to the motherboard over a PCI Express 5.0 x16 slot. Cooling is handled by GIGABYTE’s WINDFORCE system, which combines a large vapor chamber in direct contact with the GPU die, composite copper heat pipes, and three Hawk fans featuring an eagle-wing-inspired blade profile. GIGABYTE states this blade geometry produces up to a 53.6% increase in air pressure and a 12.5% increase in air volume relative to a conventional design. Adjacent fans spin in alternating directions to reduce turbulence and boost static pressure. The 3D Active Fan feature allows all three fans to stop entirely under light or idle loads, cutting noise at the desktop. Sleeve bearings are treated with graphene nano lubricant, which GIGABYTE says extends bearing life by approximately 2.1 times compared to an untreated sleeve bearing. Server-grade thermal conductive gel — rather than conventional thermal pads — is applied to the VRAM and MOSFETs for consistent contact even after transport or extended use. The exterior follows GIGABYTE’s mech-warrior-inspired GAMING aesthetic: a multi-layered shroud with varied surface textures, a sliding side plate for build customisation, and a reinforced metal backplate with bent edge secured to the I/O bracket. RGB lighting supports 16.7 million colour options and can be synchronised through GIGABYTE CONTROL CENTER. A dual-BIOS switch lets users toggle between Performance mode (factory default) and Silent mode. A power indicator light flashes when a PSU abnormality is detected. Display outputs comprise two DisplayPort 2.1a and one HDMI 2.1b port, supporting up to three simultaneous monitors at a digital maximum resolution of 7680 × 4320. The card conforms to DirectX 12 API and OpenGL 4.6 and requires a single 8-pin power connector with a 450 W recommended PSU. Verified Specifications: – GPU: Radeon RX 9060 XT | Stream Processors: 2048 – Boost Clock: up to 3320 MHz (Reference: 3130 MHz) – Game Clock: up to 2780 MHz (Reference: 2530 MHz) – Memory: 16 GB GDDR6, 20 Gbps, 128-bit bus – Interface: PCI-E 5.0 – Outputs: 2× DisplayPort 2.1a, 1× HDMI 2.1b – Max Resolution: 7680 × 4320 – Multi-display: up to 3 – Card dimensions: 281 × 118 × 40 mm – Power connector: 1× 8-pin | Recommended PSU: 450 W – DirectX 12 API | OpenGL 4.6 – Model number: GV-R9060XTGAMING-OC-16GD
