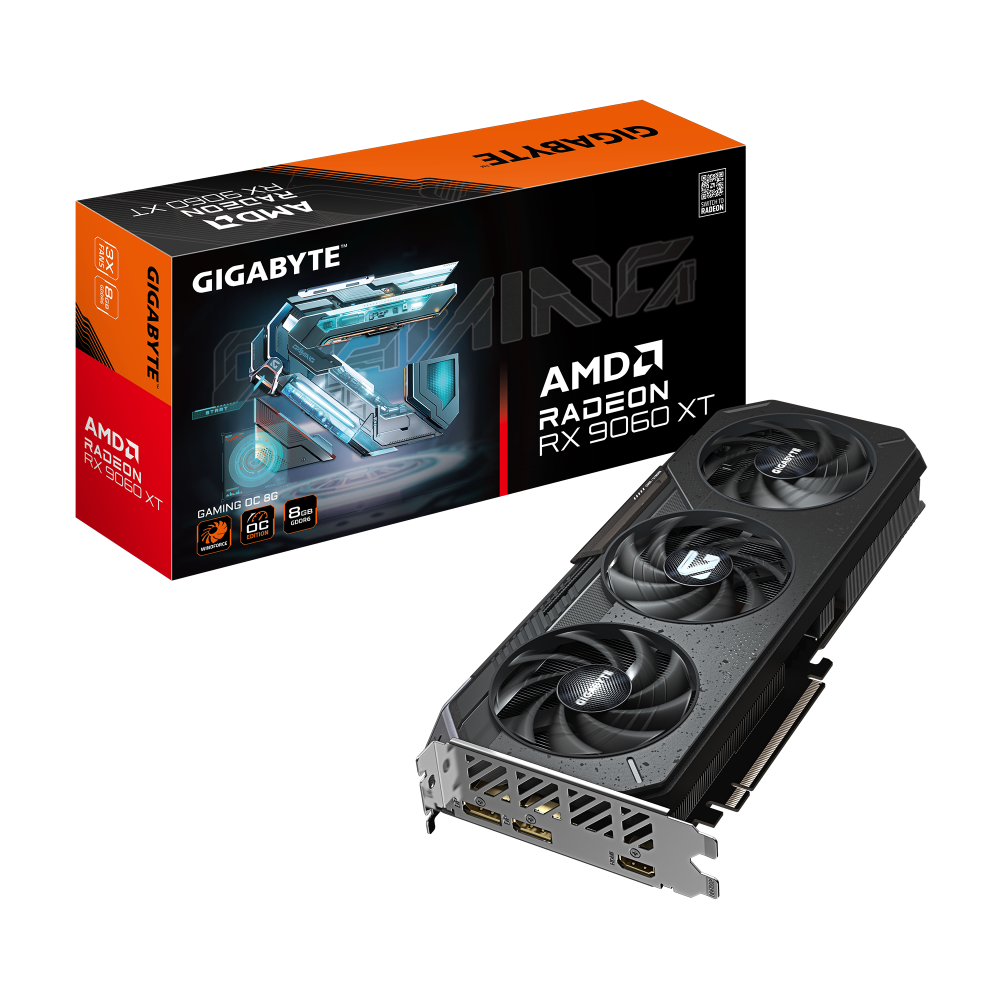

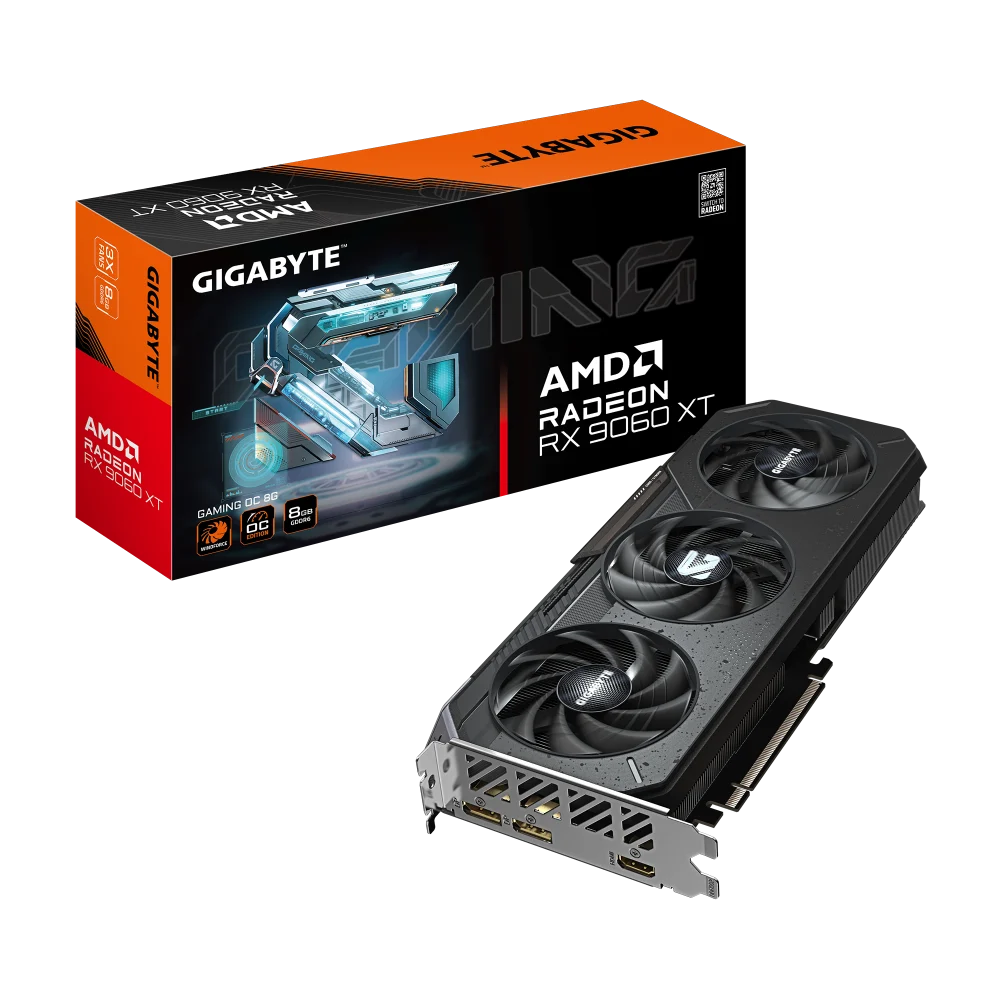

GIGABYTE Radeon RX 9060 XT Gaming OC 8GB AMD Graphic Card

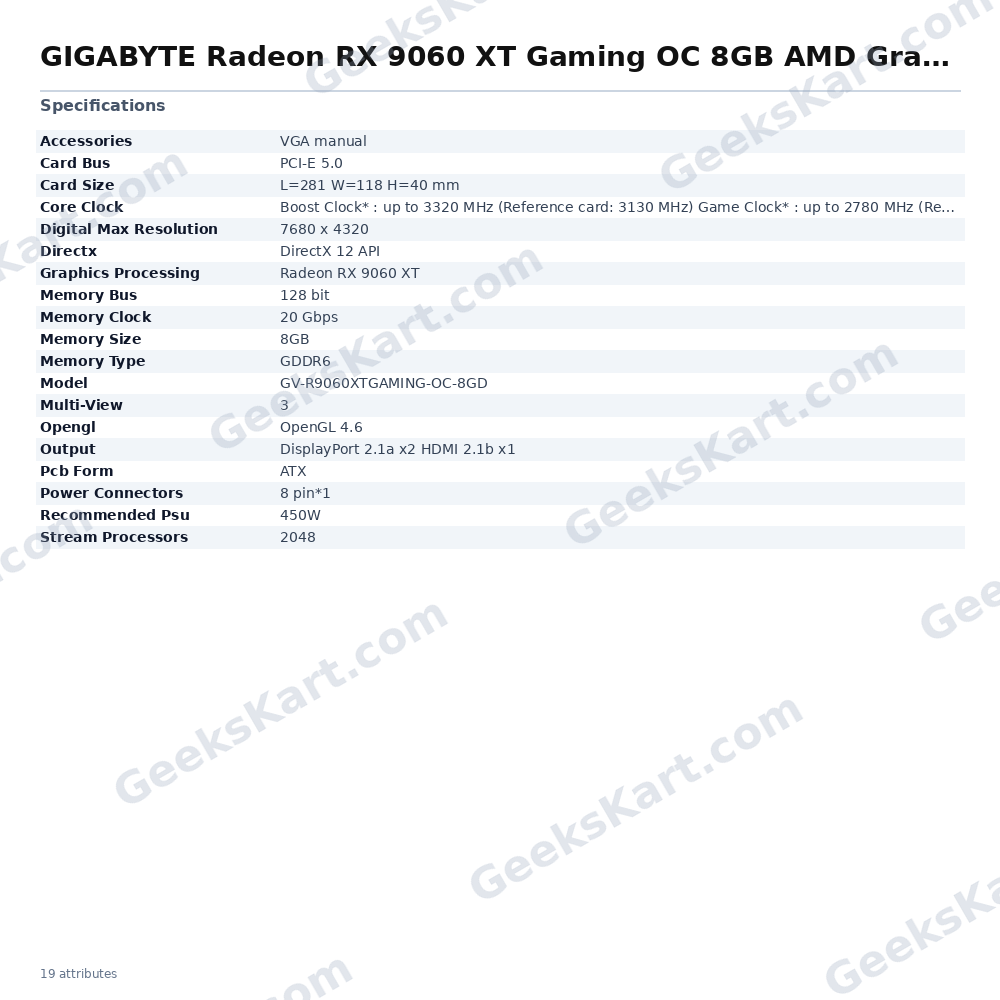

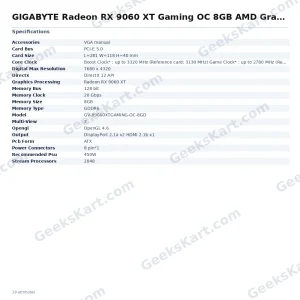

The GIGABYTE Radeon RX 9060 XT Gaming OC 8GB (model GV-R9060XTGAMING-OC-8GD) is a mid-range AMD graphics card built on the Radeon RX 9060 XT GPU, designed for gamers who want a factory-overclocked board with a robust thermal solution at a competitive price point. Powered by 2048 stream processors and paired with 8 GB of GDDR6 memory running at 20 Gbps across a 128-bit bus, the card delivers smooth framerates in modern titles while keeping power demands manageable — a 450 W PSU is all that is required, with a single 8-pin power connector. At the heart of the cooling solution is GIGABYTE’s WINDFORCE system. Three Hawk fans — featuring blade geometry inspired by raptor-wing aerodynamics — use alternate-spin technology to reduce inter-fan turbulence and improve static pressure. A large vapor chamber sits in direct contact with the GPU die, while composite copper heat pipes draw heat outward to the extended heatsink, which also benefits from screen-cooling vents that allow through-flow airflow. The 3D Active Fan feature keeps all three fans off under light loads for silent desktop use. Bearing longevity is addressed with graphene nano lubricant applied to the sleeve bearings, reportedly extending their service life to nearly that of a dual-ball bearing. Server-grade thermal conductive gel — rather than conventional thermal pads — covers VRAM and MOSFET surfaces to ensure optimal contact even across uneven component topographies. The board carries a Dual BIOS switch allowing users to toggle between Performance mode (factory default, higher clocks) and Silent mode (reduced acoustics). A reinforced metal backplate with bent-edge construction and I/O bracket fastening adds structural rigidity. RGB lighting offers 16.7 million colour options and is synchronisable through GIGABYTE CONTROL CENTER. A sliding side plate lets builders personalise the aesthetic further. Connectivity is provided by two DisplayPort 2.1a outputs and one HDMI 2.1b port, supporting up to three simultaneous displays at a digital maximum resolution of 7680 × 4320. The card connects via PCI Express 5.0 and conforms to the ATX PCB standard with physical dimensions of 281 × 118 × 40 mm. Verified Specifications: • GPU: Radeon RX 9060 XT | Stream Processors: 2048 • Boost Clock: up to 3320 MHz (Ref: 3130 MHz) | Game Clock: up to 2780 MHz (Ref: 2530 MHz) • Memory: 8 GB GDDR6, 20 Gbps, 128-bit bus • Interface: PCI-E 5.0 | Power Connector: 1 × 8-pin | Recommended PSU: 450 W • Outputs: DisplayPort 2.1a × 2, HDMI 2.1b × 1 | Max Resolution: 7680 × 4320 • Dimensions: L 281 × W 118 × H 40 mm | DirectX 12 | OpenGL 4.6
