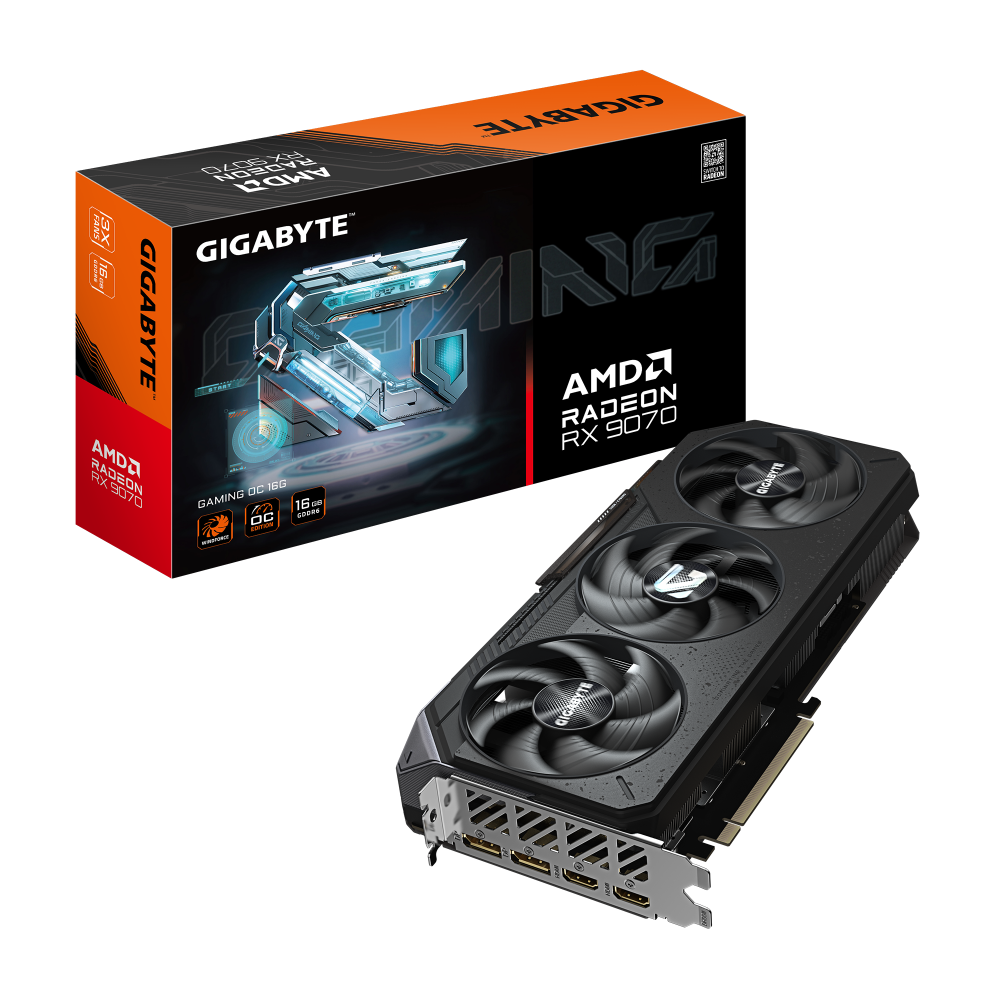

Features of GIGABYTE Radeon RX 9070 Gaming OC 16GB AMD Graphic Card
- Powered by Radeon RX 9070
- Integrated with 16GB GDDR6 256bit memory interface
- WINDFORCE cooling system
- RGB Lighting
- Dual BIOS (Performance / Silent)
- Reinforced structure
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.
HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle’s wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
LARGE COPPER PLATE & COMPOSITE COPPER HEAT PIPE
The large copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
ASTONISHING EXTERIOR DESIGN
The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.
REINFORCED STRUCTURE
The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.
MULTI-LAYERED VISUAL
Like armor, the exterior features a multi-layered structure combined with varied surface material finishes.
UNIQUE TEXTURE
Unique textures cover the curved surface, paired with the layering of appreance that give the GAMING design a strong armor-like identity. Every detail highlights a sturdy image and accentuates mechanical aesthetics.
RGB LIGHTING
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
SLIDING SIDE PLATE
Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style.

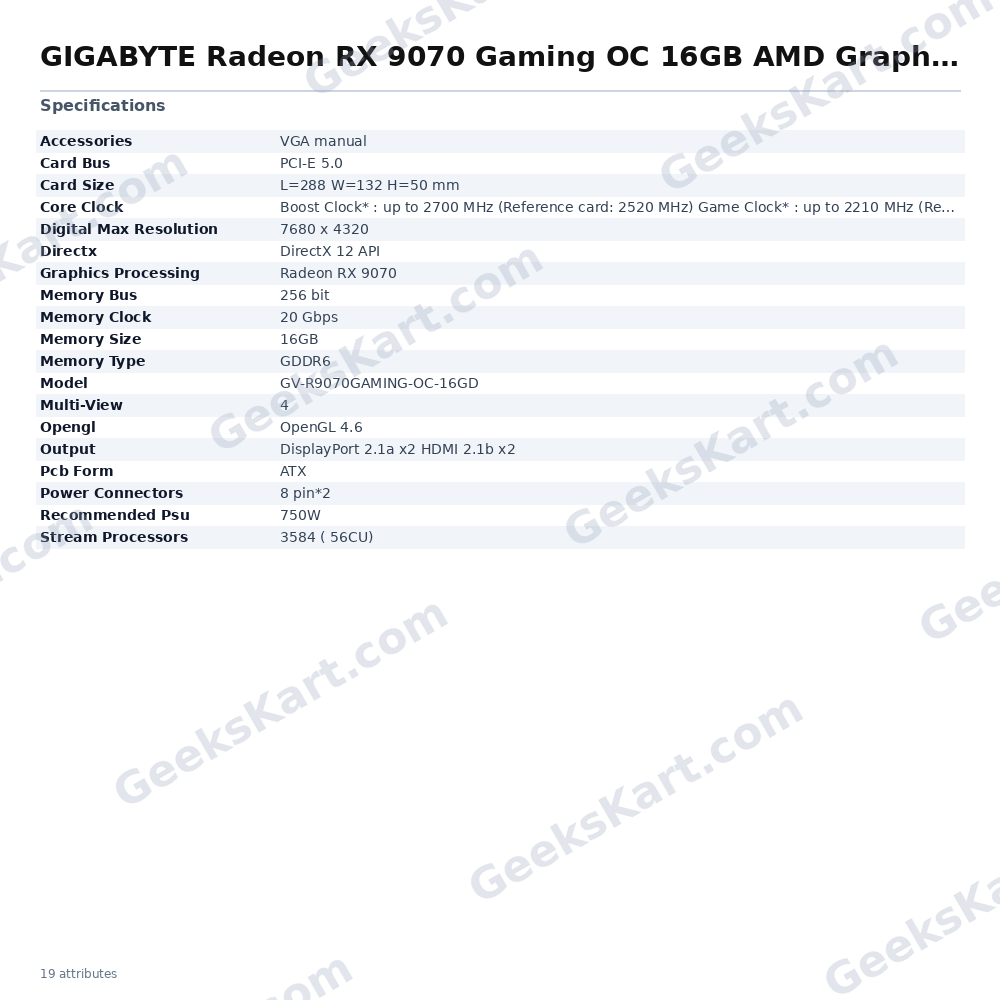

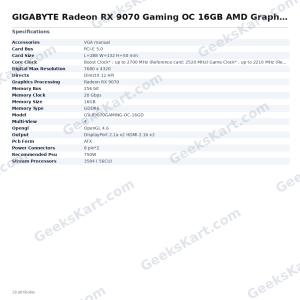

Specifications of GIGABYTE Radeon RX 9070 Gaming OC 16GB AMD Graphic Card
| Model No | GV-R9070GAMING-OC-16GD |
| Graphics Processing | Radeon RX 9070 |
| Core Clock | Boost Clock*: up to 2700 MHz (Reference card: 2520 MHz) Game Clock*: up to 2210 MHz (Reference card: 2070 MHz) |
| Stream Processors | 3584 ( 56CU) |
| Memory Clock | 20 Gbps |
| Memory Size | 16GB |
| Memory Type | GDDR6 |
| Memory Bus | 256 bit |
| Card Bus | PCI-E 5.0 |
| Digital max resolution | 7680 x 4320 |
| Multi-view | 4 |
| Card size | L=288 W=132 H=50 mm |
| PCB Form | ATX |
| DirectX | DirectX 12 API |
| OpenGL | OpenGL 4.6 |
| Recommended PSU | 750W |
| Power Connectors | 8 pin*2 |
| Output | DisplayPort 2.1a x2 HDMI 2.1b x2 |
| Accessories | VGA manual |
