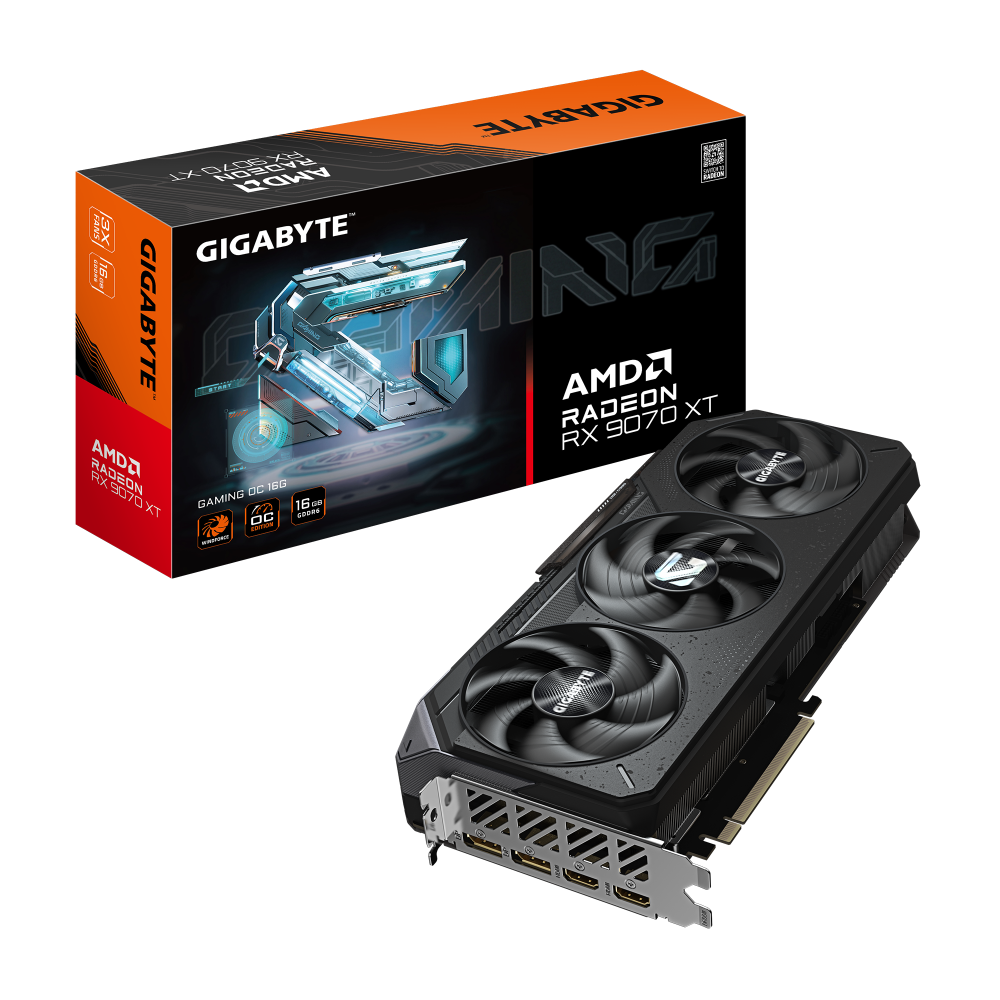

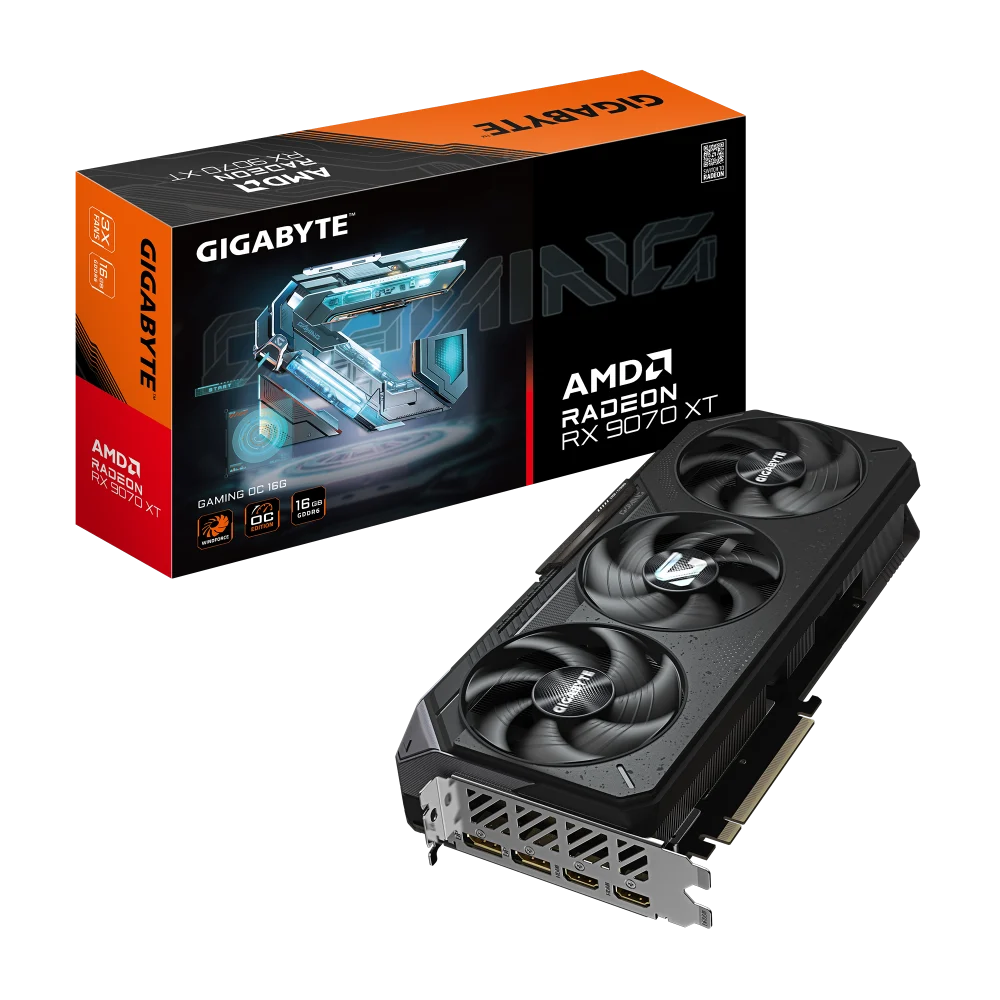

GIGABYTE Radeon RX 9070 XT Gaming OC 16GB AMD Graphic Card

The GIGABYTE Radeon RX 9070 XT Gaming OC 16GB (model GV-R9070XTGAMING-OC-16GD) is a high-performance desktop graphics card built on AMD’s RDNA 4 architecture. Powered by the Radeon RX 9070 XT GPU, it features 4096 stream processors and 16 GB of GDDR6 memory running at 20 Gbps across a 256-bit bus, delivering the bandwidth needed for smooth gameplay at high resolutions up to 7680×4320. GIGABYTE’s factory overclock pushes the boost clock to up to 3060 MHz — compared to the reference card’s 2970 MHz — while the typical game clock reaches up to 2520 MHz versus the reference 2400 MHz. The card connects via a PCI Express 5.0 x16 slot and outputs video through two DisplayPort 2.1a and two HDMI 2.1b ports, supporting up to four simultaneous displays. Thermal management is handled by GIGABYTE’s WINDFORCE cooling system, which combines a large vapor chamber in direct contact with the GPU die, composite copper heat pipes, and three Hawk fans with alternate spinning. The Hawk fans use a blade profile designed to reduce air resistance, and the alternate-spin arrangement reduces inter-fan turbulence to improve airflow pressure. During light workloads, the 3D Active Fan feature allows all fans to stop entirely for silent operation. Server-grade thermal conductive gel — rather than conventional thermal pads — is applied to VRAM and MOSFET components to maintain reliable contact over time. Graphene nano lubricant in the fan bearings is specified to extend sleeve-bearing lifespan. The card ships with a Dual BIOS switch offering Performance and Silent modes, a power indicator LED that alerts users to power supply irregularities, RGB lighting with 16.7 million colour options controllable via GIGABYTE CONTROL CENTER, and a sliding side plate for build customisation. A reinforced metal backplate with a bent edge provides structural rigidity. On the software side, the card supports AMD HYPR-RX, AMD FidelityFX Super Resolution 4, AMD Fluid Motion Frames 2, AMD Radeon Anti-Lag, AMD Radeon Boost, and AMD Smart Access Memory when paired with a compatible AM5 platform. API support includes DirectX 12 and OpenGL 4.6. Verified Specifications: – Model: GV-R9070XTGAMING-OC-16GD – GPU: AMD Radeon RX 9070 XT (RDNA 4) – Stream Processors: 4096 – Memory: 16 GB GDDR6, 256-bit bus, 20 Gbps – Boost Clock: up to 3060 MHz (Ref: 2970 MHz) – Game Clock: up to 2520 MHz (Ref: 2400 MHz) – Interface: PCI-E 5.0 – Outputs: 2× DisplayPort 2.1a, 2× HDMI 2.1b – Max Resolution: 7680×4320 – Multi-display: up to 4 – Power Connectors: 3× 8-pin – Recommended PSU: 850 W – Card Dimensions: 288 × 132 × 56 mm – PCB Form: ATX – DirectX: 12 | OpenGL: 4.6
