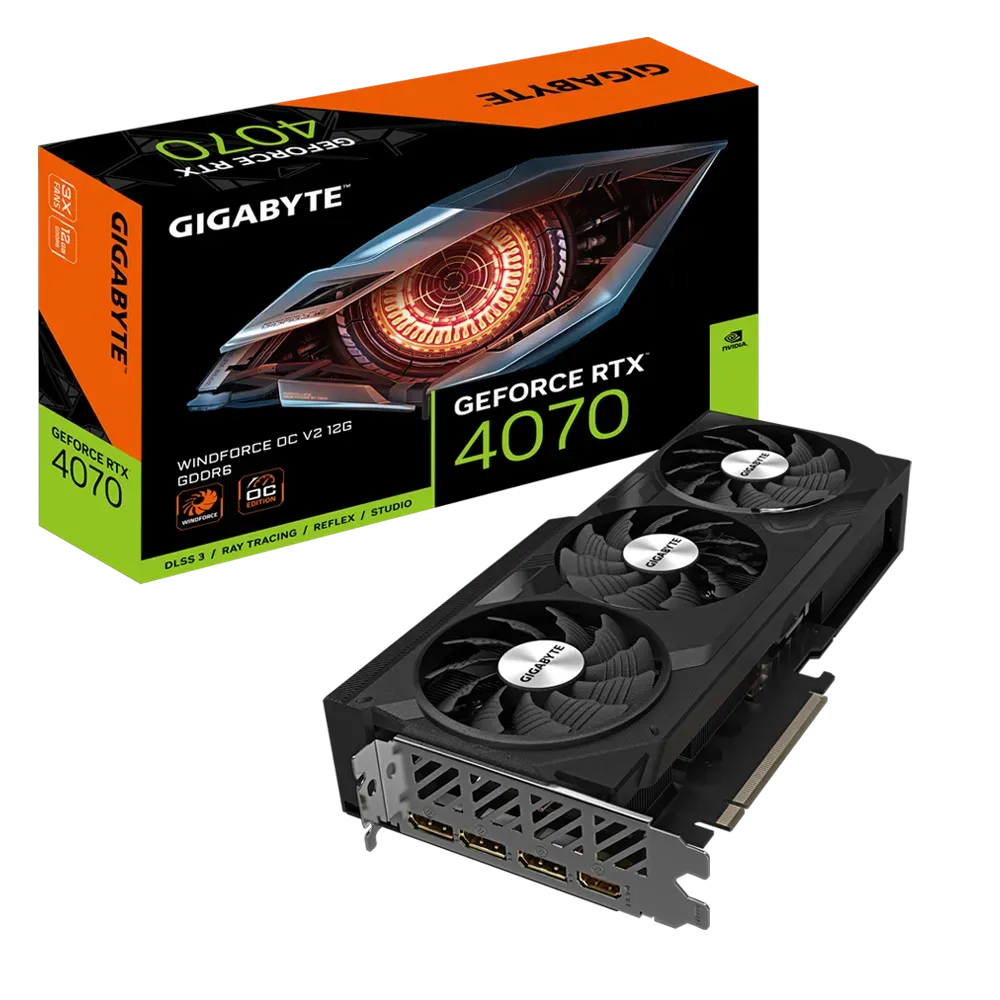

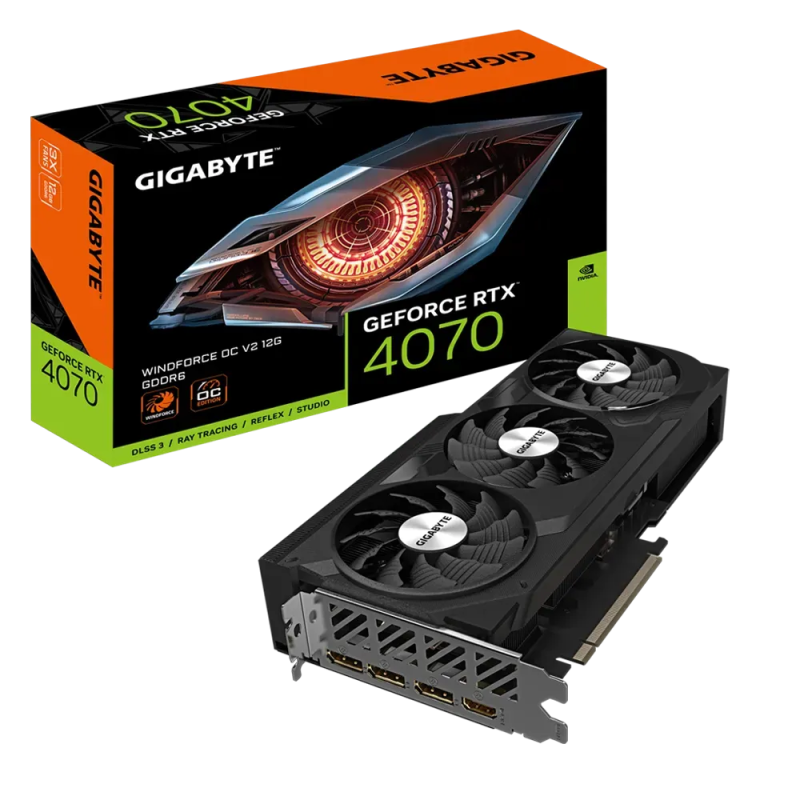

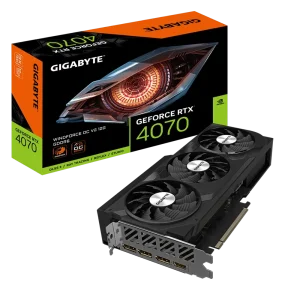

GIGABYTE RTX 4070 Windforce 3X OC V2 12GB NVIDIA Graphic Cards
MPN GIGABYTE-RTX-4070-WINDFORCE-3X · Brand Gigabyte
Features of GIGABYTE RTX 4070 Windforce 3X OC V2 12GB NVIDIA Graphic Cards Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering 3rd Generation RT Cores: Up to 2X ray tracing performance Powered by GeForce RTX™ 4070 Integrated with 12GB GDDR6 192-bit memory interface WINDFORCE cooling system Protection metal back plate The WINDFORCE cooling system features three 80mm unique blade f
Inclusive of GST · GST invoice available
Overview
Features of GIGABYTE RTX 4070 Windforce 3X OC V2 12GB NVIDIA Graphic Cards
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4070
- Integrated with 12GB GDDR6 192-bit memory interface
- WINDFORCE cooling system
- Protection metal back plate
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
Reduce the turbulence of adjacent fans and increase airflow pressure.
Extended heatsink allows air to pass through, providing better heat dissipation.
The shape of the copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

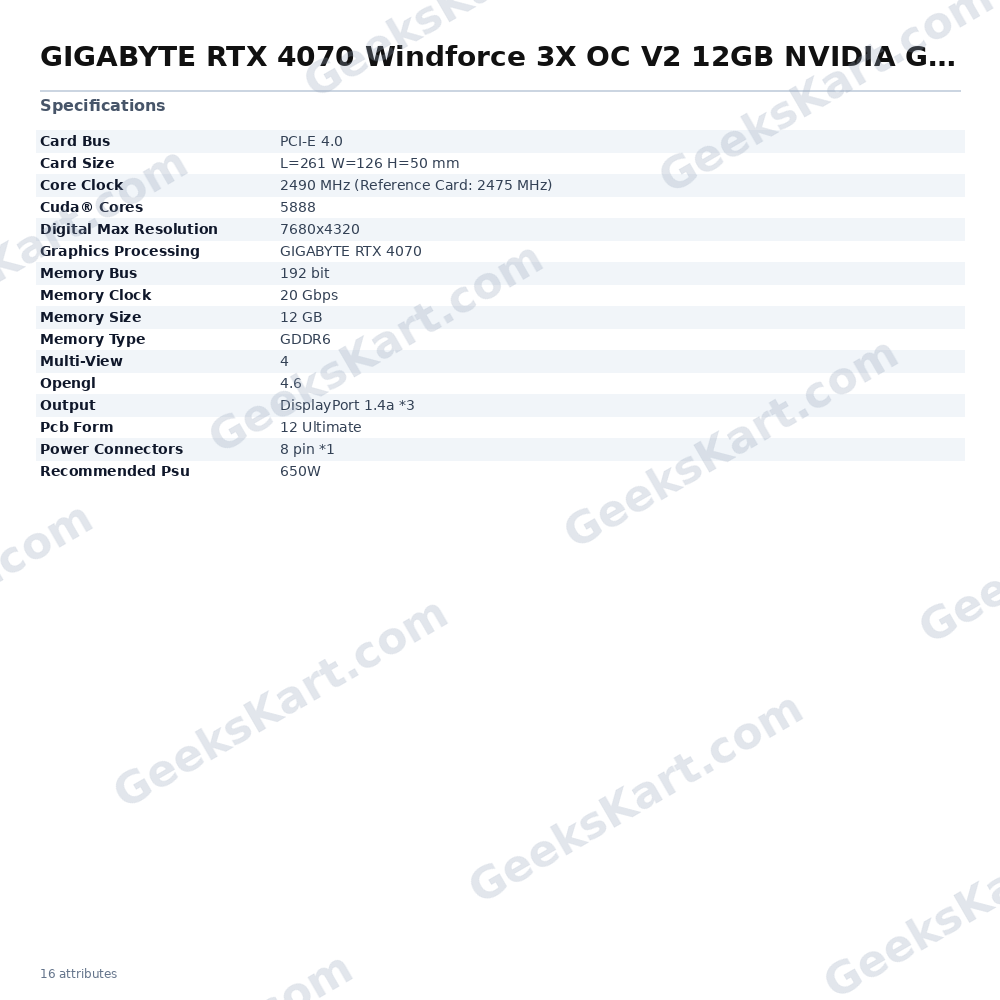

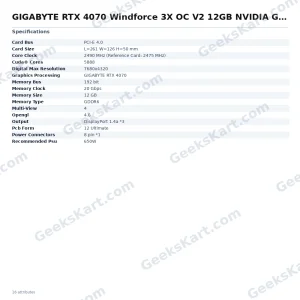

Specification of GIGABYTE RTX 4070 Windforce 3X OC V2 12GB NVIDIA Graphic Cards
| Graphics Processing | GIGABYTE RTX 4070 |
| Core Clock | 2490 MHz (Reference Card: 2475 MHz) |
| CUDA® Cores | 5888 |
| Memory Clock | 20 Gbps |
| Memory Size | 12 GB |
| Memory Type | GDDR6 |
| Memory Bus | 192 bit |
| Card Bus | PCI-E 4.0 |
| Digital max resolution | 7680x4320 |
| Multi-view | 4 |
| Card size | L=261 W=126 H=50 mm |
| PCB Form | 12 Ultimate |
| DirectX | |
| OpenGL | 4.6 |
| Recommended PSU | 650W |
| Power Connectors | 8 pin *1 |
| Output | DisplayPort 1.4a *3 |
Datasheet
| Opengl | 4.6 |
|---|---|
| Output | DisplayPort 1.4a *3 |
| Card Bus | PCI-E 4.0 |
| Pcb Form | 12 Ultimate |
| Card Size | L=261 W=126 H=50 mm |
| Core Clock | 2490 MHz (Reference Card: 2475 MHz) |
| Memory Bus | 192 bit |
| Multi-View | 4 |
| Cuda® Cores | 5888 |
| Power Connectors | 8 pin *1 |
| Graphics Processing | GIGABYTE RTX 4070 |
| Digital Max Resolution | 7680×4320 |
| Memory Type | GDDR6 |
| Memory Size | 12 GB |
| Memory Clock | 20 Gbps |
| Recommended PSU | 650W |
