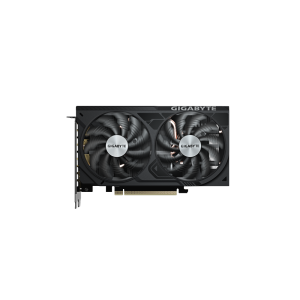

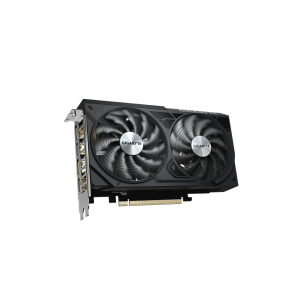

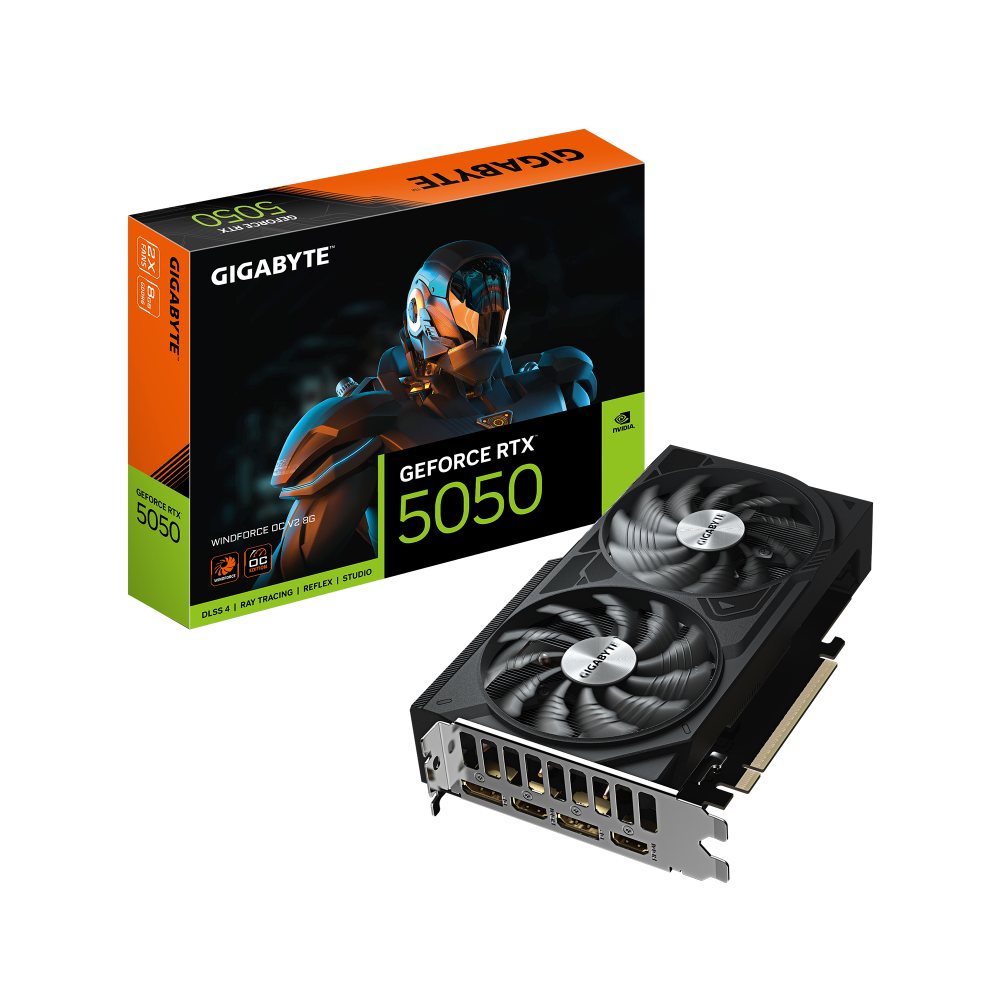

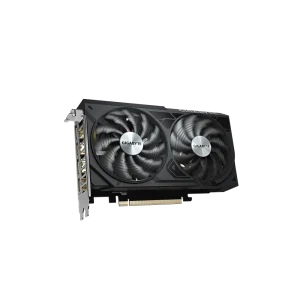

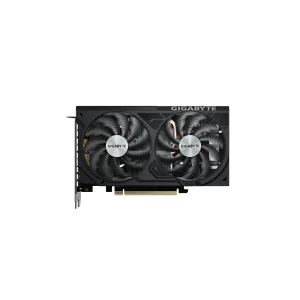

Gigabyte RTX 5050 Windforce OC V2 8GB GDDR6 Graphics Card

The GIGABYTE GeForce RTX 5050 Windforce OC V2 (model GV-N5050WF2OCV2-8GD) is a compact, feature-rich graphics card built on the NVIDIA Blackwell architecture and supporting DLSS 4.5 for sharper, AI-accelerated visuals in compatible titles. At its heart sits the GeForce RTX 5050 GPU with 2,560 CUDA cores running at an OC factory boost of 2,587 MHz—15 MHz above the 2,572 MHz reference specification—giving a modest but tangible out-of-the-box performance edge without requiring manual tuning. The card ships with 8 GB of GDDR6 memory operating at 20 Gbps across a 128-bit bus, delivering up to 320 GB/s of memory bandwidth. It connects via a PCI Express 5.0 slot and supports up to four displays simultaneously at digital resolutions as high as 7680×4320 (8K). Display outputs consist of two DisplayPort 2.1b and two HDMI 2.1b ports, ensuring compatibility with the latest high-refresh and high-resolution panels. GIGABYTE's WINDFORCE cooling system is the centrepiece of the thermal design. Two 90 mm unique-blade fans spin in alternating directions to reduce turbulence and raise static pressure, working in concert with three composite copper heat pipes that make direct contact with the GPU die for efficient heat transfer. The heat pipes also reach across the VRAM via a metal plate, keeping memory temperatures in check under sustained workloads. An extended heatsink with screen-cooling vents allows airflow to pass through the structure rather than being deflected. The 3D Active Fan feature enables a semi-passive mode in which the fans stop entirely during light loads and low-power scenes, reducing system noise. Fan longevity is addressed with graphene nano lubricant on the sleeve bearings, extending their rated life approximately 2.1 times compared to unlubricared sleeve bearings. The card measures 201 mm × 120 mm × 41 mm (L×W×H) on an ATX PCB, making it compatible with most mid-tower and full-tower cases. Power is drawn through a single 8-pin connector, and GIGABYTE recommends a minimum 550 W power supply unit. Build quality is reinforced by a backplate fastened to the I/O bracket and a fully automated PCB production process that eliminates sharp solder protrusions. GIGABYTE CONTROL CENTER (GCC) software provides real-time control over clock speed, voltage, fan mode, and power target. A 3-year warranty covers the product. Verified Specifications: - GPU: NVIDIA GeForce RTX 5050 (Blackwell architecture) - CUDA Cores: 2,560 - Boost Clock: 2,587 MHz (Reference: 2,572 MHz) - Memory: 8 GB GDDR6 - Memory Speed: 20 Gbps - Memory Bus: 128-bit - Interface: PCI Express 5.0 - Outputs: 2× DisplayPort 2.1b, 2× HDMI 2.1b - Max Resolution: 7680×4320 - Max Displays: 4 - Power Connector: 1× 8-pin - Recommended PSU: 550 W - Card Dimensions: 201 × 120 × 41 mm - DirectX: 12 API | OpenGL: 4.6 - Warranty: 3 Years
