Gigabyte RX 9060 XT Gaming OC 8GB GDDR6 Graphics Card
MPN GV-R9060XTGAMING-OC-8GD · Brand GIGABYTE
The Gigabyte Radeon RX 9060 XT Gaming OC 8GB delivers factory-overclocked AMD RDNA performance with WINDFORCE triple-fan cooling, 2048 stream processors, and PCIe 5.0 connectivity for smooth 1080p and 1440p gaming
Inclusive of GST · GST invoice available
Overview
The Gigabyte Radeon RX 9060 XT Gaming OC 8GB is a mid-range graphics card built on AMD's Radeon RX 9060 XT GPU, targeted at 1080p and 1440p gaming enthusiasts. Featuring the WINDFORCE triple-fan cooling system, this card uses Hawk fans with alternate-spinning blades to reduce turbulence, supported by composite copper heat pipes, a direct-contact copper plate, and server-grade thermal conductive gel for efficient heat transfer. The 3D active fan technology allows fans to stop entirely during light workloads, keeping the system quieter when the GPU is under minimal stress. The card ships with an out-of-the-box factory overclock, pushing the boost clock up to 3320 MHz compared to the reference specification of 3130 MHz, while the game clock reaches up to 2780 MHz versus the reference 2530 MHz. These clocks are enabled through Gigabyte's Gaming OC tuning and can be further adjusted via GIGABYTE Control Center software. On the aesthetic side, the Gaming OC series adopts a mech-warrior-inspired exterior with a multi-layered armour design, unique textured surface finishes, and a sliding side plate for build personalisation. RGB lighting with 16.7 million colour options can be synchronised with compatible GIGABYTE peripherals and components through GIGABYTE Control Center. A reinforced metal backplate is fastened to the I/O bracket to maintain structural rigidity over time. Connectivity is handled through HDMI and DisplayPort outputs, supporting up to three simultaneous displays at a maximum resolution of 7680 × 4320 (8K). The card connects to the motherboard via a PCIe 5.0 x16 slot and draws supplemental power through a single 8-pin connector, with a recommended system PSU of 450W. Verified Specifications: - GPU: AMD Radeon RX 9060 XT - Stream Processors: 2048 - Memory: 8 GB GDDR6, 128-bit interface, 20 Gbps effective speed - Boost Clock: up to 3320 MHz (Reference: 3130 MHz) - Game Clock: up to 2780 MHz (Reference: 2530 MHz) - Cooling: Triple fan WINDFORCE (Hawk fans, alternate spinning) - Display Outputs: HDMI + DisplayPort (max 3 displays, up to 8K) - Interface: PCI Express 5.0 - Power Connector: 1 × 8-pin - Recommended PSU: 450W - DirectX: 12 API | OpenGL: 4.6 - Warranty: 3 Years - Model: GV-R9060XTGAMING-OC-8GD

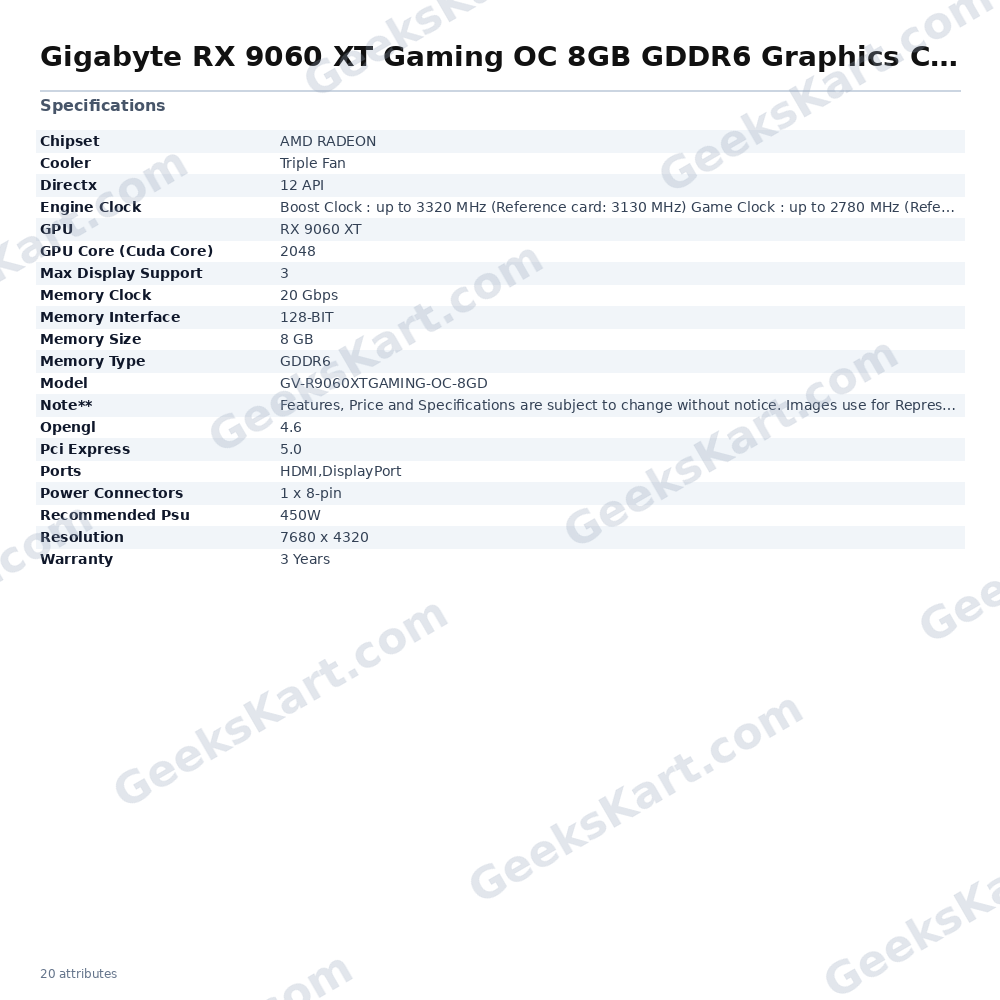

Datasheet
| Memory Type | GDDR6 |
|---|---|
| Warranty | 3 Years |
| Chipset | AMD RADEON |
| Memory Size | 8 GB |
| GPU | RX 9060 XT |
| Memory Clock | 20 Gbps |
| Recommended PSU | 450W |
| Resolution | 7680 x 4320 |
| Model | GV-R9060XTGAMING-OC-8GD |
| Ports | HDMI,DisplayPort |
| Cooler | Triple Fan |
| Note** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| Opengl | 4.6 |
| Directx | 12 API |
| Pci Express | 5.0 |
| Engine Clock | Boost Clock : up to 3320 MHz (Reference card: 3130 MHz) Game Clock : up to 2780 MHz (Reference card: 2530 MHz) |
| Memory Interface | 128-BIT |
| Power Connectors | 1 x 8-pin |
| Max Display Support | 3 |
| GPU Core (Cuda Core) | 2048 |
