Genuine · Sealed
Power Supplies

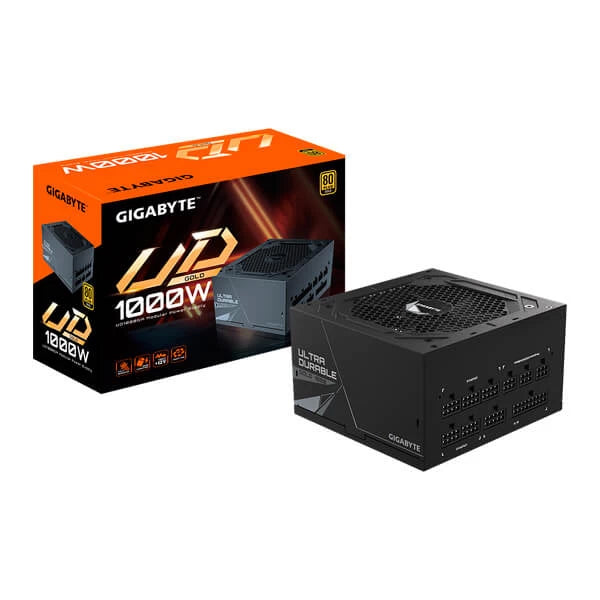

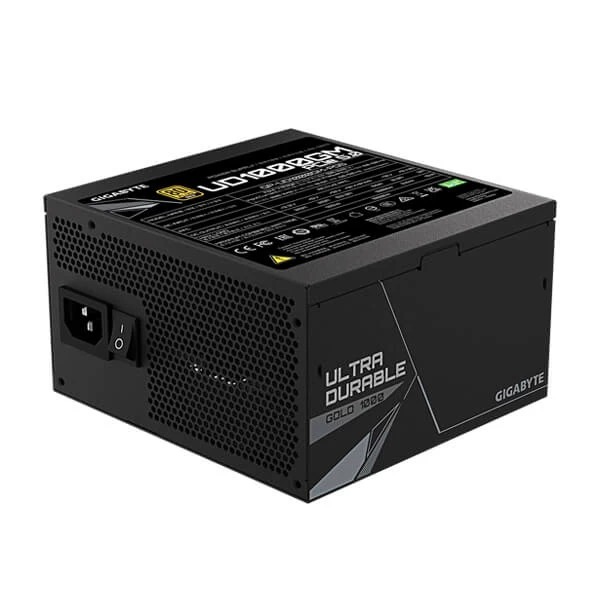

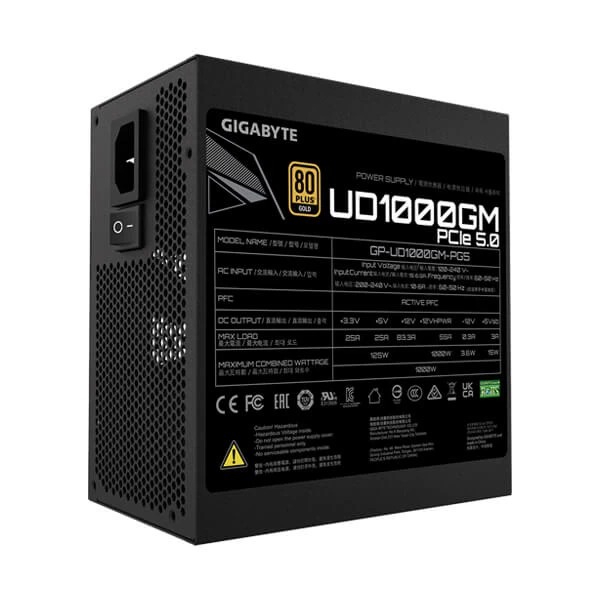

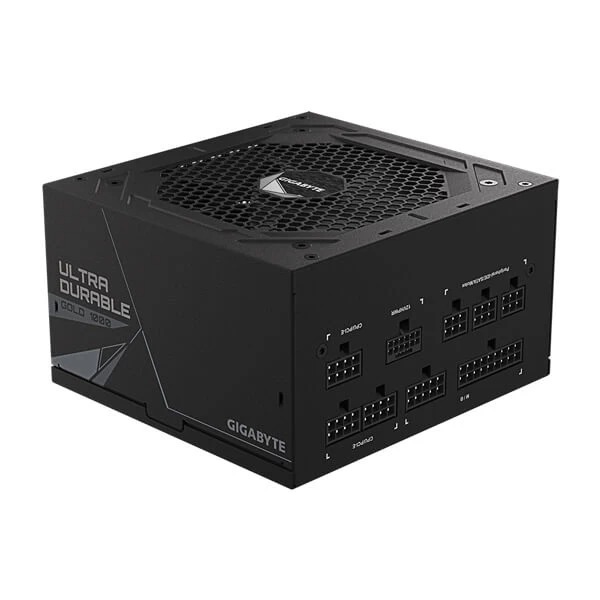

Gigabyte UD1000GM PG5 1000 Watt 80 Plus Gold SMPS
MPN GP-UD1000GM-PG5 · Brand Gigabyte
Ultra Durable Support PCIe Gen 5.0 graphics cards Support Intel ATX 3.0 standard 80 PLUS Gold certified Fully modular de
Output Capacity 1000W
Warranty 10 Years
color Black
Pfc Active PFC (>0.9 typical)
₹14,345.00
Inclusive of GST · GST invoice available
In stock, ready to ship today
Warranty
10 Years
Dispatch
24–48 hrs
Returns
7-day
01
Overview
- Ultra Durable
- Support PCIe Gen 5.0 graphics cards
- Support Intel ATX 3.0 standard
- 80 PLUS Gold certified
- Fully modular de
02

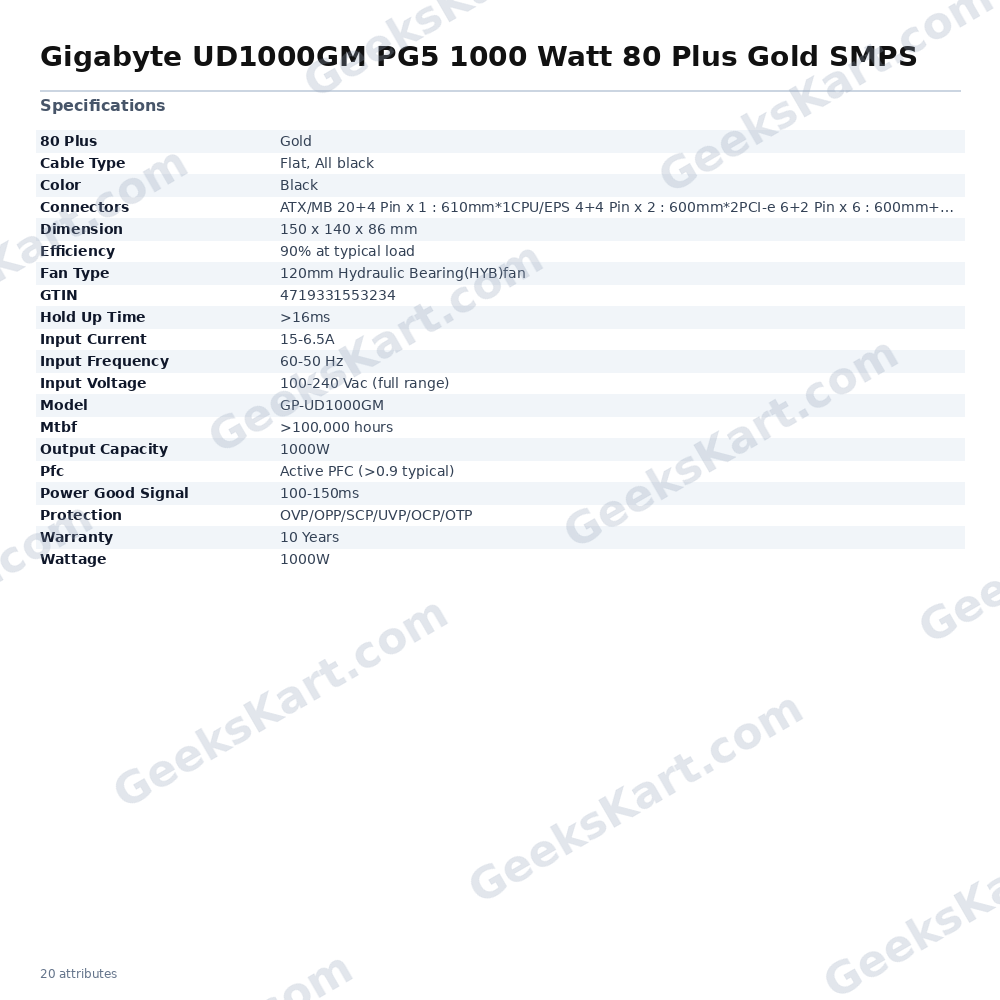

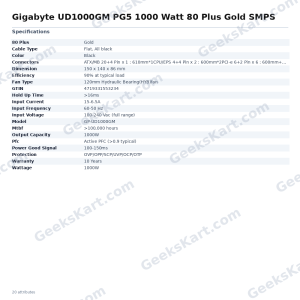

Datasheet
| Warranty | 10 Years |
|---|---|
| color | Black |
| Pfc | Active PFC (>0.9 typical) |
| Mtbf | >100,000 hours |
| Model | GP-UD1000GM |
| 80 Plus | Gold |

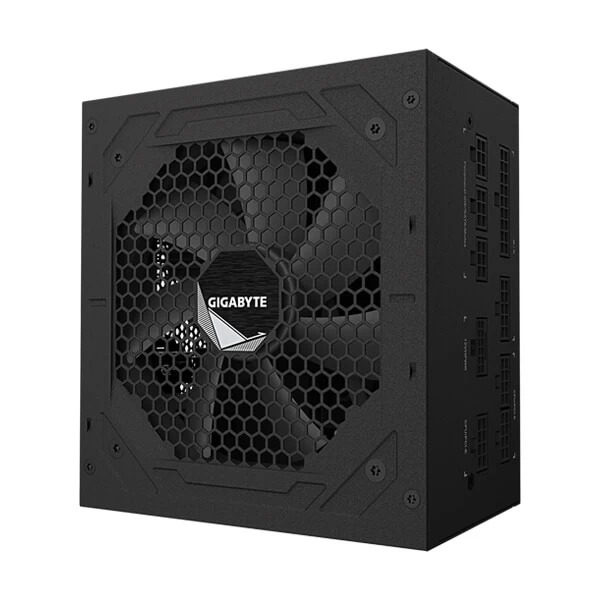

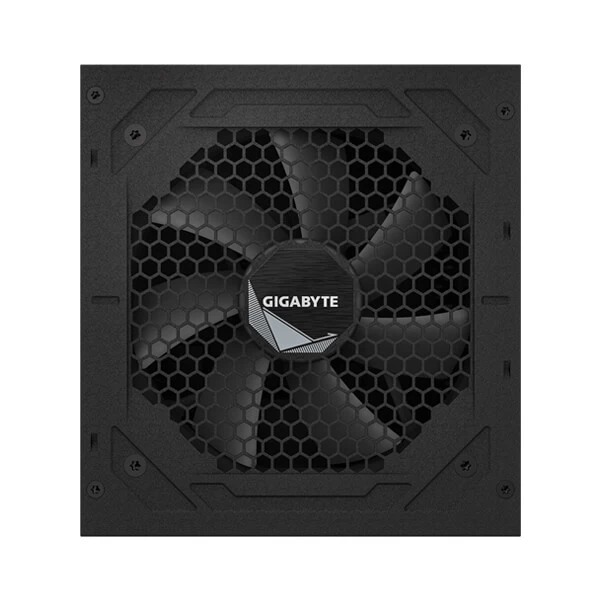

| Fan Type | 120mm Hydraulic Bearing(HYB)fan |
| Dimension | 150 x 140 x 86 mm |
| Cable Type | Flat, All black |

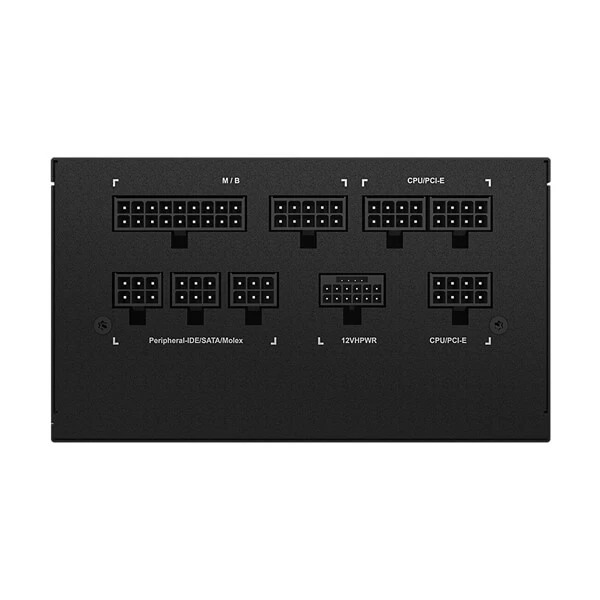

| Connectors | ATX/MB 20+4 Pin x 1 : 610mm*1CPU/EPS 4+4 Pin x 2 : 600mm*2PCI-e 6+2 Pin x 6 : 600mm+150mm*3SATA x 8 :600mm+150mm+150mm+150mm*24 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1 |
| Efficiency | 90% at typical load |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Hold Up Time | >16ms |
| Input Current | 15-6.5A |
| Input Voltage | 100-240 Vac (full range) |
| Input Frequency | 60-50 Hz |
| Output Capacity | 1000W |
| Power Good Signal | 100-150ms |
| Wattage | 1000W |
