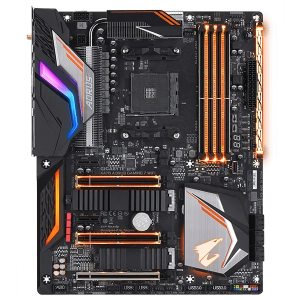

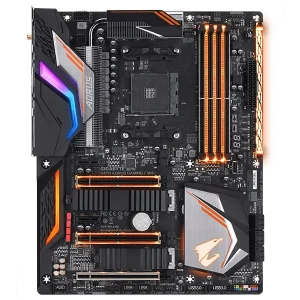

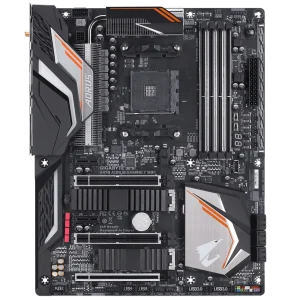

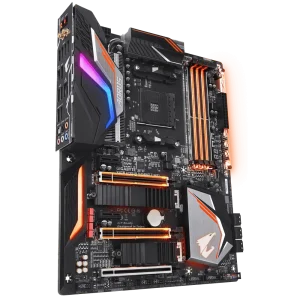

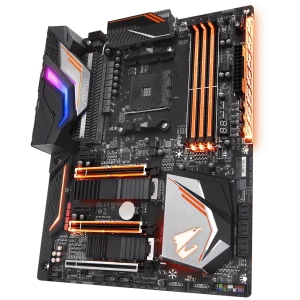

GIGABYTE X470 Aorus Gaming 7 Wifi DDR4 AMD Motherboard

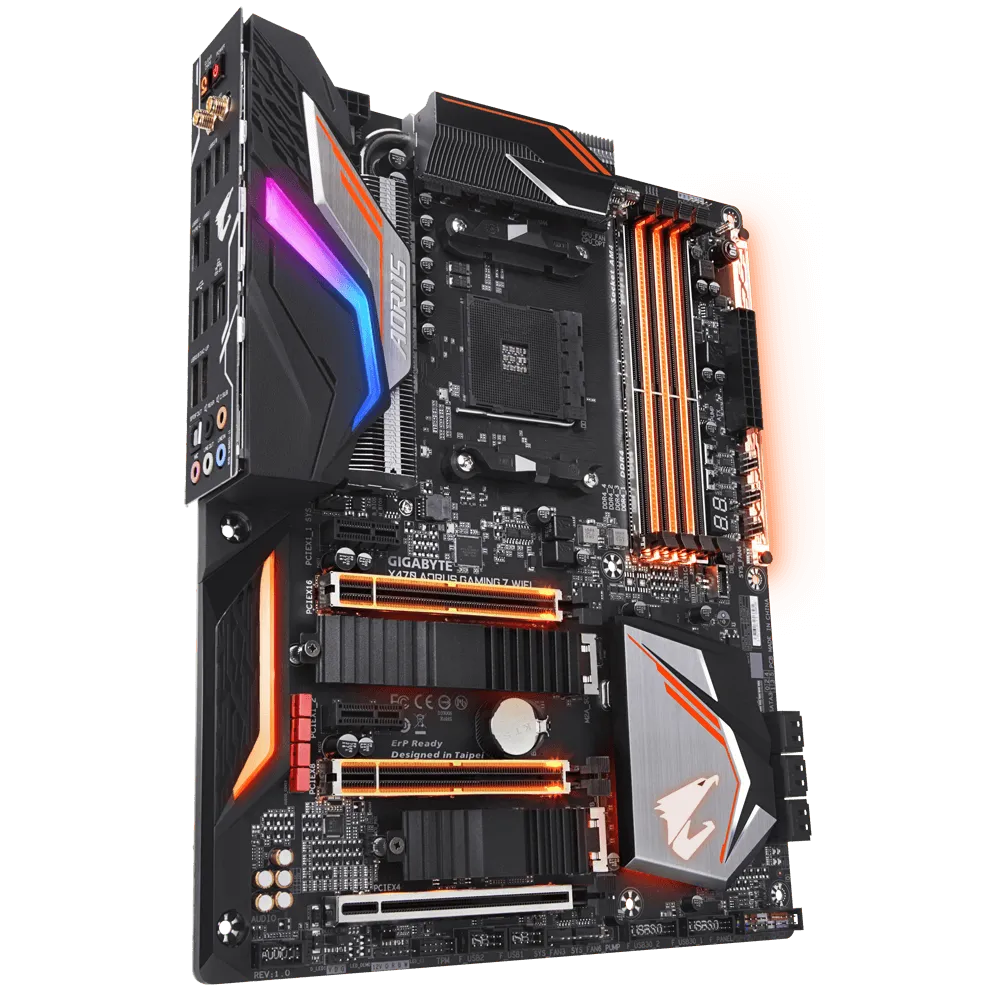

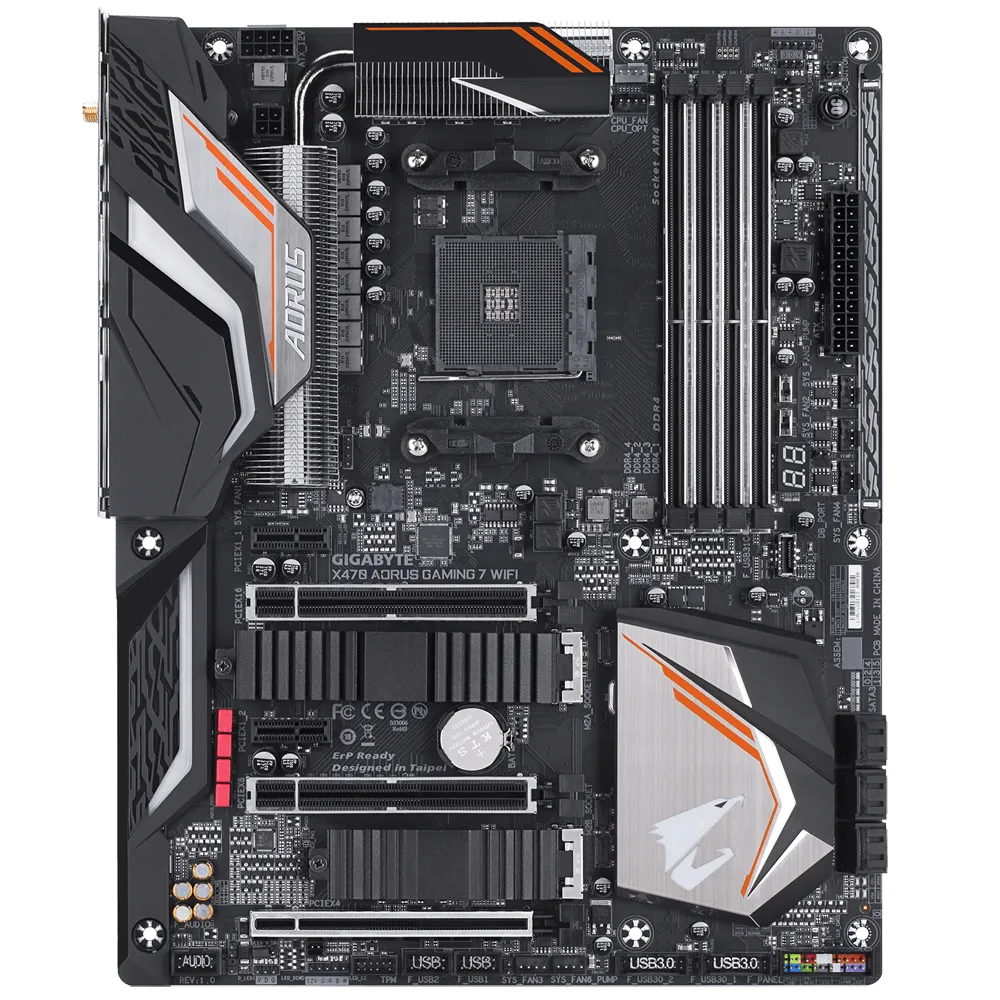

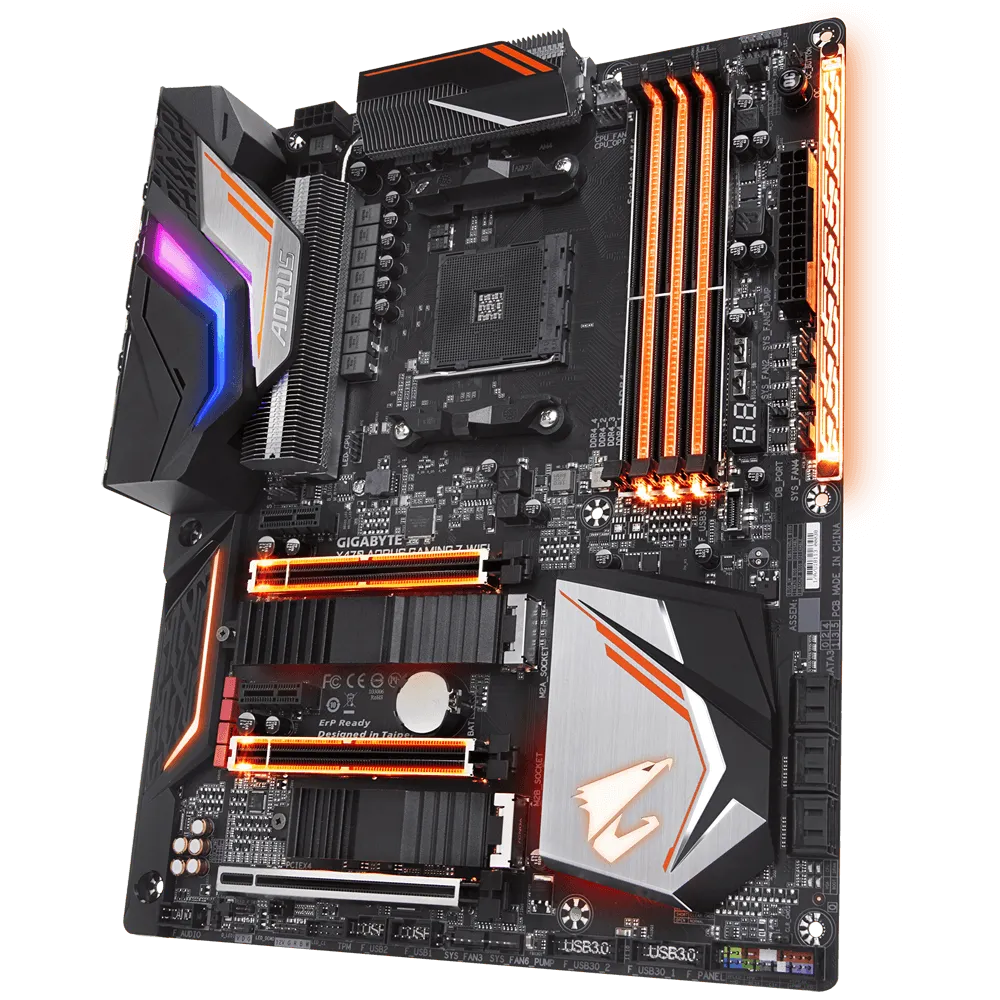

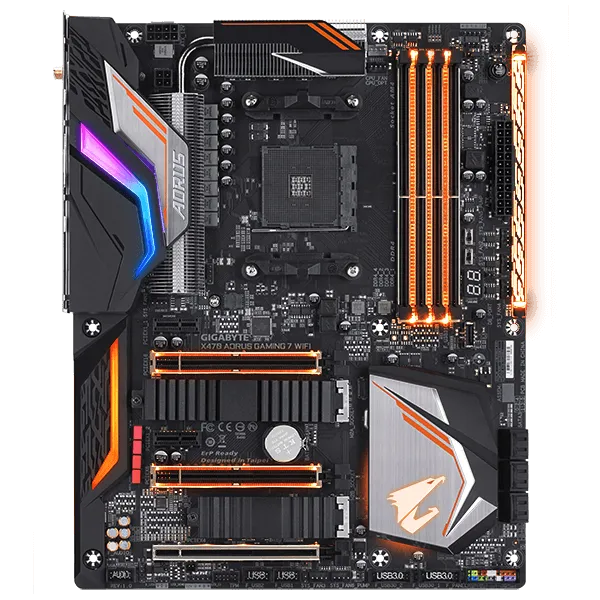

The Gigabyte X470 Aorus Gaming 7 WiFi is a full-size ATX motherboard built on the AMD X470 chipset, designed for the AM4 socket platform. It supports AMD Ryzen processors spanning first through fifth generation, including Ryzen 5000 series, Ryzen 5000 G-Series, and Athlon processors with Radeon Vega Graphics, making it a versatile choice for builders who want long-term CPU upgrade flexibility without changing platforms. Power delivery is handled by a 10+2 phase all-digital IR PWM design, utilising Infineon digital PWM controllers and power stage controllers capable of supplying at least 40 A per phase. This is complemented by 8+4 pin solid-pin CPU power connectors, ensuring stable delivery to demanding Ryzen processors even during sustained workloads or overclocking sessions. Thermal management relies on a Fins-Array Heatsink featuring over 100 fins and a Direct Touch Heatpipe that moves heat away from the VRM directly to the heatsink array, reportedly reducing VRM temperatures compared to conventional heatsink designs. Memory support covers four DDR4 DIMM slots in dual-channel configuration with ECC and non-ECC unbuffered modules supported, a maximum capacity of 64 GB, and speeds from 2133 MHz up to 3600+ MHz via overclocking. Storage is served by six SATA 6 Gb/s ports and two M.2 slots with NVMe PCIe x4 support, each protected by Gigabyte’s Thermal Guard to reduce M.2 SSD operating temperatures. Connectivity features include Intel 802.11ac Wave 2 2×2 MIMO wireless with Bluetooth 5.0 and an Intel Gigabit Ethernet controller with cFOS Speed internet acceleration software. The rear panel provides six USB 3.1 Gen 1 Type-A ports, one USB 3.1 Gen 2 Type-A port, one USB 3.1 Gen 2 Type-C port, two USB 2.0 ports, five 3.5 mm audio jacks, and one optical S/PDIF output. Audio is powered by a Realtek ALC1220-VB codec paired with an ESS SABRE DAC and WIMA audio capacitors, delivering up to 114 dB SNR on the rear output and 110 dB SNR on the front microphone channel, with support for 2, 4, 5.1, and 7.1 channel configurations. Expansion slots include three PCIe x16-size slots (wired at x16, x8, and x4 respectively) and two PCIe x1 slots, supporting 2-Way AMD CrossFire and NVIDIA SLI configurations. RGB Fusion 2.0 enables multi-zone lighting control across onboard LED zones and supports both 5 V digital addressable LED strips and 12 V RGB LED strips with up to 300 LEDs. The board ships in ATX form factor at 30.5 cm × 24.4 cm. Verified Specifications: – Socket: AM4 | Chipset: AMD X470 – Form Factor: ATX (305 mm × 244 mm) – Memory: 4× DDR4 DIMM, dual channel, max 64 GB, up to DDR4-3600+ (O.C.) – VRM: 10+2 phase all-digital IR PWM – Storage: 6× SATA 6 Gb/s; 2× M.2 PCIe x4 NVMe with Thermal Guard – Expansion: 3× PCIe x16 (x16/x8/x4), 2× PCIe x1 – Audio: Realtek ALC1220-VB, ESS SABRE DAC, 7.1-channel, 114 dB SNR rear – LAN: Intel GbE with cFOS acceleration – Wireless: Intel 802.11ac Wave 2 2T2R + Bluetooth 5.0 – Rear USB: 6× USB 3.1 Gen 1, 1× USB 3.1 Gen 2 Type-A, 1× USB 3.1 Gen 2 Type-C, 2× USB 2.0 – Lighting: RGB Fusion 2.0, digital LED + RGB strip headers
