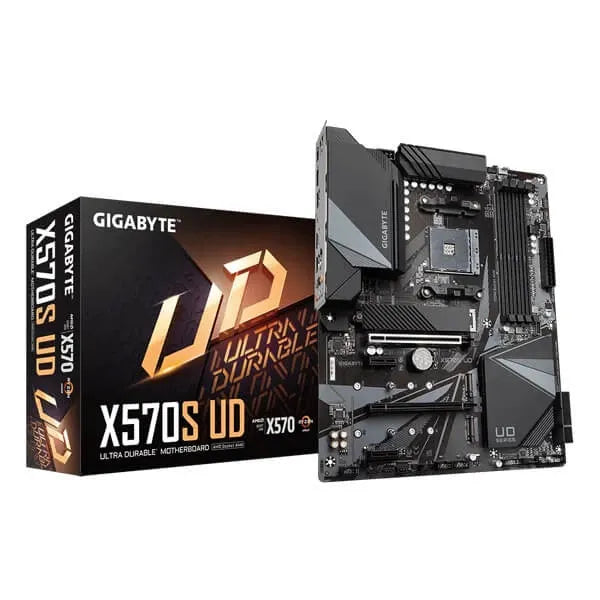

GIGABYTE X570S UD DDR4 AMD Motherboard
MPN GIGABYTE-X570S-UD · Brand Gigabyte · ATX
The Gigabyte X570S UD is an ATX motherboard for AMD AM4 processors (Ryzen 2000–5000 Series), featuring a 12+2 phase VRM, triple PCIe 4.0 M.2 slots with thermal guards, 2.5GbE LAN, and USB 3.2 Gen 2 Type-C connectivity
Inclusive of GST · GST invoice available
Overview
The Gigabyte X570S UD is a full-sized ATX motherboard (30.5 cm x 24.4 cm) built on the AMD X570 chipset for the AM4 socket. It is compatible with AMD Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series, Ryzen 3000 Series, Ryzen 3000 G-Series, Ryzen 2000 Series, and Ryzen 2000 G-Series processors, making it a flexible platform for current-generation AMD desktop builds. The board carries a 12+2 phase digital VRM solution with 50A DrMOS power stages, backed by high-coverage MOSFET heatsinks and a six-layer PCB. These elements work together to sustain stable power delivery under sustained CPU workloads and overclocking. Memory support spans four DDR4 DIMM slots in a dual-channel, daisy-chain routed configuration, accommodating up to 128 GB (32 GB per single DIMM) of ECC or non-ECC unbuffered DDR4 memory. XMP profiles up to DDR4-5100 (O.C.) are supported when using compatible Ryzen 4000 G-Series processors. Standard JEDEC speeds from DDR4-2133 through DDR4-3200 run without overclocking. Storage is well-provisioned with three M.2 Socket 3 connectors — each equipped with a thermal guard heatsink — supporting PCIe 4.0 x4 and PCIe 3.0 x4 NVMe and SATA SSDs in form factors from 2242 up to 22110. Six SATA 6 Gb/s ports add conventional storage capacity with RAID 0, 1, and 10 support (RAID requires Ryzen 5000 or 3000 Series). Networking is handled by a Realtek 2.5GbE LAN chip supporting 2500/1000/100 Mbps multi-gigabit speeds, bundled with Realtek's bandwidth management utility. USB connectivity includes USB 3.2 Gen 2 Type-C and Type-A ports at both the rear panel and as an internal header, plus four USB 3.2 Gen 1 ports and two USB 2.0 ports at the rear. The rear panel also features an HDMI 2.1 port (4096×2160 @ 60 Hz, HDCP 2.3, HDR) for use with G-Series processors that include integrated graphics. Audio is powered by a Realtek HD Audio CODEC supporting 2/4/5.1/7.1 channel output, with noise-isolation circuitry separating the analog audio section at PCB level. Fan control is managed by Smart Fan 6, which supports up to seven control points per header in slope or stair mode. All fan headers deliver up to 24 W (12 V × 2 A) and support PWM, DC, and pump modes. RGB Fusion 2.0 controls two addressable LED headers and two standard RGB LED headers. Q-Flash Plus allows BIOS updates from USB storage without installing the CPU, memory, or graphics card. The BIOS itself uses a licensed AMI UEFI interface (256 Mbit flash, ACPI 5.0, SM BIOS 2.7). Verified Specifications: - Socket: AM4 | Chipset: AMD X570 - Form Factor: ATX, 30.5 cm × 24.4 cm - Memory: 4× DDR4 DIMM, dual-channel, up to 128 GB, XMP supported - M.2 Slots: 3× (PCIe 4.0/3.0 x4, with thermal guards) - SATA: 6× SATA 6 Gb/s (RAID 0/1/10) - LAN: Realtek 2.5GbE (2.5/1/0.1 Gbps) - Audio: Realtek HD Audio CODEC, 7.1-channel - Rear USB: 4× USB 3.2 Gen 1, 1× USB 3.2 Gen 2 Type-A, 1× USB 3.2 Gen 2 Type-C, 2× USB 2.0 - Video Out: 1× HDMI 2.1 (G-Series CPUs only) - VRM: 12+2 phase digital, 50A DrMOS - Warranty: 3 Years

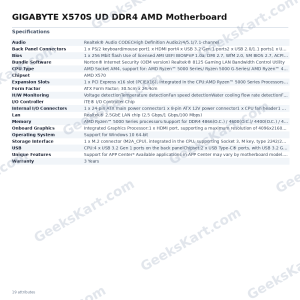

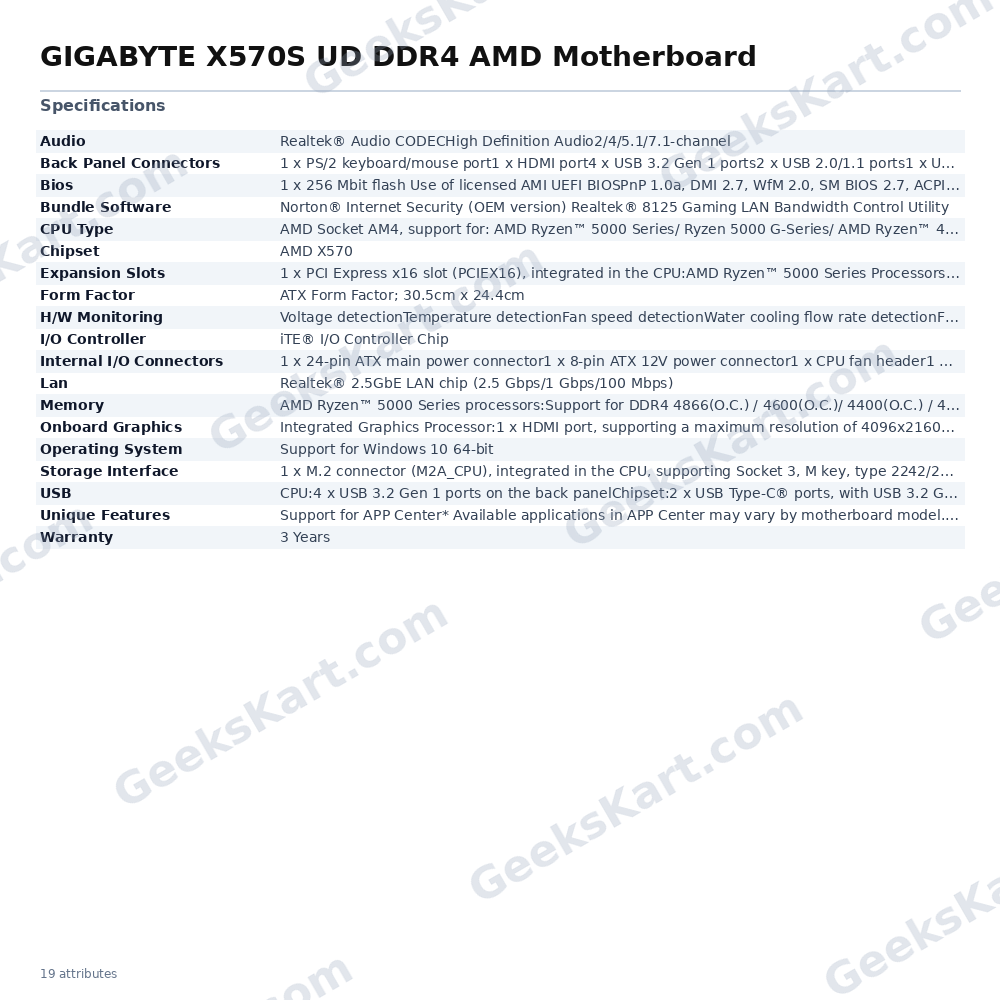

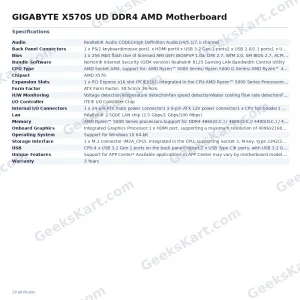

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | AMD X570 |
| CPU Type | |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | CPU:4 x USB 3.2 Gen 1 ports on the back panelChipset:2 x USB Type-C® ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header)1 x USB 3.2 Gen 2 Type-A port (red) on the back panel2 x USB 3.2 Gen 1 ports available through the internal USB header6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel |
| Memory | AMD Ryzen™ 5000 Series processors:Support for DDR4 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modulesAMD Ryzen™ 4000 G-Series processors:Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modulesAMD Ryzen™ 3000 Series processors:Support for DDR4 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modulesAMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors:Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modulesSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install |
| I/O Controller | iTE® I/O Controller Chip |
| Bundle Software | Norton® Internet Security (OEM version) Realtek® 8125 Gaming LAN Bandwidth Control Utility |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support PCIe 4.0 x16 modeAMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 2000 Series Processors support PCIe 3.0 x16 modeAMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors support PCIe 3.0 x8 mode* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:Supporting PCIe 4.0(Note)/3.0 x2 mode* The PCIEX2 slot shares bandwidth with the SATA3 4, 5 connectors. The SATA3 4, 5 connectors will become unavailable when a device is installed in the PCIEX2 slot.2 x PCI Express x1 slots (PCIEX1_1/PCIEX1_2), integrated in the Chipset:Supporting PCIe 4.0(Note)/3.0(Note) For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install |
| Onboard Graphics | Integrated Graphics Processor:1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.Maximum shared memory of 16 GB(Note) For AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors only |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDsAMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 Series Processors/AMD Ryzen™ 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:Supporting PCIe 4.0(Note)/3.0 x4/x2 SSDs1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs6 x SATA 6Gb/s connectors, integrated in the Chipset:Support for RAID 0, RAID 1, and RAID 10(Note) For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port1 x HDMI port4 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x USB Type-C® port, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 2 Type-A port (red)1 x Q-Flash Plus button1 x RJ-45 port6 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header3 x M.2 Socket 3 connectors6 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)1 x Clear CMOS jumper＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W |
