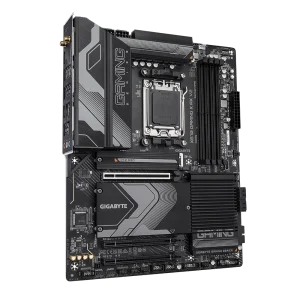

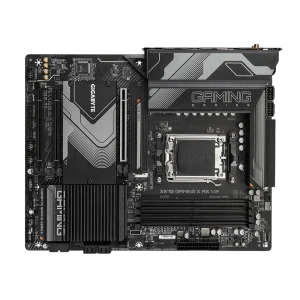

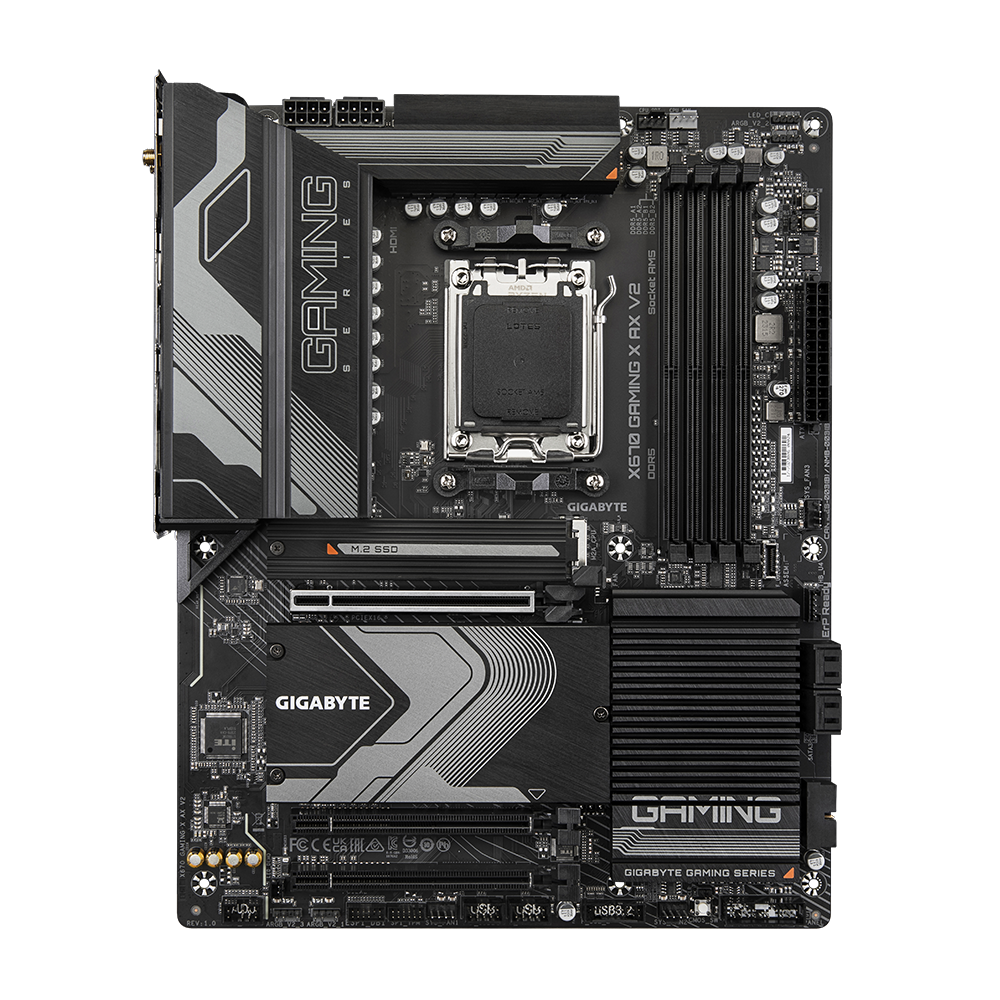

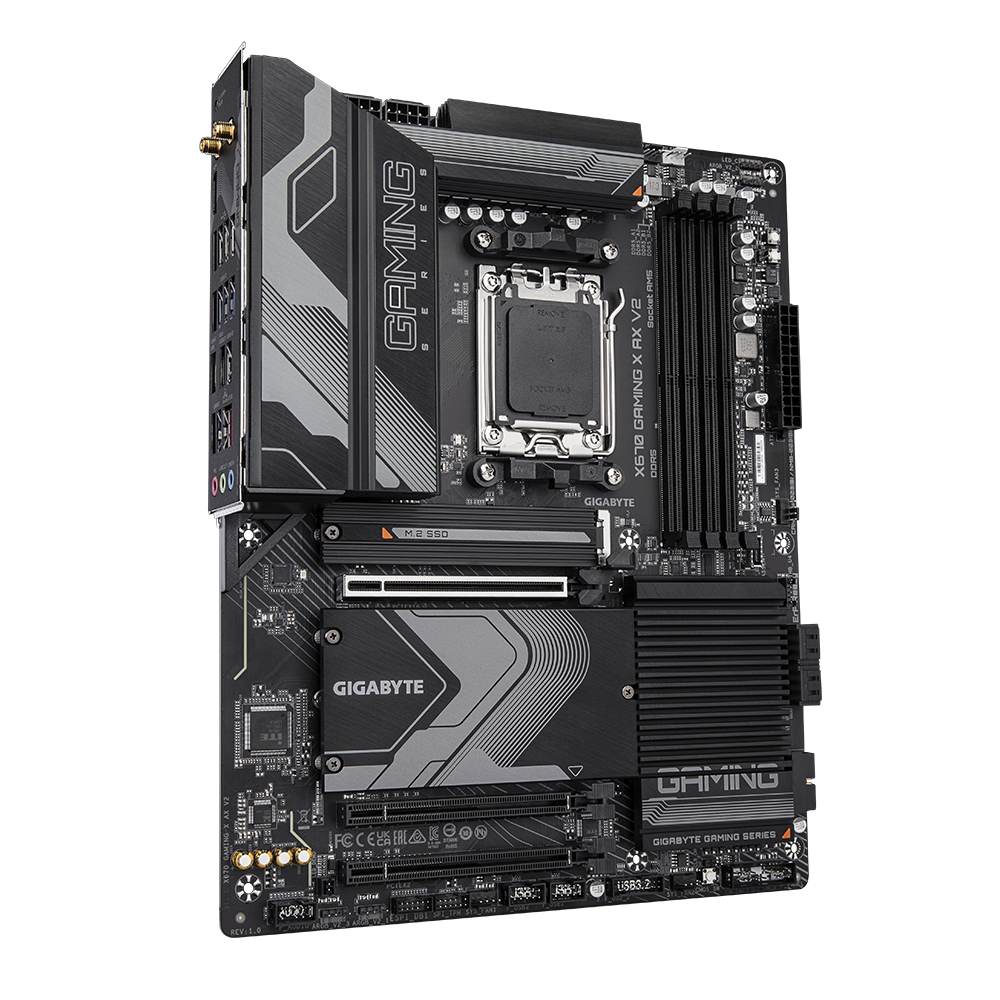

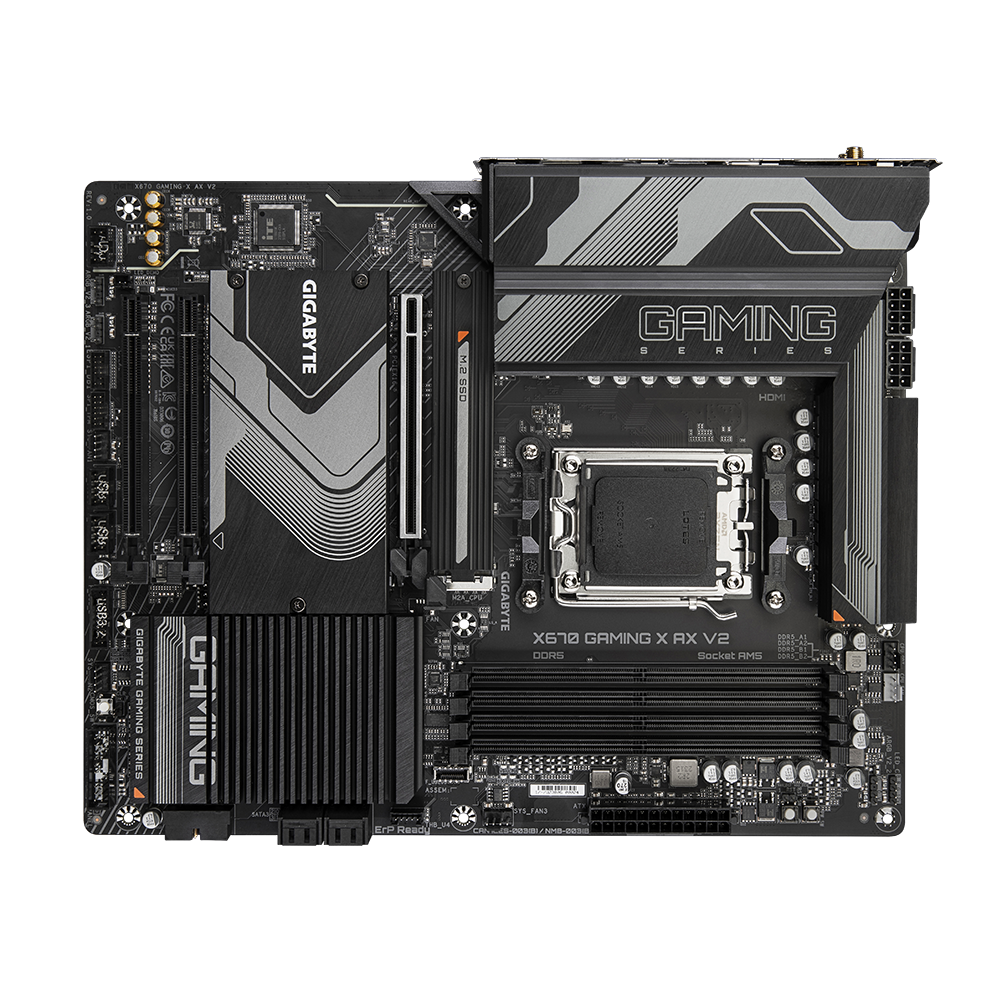

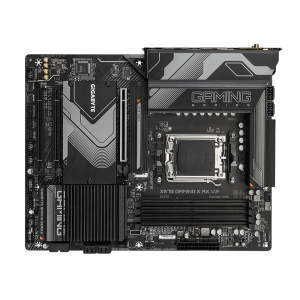

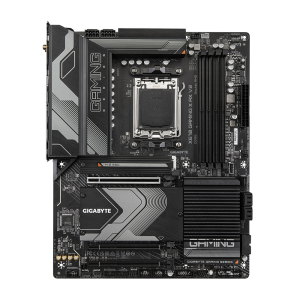

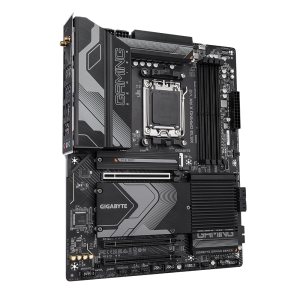

GIGABYTE X670 Gaming X AX V2 DDR5 AMD Motherboard
MPN GIGABYTE-X670-GAMING-X-AX-V2 · Brand Gigabyte · ATX
The GIGABYTE X670 Gaming X AX V2 is an ATX DDR5 motherboard for AMD AM5 processors, featuring PCIe 5.0 M.2 storage, Wi-Fi 6E, 2.5GbE LAN, and support for up to 192 GB of DDR5 memory
Inclusive of GST · GST invoice available
Overview
The GIGABYTE X670 Gaming X AX V2 is an ATX-form-factor motherboard (305 mm × 244 mm) built on the AMD X670 chipset and designed for the AM5 socket. It is compatible with AMD Ryzen 7000 and Ryzen 8000 Series processors, making it a capable platform for high-performance desktop builds. Power delivery is handled by a 14+2+2 phase digital VRM solution, backed by a mega-heat pipe and dedicated M.2 Thermal Guard to keep both the voltage regulators and the primary NVMe slot operating within safe thermal limits. The board features four DDR5 DIMM slots in a dual-channel configuration, supporting memory speeds from 4400 MT/s up to DDR5-8000 (OC) and a total capacity of up to 192 GB (48 GB per DIMM). Both AMD EXPO and Intel XMP profiles are supported for straightforward memory overclocking. Storage options are extensive: the primary M.2 slot (M2A_CPU) supports PCIe 5.0 x4 SSDs in 25110 and 2580 form factors with Ryzen 7000 CPUs, while three additional M.2 slots deliver PCIe 4.0 x4 connectivity. Four SATA 6 Gb/s ports round out the storage interface, and RAID 0, 1, and 10 are supported for both NVMe and SATA arrays. EZ-Latch provides screwless installation for the PCIe x16 slot and M.2 connectors. Networking is covered by a Realtek 2.5GbE wired LAN controller and a Realtek Wi-Fi 6E (RTL8852CE) module supporting the 2.4 GHz, 5 GHz, and 6 GHz bands at up to 160 MHz channel width, along with Bluetooth 5.3. The rear I/O panel includes one USB Type-C port with USB 3.2 Gen 2×2 (20 Gbps) support, two USB 3.2 Gen 2 Type-A ports, six USB 3.2 Gen 1 Type-A ports, four USB 2.0 ports, one HDMI 2.1 port (up to 4096×2160 @ 60 Hz), and an RJ-45 jack. Internally, headers are available for an additional USB 3.2 Gen 2×2 Type-C port plus USB 3.2 Gen 1 and USB 2.0 connections. Audio is powered by a Realtek HD Audio CODEC supporting 2/4/5.1/7.1-channel output through three rear audio jacks. Fan management is handled by Smart Fan 6, which offers multiple temperature sensor inputs, hybrid PWM/DC fan headers, and FAN STOP functionality. Three addressable RGB Gen2 headers and one standard RGB header enable lighting customisation. The AMI UEFI BIOS includes Q-Flash Plus, allowing firmware updates without a CPU, memory, or graphics card installed. Key Specifications: - Socket: AMD AM5 | Chipset: AMD X670 - Form Factor: ATX (305 mm × 244 mm) - Memory: 4× DDR5 DIMM, up to 192 GB, DDR5-4400 to DDR5-8000 (OC), AMD EXPO & XMP - Storage: 1× PCIe 5.0 x4 M.2 (25110/2580), 3× PCIe 4.0 x4 M.2, 4× SATA 6 Gb/s - Wireless: Wi-Fi 6E (2.4/5/6 GHz, 160 MHz), Bluetooth 5.3 - LAN: Realtek 2.5GbE - Rear USB: 1× USB-C 20 Gbps, 2× USB 3.2 Gen 2 Type-A, 6× USB 3.2 Gen 1, 4× USB 2.0 - Display: 1× HDMI 2.1 (4K@60 Hz, CPU-dependent) - Audio: Realtek HD Audio, 7.1-channel - BIOS: AMI UEFI, Q-Flash Plus - Warranty: 3 Years

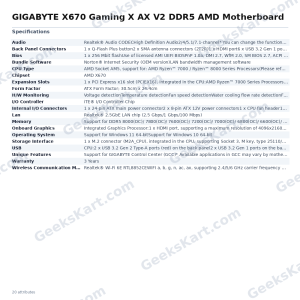

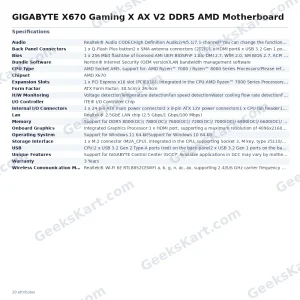

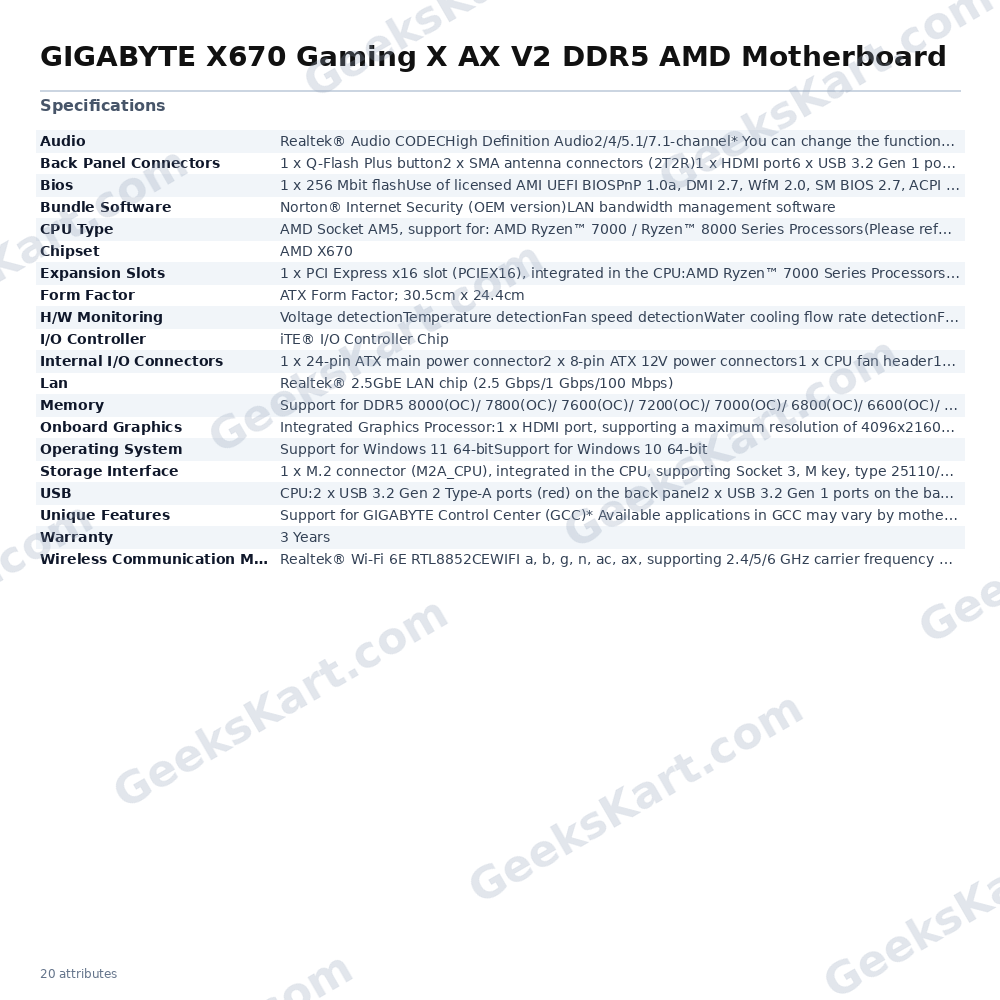

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | AMD X670 |
| CPU Type | AMD Socket AM5, support for: AMD RyzenTM 7000 / RyzenTM 8000 Series Processors(Please refer "CPU Support List" for more information.) |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | CPU:2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel2 x USB 3.2 Gen 1 ports on the back panelCPU + USB 2.0 Hub:4 x USB 2.0/1.1 ports on the back panelChipset:2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header)8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)4 x USB 2.0/1.1 ports available through the internal USB header |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings |
| Memory | Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install |
| I/O Controller | iTE® I/O Controller Chip |
| Bundle Software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 modeAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 modeAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) |
| Unique Features | Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup |
| Onboard Graphics | Integrated Graphics Processor:1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 11 64-bitSupport for Windows 10 64-bit |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDsChipset:2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices |

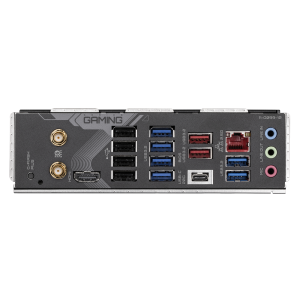

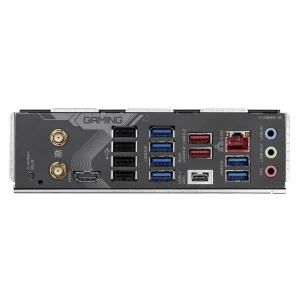

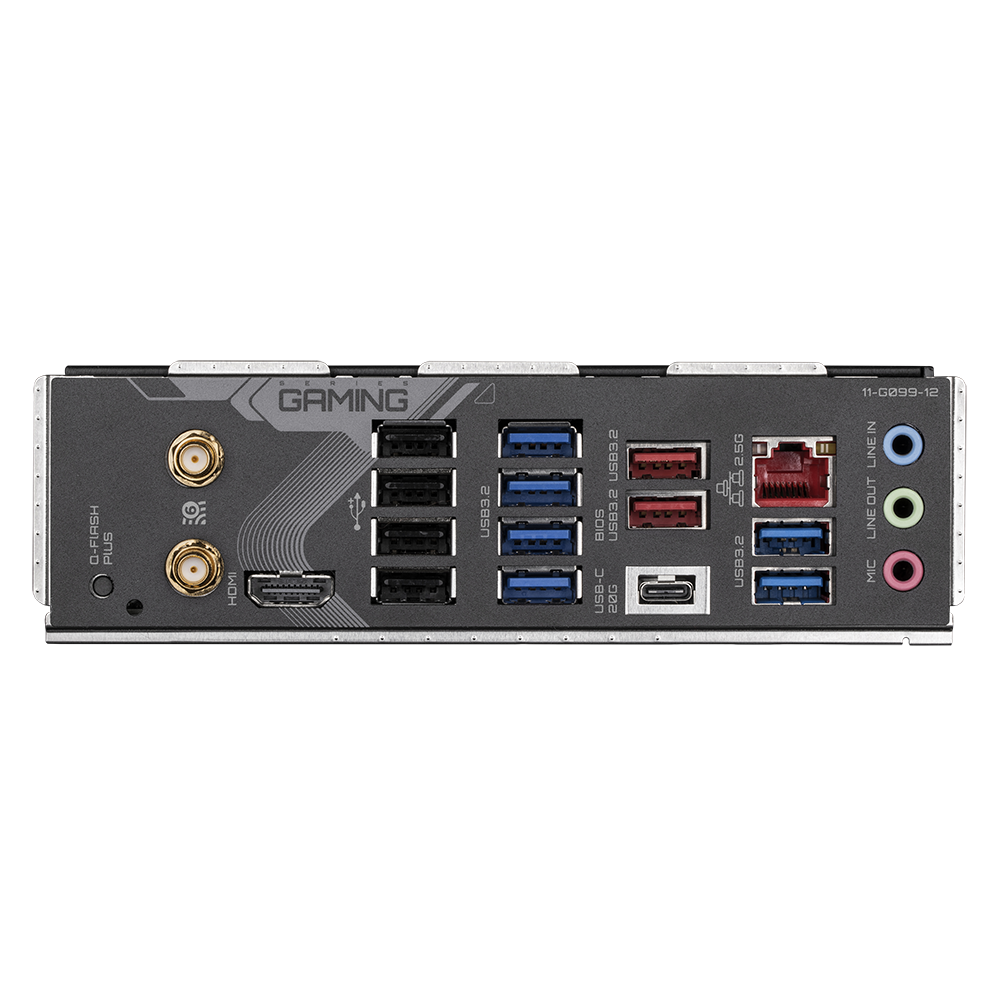

| Back Panel Connectors | 1 x Q-Flash Plus button2 x SMA antenna connectors (2T2R)1 x HDMI port6 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports2 x USB 3.2 Gen 2 Type-A ports (red)1 x USB Type-C® port, with USB 3.2 Gen 2×2 support1 x RJ-45 port3 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x CPU fan/water cooling pump header3 x system fan headers3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header4 x SATA 6Gb/s connectors4 x M.2 Socket 3 connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2×2 support2 x USB 3.2 Gen 1 headers2 x USB 2.0/1.1 headers1 x THB_U4 add-in card connector1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)1 x power button1 x reset button1 x Clear CMOS button1 x reset jumper1 x Clear CMOS jumper |
| Wireless Communication Module | Realtek® Wi-Fi 6E RTL8852CEWIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.) |
