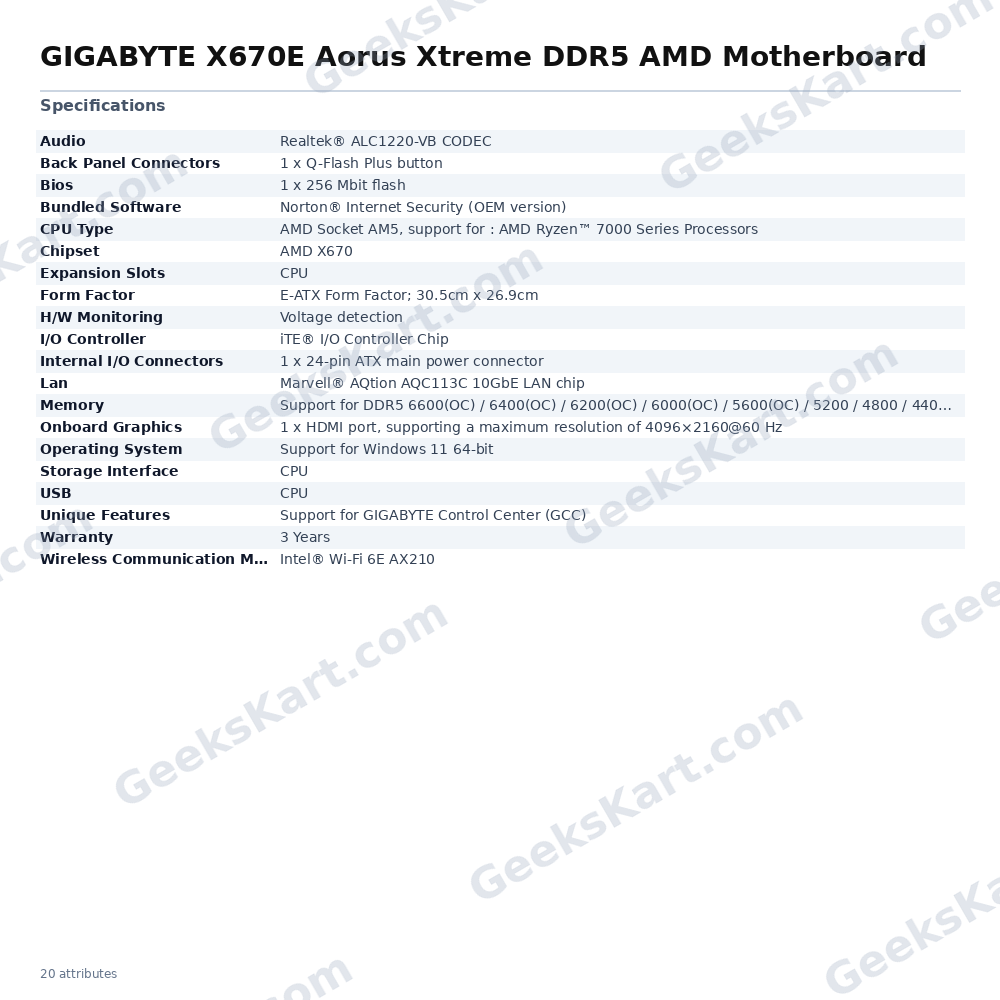

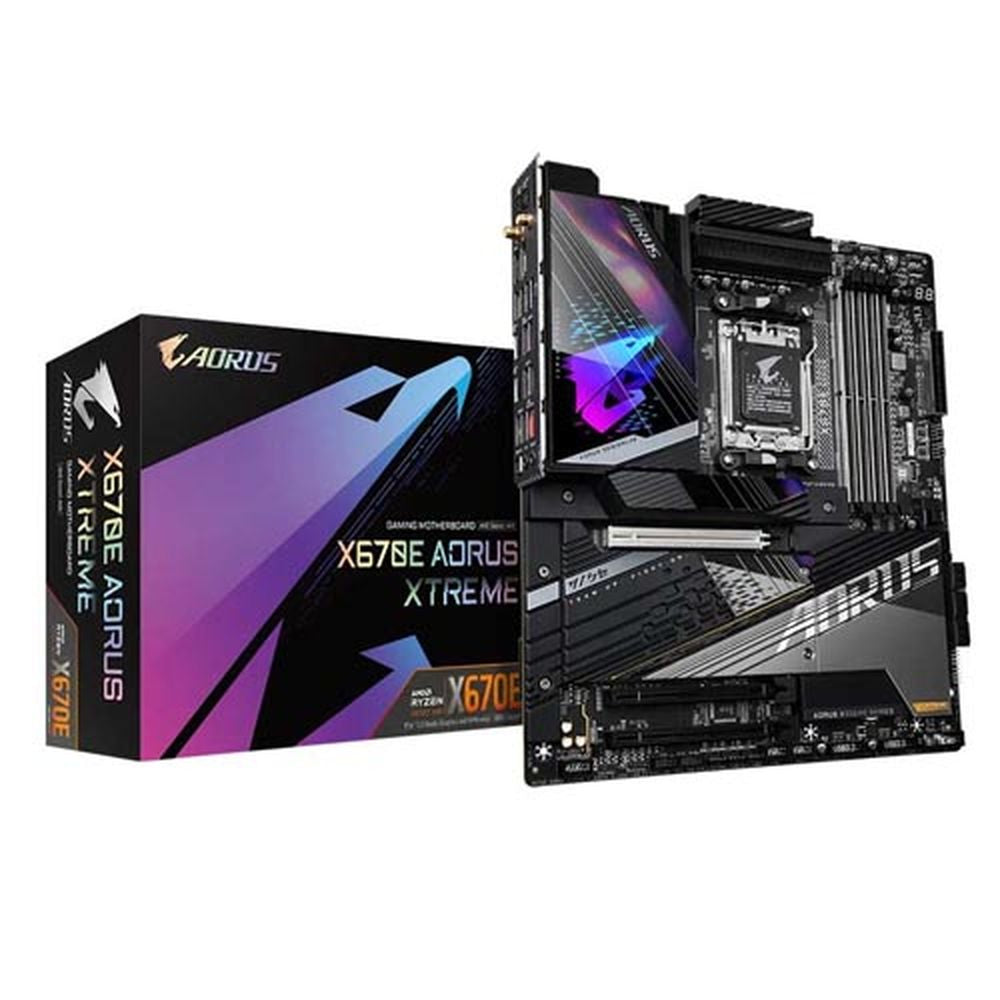

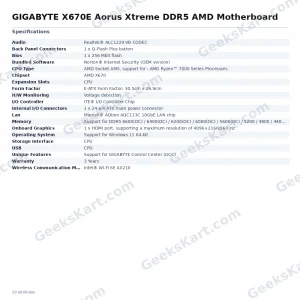

| CPU |
AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors |
| Chipset |
AMD X670 |
| Memory |
Support for DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MHz memory modules |
|
4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
|
Dual channel memory architecture |
|
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
|
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics |
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz |
|
* Support for HDMI 2.0 version and HDCP 2.3. |
|
1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz |
|
* Support for DisplayPort 1.4 version and HDR. |
| Audio |
Realtek® ALC1220-VB CODEC |
|
* The front panel line out jack supports DSD audio. |
|
ESS ES9118 DAC chip |
|
Support for DTS:X® Ultra |
|
High Definition Audio |
|
2/4/5.1-channel |
|
* You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings. |
|
Support for S/PDIF Out |
| LAN |
Marvell® AQtion AQC113C 10GbE LAN chip |
| Wireless Communication Module |
Intel® Wi-Fi 6E AX210 |
|
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
|
BLUETOOTH 5.3 |
|
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
(Actual data rate may vary depending on environment and equipment.) |
| Expansion Slots |
CPU: |
|
1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16) |
|
* Actual support may vary by CPU. |
|
* The M2B_CPU and M2C_CPU slots share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU slot is populated, the PCIEX16 slot operates at up to x8 mode. |
|
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
|
Chipset: |
|
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
|
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) |
|
Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4) |
| Storage Interface |
CPU: |
|
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) |
|
* Actual support may vary by CPU. |
|
3 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support (M2B_CPU/M2C_CPU/M2D_CPU) |
|
* Actual support may vary by CPU. |
|
Chipset: |
|
6 x SATA 6Gb/s connectors |
|
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices |
|
RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB |
CPU: |
|
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support |
|
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
|
CPU USB 2.0 Hub: |
|
4 x USB 2.0/1.1 ports on the back panel |
|
Chipset: |
|
2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header) |
|
4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
|
4 x USB 3.2 Gen 1 ports available through the internal USB headers |
|
4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector |
|
2 x 8-pin ATX 12V power connectors |
|
1 x CPU fan header |
|
1 x water cooling CPU fan header |
|
4 x system fan headers |
|
4 x system fan/water cooling pump headers |
|
2 x addressable LED strip headers |
|
2 x RGB LED strip headers |
|
1 x CPU cooler LED strip/RGB LED strip header |
|
4 x M.2 Socket 3 connectors |
|
6 x SATA 6Gb/s connectors |
|
1 x front panel header |
|
1 x front panel audio header |
|
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support |
|
2 x USB 3.2 Gen 1 headers |
|
2 x USB 2.0/1.1 headers |
|
1 x noise detection header |
|
1 x THB_U4 add-in card connector |
|
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
|
1 x power button |
|
1 x reset button |
|
2 x temperature sensor headers |
|
1 x reset jumper |
|
1 x Clear CMOS jumper |
|
Voltage Measurement Points |
| Back Panel Connectors |
1 x Q-Flash Plus button |
|
1 x Clear CMOS button |
|
2 x SMA antenna connectors (2T2R) |
|
1 x DisplayPort |
|
1 x HDMI 2.0 port |
|
1 x USB Type-C® port, with USB 3.2 Gen 2×2 support |
|
1 x USB Type-C® port, with USB 3.2 Gen 2 support |
|
6 x USB 3.2 Gen 2 Type-A ports (red) |
|
4 x USB 2.0/1.1 ports |
|
1 x RJ-45 port |
|
1 x optical S/PDIF Out connector |
|
2 x audio jacks |
| I/O Controller |
iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection |
|
Temperature detection |
|
Fan speed detection |
|
Water cooling flow rate detection |
|
Fan fail warning |
|
Fan speed control |
|
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
|
Noise detection |
| BIOS |
1 x 256 Mbit flash |
|
Use of licensed AMI UEFI BIOS |
|
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for GIGABYTE Control Center (GCC) |
|
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
|
Support for Q-Flash |
|
Support for Q-Flash Plus |
|
Support for Smart Backup |
| Bundled Software |
Norton® Internet Security (OEM version) |
|
LAN bandwidth management software |
| Operating System |
Support for Windows 11 64-bit |
|
Support for Windows 10 64-bit |
| Form Factor |
E-ATX Form Factor; 30.5cm x 26.9cm |
| Warranty |
3 Years |
