GIGABYTE X870 Aorus Stealth ATX Wifi7 DDR5 AMD Motherboard
MPN GIGABYTE-X870-AORUS-STEALTH-BLACK · Brand GIGABYTE · ATX
The GIGABYTE X870 Aorus Stealth is an ATX Socket AM5 motherboard with AMD X870 chipset, Wi-Fi 7, DDR5 support up to 8200 MT/s OC, four M.2 slots including PCIe 5.0, and a 16+2+2 phase Digital Twin VRM for AMD Ryzen 9000/8000/7000 series processors
Inclusive of GST · GST invoice available
Overview

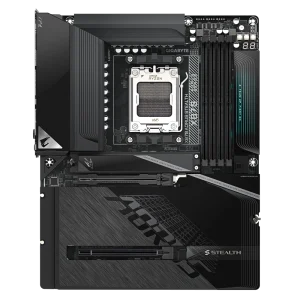

The GIGABYTE X870 Aorus Stealth is an ATX form-factor motherboard built around the AMD X870 chipset and Socket AM5, supporting AMD Ryzen 9000, 8000, and 7000 Series processors. It is designed for builders who want a capable, well-cooled platform for gaming and productivity workloads without excessive visual flair. At the heart of its power delivery is a 16+2+2 phase Digital Twin VRM layout built on a 6-layer, mid-loss, 2X copper PCB with premium chokes and capacitors. This configuration is intended to provide consistent voltage to multi-core processors even under sustained loads. Memory support extends to four DDR5 DIMM slots in a dual-channel configuration, accepting modules up to 256 GB total capacity (64 GB per DIMM). DDR5 speeds are supported at native 4400/4800/5200 MT/s and overclocked up to 8200 MT/s, with compatibility for both AMD EXPO and Intel XMP profiles. Storage is handled by four M.2 slots: two CPU-connected slots (M2A_CPU and M2B_CPU) that support PCIe 5.0 x4 with Ryzen 9000 and 7000 processors, plus two chipset-connected slots (M2C_SB, M2D_SB) running PCIe 4.0 x4. Two SATA 6 Gb/s ports are also available. GIGABYTE's M.2 EZ-Flex thermal solution and EZ-Latch Plus screwless retention system are present across the M.2 slots to simplify drive installation. Networking is provided by a Realtek 5GbE LAN controller alongside a Qualcomm Wi-Fi 7 (QCNCM865) module supporting 802.11a/b/g/n/ac/ax/be across 2.4 GHz, 5 GHz, and 6 GHz bands with 320 MHz channel width, and Bluetooth 5.4. Wi-Fi 7 functionality requires Windows 11 SV3. For display output, the board offers one HDMI 2.1 port (up to 4096×2160 @ 60 Hz) and two USB4 Type-C ports via the ASMedia USB4 controller, both supporting DisplayPort Alt Mode at up to 3840×2160 @ 240 Hz. Additional rear connectivity includes two USB 3.2 Gen 2 Type-A ports, four USB 3.2 Gen 1 ports, four USB 2.0 ports, and one USB 3.2 Gen 2 Type-C port. Internally, a USB 3.2 Gen 2x2 Type-C header is provided. The primary PCIe x16 slot is reinforced with GIGABYTE's PCIe UD Slot design and supports PCIe 5.0 x16 with Ryzen 9000 and 7000 processors. A secondary chipset PCIe x16 slot runs at PCIe 4.0 x4 speeds. Audio is powered by a Realtek ALC1220 codec offering 2/4/5.1/7.1-channel output with S/PDIF optical out. Fan management supports up to six fan and pump headers with hardware monitoring for voltage, temperature, and flow rate. BIOS is a 512 Mbit AMI UEFI implementation with Q-Flash Plus for BIOS recovery without a CPU installed. Verified Specifications: Socket: AM5 | Chipset: AMD X870 | Form Factor: ATX (30.5 cm × 24.4 cm) | Memory: 4× DDR5 DIMM, dual-channel, up to 256 GB, up to 8200 MT/s (OC) | M.2 Slots: 4× (2× PCIe 5.0, 2× PCIe 4.0) | Primary PCIe: PCIe 5.0 x16 | LAN: Realtek 5GbE | Wireless: Qualcomm Wi-Fi 7 (QCNCM865), BT 5.4 | USB Back Panel: 2× USB4 Type-C, 1× USB 3.2 Gen 2 Type-C, 2× USB 3.2 Gen 2 Type-A, 4× USB 3.2 Gen 1, 4× USB 2.0 | Audio: Realtek ALC1220, 7.1-channel, S/PDIF | VRM: 16+2+2 phase Digital Twin | BIOS: 512 Mbit AMI UEFI | OS: Windows 11 64-bit
Datasheet
| Form Factor | ATX |
|---|---|
| Chipset | AMD X870 |
| CPU Type | AMD Socket AM5, support for:AMD Ryzen™ 9000 Series Processors/AMD Ryzen™ 8000 Series Processors/AMD Ryzen™ 7000 Series Processors(Go to GIGABYTE's website for the latest CPU support list.) |
| Lan | Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| USB | CPU+ASMedia USB4® controller:- 2 x USB4® USB Type-C® ports on the back panel* The two USB4® USB Type-C® ports share bandwidth with the M2B_CPU connector. When a device is installed in the M2B_CPU connector, both the connector and the USB4® ports operate at up to PCIe 5.0 x2 mode. You can configure the M2B_CPU connector to PCIe 5.0 x4 mode in the BIOS Setup; however, the USB4® USB Type-C® ports will become unavailable.CPU:- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 supportCPU+USB 3.2 Gen 1 Hub:- 4 x USB 3.2 Gen 1 ports on the back panelCPU+USB 2.0 Hub:- 4 x USB 2.0/1.1 ports on the back panelChipset:- 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel- 2 x USB 3.2 Gen 1 ports available through the internal USB header- 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Bios | 1 x 512 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC1220 CODEC* The back panel line out jack supports DSD audio.High Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out |
| Model | X870-AORUS-STEALTH |
| Memory | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C.) / 5200 / 4800 / 4400 MT/s memory modules.4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install |
| I/O Controller | iTE® I/O Controller Chip |
| Bundle Software | Norton® Internet Security (OEM version) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 modeAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 modeAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)* The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector |
| Unique Features | Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz* Support for DisplayPort 1.4 version and HDR.Integrated Graphics Processor with AMD Radeon™ Graphics support:- 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.** Support for native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 11 64-bit |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs* The M2B_CPU connector becomes unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used.2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs2 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.RAID 0 and RAID 1 support for SATA storage devices |

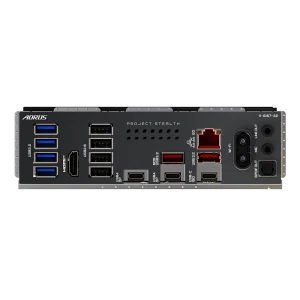

| Back Panel Connectors | 1 x HDMI port (Note)2 x antenna connectors (2T2R)2 x USB4® USB Type-C® ports (DisplayPort (Note))1 x USB Type-C® header, with USB 3.2 Gen 2 support2 x USB 3.2 Gen 2 Type-A ports (red)4 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacks(Note) Actual support may vary by CPU |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header4 x system fan headers2 x system fan/water cooling pump headers3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header4 x M.2 Socket 3 connectors2 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2×2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x noise detection header1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)1 x Q-Flash Plus button1 x power button1 x reset button1 x reset jumper2 x temperature sensor headers1 x Clear CMOS jumper |
| Wireless Communication Module | Qualcomm® Wi-Fi 7 QCNCM865- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.4- Support for 11be 320MHz wireless standard(Actual data rate may vary depending on environment and equipment.)* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.***Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details |
