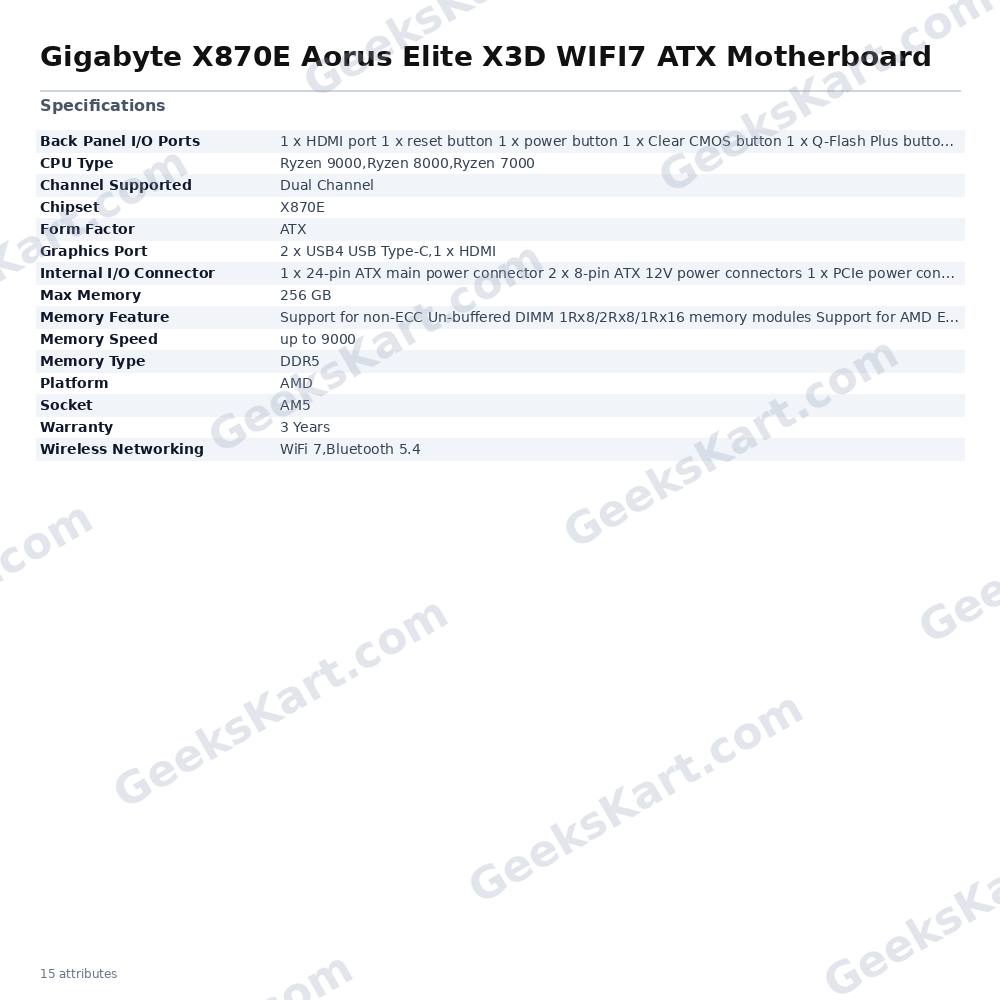

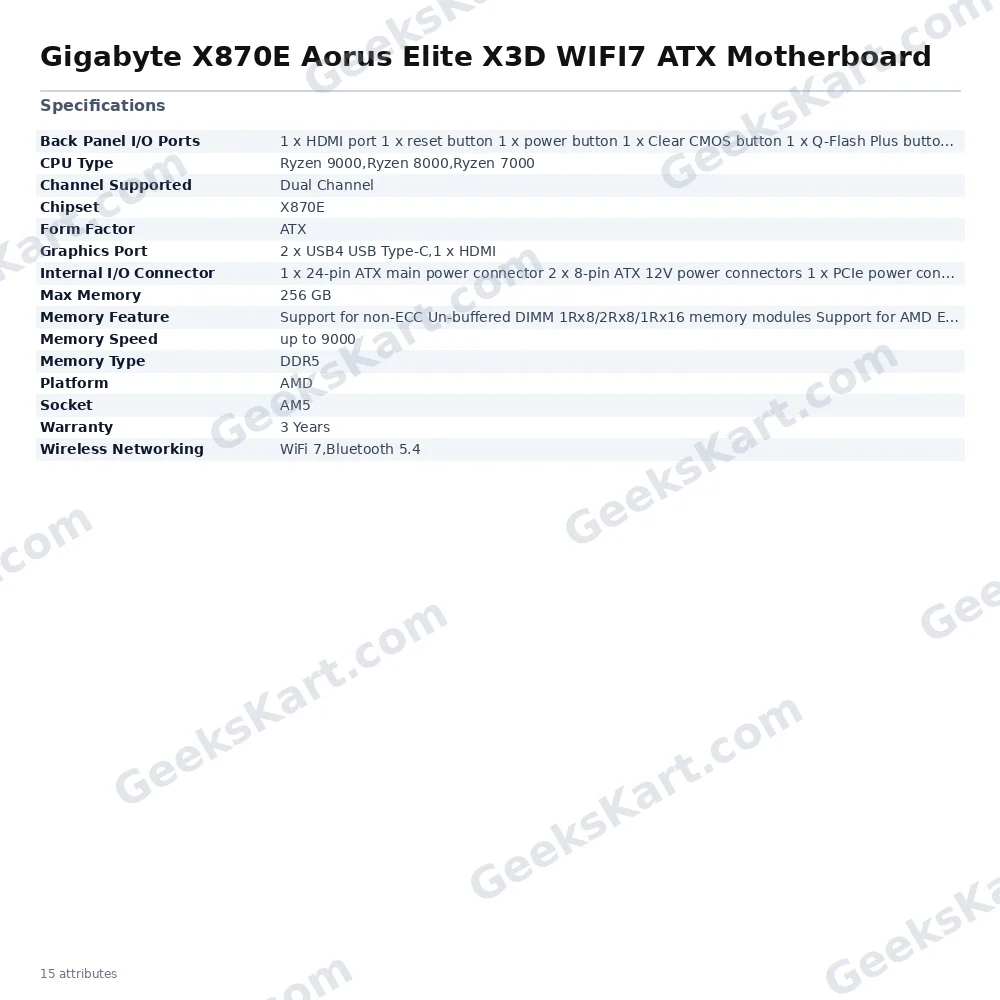

Gigabyte X870E Aorus Elite X3D WIFI7 ATX Motherboard

The GIGABYTE X870E Aorus Elite X3D is a full-size ATX motherboard built on the AMD X870E chipset for the AM5 platform, delivering a feature-rich foundation for AMD Ryzen 9000, 8000, and 7000 series processors including AMD Ryzen X3D variants. At the heart of the board is X3D Turbo Mode 2.0, which uses a built-in AI model and dedicated hardware circuits to dynamically optimise AMD Ryzen X3D processor parameters in real time, helping to extract more consistent gaming and multitasking performance compared to the first generation of the technology. A robust digital twin 16+2+2 phase VRM solution ensures stable power delivery for demanding workloads. Memory support spans four DDR5 DIMM slots in dual-channel configuration, with compatibility extending up to 256 GB and speeds reaching 9000 MT/s via overclocking profiles. The board supports both AMD EXPO and Intel XMP memory modules for straightforward memory tuning, and non-ECC unbuffered modules in 1Rx8, 2Rx8, and 1Rx16 configurations are all accommodated. Storage is handled by four M.2 Socket 3 connectors — one of which operates at PCIe 5.0 x4 for next-generation NVMe SSDs — complemented by four SATA 6 Gb/s ports. GIGABYTE's M.2 EZ-Latch Click and EZ-Latch Plus mechanisms allow screwless M.2 installation and heatsink removal, while M.2 EZ-Flex delivers flexible heatsink baseplate design for improved thermal contact. Connectivity is a strong suit. The rear I/O provides dual USB4 Type-C ports with DisplayPort Alt Mode, one USB 3.2 Gen 2 Type-C, five USB 3.2 Gen 2 Type-A ports, three USB 3.2 Gen 1 ports, a 5 GbE RJ-45 LAN port, an HDMI output, optical S/PDIF, and two audio jacks. Wireless networking is handled by Wi-Fi 7 with a 2T2R directional ultra-high-gain antenna via WIFI EZ-Plug for easy installation, plus Bluetooth 5.4. The primary PCIe x16 slot — designated PCIe UD Slot X — runs at PCIe 5.0 x16 and features 10× reinforced strength for heavy graphics cards. Thermal management includes VRM Thermal Armor Advanced, M.2 Thermal Guard L, M.2 Thermal Guard Ext, and a PCB Thermal Plate claimed to improve motherboard thermal performance by 14%. BIOS features include Q-Flash Auto Scan, Q-Flash Plus for BIOS recovery without a CPU installed, and a pre-installed Wi-Fi driver for immediate post-boot network access. Lighting and fan control are managed through multiple addressable RGB Gen2 and standard RGB headers, alongside six system fan/pump headers and a dedicated noise detection header. Verifiable Specifications: • Socket: AM5 • Chipset: AMD X870E • Compatible CPUs: AMD Ryzen 9000 / 8000 / 7000 Series • Form Factor: ATX • Memory: 4× DDR5 DIMM, Dual Channel, up to 256 GB, up to 9000 MT/s (OC), AMD EXPO & XMP • Storage: 4× M.2 (PCIe 5.0 x4 + PCIe 4.0 x4 slots), 4× SATA 6 Gb/s • Primary PCIe Slot: PCIe 5.0 x16 • Rear USB: 2× USB4 Type-C (DP Alt), 1× USB 3.2 Gen 2 Type-C, 5× USB 3.2 Gen 2 Type-A, 3× USB 3.2 Gen 1 • LAN: 5 GbE • Wireless: Wi-Fi 7, Bluetooth 5.4 (2T2R antenna) • Display Output: 1× HDMI, 2× USB4 with DP Alt • VRM: Digital twin 16+2+2 phases • Warranty: 3 Years
