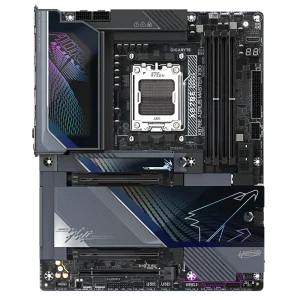

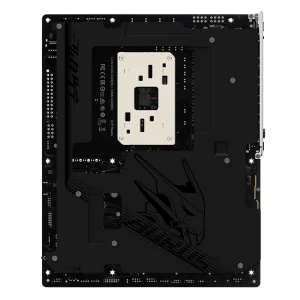

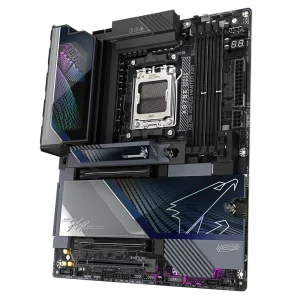

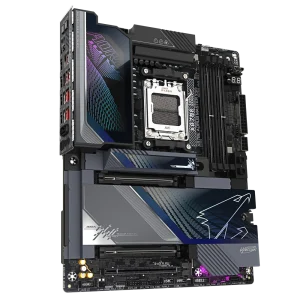

GIGABYTE X870E Aorus Master X3D Wifi7 DDR5 AMD Motherboard
MPN GIGABYTE-X870E-AORUS-MASTER-X3D-WIFI7 · Brand GIGABYTE · ATX
The GIGABYTE X870E Aorus Master X3D is an ATX motherboard for AMD AM5 with X3D Turbo Mode 2.0, dual LAN (10GbE + 5GbE), Wi-Fi 7, five M.2 slots, and DDR5 support up to 9000 MT/s — purpose-built for AMD Ryzen 9000/7000 series gaming and productivity builds
Inclusive of GST · GST invoice available
Overview
The GIGABYTE X870E Aorus Master X3D is a full-ATX motherboard built on the AMD X870E chipset with Socket AM5, designed to pair with AMD Ryzen 9000, 8000, and 7000 series processors. At its core is GIGABYTE's X3D Turbo Mode 2.0, which uses a built-in AI model alongside dedicated hardware circuits to dynamically tune AMD Ryzen X3D processor parameters in real time. This technology offers two distinct modes — Extreme Gaming Mode and Max Performance Mode — allowing users to switch profiles depending on their workload. Memory support extends to four DDR5 DIMM slots in a dual-channel configuration, with a maximum capacity of 256 GB (64 GB per DIMM). Overclocking is supported up to 9000 MT/s, and the board is compatible with both AMD EXPO and Intel XMP profiles. The VRM topology uses an 18+2+2 phase digital-twin design to deliver stable power delivery for high-performance CPU operation. Storage is handled by five M.2 slots — two connected directly to the CPU supporting PCIe 5.0 x4 (with Ryzen 9000/7000 series), and three chipset-attached slots supporting PCIe 4.0. An additional two SATA 6 Gb/s connectors are available. The primary x16 PCIe slot runs at PCIe 5.0 x16 with Ryzen 9000/7000 processors. Networking stands out with a dual-LAN configuration: a Realtek 5GbE chip (LAN1) and a Realtek 10GbE chip (LAN2), alongside a MediaTek Wi-Fi 7 MT7927 module supporting 802.11be on 2.4 GHz, 5 GHz, and 6 GHz bands with Bluetooth 5.4. Back-panel connectivity includes two USB4 Type-C ports with DisplayPort Alt-mode, one USB 3.2 Gen 2x2 Type-C port, one USB 3.2 Gen 2 Type-C port, seven USB 3.2 Gen 2 Type-A ports, and HDMI 2.1 video output. A front-panel USB Type-C header supports up to 65 W PD 3.0/QC 4+ fast charging. Audio is powered by a Realtek ALC1220 CODEC paired with an ESS ES9118 DAC, delivering high-definition audio with DTS:X Ultra support and S/PDIF optical output. Thermal management features include M.2 Thermal Guard XL with backplate, VRM Thermal Armor Advanced, and a PCB Thermal Plate providing full-coverage metal backplate design. The PCB itself is an 8-layer server-grade build with back-drilling technology and 2x copper enhancement for improved signal integrity and thermal performance. Key Verified Specifications: - Chipset: AMD X870E - Socket: AMD AM5 - CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series - Memory: 4x DDR5 DIMM, dual-channel, up to 256 GB, up to 9000 MT/s (OC), AMD EXPO & XMP support - VRM: 18+2+2 phase digital twin - Storage: 5x M.2 (2x PCIe 5.0 CPU, 3x PCIe 4.0 chipset), 2x SATA 6 Gb/s, RAID 0/1/5/10 for NVMe - PCIe: 1x PCIe 5.0 x16 (CPU), 1x PCIe 5.0 x8 (CPU), 1x PCIe 4.0 x4 (chipset) - LAN: Realtek 5GbE (LAN1) + Realtek 10GbE (LAN2) - Wireless: MediaTek Wi-Fi 7 MT7927, 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz, BT 5.4 - Audio: Realtek ALC1220 + ESS ES9118 DAC, DTS:X Ultra, S/PDIF out - USB (rear): 2x USB4 Type-C, 1x USB 3.2 Gen 2x2 Type-C, 1x USB 3.2 Gen 2 Type-C, 7x USB 3.2 Gen 2 Type-A - Display Output: HDMI 2.1 (4096×2160@60 Hz), 2x USB4 with DP (3840×2160@240 Hz) - Form Factor: ATX, 30.5 cm × 24.4 cm - BIOS: AMI UEFI, 512 Mbit flash, Q-Flash Plus - Warranty: 3 years

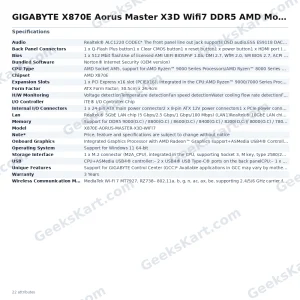

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | AMD X870E |
| CPU Type | AMD Socket AM5, support for:AMD RyzenTM 9000 Series Processors/AMD RyzenTM 8000 Series Processors/AMD RyzenTM 7000 Series Processors(Go to GIGABYTE’s website for the latest CPU support list.) |
| Lan | Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)Realtek® 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN2) |
| USB | CPU+ASMedia USB4® controller:– 2 x USB4® USB Type-C® ports on the back panelCPU:– 1 x USB 3.2 Gen 2 Type-A port (red) on the back panelChipset+USB 3.2 Gen 1 Hub:– 4 x USB 3.2 Gen 1 ports available through the internal USB headersChipset:– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support– 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging)* For precautions regarding the fast charging function, refer to “USB Type-C® Header” in Chapter 2-7, “Internal Connectors.”– 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel– 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Bios | 1 x 512 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC1220 CODEC* The front panel line out jack supports DSD audio.ESS ES9118 DAC chipSupport for DTS:X® UltraHigh Definition Audio2/4/5.1-channel* You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out |
| Model | X870E-AORUS-MASTER-X3D-WIFI7 |
| Note* | Price, feature and specifications are subject to change without notice |
| Memory | Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules.4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.) |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.Noise detection |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 modeAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 modeAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x8 mode* The PCIEX8 slot becomes unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/ Phoenix 2 processor is used.Chipset:– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)* The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector |
| Unique Features | Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:– 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz* Support for DisplayPort 1.4 version and HDR.Integrated Graphics Processor with AMD Radeon™ Graphics support:– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.** Support for native HDMI 2.1 TMDS compatible ports.– 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz* Support for HDMI 1.4 version.(Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 11 64-bit |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs* The M2B_CPU connector shares bandwidth with the ASMedia USB4® controller. When a device is installed in the M2B_CPU connector, both the M2B_CPU connector and the USB4 ports supported by the ASMedia USB4® controller operate at up to x2 bandwidth.When using an AMD Ryzen™ 8000 Series-Phoenix 1 or Phoenix 2 processor, the USB4 ports supported by the ASMedia USB4® controller operates at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable.2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs1 x M.2 connector (M2E_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x2 SSDs2 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.RAID 0 and RAID 1 support for SATA storage devices |

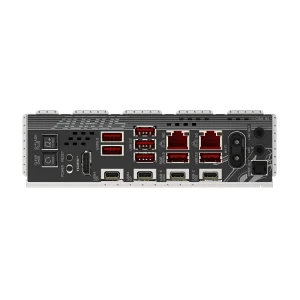

| Back Panel Connectors | 1 x Q-Flash Plus button1 x Clear CMOS button1 x reset button1 x power button1 x HDMI port (Note)2 x USB4® USB Type-C® ports (DisplayPorts (Note))1 x USB Type-C® port, with USB 3.2 Gen 2 support1 x USB Type-C® port, with USB 3.2 Gen 2×2 support7 x USB 3.2 Gen 2 Type-A ports (red)2 x RJ-45 ports2 x antenna connectors (2T2R)2 x audio jacks1 x optical S/PDIF Out connector(Note) Actual support may vary by CPU |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x PCIe power connector1 x CPU fan header1 x CPU fan/water cooling pump header4 x system fan headers1 x system fan extension cable header (can extend three system fan headers through one cable)1 x system fan/water cooling pump header4 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header5 x M.2 Socket 3 connectors2 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x speaker header1 x USB Type-C® header, with USB 3.2 Gen 2×2 support2 x USB 3.2 Gen 1 headers2 x USB 2.0/1.1 headers1 x noise detection header1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)1 x HDMI port (Note)1 x chassis intrusion header1 x reset jumper1 x Clear CMOS jumper2 x temperature sensor headers(Note) Actual support may vary by CPU |

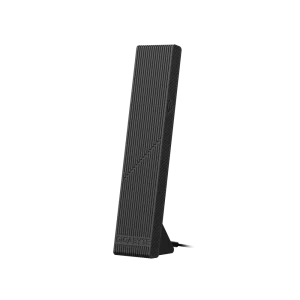

| Wireless Communication Module | MediaTek Wi-Fi 7 MT7927, RZ738– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands– BLUETOOTH 5.4– Support for 11be 320MHz wireless standard(Actual data rate may vary depending on environment and equipment.)* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations.*** Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details |
