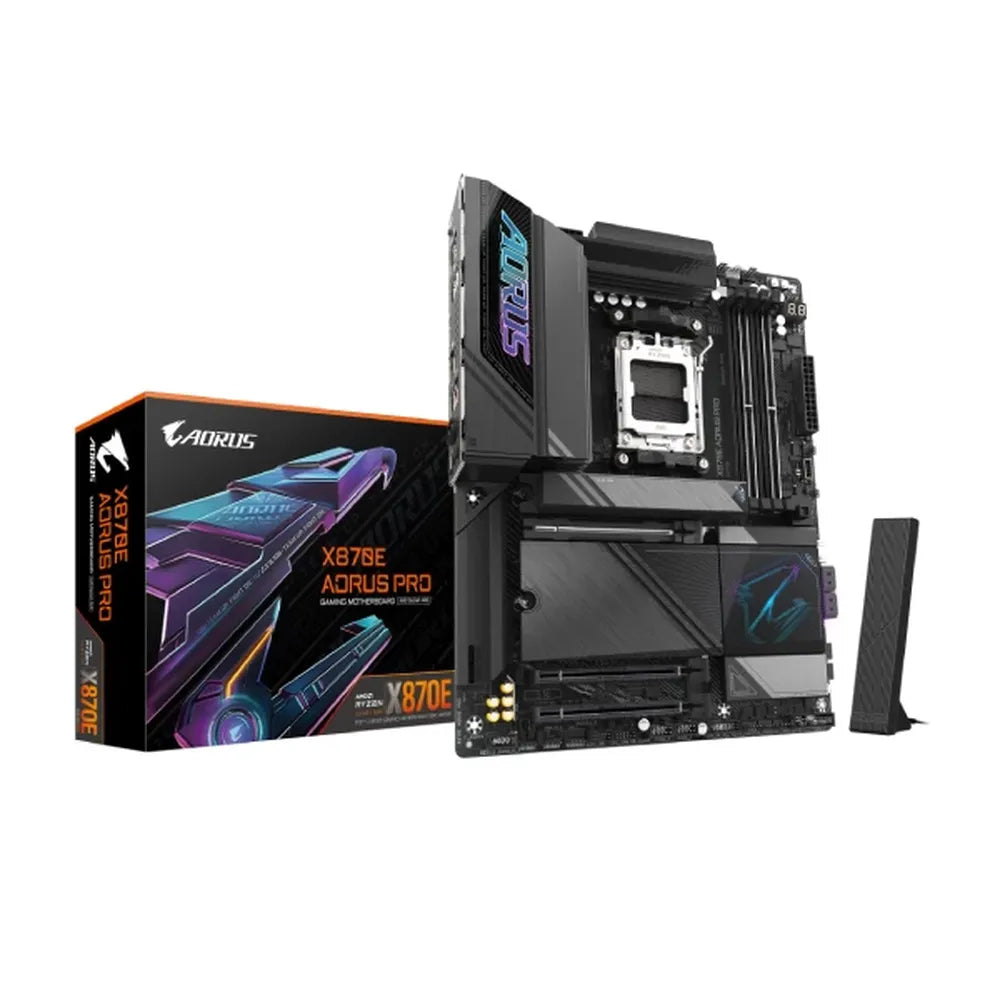

GIGABYTE X870E Aorus Pro WiFi DDR5 AMD Motherboard
MPN GIGABYTE-X870E-AORUS-PRO-WIFI-BLACK · Brand GIGABYTE · ATX
The GIGABYTE X870E Aorus Pro WiFi is an AM5 ATX motherboard featuring the AMD X870E chipset, PCIe 5.0 x16 and triple PCIe 5.0 M.2 slots, Wi-Fi 7, dual USB4 Type-C, and DDR5 support up to 256 GB — built for AMD Ryzen 9000/7000 series systems
Inclusive of GST · GST invoice available
Overview
The GIGABYTE X870E Aorus Pro WiFi is a full-size ATX motherboard built on the AMD X870E chipset and designed for AMD Socket AM5 processors, including the AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 series. It measures 30.5 cm x 24.4 cm and brings together a high-end power delivery system, next-generation storage, and advanced wireless connectivity to serve enthusiast builders and content creators who demand headroom for overclocking and future-ready I/O. Power delivery is handled by a digital twin 16+2+2 phase VRM solution backed by VRM Thermal Armor Advanced heatsinks, keeping voltage regulation stable during sustained workloads. The board supports dual-channel DDR5 memory across four DIMM slots, accommodating up to 256 GB (64 GB per DIMM) at speeds ranging from 4400 MT/s up to 8200 MT/s in overclocked profiles, with native support for both AMD EXPO and Intel XMP memory modules. Storage is a headline strength: three of the four M.2 slots run at PCIe 5.0 x4 speeds when paired with a Ryzen 9000 or 7000 series processor, while the fourth M.2 slot operates at PCIe 4.0 x4 via the chipset. All four M.2 connectors feature M.2 Thermal Guard L heatsinks. Four SATA 6 Gb/s ports round out storage options, and RAID 0, 1, and 10 are supported across SATA devices. Connectivity is extensive. Wireless is provided by a Qualcomm Wi-Fi 7 (QCNCM865) module supporting 802.11be with tri-band 2.4/5/6 GHz operation and up to 320 MHz channel width, paired with Bluetooth 5.3. Wired networking uses a Realtek 2.5 GbE LAN chip. The rear I/O includes two USB4 Type-C ports (via CPU and ASMedia controller) with DisplayPort Alt Mode, three USB 3.2 Gen 2 Type-A ports, four USB 3.2 Gen 1 ports, and two USB 2.0 ports, alongside an HDMI 2.1 output and optical S/PDIF out. The PCIe x16 slot (PCIe UD Slot X) is reinforced and runs at PCIe 5.0 x16 with Ryzen 9000/7000 processors. Audio is handled by a Realtek ALC1220 codec supporting up to 7.1-channel HD audio and DSD playback via the back-panel line-out jack. RGB is well supported, with three addressable RGB Gen2 headers and one standard RGB header. GIGABYTE's EZ-Latch Plus provides tool-free PCIe and M.2 slot release, and EZ-Latch Click allows screwless M.2 heatsink removal. Q-Flash Plus enables BIOS updates without a CPU or RAM installed. The Sensor Panel Link header supports an in-chassis display panel for system monitoring. Key Verified Specifications: - Chipset: AMD X870E - Socket: AMD AM5 - Supported CPUs: AMD Ryzen 9000 / 8000 / 7000 Series - Form Factor: ATX, 30.5 cm x 24.4 cm - Memory: 4x DDR5 DIMM, up to 256 GB, 4400–8200 MT/s (OC), EXPO & XMP support - Storage: 4x M.2 (3x PCIe 5.0 x4 CPU, 1x PCIe 4.0 x4 chipset), 4x SATA 6 Gb/s - Primary PCIe Slot: PCIe 5.0 x16 (Ryzen 9000/7000) - Wireless: Qualcomm Wi-Fi 7 (QCNCM865), BT 5.3, tri-band, 320 MHz - LAN: Realtek 2.5 GbE - USB: 2x USB4 Type-C, 3x USB 3.2 Gen 2 Type-A, 4x USB 3.2 Gen 1, 2x USB 2.0 (rear panel) - Audio: Realtek ALC1220, 7.1-channel HD, S/PDIF out - BIOS: AMI UEFI, Q-Flash, Q-Flash Plus - VRM: 16+2+2 digital twin phases - Warranty: 3 Years

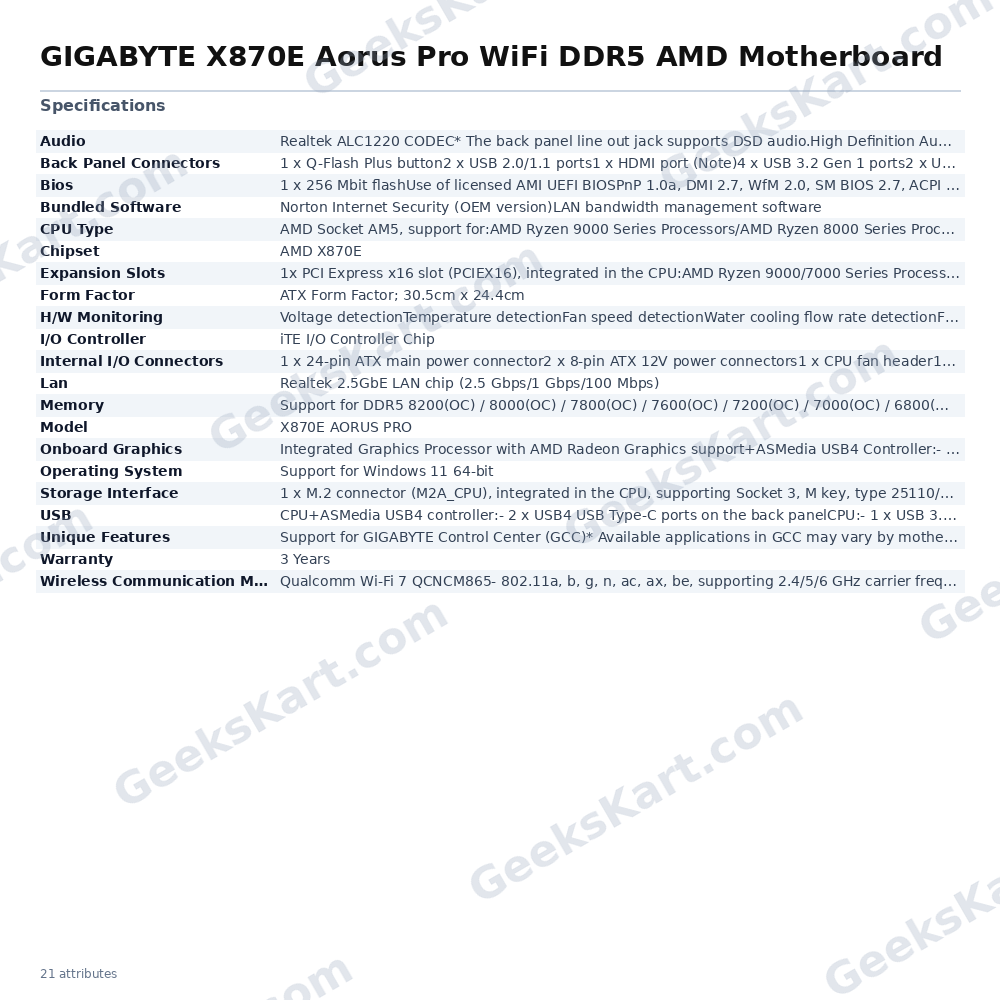

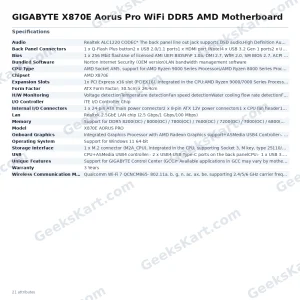

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | AMD X870E |
| CPU Type | AMD Socket AM5, support for:AMD Ryzen 9000 Series Processors/AMD Ryzen 8000 Series Processors/AMD Ryzen 7000 Series Processors(Go to GIGABYTE's website for the latest CPU support list.) |
| Lan | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | CPU+ASMedia USB4 controller:- 2 x USB4 USB Type-C ports on the back panelCPU:- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panelChipset:- 1 x USB Type-C port with USB 3.2 Gen 2×2 support, available through the internal USB header- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel- 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek ALC1220 CODEC* The back panel line out jack supports DSD audio.High Definition Audio 2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out |
| Model | X870E AORUS PRO |
| Memory | Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.Noise detection |
| I/O Controller | iTE I/O Controller Chip |
| Expansion Slots | 1x PCI Express x16 slot (PCIEX16), integrated in the CPU:AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.When theM2B_CPU orM2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 modeAMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)Chipset:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2) |
| Unique Features | Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup |
| Bundled Software | Norton Internet Security (OEM version)LAN bandwidth management software |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:- 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz* Support for DisplayPort 1.4 version and HDR.Integrated Graphics Processor with AMD Radeon Graphics support:- 1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.** Support for native HDMI 2.1 TMDS compatible ports.- 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz* Support for HDMI 1.4 version(Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 11 64-bit |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDsAMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs* The M2B_CPU and M2C_CPU connectors will become unavailable when using the AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 Processors.1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices* RAID 5 is only available on AMD Ryzen 9000 Series Processors.* RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Back Panel Connectors | 1 x Q-Flash Plus button2 x USB 2.0/1.1 ports1 x HDMI port (Note)4 x USB 3.2 Gen 1 ports2 x USB4 USB Type-C port (DisplayPort (Note))3 x USB 3.2 Gen 2 Type-A ports (red)1 x RJ-45 port2 x antenna connectors (2T2R)1 x optical S/PDIF Out connector2 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x CPU fan/water cooling pump header4 x system fan headers2 x system fan/water cooling pump headers3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header4 x SATA 6Gb/s connectors4 x M.2 Socket 3 connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2×2 support2 x USB 3.2 Gen 1 headers2 x USB 2.0/1.1 headers1 x noise detection header1 x HDMI port (Note)1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0/GC-TPM2.0 SPI V2 module only)1 x power button1 x reset button2 x temperature sensor headers1 x reset jumper1 x Clear CMOS jumper |
| Wireless Communication Module | Qualcomm Wi-Fi 7 QCNCM865- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.3- Support for 11be 320MHz wireless standard(Actual data rate may vary depending on environment and equipment.)* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations |
