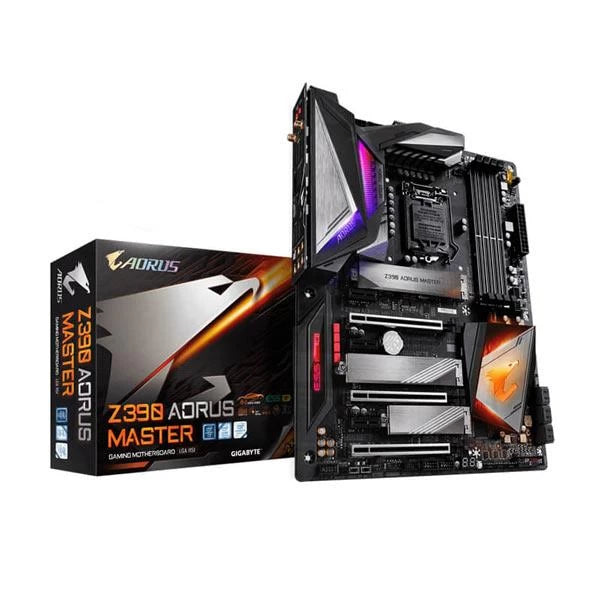

GIGABYTE Z390 Aorus Master DDR4 Intel Motherboard
MPN GIGABYTE-Z390-AORUS-MASTER · Brand Gigabyte · ATX
The Gigabyte Z390 Aorus Master is an ATX motherboard for 8th/9th Gen Intel Core processors (LGA1151), featuring a 12-phase digital VRM, triple M.2 NVMe slots with Thermal Guard, up to 128GB DDR4, integrated Intel Wi-Fi 5, and Realtek ALC1220-VB + ESS SABRE 9118 DAC audio
Inclusive of GST · GST invoice available
Overview
The Gigabyte Z390 Aorus Master is a full-size ATX motherboard built on the Intel Z390 Express Chipset, designed to support 8th and 9th Generation Intel Core processors in the LGA1151 socket — including Core i9, i7, i5, and i3 families. Its 12-phase IR digital VRM solution, using 40A IR3553 PowIRstage MOSFETs per vCore phase for a rated total of 480A, is paired with dual 8-pin ATX 12V power connectors, giving high-core-count processors the stable, clean power they need under sustained loads. Thermal management goes well beyond basic heatsinks. The board combines a Fins-Array heatsink, a direct-touch heat pipe, and a thermal baseplate across the VRM zone. Each of the three M.2 slots is equipped with an individual Thermal Guard shield to help keep NVMe SSDs running at rated speeds. For memory, four DDR4 DIMM slots support dual-channel configurations up to 128GB (based on 32GB single-DIMM modules), with XMP profiles and overclocked speeds up to DDR4-4400 (O.C.). Storage flexibility comes from three M.2 Socket 3 (PCIe Gen3 x4) connectors alongside six SATA 6Gb/s ports and support for RAID 0, 1, 5, and 10, as well as Intel Optane Memory. Connectivity is comprehensive. The onboard Intel CNVi module delivers 802.11a/b/g/n/ac dual-band Wi-Fi with 160MHz channel support and speeds up to 1.73Gbps, plus Bluetooth 5. Wired networking is handled by an Intel Gigabit LAN chip with cFosSpeed traffic-shaping software. The rear I/O panel provides one USB Type-C (USB 3.1 Gen 2), three USB 3.1 Gen 2 Type-A (red), two USB 3.1 Gen 1, and four USB 2.0 ports, complemented by an internal front-panel USB 3.1 Gen 2 Type-C header. Audio is served by a Realtek ALC1220-VB codec paired with an ESS SABRE 9118 DAC, supporting 2/4/5.1/7.1-channel output, S/PDIF optical out, and DSD playback on the front-panel line-out jack. RGB Fusion multi-zone lighting is supported via two addressable LED strip headers and two standard RGB LED strip headers. Smart Fan 5 provides hybrid fan control across six headers with FAN STOP capability. Verifiable Specifications: - Chipset: Intel Z390 Express - Socket: LGA1151 (8th/9th Gen Intel Core) - Memory: 4x DDR4 DIMM, up to 128GB, DDR4-2133 to DDR4-4400 (O.C.), XMP support - Form Factor: ATX, 30.5cm x 24.4cm - Storage: 3x M.2 PCIe Gen3 x4 (with Thermal Guard), 6x SATA 6Gb/s, RAID 0/1/5/10 - Expansion: 1x PCIe x16 (x16), 1x PCIe x16 (x8), 1x PCIe x16 (x4), 3x PCIe x1 - Audio: Realtek ALC1220-VB + ESS SABRE 9118 DAC, 7.1-channel - Wireless: Intel CNVi 802.11ac Wave 2, up to 1.73Gbps; Bluetooth 5 - LAN: Intel GbE (10/100/1000 Mbit) - BIOS: Dual BIOS, AMI UEFI, 2x 128Mbit flash - Warranty: 3 Years

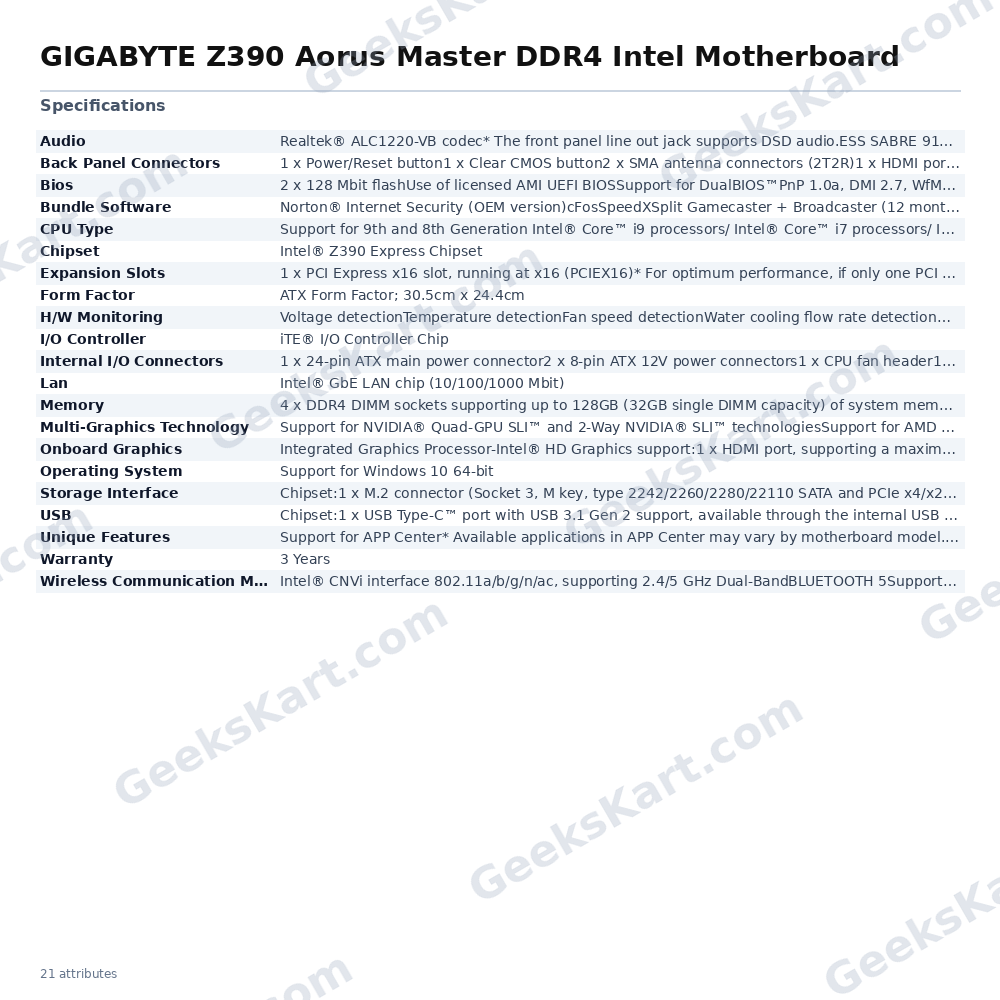

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | Intel® Z390 Express Chipset |
| CPU Type | |
| Lan | Intel® GbE LAN chip (10/100/1000 Mbit) |
| USB | Chipset:1 x USB Type-C™ port with USB 3.1 Gen 2 support, available through the internal USB header1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support3 x USB 3.1 Gen 2 Type-A ports (red) on the back panel4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)Chipset+USB 2.0 Hub:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 2 x 128 Mbit flashUse of licensed AMI UEFI BIOSSupport for DualBIOS™PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC1220-VB codec* The front panel line out jack supports DSD audio.ESS SABRE 9118 DACHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out |
| Memory | 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory**** Please note that the support for system total memory size depends on the CPU installed.Dual channel memory architectureSupport for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modulesSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer to "Memory Support List" for more information.) |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionOverheating warningFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install |
| I/O Controller | iTE® I/O Controller Chip |
| Bundle Software | Norton® Internet Security (OEM version)cFosSpeedXSplit Gamecaster + Broadcaster (12 months license) |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot, running at x8 (PCIEX8)* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.1 x PCI Express x16 slot, running at x4 (PCIEX4)* The PCIEX4 slot shares bandwidth with the M2P connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P connector.3 x PCI Express x1 slots(All of the PCI Express slots conform to PCI Express 3.0 standard.)1 x M.2 Socket 1 connector for an Intel® CNVi wireless module (CNVI) |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.3D OSD@BIOSAutoGreenCloud StationEasyTuneEasy RAIDFast BootGame BoostPlatform Power ManagementRGB FusionSmart BackupSmart KeyboardSmart TimeLockSmart HUDSystem Information ViewerSmart SurveyUSB BlockerUSB DAC-UP 2USB TurboChargerSupport for Q-FlashSupport for Xpress Install |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz* Support for HDMI 1.4 version and HDCP 2.2.Maximum shared memory of 1 GBActual support may vary by CPU |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | Chipset:1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M)1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P)6 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, RAID 5, and RAID 10* Refer to "1-9 Internal Connectors," for the installation notices for the PCIEX4, M.2 and SATA connectors.Intel® Optane™ Memory Ready |
| Back Panel Connectors | 1 x Power/Reset button1 x Clear CMOS button2 x SMA antenna connectors (2T2R)1 x HDMI port1 x USB Type-C™ port, with USB 3.1 Gen 2 support3 x USB 3.1 Gen 2 Type-A ports (red)2 x USB 3.1 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port1 x optical S/PDIF Out connector5 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x water cooling CPU fan header4 x system fan headers2 x system fan/water cooling pump headers2 x Addressable LED strip headers2 x Addressable LED strip power select jumpers2 x RGB LED strip headers3 x M.2 Socket 3 connectors6 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB Type-C™ port, with USB 3.1 Gen 2 support1 x USB 3.1 Gen 1 header2 x USB 2.0/1.1 headers1 x Thunderbolt™ add-in card connector1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)1 x OC button1 x reset button2 x temperature sensor headers2 x BIOS switches1 x Clear CMOS jumperVoltage Measurement Points |
| Multi-Graphics Technology | Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologiesSupport for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies |
| Wireless Communication Module | Intel® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-BandBLUETOOTH 5Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate* Actual data rate may vary depending on environment and equipment |
