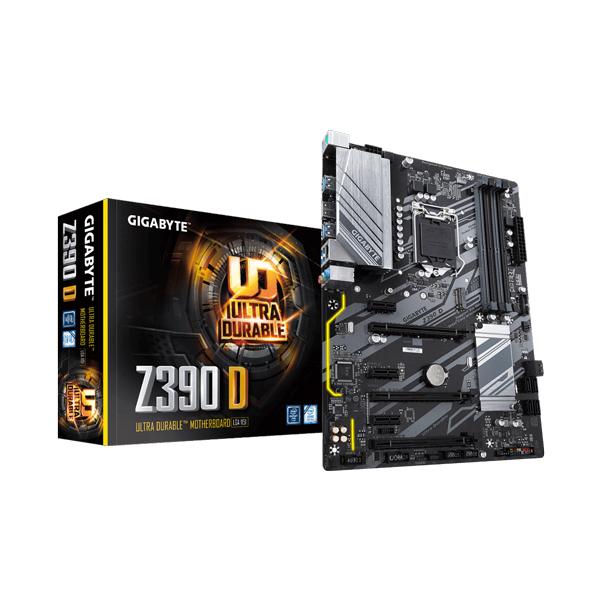

GIGABYTE Z390 D DDR4 Intel Motherboard
MPN GIGABYTE-Z390-D · Brand Gigabyte · ATX
The Gigabyte Z390 D is an ATX motherboard for 8th & 9th Gen Intel LGA1151 processors, featuring 4x DDR4 slots (up to 128 GB), M.2 NVMe support, Smart Fan 5 thermal control, and Realtek ALC887 HD audio
Inclusive of GST · GST invoice available
Overview
The Gigabyte Z390 D is an ATX-form-factor motherboard (30.5 cm x 23.0 cm) built on the Intel Z390 Express Chipset, designed to pair with 8th and 9th Generation Intel Core i9, i7, i5, i3, Pentium, and Celeron processors in the LGA1151 socket. It is a solid platform for PC builders who want a feature-rich Intel foundation without moving to a premium tier price point. Memory support is one of the board's key strengths. Four DDR4 DIMM slots accommodate up to 128 GB total capacity (32 GB per DIMM), running in dual-channel configuration. Speeds range from the standard 2133 MHz up to 4266 MHz in overclocked mode, with full XMP profile support for hassle-free tuning. Storage is handled by a single M.2 Socket 3 connector (supporting SATA and PCIe x4/x2 NVMe drives in 2242/2260/2280/22110 form factors) alongside six SATA 6 Gb/s ports. RAID 0, 1, 5, and 10 configurations are supported, and the board is Intel Optane Memory Ready for cache-accelerated storage setups. Connectivity is comprehensive. Eight USB 3.1 Gen 1 ports are available (six on the rear panel, two via an internal header), complemented by four USB 2.0/1.1 ports through internal headers. The rear panel also carries one HDMI 1.4 port (max 4096×2160 @ 30 Hz via Intel integrated graphics), one RJ-45 Gigabit Ethernet port, PS/2 keyboard and mouse ports, and three audio jacks. Audio is driven by a Realtek ALC887 codec supporting High Definition Audio in 2/4/5.1/7.1-channel configurations and S/PDIF output. Networking uses a Realtek GbE LAN chip (10/100/1000 Mbit) bundled with the Realtek 8118 Gaming LAN Bandwidth Control Utility. Thermal management is handled by Gigabyte's Smart Fan 5 system, which features multiple temperature sensors, hybrid fan headers supporting both PWM and voltage-mode fans, and a Fan Stop function that can fully halt a fan when temperatures fall below a user-defined threshold. MOSFET heatsinks with a 1.5 mm thermal pad aid VRM cooling. Expansion slots include one PCIe x16 slot running at full x16, two PCIe x16 slots running at x4, and three PCIe x1 slots — all conforming to PCIe 3.0. AMD 2-Way and Quad-GPU CrossFire multi-graphics configurations are supported. A Thunderbolt add-in card connector and a TPM 2.0 header (GC-TPM2.0_S module) round out the internal I/O. The board ships with a 128 Mbit AMI UEFI BIOS, diagnostic LEDs for rapid fault identification across CPU/DDR/VGA/HDD, anti-sulfur resistor protection, an audio noise guard with PCB-level isolation, and onboard RGB LED strip header support via RGB Fusion. Gigabyte's APP Center software suite includes EasyTune, Fast Boot, Game Boost, Smart Backup, Q-Flash, and more. Verified Specifications: - Socket: LGA1151 | Chipset: Intel Z390 Express - Memory: 4x DDR4 DIMM, up to 128 GB, dual-channel, up to 4266 MHz (O.C.) - Storage: 1x M.2 (PCIe x4/x2 + SATA), 6x SATA 6 Gb/s, RAID 0/1/5/10 - Display: 1x HDMI 1.4 (4096×2160 @ 30 Hz, max 1 GB shared memory) - Audio: Realtek ALC887, 7.1-channel HD Audio, S/PDIF Out - LAN: Realtek GbE (10/100/1000 Mbit) - USB: 8x USB 3.1 Gen 1 + 4x USB 2.0/1.1 - Form Factor: ATX, 30.5 cm x 23.0 cm - BIOS: 128 Mbit AMI UEFI - Warranty: 3 Years

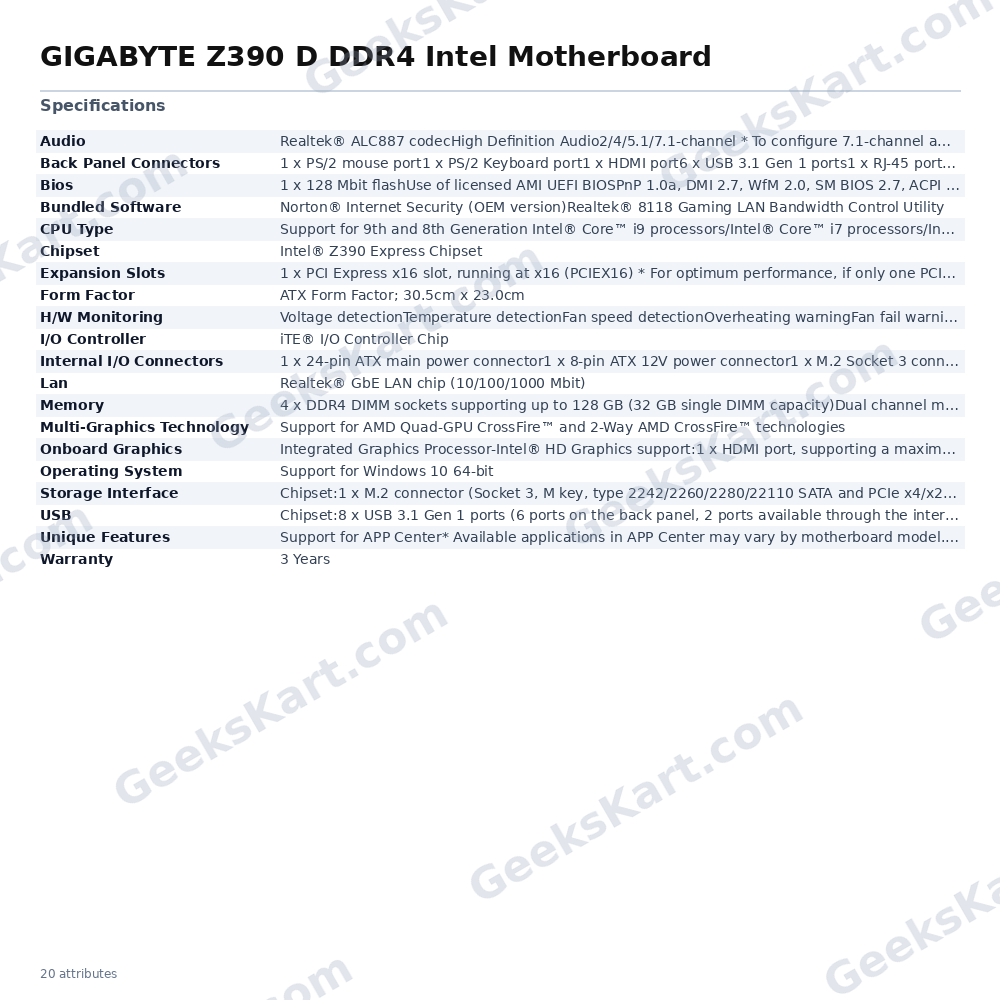

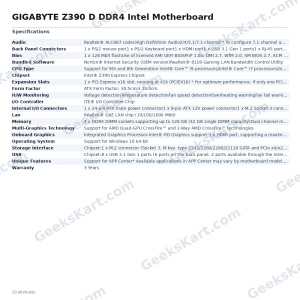

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | Intel® Z390 Express Chipset |
| CPU Type | |
| Lan | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| USB | Chipset:8 x USB 3.1 Gen 1 ports (6 ports on the back panel, 2 ports available through the internal USB header)4 x USB 2.0/1.1 ports available through the internal USB headers |
| Bios | 1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC887 codecHigh Definition Audio2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.Support for S/PDIF Out |
| Memory | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)Dual channel memory architectureSupport for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modulesSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer "Memory Support List" for more information.) |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control * Whether the fan speed control function is supported will depend on the fan you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSAmbient LEDAutoGreenCloud StationEasyTuneEasy RAIDFast BootGame BoostON/OFF ChargePlatform Power ManagementSmart BackupSmart KeyboardSmart SurveySystem Information ViewerUSB BlockerSupport for Q-FlashSupport for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)Realtek® 8118 Gaming LAN Bandwidth Control Utility |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz* Support for HDMI 1.4 version and HDCP 2.2.Maximum shared memory of 1 GB |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | Chipset:1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)6 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, RAID 5, and RAID 10* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.Intel® Optane™ Memory Ready |
| Back Panel Connectors | 1 x PS/2 mouse port1 x PS/2 Keyboard port1 x HDMI port6 x USB 3.1 Gen 1 ports1 x RJ-45 port3 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x M.2 Socket 3 connector6 x SATA 6Gb/s connectors1 x CPU fan header3 x system fan headers1 x RGB LED strip header1 x front panel header1 x front panel audio header1 x USB 3.1 Gen 1 header2 x USB 2.0/1.1 headers1 x S/PDIF Out header1 x Thunderbolt™ add-in card connector1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)1 x serial port header1 x Clear CMOS jumper |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
