GIGABYTE Z390 I Aorus Pro Wifi DDR4 Intel Motherborad
MPN GIGABYTE-Z390-I-AORUS-PRO-WIFI · Brand Gigabyte · ATX

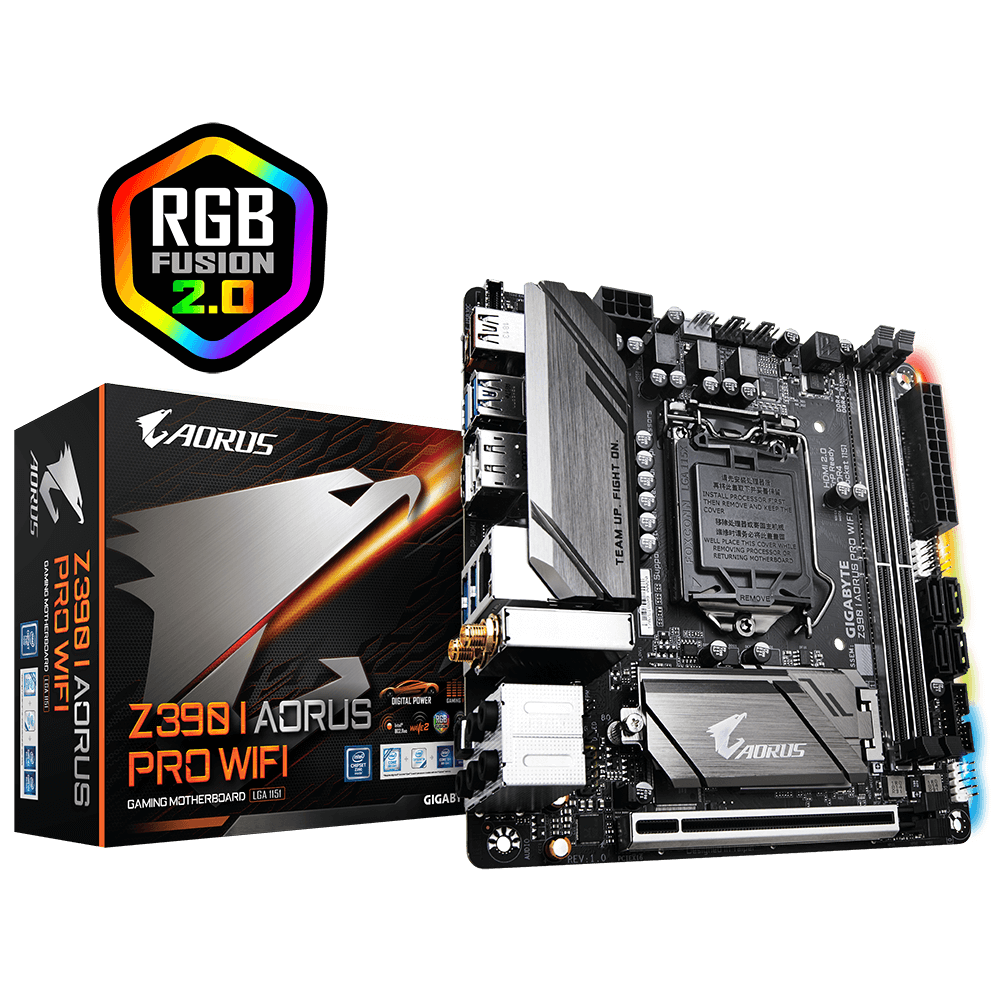

The Gigabyte Z390 I Aorus Pro WiFi is an ATX motherboard for LGA1151 Intel 8th and 9th Gen CPUs, featuring dual M.2 PCIe Gen3 x4 slots, Intel 802.11ac Wi-Fi with Bluetooth 5, Realtek ALC1220-VB audio, and RGB Fusion 2.0 lighting control
Inclusive of GST · GST invoice available
Overview
The Gigabyte Z390 I Aorus Pro WiFi is a full-size ATX motherboard built on the Intel Z390 Express Chipset, designed to support 8th and 9th Generation Intel Core processors — including Core i9, i7, i5, and i3 variants — in the LGA1151 socket. Its feature set makes it a capable platform for PC builders, gamers, and overclockers who want a well-rounded Intel build without compromise. On the memory front, the board provides four DDR4 DIMM slots in a dual-channel configuration, supporting up to 128 GB of system memory (with 32 GB per DIMM). Overclocking enthusiasts will appreciate XMP profile support and DDR4 speeds ranging from 2133 MHz up to 4266 MHz (O.C.), giving ample headroom for memory tuning. Storage options are generous: two M.2 Socket 3 connectors support PCIe Gen3 x4 and SATA SSDs, with one slot featuring a dedicated Thermal Guard heatsink to help manage SSD temperatures during sustained workloads. Six SATA 6 Gb/s ports complete the storage array, and RAID 0, 1, 5, and 10 configurations are supported. Intel Optane Memory is also compatible. Wireless connectivity is handled by an onboard Intel CNVi module supporting 802.11a/b/g/n/ac on 2.4 GHz and 5 GHz dual-band frequencies, with 160 MHz channel support and up to 1.73 Gbps theoretical data rates. Bluetooth 5 is included. Wired networking uses an Intel GbE LAN chip (10/100/1000 Mbit) paired with cFosSpeed traffic-shaping software. Audio is delivered via a Realtek ALC1220-VB codec with NICHICON audio capacitors, rated at 114 dB SNR on the rear output and 110 dB SNR on the front microphone path, with 2/4/5.1/7.1-channel output and S/PDIF support. The USB complement is extensive: one USB 3.1 Gen 2 Type-C and two USB 3.1 Gen 2 Type-A ports on the rear panel, three USB 3.1 Gen 1 ports on the rear, an internal USB 3.1 Gen 1 Type-C header, and eight USB 2.0/1.1 ports split across the rear panel and internal headers. Expansion is via one PCIe x16 (x16 mode), one PCIe x16 (x8 mode, bandwidth shared), one PCIe x16 (x4 mode), and three PCIe x1 slots — all PCIe 3.0. RGB Fusion 2.0 supports multi-zone addressable LED strips and standard RGB strips, while Smart Fan 5 manages up to six fan/pump headers with multiple temperature sensors and FAN STOP capability. DualBIOS provides backup firmware protection. Verified Specifications: - Socket: LGA1151 | Chipset: Intel Z390 Express - Form Factor: ATX — 30.5 cm x 24.4 cm - Memory: 4x DDR4 DIMM, up to 128 GB, DDR4-2133 to DDR4-4266 (O.C.), XMP support - Storage: 2x M.2 PCIe Gen3 x4 (one with Thermal Guard), 6x SATA 6 Gb/s, RAID 0/1/5/10 - Wi-Fi: Intel CNVi 802.11ac, 2.4/5 GHz, up to 1.73 Gbps; Bluetooth 5 - LAN: Intel GbE (10/100/1000 Mbit) - Audio: Realtek ALC1220-VB, 114 dB SNR rear / 110 dB SNR front mic - Rear USB: 1x USB-C 3.1 Gen2, 2x USB-A 3.1 Gen2, 3x USB 3.1 Gen1, 4x USB 2.0 - Display: 1x HDMI 1.4 (up to 4096x2160 @ 30 Hz, iGPU dependent) - BIOS: AMI UEFI, DualBIOS, 2x 128 Mbit flash - Warranty: 3 Years

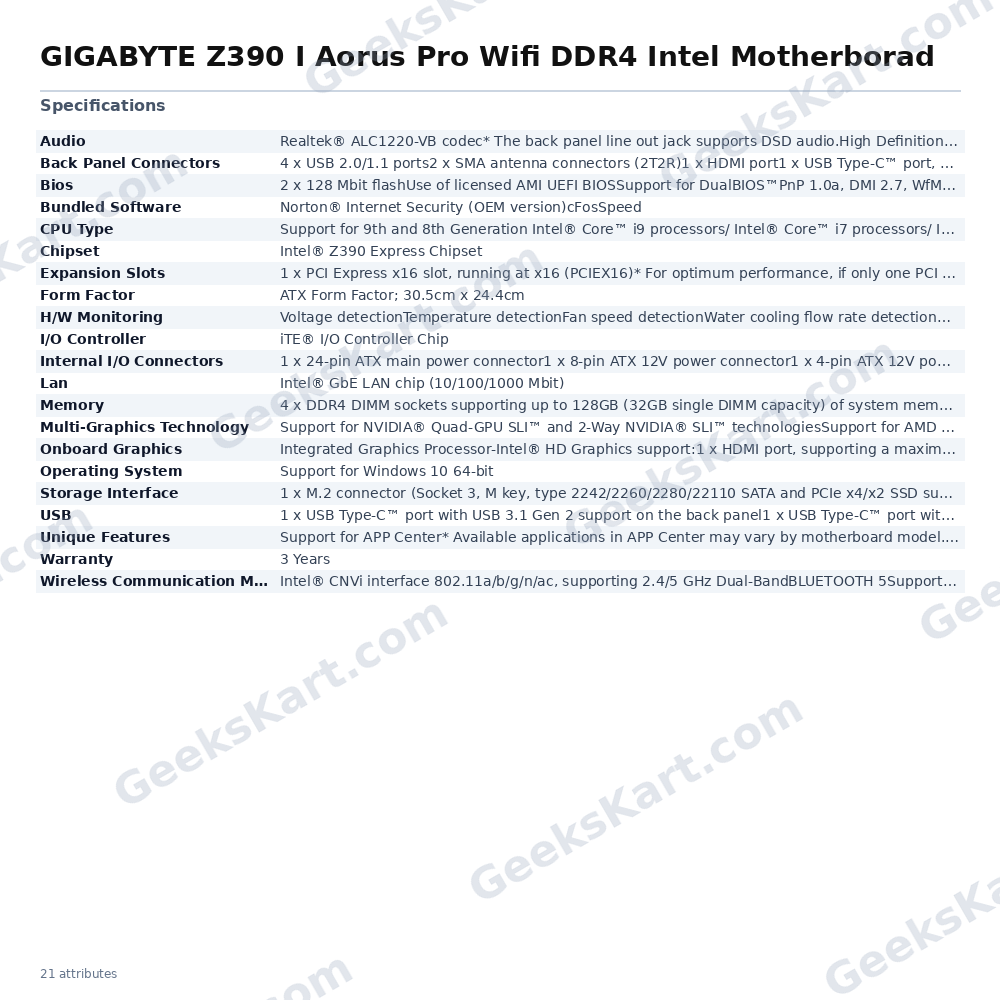

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | Intel® Z390 Express Chipset |
| CPU Type | |
| Lan | Intel® GbE LAN chip (10/100/1000 Mbit) |
| USB | 1 x USB Type-C™ port with USB 3.1 Gen 2 support on the back panel1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel5 x USB 3.1 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)Chipset+USB 2.0 Hub:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 2 x 128 Mbit flashUse of licensed AMI UEFI BIOSSupport for DualBIOS™PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC1220-VB codec* The back panel line out jack supports DSD audio.High Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out |
| Memory | 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory**** Please note that the support for system total memory size depends on the CPU installed.Dual channel memory architectureSupport for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modulesSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer to "Memory Support List" for more information.) |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionOverheating warningFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot, running at x8 (PCIEX8)* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.1 x PCI Express x16 slot, running at x4 (PCIEX4)3 x PCI Express x1 slots(All of the PCI Express slots conform to PCI Express 3.0 standard.)1 x M.2 Socket 1 connector for an Intel® CNVi wireless module (CNVI) |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.3D OSD@BIOSAutoGreenCloud StationEasyTuneEasy RAIDFast BootGame BoostON/OFF ChargePlatform Power ManagementRGB FusionSmart BackupSmart KeyboardSmart TimeLockSmart HUDSystem Information ViewerSmart SurveyUSB BlockerSupport for Q-FlashSupport for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)cFosSpeed |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz* Support for HDMI 1.4 version and HDCP 2.2.Maximum shared memory of 1 GBActual support may vary by CPU |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M)6 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, RAID 5, and RAID 10* Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.Intel® Optane™ Memory Ready |
| Back Panel Connectors | 4 x USB 2.0/1.1 ports2 x SMA antenna connectors (2T2R)1 x HDMI port1 x USB Type-C™ port, with USB 3.1 Gen 2 support2 x USB 3.1 Gen 2 Type-A ports (red)3 x USB 3.1 Gen 1 ports1 x RJ-45 port1 x optical S/PDIF Out connector5 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector1 x CPU fan header1 x water cooling CPU fan header4 x system fan headers2 x system fan/water cooling pump headers2 x digital LED strip headers2 x digital LED strip power select jumpers2 x RGB LED strip headers6 x SATA 6Gb/s connectors2 x M.2 Socket 3 connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB Type-C™ port, with USB 3.1 Gen 1 support1 x USB 3.1 Gen 1 header2 x USB 2.0/1.1 headers1 x Thunderbolt™ add-in card connector1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)1 x Clear CMOS jumper2 x temperature sensor headers |
| Multi-Graphics Technology | Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologiesSupport for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies |
| Wireless Communication Module | Intel® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-BandBLUETOOTH 5Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate* Actual data rate may vary depending on environment and equipment |
