GIGABYTE Z490 Aorus Ultra DDR4 Intel Motherboard
MPN GIGABYTE-Z490-AORUS-ULTRA · Brand Gigabyte · ATX

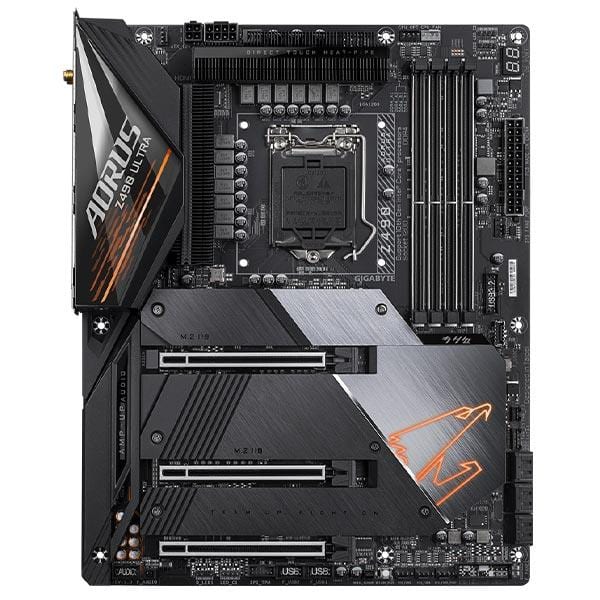

The Gigabyte Z490 Aorus Ultra is an ATX LGA1200 motherboard featuring a 12-phase digital VRM, Intel Wi-Fi 6, 2.5GbE LAN, triple M.2 with thermal guards, and DDR4 XMP support up to 5000 MHz for 10th Gen Intel Core builds
Inclusive of GST · GST invoice available
Overview
The Gigabyte Z490 Aorus Ultra is an ATX form-factor motherboard built on the Intel Z490 Express Chipset, designed specifically for 10th Generation Intel Core processors in the LGA1200 socket. It accommodates the full range from Core i3 through Core i9, as well as Pentium and Celeron LGA1200 variants, giving builders a versatile platform for a wide variety of workloads. Power delivery is handled by a direct 12-phase digital VRM solution using 55A DrMOS components. Paired with a NanoCarbon Fins-Array II heatsink and Direct Touch Heatpipe II, the board is engineered to maintain stable temperatures on the VRM even under sustained heavy loads. Three M.2 slots with Thermal Guards II further help manage heat from high-speed NVMe drives. Memory support spans four DDR4 DIMM slots with a total capacity of up to 128 GB (using 32 GB modules). The board supports standard speeds from 2133 MHz and extends via XMP overclocking profiles up to DDR4 5000 MHz. Shielded memory routing traces are incorporated to aid stability at higher frequencies. Connectivity is a strong point. Onboard Intel Wi-Fi 6 (AX201) supports 802.11ax on 2.4 GHz and 5 GHz dual-band with speeds up to 2.4 Gbps and includes Bluetooth 5.0. Wired networking is provided by an Intel 2.5GbE LAN controller. The back panel offers one USB Type-C port with USB 3.2 Gen 2 support, three USB 3.2 Gen 2 Type-A ports, two USB 3.2 Gen 1 ports, and four USB 2.0 ports. Storage options include three M.2 Socket 3 connectors supporting PCIe 3.0 x4 and SATA configurations, plus six SATA 6 Gb/s connectors with support for RAID 0, 1, 5, and 10. Intel Optane Memory is also supported. Audio is managed by a Realtek ALC1220-VB codec delivering up to 7.1-channel High Definition Audio with DTS:X Ultra support, S/PDIF output, and a rear line-out rated at 120 dB SNR with WIMA capacitors. RGB Fusion 2.0 provides multi-zone addressable LED lighting with two addressable LED headers and two standard RGB headers for strip connectivity. Smart Fan 5 manages up to six fan or pump headers with hybrid control, noise detection, and FAN STOP capability. The Q-Flash Plus feature allows BIOS updates without a CPU, RAM, or GPU installed. Two Thunderbolt add-in card connectors are present on the board for expansion. Key Specifications: - Socket: LGA1200 | Chipset: Intel Z490 Express - Form Factor: ATX, 30.5 cm x 24.4 cm - Memory: 4 x DDR4 DIMM, up to 128 GB, DDR4 2133–5000 MHz (XMP O.C.) - Storage: 3 x M.2 (PCIe 3.0 x4 / SATA), 6 x SATA 6 Gb/s, RAID 0/1/5/10 - Expansion: 3 x PCIe 3.0 slots (x16/x8/x4 physical) - Wireless: Intel Wi-Fi 6 AX201 (802.11ax, 2.4/5 GHz), Bluetooth 5.0 - LAN: Intel 2.5GbE - Audio: Realtek ALC1220-VB, 7.1-channel, DTS:X Ultra, 120 dB SNR rear output - USB: 1x USB-C Gen 2 + 3x USB-A Gen 2 + 2x USB 3.2 Gen 1 + 4x USB 2.0 (rear panel) - BIOS: AMI UEFI, Q-Flash Plus - Warranty: 3 Years

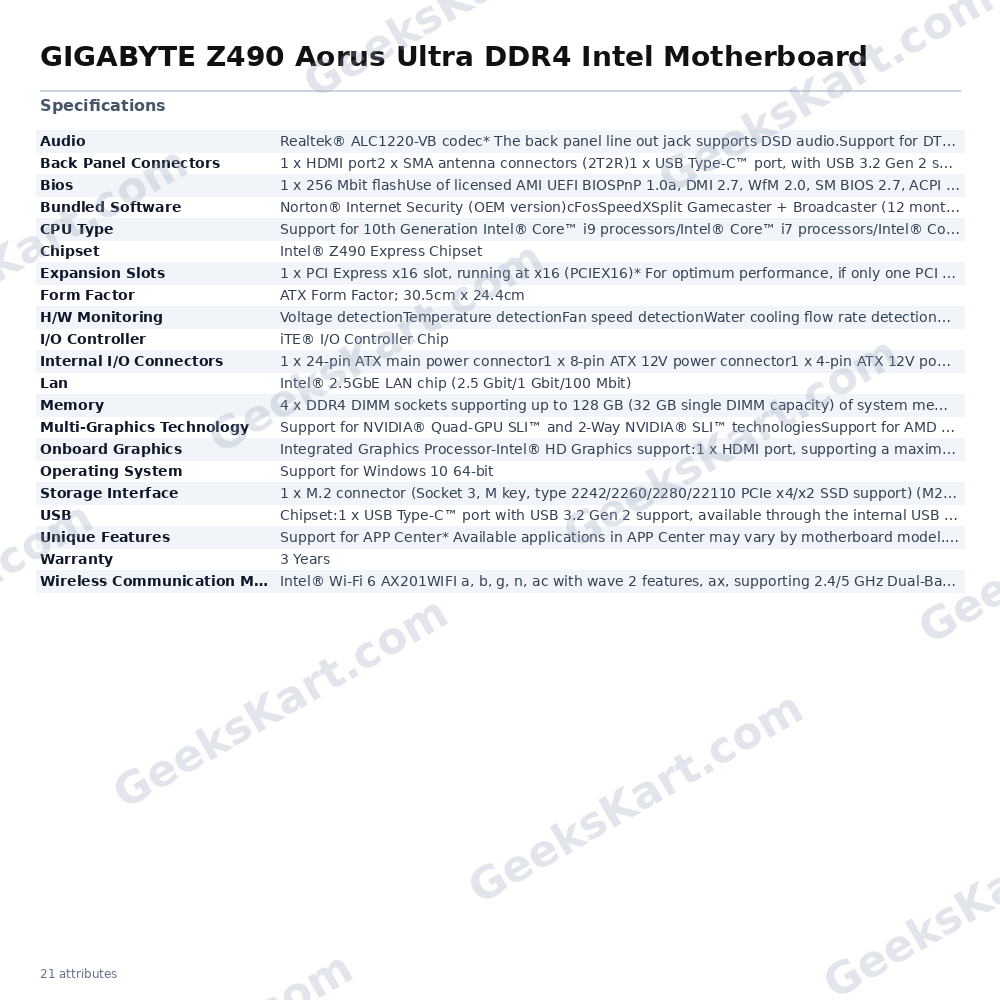

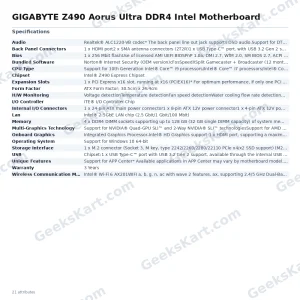

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | Intel® Z490 Express Chipset |
| CPU Type | |
| Lan | Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| USB | Chipset:1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)Chipset+2 USB 2.0 Hubs:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC1220-VB codec* The back panel line out jack supports DSD audio.Support for DTS:X® UltraHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out |
| Memory | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules* To support a DDR4 3200 MHz, you must use XMP memory.Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer to "Memory Support List" for more information.) |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionOverheating warningFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.Noise detection |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot, running at x8 (PCIEX8)* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.1 x PCI Express x16 slot, running at x4 (PCIEX4)(All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)cFosSpeedXSplit Gamecaster + Broadcaster (12 months license) |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz* Support for HDMI 1.4 version and HDCP 2.3.Maximum shared memory of 512 MB |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB)1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU)1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB)6 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, RAID 5, and RAID 10* Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.Intel® Optane™ Memory Ready |
| Back Panel Connectors | 1 x HDMI port2 x SMA antenna connectors (2T2R)1 x USB Type-C™ port, with USB 3.2 Gen 2 support3 x USB 3.2 Gen 2 Type-A ports (red)2 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port1 x optical S/PDIF Out connector5 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector1 x CPU fan header1 x water cooling CPU fan header4 x system fan headers2 x system fan/water cooling pump headers2 x addressable LED strip headers2 x RGB LED strip headers3 x M.2 Socket 3 connectors6 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C™ port, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt™ add-in card connectors1 x noise detection header1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x Clear CMOS jumper2 x temperature sensor headers1 x Q-Flash Plus button |
| Multi-Graphics Technology | Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologiesSupport for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
| Wireless Communication Module | Intel® Wi-Fi 6 AX201WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-BandBLUETOOTH 5.0Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate* Actual data rate may vary depending on environment and equipment |
