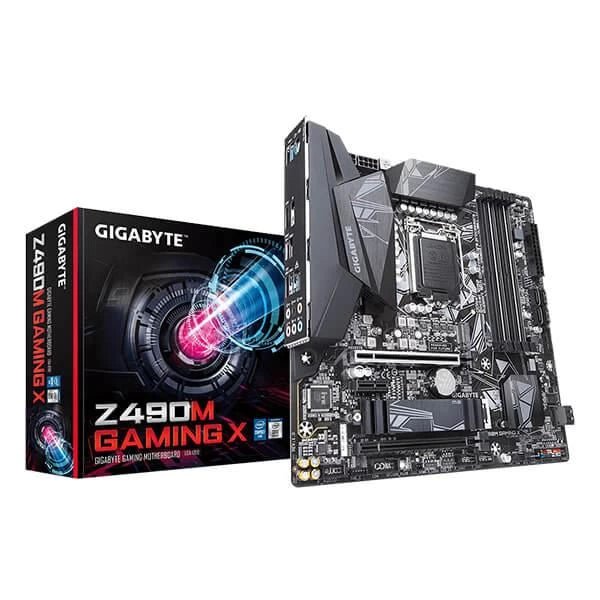

GIGABYTE Z490M Gaming X DDR4 Intel Motherboard
MPN Z490M · Brand Gigabyte · mATX
The Gigabyte Z490M Gaming X is a Micro ATX LGA1200 motherboard powered by the Intel Z490 Express Chipset, supporting 10th Gen Intel Core processors, up to 128 GB DDR4, PCIe Gen3 x4 M.2 with Thermal Guard, USB 3.2 Gen2, and RGB Fusion 2.0 lighting
Inclusive of GST · GST invoice available
Overview
The Gigabyte Z490M Gaming X is a Micro ATX form-factor motherboard measuring 24.4 cm × 24.4 cm, built on the Intel Z490 Express Chipset and designed for 10th Generation Intel Core processors in the LGA1200 package — covering the Core i9, i7, i5, i3, Pentium, and Celeron lines. Its direct 11+1 phase digital VRM solution, paired with an enlarged VRM heatsink featuring a 5 W/mK thermal conductive pad and Low RDS MOSFETs, is engineered to deliver stable power delivery under demanding workloads. Memory capacity reaches up to 128 GB across four DDR4 DIMM slots (32 GB per DIMM), supporting dual-channel operation with native speeds of 2133 through 2933 MHz and XMP overclocking profiles up to DDR4 4400 (O.C.). Storage is handled by one M.2 Socket 3 connector (types 2242/2260/2280/22110, PCIe x4/x2 or SATA, protected by a Thermal Guard) alongside six SATA 6 Gb/s ports with RAID 0/1/5/10 support and Intel Optane Memory readiness. Connectivity on the back panel includes one USB 3.2 Gen 2 Type-C port, one USB 3.2 Gen 2 Type-A port (red), four USB 3.2 Gen 1 Type-A ports, one DisplayPort 1.4 (up to 4096×2304 @ 60 Hz, HDCP 2.3, HDR), one HDMI 1.4 port (up to 4096×2160 @ 30 Hz, HDCP 2.3), one Intel Gigabit Ethernet (GbE) port backed by cFosSpeed traffic-shaping software, a PS/2 keyboard/mouse combo port, and six audio jacks. The Realtek ALC1200 codec supports 2/4/5.1/7.1-channel High Definition Audio with S/PDIF output and audio noise guard capacitors. Expansion is provided by one PCIe x16 slot (running at x16) and one PCIe x16 slot (running at x4), plus one PCIe x1 slot, all conforming to PCIe 3.0. AMD 2-Way CrossFire multi-GPU is supported. Internal headers include two addressable LED and two standard RGB LED strip headers, managed through Gigabyte's RGB Fusion 2.0 software for multi-zone lighting customisation. The Smart Fan 5 system provides multiple temperature sensors and hybrid fan headers with FAN STOP capability across one CPU and three system fan headers. Two Thunderbolt add-in card connectors and a TPM header (for GC-TPM2.0 SPI modules) are also present internally. BIOS is a 256 Mbit AMI UEFI implementation; Q-Flash Plus allows firmware updates using only a USB drive — no CPU, memory, or graphics card required. The pre-installed I/O shield simplifies installation and improves EMI shielding. The board ships with Norton Internet Security (OEM) and cFosSpeed software, and carries a 3-year manufacturer warranty. Verified Specifications: • Form Factor: Micro ATX, 24.4 cm × 24.4 cm • Socket: LGA1200 • Chipset: Intel Z490 Express • CPU Support: 10th Gen Intel Core i9/i7/i5/i3, Pentium, Celeron (LGA1200) • Memory: 4× DDR4 DIMM, up to 128 GB, dual-channel, DDR4-2133 to DDR4-4400 (O.C.), XMP supported • Storage: 1× M.2 PCIe Gen3 x4 with Thermal Guard (2242–22110); 6× SATA 6 Gb/s; RAID 0/1/5/10 • Audio: Realtek ALC1200, 7.1-channel HD Audio, S/PDIF out • LAN: Intel GbE (1000/100 Mbit) • USB (rear): 1× USB 3.2 Gen2 Type-C, 1× USB 3.2 Gen2 Type-A, 4× USB 3.2 Gen1 Type-A • Display: 1× DisplayPort 1.4, 1× HDMI 1.4 (iGPU) • PCIe Slots: 1× x16 (x16), 1× x16 (x4), 1× x1 (all PCIe 3.0) • BIOS: AMI UEFI, 256 Mbit flash, Q-Flash Plus • Warranty: 3 Years

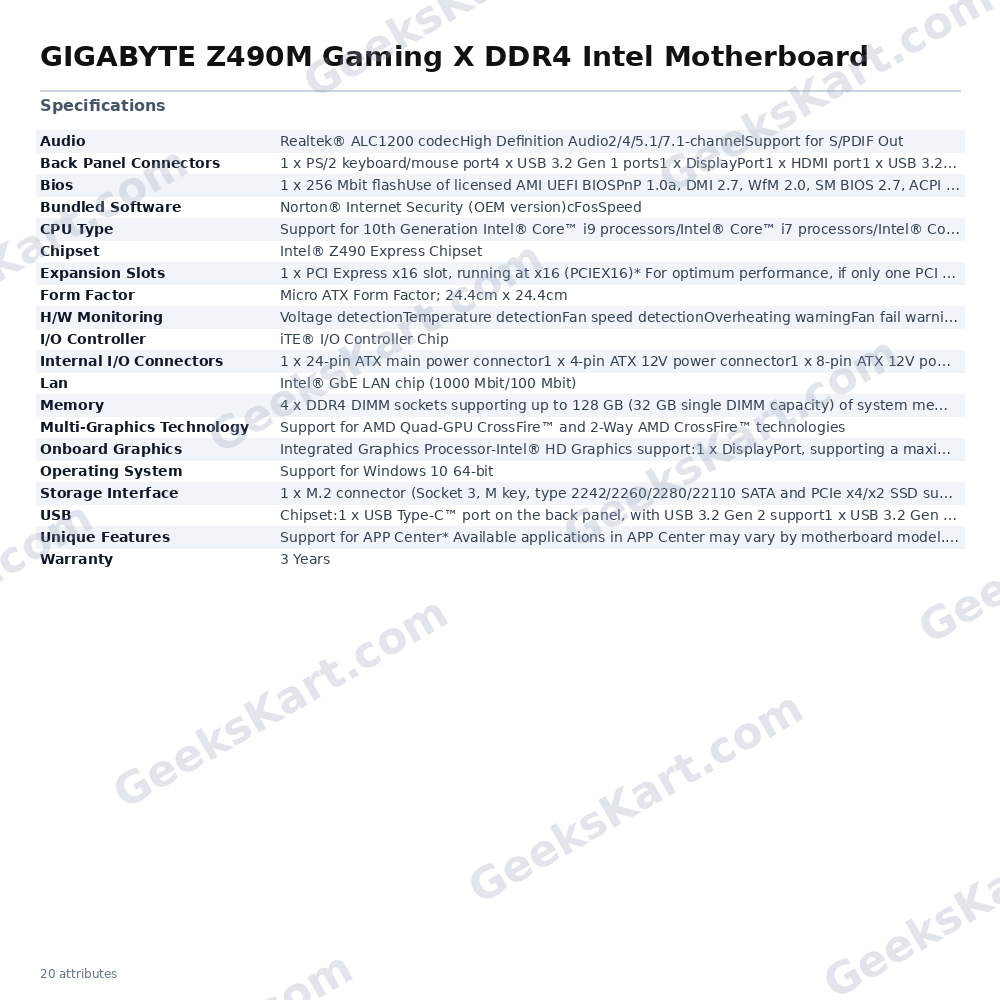

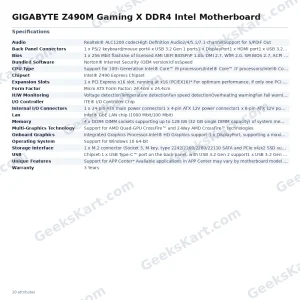

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® Z490 Express Chipset |
| CPU Type | |
| Lan | Intel® GbE LAN chip (1000 Mbit/100 Mbit) |
| USB | Chipset:1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 2 Type-A port (red) on the back panel6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)4 x USB 2.0/1.1 ports available through the internal USB headers |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC1200 codecHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out |
| Memory | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modulesSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the cooler you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot, running at x4 (PCIEX4)1 x PCI Express x1 slot(All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)cFosSpeed |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz* Support for HDMI 1.4 version and HDCP 2.3.Support for up to 3 displays at the same timeMaximum shared memory of 512 MB |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB)6 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, RAID 5, and RAID 10* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.Intel® Optane™ Memory Ready |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port4 x USB 3.2 Gen 1 ports1 x DisplayPort1 x HDMI port1 x USB 3.2 Gen 2 Type-A port (red)1 x USB Type-C™ port, with USB 3.2 Gen 2 support1 x RJ-45 port6 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 4-pin ATX 12V power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers2 x addressable LED strip headers2 x RGB LED strip headers6 x SATA 6Gb/s connectors1 x M.2 Socket 3 connector1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt™ add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x Clear CMOS jumper1 x Q-Flash Plus button |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
