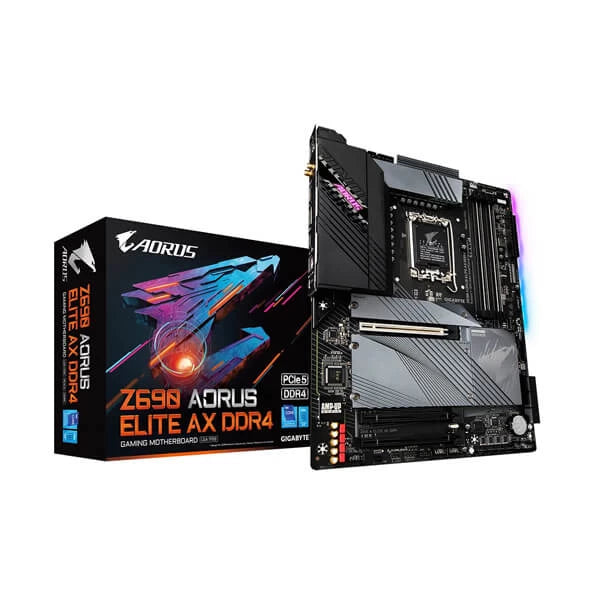

GIGABYTE Z690 Aorus Elite AX DDR4 Intel Motherboard
MPN GIGABYTE-Z690-AORUS-ELITE-AX-DDR4 · Brand Gigabyte · ATX
The GIGABYTE Z690 Aorus Elite AX DDR4 supports 12th Gen Intel LGA1700 CPUs with a 16+1+2 VRM, four PCIe 4.0 M.2 slots, Wi-Fi 6, 2.5GbE LAN, and a PCIe 5.0 primary slot in an ATX form factor
Inclusive of GST · GST invoice available
Overview
The GIGABYTE Z690 Aorus Elite AX DDR4 is an ATX form factor motherboard built around the Intel Z690 Express Chipset and LGA1700 socket, designed to support 12th Generation Intel Core i9, i7, and i5 processors. It delivers a capable platform for PC builders who want a balance of performance features, connectivity, and upgradeability without stepping into the highest tier of the Z690 lineup. Power delivery is handled by a 16+1+2 digital VRM design with 70A power stages and tantalum polymer capacitors, supplemented by shielded memory routing to reduce signal interference. Thermal management is addressed through high-coverage MOSFET heatsinks and enlarged M.2 thermal guards across all four NVMe slots. Memory support spans four DDR4 DIMM slots with a dual-channel architecture, accommodating up to 128 GB total capacity (32 GB per DIMM) and speeds from 2133 MHz up to 5333 MHz via overclocking. XMP profiles are supported natively. Storage connectivity is a highlight: four M.2 connectors (all PCIe 4.0 x4, one also supporting SATA) and six SATA 6 Gb/s ports with RAID 0/1/5/10 support give builders extensive options for fast NVMe SSDs alongside traditional drives. For wireless connectivity, the onboard Intel Wi-Fi 6 AX201 module supports 802.11ax on 2.4 GHz and 5 GHz bands at up to 2.4 Gbps theoretical throughput with Bluetooth 5.2. Wired networking is handled by a Realtek 2.5GbE LAN chip. The back panel includes a USB 3.2 Gen 2x2 Type-C port (20 Gb/s), two USB 3.2 Gen 2 Type-A ports, three USB 3.2 Gen 1 ports, four USB 2.0 ports, HDMI 2.1, DisplayPort 1.2, and an optical S/PDIF output. Audio is managed by a Realtek ALC1220-VB codec with WIMA audio capacitors. The primary PCIe x16 slot runs at PCIe 5.0, while two additional x16-size slots run at PCIe 3.0 x4. RGB Fusion 2.0 controls onboard and connected LED lighting. Q-Flash Plus enables BIOS updates without a CPU, memory, or GPU installed. Smart Fan 6 provides multi-sensor fan and pump control. Verified Specifications: - Socket: LGA1700 | Chipset: Intel Z690 Express - Form Factor: ATX, 305 mm x 244 mm - Memory: 4x DDR4 DIMM, up to 128 GB, up to DDR4-5333 (O.C.), XMP supported - Storage: 4x M.2 PCIe 4.0 x4 (with thermal guards), 6x SATA 6 Gb/s, RAID 0/1/5/10 - Expansion: 1x PCIe 5.0 x16, 2x PCIe 3.0 x4 (x16 physical) - Wireless: Intel Wi-Fi 6 AX201 (802.11ax, 2T2R, 160 MHz), Bluetooth 5.2 - LAN: Realtek 2.5GbE - USB (back panel): 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 2 Type-A, 3x USB 3.2 Gen 1, 4x USB 2.0 - Audio: Realtek ALC1220-VB, optical S/PDIF out - Display: HDMI 2.1 (4096x2160@60 Hz), DisplayPort 1.2 (4096x2304@60 Hz) - BIOS: AMI UEFI, Q-Flash Plus - Warranty: 3 Years

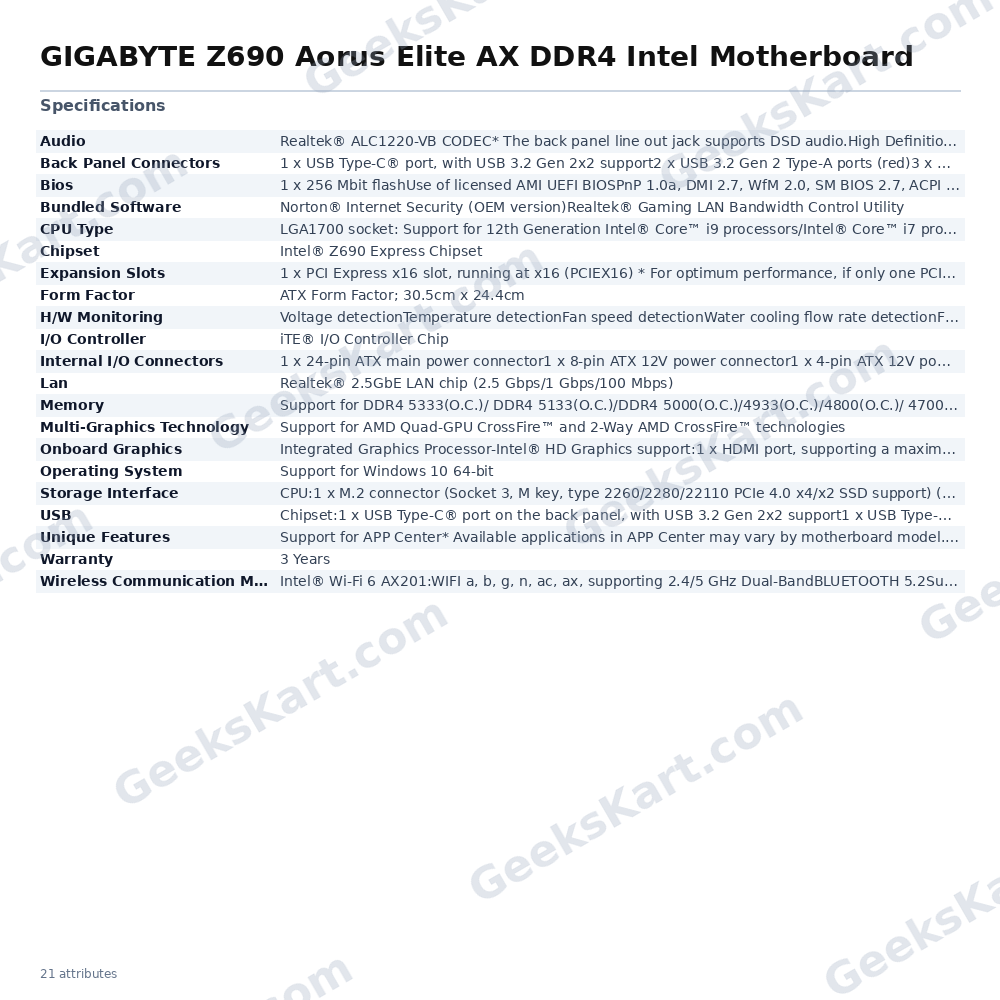

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | Intel® Z690 Express Chipset |
| CPU Type | |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)Chipset+2 USB 2.0 Hub:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC1220-VB CODEC* The back panel line out jack supports DSD audio.High Definition Audio2-channel analog outputSupport for S/PDIF Out 7.1-channel digital signals * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required |
| Memory | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.)2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.) |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)Realtek® Gaming LAN Bandwidth Control Utility |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.3(Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | CPU:1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB)6 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, RAID 5, and RAID 10* Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.Intel® Optane™ Memory Ready* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset |
| Back Panel Connectors | 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support2 x USB 3.2 Gen 2 Type-A ports (red)3 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports2 x SMA antenna connectors (2T2R)1 x HDMI port1 x DisplayPort1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers4 x M.2 Socket 3 connectors6 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt™ add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x reset button1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
| Wireless Communication Module | Intel® Wi-Fi 6 AX201:WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-BandBLUETOOTH 5.2Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate* Actual data rate may vary depending on environment and equipment |
