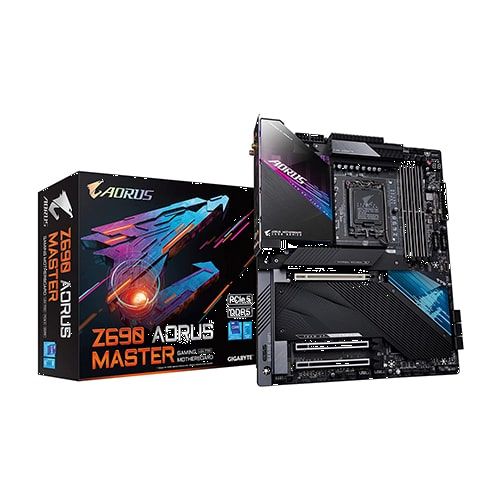

GIGABYTE Z690 Aorus Master DDR5 Intel Motherboard

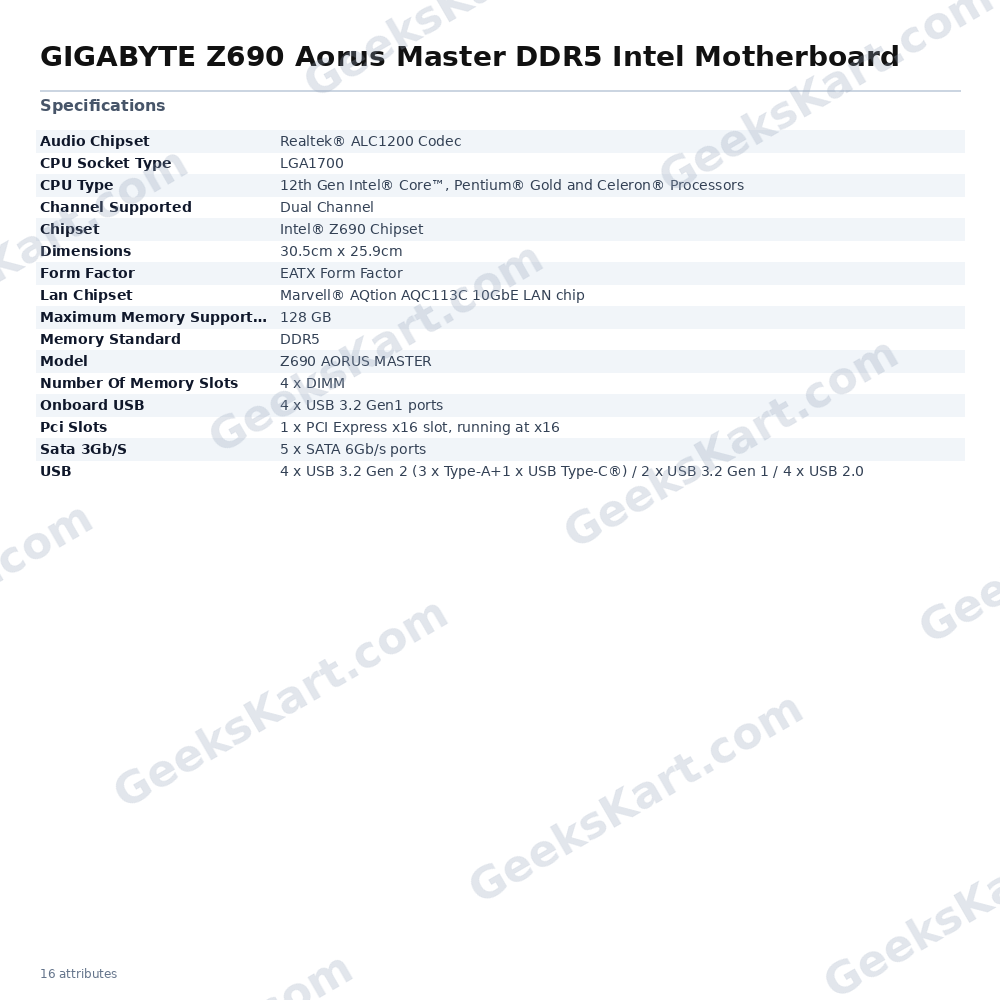

The GIGABYTE Z690 Aorus Master DDR5 is a full-featured EATX motherboard built around the Intel Z690 chipset, designed to support 12th Generation Intel Core, Pentium Gold, and Celeron processors via the LGA1700 socket. Its DDR5 memory architecture accommodates four DIMM slots in dual-channel configuration with a maximum supported capacity of 128 GB. The board supports XMP 3.0 memory profiles alongside what GIGABYTE describes as Unlocked Native DDR5 Voltage control and Xtreme Memory Routing, enabling enthusiast-level memory tuning through the onboard firmware interface. Connectivity is a clear strength of this board. The rear panel provides ten USB ports in total: four USB 3.2 Gen 2 ports (three Type-A and one Type-C), two USB 3.2 Gen 1 ports, and four USB 2.0 ports. An additional four USB 3.2 Gen 1 headers are available onboard for front-panel connections. Wired networking is handled by a Marvell AQtion AQC113C controller delivering 10 Gigabit Ethernet, a specification well suited to high-throughput NAS access or low-latency local network setups. Audio is provided by a Realtek ALC1200 codec. Storage options include five SATA 6Gb/s ports for traditional drives, and the primary PCIe expansion slot operates at x16 bandwidth for discrete graphics cards. The EATX form factor (305 mm × 259 mm) means buyers should verify chassis compatibility before purchase. The board's thermal design incorporates heatsink coverage over the VRM and chipset areas, intended to maintain stability under sustained CPU loads. GIGABYTE's RGB lighting ecosystem is supported through onboard headers, managed via their software suite. Key Verified Specifications: - Socket: LGA1700 - Chipset: Intel Z690 - Supported CPUs: 12th Gen Intel Core, Pentium Gold, Celeron - Memory: 4 × DDR5 DIMM, dual-channel, up to 128 GB - Primary PCIe Slot: x16 (running at x16) - Storage: 5 × SATA 6Gb/s - LAN: Marvell AQtion AQC113C, 10GbE - Audio: Realtek ALC1200 Codec - Rear USB: 4 × USB 3.2 Gen 2 (3×A + 1×C), 2 × USB 3.2 Gen 1, 4 × USB 2.0 - Onboard USB headers: 4 × USB 3.2 Gen 1 - Form Factor: EATX (305 mm × 259 mm) - Onboard Video: None (discrete GPU required)
