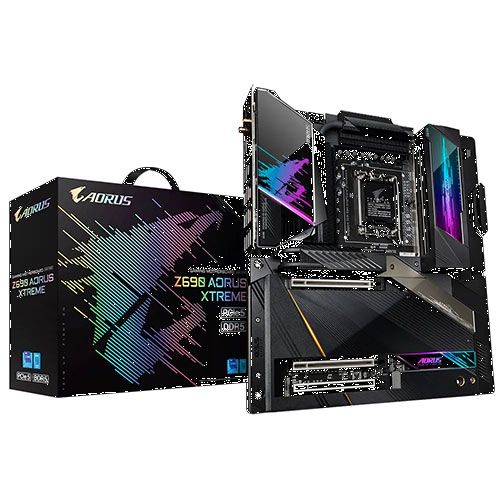

GIGABYTE Z690 Aorus XTREME DDR5 Intel Motherboard

The GIGABYTE Z690 Aorus XTREME is a flagship EATX motherboard engineered for 12th Generation Intel Core, Pentium Gold, and Celeron processors using the LGA1700 socket. Built on the Intel Z690 chipset, it targets enthusiast builders and overclockers who demand premium power delivery, advanced thermal management, and comprehensive connectivity in a single board. At the heart of its power subsystem is a Direct 20+1+2 Phase Digital VRM design paired with 105A power stages and Tantalum Polymer Capacitors. This robust arrangement is designed to deliver stable, clean power to Alder Lake processors even under sustained all-core workloads, reducing thermal stress on the VRM components. Memory support centres on four DDR5 DIMM slots capable of holding up to 128 GB of Dual Channel Non-ECC Unbuffered DDR5 memory. The board's DDR5 XTREME MEMORY design incorporates Shielded Memory Routing and SMD DIMM slots, while XMP 3.0 support and unlocked native DDR5 voltage tuning give overclockers granular control over memory frequency and timings. Storage is equally well-appointed, with four Ultra-Fast M.2 slots supporting NVMe PCIe 4.0/3.0 x4 devices — each protected by an M.2 Thermal Guard XTREME heatsink — alongside four SATA 6 Gb/s ports with RAID 0/1/5/10 support. Connectivity highlights include onboard Intel Thunderbolt 4, Intel Wi-Fi 6E (802.11ax, 2T2R) with Bluetooth 5, a Marvell AQtion AQC113C 10 Gigabit Ethernet port, and an Intel 2.5 GbE LAN port managed with cFosSpeed traffic-shaping software. Twelve USB ports are available on the rear panel. Audio is handled by an ESS ES9280AC DAC chip paired with two ESS ES9080 chips, with S/PDIF output and a bundled Essential USB DAC for headphone enthusiasts. Thermal management is addressed through Gigabyte's Thermal Reactive Armor system, combining Fins-Array III heatsinks with NanoCarbon coating, a Direct-Touch Heatpipe II, and a NanoCarbon Baseplate over the chipset. RGB FUSION 2.0 enables multi-zone addressable LED lighting with support for both ARGB and standard RGB strips. Smart Fan 6 provides hybrid fan header control, fan-stop functionality, and noise detection across multiple temperature sensors. BIOS management is simplified by Q-Flash Plus, which allows firmware updates without a CPU, memory, or GPU installed. Verified Specifications: - Socket: LGA1700 - Chipset: Intel Z690 - Supported CPUs: 12th Gen Intel Core, Pentium Gold, Celeron - Form Factor: EATX - Memory: 4x DDR5 DIMM, Dual Channel, Non-ECC Unbuffered, up to 128 GB - VRM: Direct 20+1+2 Phase Digital, 105A power stages - M.2 Slots: 4x NVMe PCIe 4.0/3.0 x4 with Thermal Guard XTREME - SATA: 4x SATA 6 Gb/s; RAID 0/1/5/10 - LAN: Marvell AQtion AQC113C 10 GbE + Intel 2.5 GbE - Wireless: Intel Wi-Fi 6E 802.11ax 2T2R + Bluetooth 5 - Thunderbolt: Intel Thunderbolt 4 (onboard) - Audio: ESS ES9280AC + 2x ESS ES9080 + bundled USB DAC; S/PDIF out - Rear USB: 12 ports - Power Connector: 1x 24-pin ATX main power - RGB: RGB FUSION 2.0 (ARGB + RGB header support)
