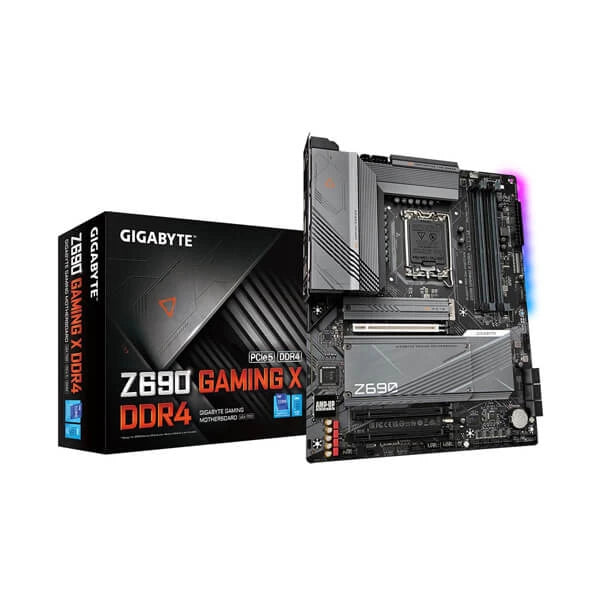

GIGABYTE Z690 Gaming X DDR4 Intel Motherboard

The Gigabyte Z690 Gaming X DDR4 is an ATX-form-factor motherboard built on the Intel Z690 Express Chipset and designed for 12th Generation Intel Core i5, i7, and i9 processors using the LGA1700 socket. Measuring 30.5 cm × 24.4 cm, it fits standard ATX mid-tower and full-tower cases. At the heart of its power delivery is a Direct 16+1+2 phase digital VRM featuring 60A power stages and tantalum polymer capacitors, providing stable voltage to demanding 12th-gen CPUs. High-coverage MOSFET heatsinks spread across the board manage thermals without the need for active cooling on the VRM itself. Memory support is extensive: four DDR4 DIMM slots accommodate up to 128 GB of system RAM in dual-channel configuration, running at native speeds from DDR4-2133 through DDR4-3200, and up to DDR4-5333 via overclocking. XMP profiles are supported for straightforward performance tuning. Storage flexibility is a strong point, with four M.2 connectors — three supporting PCIe 4.0 x4 NVMe drives and one that also accepts SATA — each fitted with an enlarged thermal guard. Six SATA 6 Gb/s ports round out the storage array, and RAID 0, 1, 5, and 10 configurations are supported. Expansion is handled by one PCIe 5.0 x16 slot for the primary graphics card, plus two additional PCIe 3.0 x4 slots. The rear I/O delivers a USB 3.2 Gen 2x2 Type-C port (up to 20 Gb/s), two USB 3.2 Gen 2 Type-A ports, three USB 3.2 Gen 1 ports, and four USB 2.0 ports, along with HDMI 2.1 and DisplayPort 1.2 outputs for integrated graphics, and a Realtek 2.5 GbE LAN port. Audio is handled by a Realtek ALC1220-VB codec paired with WIMA capacitors, offering high-definition audio with S/PDIF optical output and 7.1-channel digital signal support. RGB Fusion 2.0 controls addressable LED and RGB LED strips across multiple zones, while Smart Fan 6 provides granular fan and pump control with a FAN STOP feature. Q-Flash Plus allows BIOS updates without installing a CPU, memory, or graphics card — a useful feature during initial builds or recovery scenarios. The board ships with a 3-year warranty. Verifiable Specifications: • Socket: LGA1700 | Chipset: Intel Z690 Express • Memory: 4× DDR4 DIMM, up to 128 GB, DDR4-2133 to DDR4-5333 (O.C.), dual-channel, XMP support • Primary PCIe Slot: PCIe 5.0 x16 • M.2 Slots: 4× (3× PCIe 4.0 x4 NVMe; 1× PCIe 4.0 x4 + SATA), all with thermal guards • SATA: 6× SATA 6 Gb/s; RAID 0/1/5/10 • LAN: Realtek 2.5 GbE (2.5 Gbps / 1 Gbps / 100 Mbps) • Audio: Realtek ALC1220-VB, S/PDIF Out, 7.1-ch digital • Rear USB: 1× USB 3.2 Gen 2x2 Type-C, 2× USB 3.2 Gen 2 Type-A, 3× USB 3.2 Gen 1, 4× USB 2.0 • Display Out: HDMI 2.1 (4096×2160@60 Hz), DisplayPort 1.2 (4096×2304@60 Hz) • Form Factor: ATX, 30.5 cm × 24.4 cm • BIOS: AMI UEFI, Q-Flash Plus • Warranty: 3 Years
