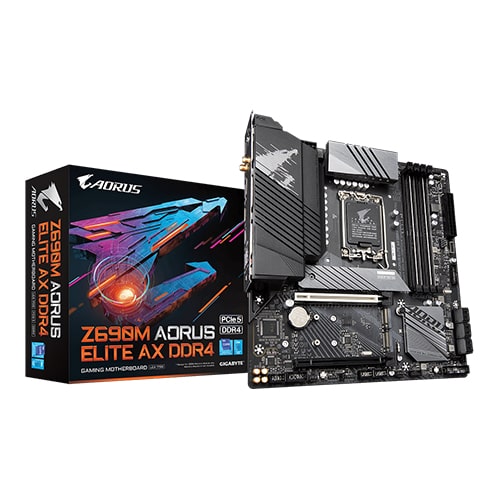

GIGABYTE Z690M Aorus Elite AX DDR4 Intel Motherboard
MPN GIGABYTE-Z690M-AORUS-ELITE-AX-DDR4 · Brand Gigabyte · mATX
Gigabyte Z690M Aorus Elite AX DDR4 is a Micro ATX motherboard for 12th Gen Intel LGA1700 CPUs, featuring a 12+1+2 phase VRM, PCIe 5.0, triple PCIe 4.0 M.2 slots, Wi-Fi 6, and Intel 2.5 GbE LAN
Inclusive of GST · GST invoice available
Overview
The Gigabyte Z690M Aorus Elite AX DDR4 is a Micro ATX motherboard built on the Intel Z690 Express Chipset, designed for 12th Generation Intel Core i5, i7, and i9 processors in the LGA1700 socket. Its compact 244 mm × 244 mm footprint makes it a strong choice for space-conscious builds that still demand flagship-class connectivity and power delivery. Power delivery centres on a direct 12+1+2 phase digital VRM design with 60 A power stages and tantalum polymer capacitors, backed by high-coverage MOSFET heatsinks to maintain stable voltages under sustained load. Memory support spans four DDR4 DIMM slots accommodating dual-channel non-ECC unbuffered modules at native speeds up to DDR4-3200 and overclocked profiles up to DDR4-5333 (O.C.), with a total capacity ceiling of 128 GB (32 GB per slot). XMP profiles are supported for straightforward memory tuning. Storage options are generous for the platform: three M.2 Socket 3 connectors all running PCIe 4.0 x4, each protected by a Thermal Guard heatsink, complemented by six SATA 6 Gb/s ports with support for RAID 0, 1, 5, and 10. The primary PCIe x16 slot operates at PCIe 5.0, while a second x16-keyed slot runs at PCIe 3.0 x4. Connectivity is handled by an Intel 2.5 GbE LAN chip and an Intel Wi-Fi 6 AX201 module supporting 802.11a/b/g/n/ac/ax on 2.4 GHz and 5 GHz dual-band with up to 2.4 Gbps data rate and Bluetooth 5.2. The rear I/O panel includes one USB 3.2 Gen 2×2 Type-C port (20 Gb/s), one USB 3.2 Gen 2 Type-A port, four USB 3.2 Gen 1 ports, four USB 2.0 ports, HDMI 2.1, DisplayPort 1.2, an optical S/PDIF output, and dual SMA antenna connectors. RGB Fusion 2.0 provides multi-zone addressable lighting via two ARGB headers and two RGB headers onboard. Smart Fan 6 manages up to five fan and pump headers with hybrid control and FAN STOP capability. Q-Flash Plus allows BIOS updates without a CPU, memory, or GPU installed, simplifying initial platform setup. Key Specifications: • Socket: LGA1700 | Chipset: Intel Z690 Express • Form Factor: Micro ATX, 244 mm × 244 mm • Memory: 4× DDR4 DIMM, up to 128 GB, DDR4-2133 to DDR4-5333 (O.C.), XMP support • PCIe Slots: 1× PCIe 5.0 x16, 1× PCIe 3.0 x4 (x16 keyed) • M.2: 3× PCIe 4.0 x4 with Thermal Guard • SATA: 6× SATA 6 Gb/s (RAID 0/1/5/10) • LAN: Intel 2.5 GbE • Wireless: Intel Wi-Fi 6 AX201, Bluetooth 5.2 • USB (rear): 1× USB 3.2 Gen 2×2 Type-C, 1× USB 3.2 Gen 2 Type-A, 4× USB 3.2 Gen 1, 4× USB 2.0 • Video Output: HDMI 2.1 (4096×2160@60 Hz), DisplayPort 1.2 (4096×2304@60 Hz) • Audio: Realtek HD Audio CODEC, 7.1-channel, S/PDIF Out • BIOS: AMI UEFI, 256 Mbit flash, Q-Flash Plus • VRM: 12+1+2 phase digital, 60 A power stages • Warranty: 3 Years

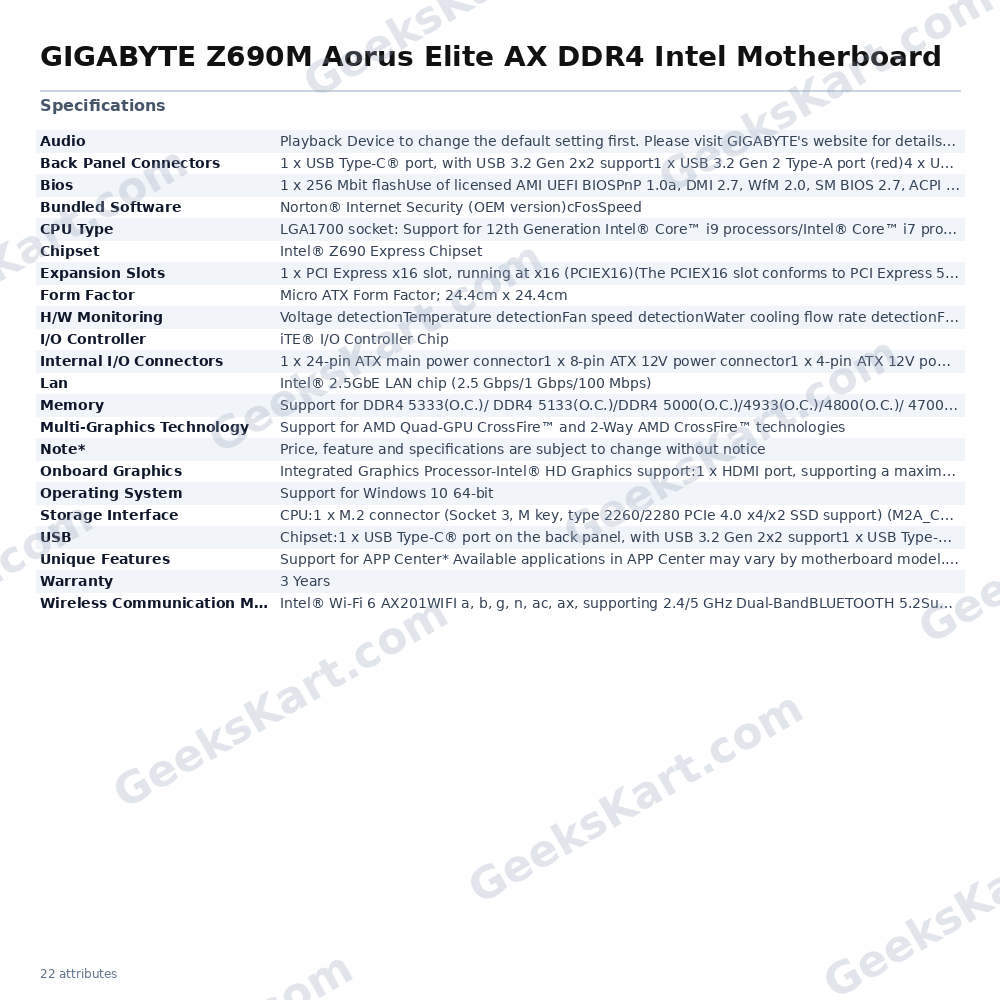

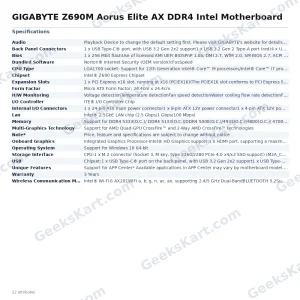

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® Z690 Express Chipset |
| CPU Type | |
| Lan | Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header1 x USB 3.2 Gen 2 Type-A port (red) on the back panelChipset+2 USB 3.2 Gen 1 Hubs:6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)Chipset+2 USB 2.0 Hubs:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S/PDIF Out"}">Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.Support for S/PDIF Out |
| Note* | Price, feature and specifications are subject to change without notice |
| Memory | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer "Memory Support List" for more information.) |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16)(The PCIEX16 slot conforms to PCI Express 5.0 standard.)1 x PCI Express x16 slot, running at x4 (PCIEX4)(The PCIEX4 slot conforms to PCI Express 3.0 standard.) |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)cFosSpeed |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.3(Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | CPU:1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)6 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, RAID 5, and RAID 10Intel® Optane™ Memory Ready* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset |
| Back Panel Connectors | 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support1 x USB 3.2 Gen 2 Type-A port (red)4 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports2 x SMA antenna connectors (2T2R)1 x HDMI port1 x DisplayPort1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers3 x M.2 Socket 3 connectors6 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt™ add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x reset button1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
| Wireless Communication Module | Intel® Wi-Fi 6 AX201WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-BandBLUETOOTH 5.2Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate* Actual data rate may vary depending on environment and equipment |
