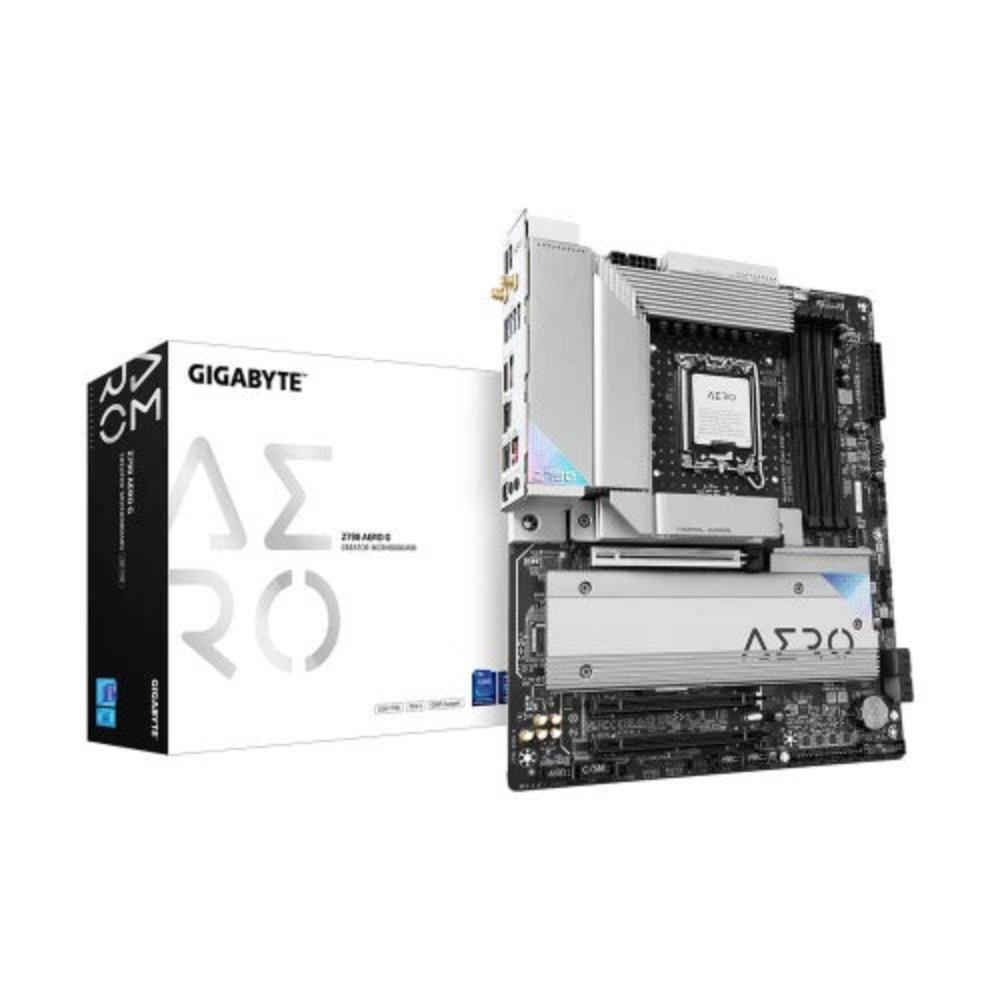

GIGABYTE Z790 Aero G DDR5 Intel Motherboard
MPN GIGABYTE-Z790-AERO-G-DDR5 · Brand Gigabyte · 1. ATX Form Factor; 30.5cm x 24.4cm
The Gigabyte Z790 Aero G DDR5 ATX motherboard supports 12th and 13th Gen Intel LGA1700 CPUs with PCIe 5.0 M.2 storage, DDR5 up to 7600 MHz XMP, Intel Wi-Fi 6E, and 2.5GbE wired LAN
Inclusive of GST · GST invoice available
Overview
The Gigabyte Z790 Aero G DDR5 is an ATX form-factor motherboard built on the Intel Z790 Express Chipset, designed for 12th and 13th Generation Intel Core, Pentium Gold, and Celeron processors using the LGA1700 socket. With a clean aesthetic and productivity-focused feature set, it suits content creators and power users who demand both connectivity and storage bandwidth in a single platform. Memory support spans four DDR5 DIMM slots capable of holding up to 128 GB of system RAM (32 GB per DIMM), operating in dual-channel mode. Native DDR5-4800 is supported alongside XMP overclocking profiles reaching DDR5-7600, giving builders significant headroom for performance tuning. Storage options are a standout: one PCIe 5.0 x4 M.2 slot (supporting up to 25110-length drives) sits alongside four PCIe 4.0 x4 M.2 slots and four SATA 6 Gb/s ports. The M.2 Thermal Guard III heatsink manages thermals on the high-speed PCIe 5.0 slot, and the EZ-Latch Plus mechanism allows screwless M.2 installation and removal. RAID 0, 1, 5, and 10 are supported for both NVMe and SATA arrays. The primary PCIe x16 slot runs at PCIe 5.0 speeds, ideal for the latest discrete graphics cards. Two additional PCIe 4.0 x4 (in x16 physical) slots are provided via the chipset. Connectivity is comprehensive: an Intel Wi-Fi 6E AX211 module delivers tri-band 2.4/5/6 GHz wireless with Bluetooth 5.3 and up to 2.4 Gbps link rates, while the Intel 2.5GbE wired LAN handles demanding network tasks. The rear panel includes a USB Type-C port with USB 3.2 Gen 2×2 (20 Gb/s), two USB 3.2 Gen 2 Type-A ports, four USB 3.2 Gen 1 ports, and two USB 2.0 ports. A unique VisionLINK USB-C port supports DisplayPort 1.4 video output, up to 4096×2304 @ 60 Hz, and 20 V @ 3 A power delivery — useful for drawing tablets and compact display setups. An HDMI 2.0 port rounds out the display outputs for integrated graphics use. Audio is handled by the Realtek ALC1220-VB codec with 7.1-channel High Definition Audio, DSD output on the rear line-out jack, and an optical S/PDIF output. Gigabyte's Smart Fan 6 system provides noise detection, fan fail warnings, and hybrid fan headers with FAN STOP functionality across a total of seven headers. Q-Flash Plus allows BIOS updates without a CPU or memory installed. The BIOS runs on a licensed AMI UEFI platform with a 256 Mbit flash chip. Verified Specifications: - Form Factor: ATX, 30.5 cm × 24.4 cm - Socket: LGA1700 - Chipset: Intel Z790 Express - Memory: 4× DDR5 DIMM, up to 128 GB, DDR5-4800 native / DDR5-7600 XMP - Storage: 1× M.2 PCIe 5.0 x4 (25110), 4× M.2 PCIe 4.0 x4, 4× SATA 6 Gb/s - Primary PCIe Slot: 1× PCIe 5.0 x16 - LAN: Intel 2.5GbE - Wireless: Intel Wi-Fi 6E AX211 (2.4/5/6 GHz), Bluetooth 5.3 - Audio: Realtek ALC1220-VB, 7.1-channel HD Audio, S/PDIF Out - Rear USB: 1× USB-C 20 Gb/s, 1× USB-C 10 Gb/s (DP), 2× USB-A 10 Gb/s, 4× USB-A 5 Gb/s, 2× USB 2.0 - Display Out: 1× HDMI 2.0 (4096×2160@60 Hz), 1× DisplayPort In (via USB-C VisionLINK) - BIOS: AMI UEFI, Q-Flash Plus - OS Support: Windows 11 64-bit, Windows 10 64-bit - Warranty: 3 Years

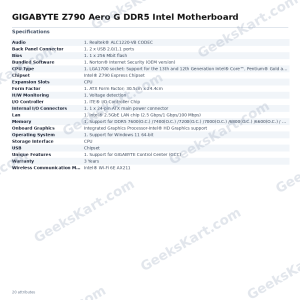

Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | Intel® Z790 Express Chipset |
| CPU Type | 1. LGA1700 socket: Support for the 13th and 12th Generation Intel® CoreTM, Pentium® Gold and Celeron® Processors* |
| Lan | 1. Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | Chipset |
| Bios | 1. 1 x 256 Mbit flash |
| Audio | 1. Realtek® ALC1220-VB CODEC |
| Memory | 1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules |
| H/W Monitoring | 1. Voltage detection |
| I/O Controller | 1. iTE® I/O Controller Chip |
| Expansion Slots | CPU |
| Unique Features | 1. Support for GIGABYTE Control Center (GCC) |
| Bundled Software | 1. Norton® Internet Security (OEM version) |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support |
| Operating System | 1. Support for Windows 11 64-bit |
| Storage Interface | CPU |
| Back Panel Connector | 1. 2 x USB 2.0/1.1 ports |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
| Wireless Communication Module | Intel® Wi-Fi 6E AX211 |
| Form Factor | 1. ATX Form Factor; 30.5cm x 24.4cm |
