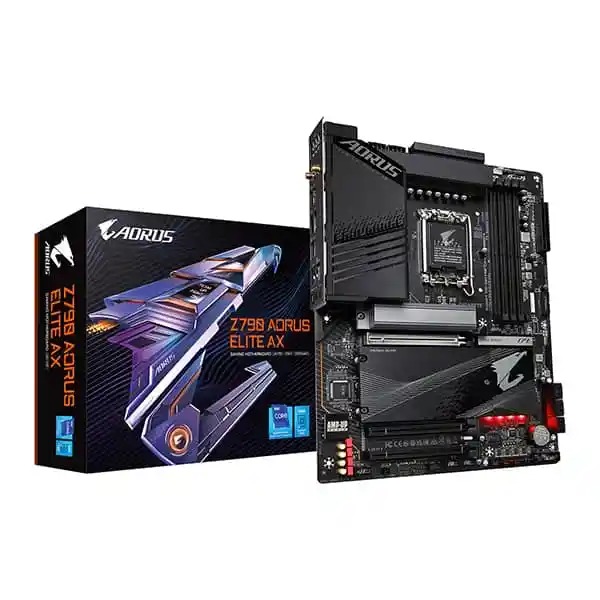

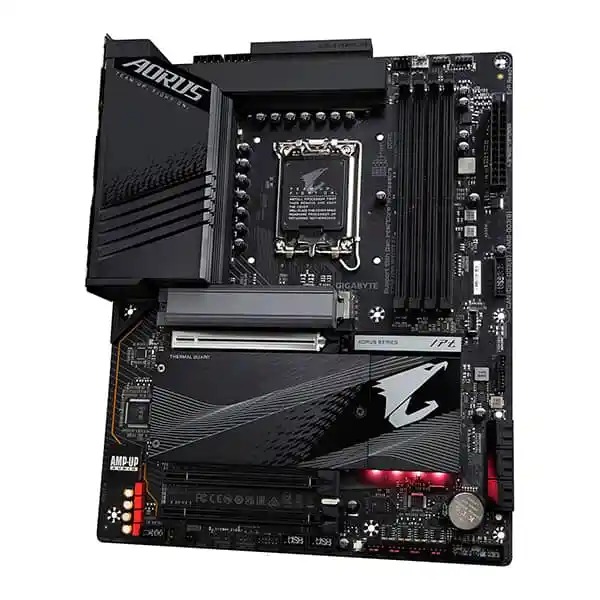

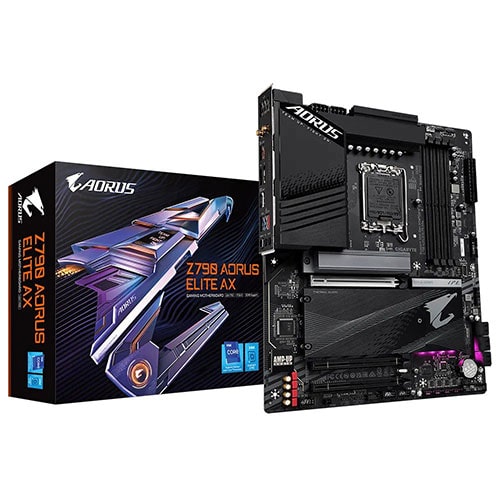

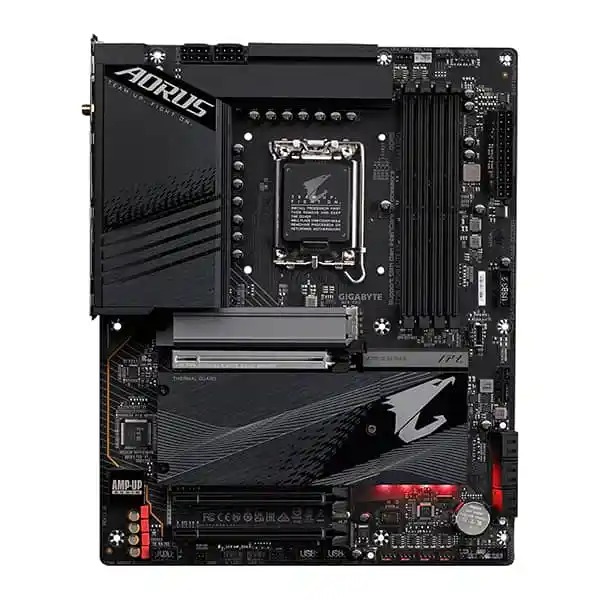

GIGABYTE Z790 Aorus Elite AX Wifi DDR5 Intel Motherboard
MPN Z790-AORUS-ELITE-AX · Brand Gigabyte · ATX
GIGABYTE Z790 Aorus Elite AX Wifi DDR5 Intel Motherboard. Highlights: DDR5
Inclusive of GST · GST invoice available
Overview
The GIGABYTE Z790 Aorus Elite AX Wifi DDR5 Intel Motherboard is a motherboard aimed at buyers looking for a dependable everyday option from a recognised source. Typical use cases include mid-range desktop builds, upgrade-friendly setups. Key verified specifications: Socket: LGA 1700; Chipset: Intel® Z790 Express Chipset; Form Factor: ATX Form Factor; 30.5cm x 24.4cm; Memory Type: DDR5; Color: Black. Best suited to mid-range desktop builds buyers; less ideal where requirements go materially beyond the listed specs. Listed at ₹26699 subject to availability — confirm at checkout
Datasheet
| Platform | Intel |
|---|---|
| Motherboard Series | Gigabyte Aorus |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Usb | Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)Chipset+2 USB 2.0 Hubs:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out |
| Memory | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules |
| Product Code | Z790-AORUS-ELITE-AX |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | CPU:1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4) |
| Unique Features | Support for GIGABYTE Control Center (GCC)Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolutionSupport for HDMI 2.0 version and HDCP 2.3.1 x DisplayPort, supporting a maximum resolutionSupport for DisplayPort 1.2 version and HDCP 2.3 |
| Operating System | Support for Windows 11 64-bitSupport for Windows 10 64-bit |
| Storage Interface | CPU:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)6 x SATA 6Gb/s connectors |

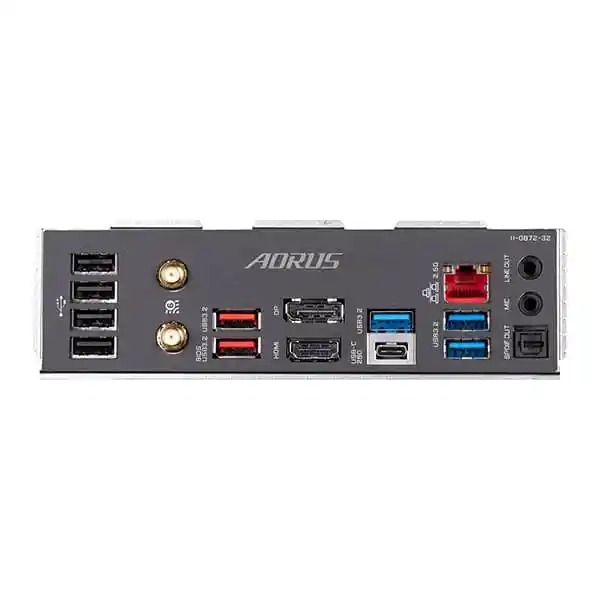

| Back Panel Connectors | 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support2 x USB 3.2 Gen 2 Type-A ports (red)3 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports2 x SMA antenna connectors (2T2R)1 x HDMI 2.0 port1 x DisplayPort1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers4 x M.2 Socket 3 connectors6 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt™ add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x reset button1 x Q-Flash Plus button1 x Clear CMOS button1 x reset jumper1 x Clear CMOS jumper |
| Wireless Communication Module | Intel® Wi-Fi 6E AX211WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Memory Type | DDR5 |
| Warranty | 3 Years |
| Form Factor | ATX |
| color | Black |
| Chipset | Intel® Z790 Express Chipset |
| Socket | LGA1700 |
| CPU Type | LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPU |
