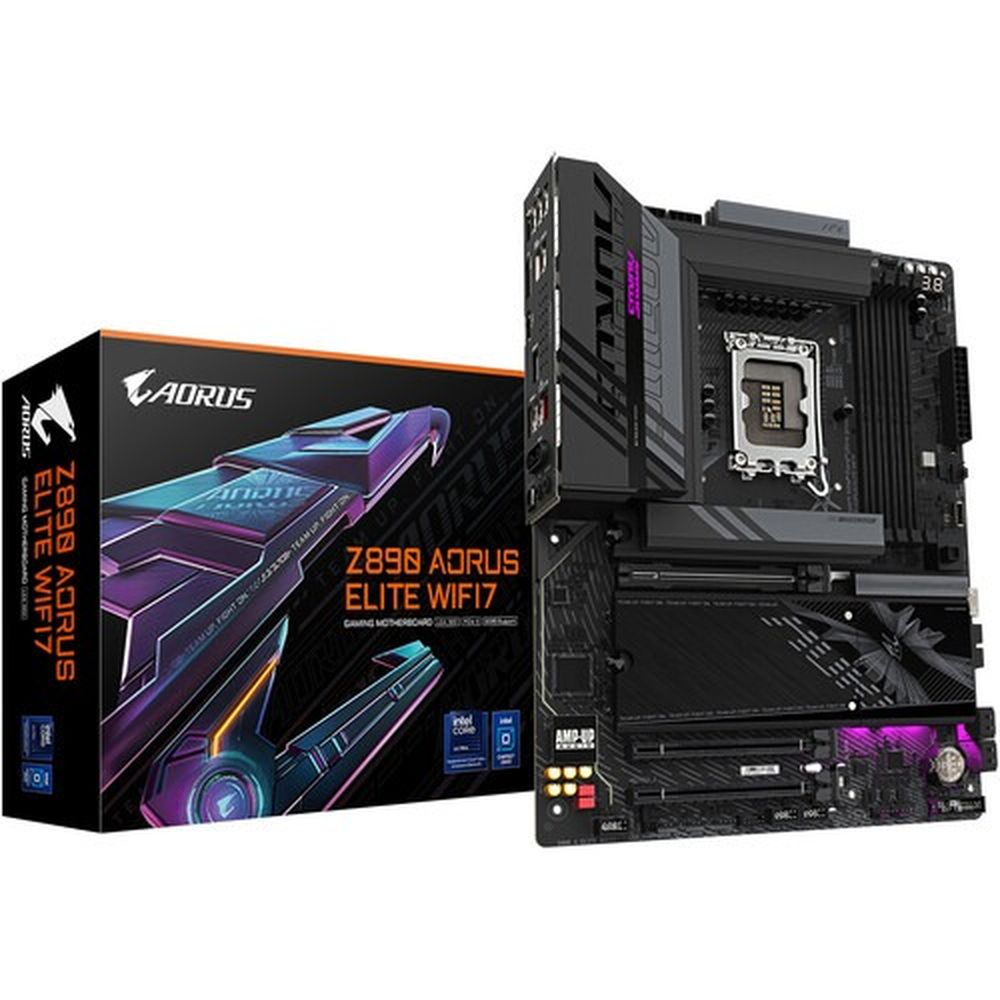

The GIGABYTE Z890 AORUS Elite WiFi 7 is an ATX motherboard built on the Intel Z890 Express Chipset, designed for Intel Core Ultra processors (Series 2) using the LGA1851 socket. Its ATX form factor measures 30.5 cm x 24.4 cm, making it compatible with standard mid-tower and full-tower cases. Power delivery is handled by a digital twin 16+1+2 phase VRM solution, protected by VRM Thermal Armor Advanced heatsinks that help sustain stable power under sustained loads. Four DDR5 DIMM slots support up to 256 GB of system memory (64 GB per DIMM) and are compatible with speeds up to DDR5-9200 (O.C.), XMP profiles, and CUDIMM modules, giving builders flexibility for both everyday performance and enthusiast overclocking. The AI Perfdrive feature provides optimized BIOS preset profiles, while AORUS AI SNATCH enables one-click DDR5 memory optimization. Storage is expansive: four M.2 slots are provided, including one PCIe 5.0 x4 slot (M2A_CPU) and one PCIe 4.0 x4 slot (M2B_CPU) directly from the CPU, plus two additional chipset-side PCIe 4.0 M.2 slots. Four SATA 6 Gb/s ports are also present, with RAID 0/1/5/10 support for both NVMe and SATA arrays. M.2 Thermal Guard L heatsinks cool NVMe drives. Connectivity highlights include Wi-Fi 7 (802.11be, 2.4/5/6 GHz, Bluetooth 5.4) via either MediaTek MT7925 or Realtek RTL8922AE depending on PCB revision, paired with a directional ultra-high-gain 2T2R antenna. Wired networking is served by a Realtek 2.5GbE LAN chip. The back panel includes one Thunderbolt 4 / USB Type-C port (up to 40 Gbps with Thunderbolt devices), two USB 3.2 Gen 2 Type-A ports, three USB 3.2 Gen 1 ports, four USB 2.0 ports, a DisplayPort output (DisplayPort 2.1, HDCP 2.3), and an optical S/PDIF output. Audio is managed by the Realtek ALC1220 codec with WIMA audiophile-grade capacitors, supporting up to 7.1-channel high-definition audio and DSD playback on the back-panel line-out jack. The PCIe x16 slot (PCIe 5.0) features PCIe UD Slot X reinforcement for added mechanical durability for heavy graphics cards. Tool-less EZ-Latch Plus and EZ-Latch Click mechanisms simplify PCIe and M.2 installation without screwdrivers. RGB enthusiasts will find three addressable Gen 2 RGB headers and one standard RGB header onboard. Verifiable Specifications: – Socket: LGA1851 – Chipset: Intel Z890 Express – Form Factor: ATX (30.5 cm x 24.4 cm) – Memory: 4x DDR5 DIMM, up to 256 GB, DDR5-5600 to DDR5-9200 (O.C.), XMP, CUDIMM support – Storage: 1x M.2 PCIe 5.0 x4, 1x M.2 PCIe 4.0 x4 (CPU), 2x M.2 PCIe 4.0 x4 (Chipset), 4x SATA 6 Gb/s – PCIe: 1x PCIe 5.0 x16 (CPU), 2x PCIe 4.0 x4 (Chipset) – Wireless: Wi-Fi 7 (802.11be), Bluetooth 5.4, 2.4/5/6 GHz – LAN: Realtek 2.5GbE – USB (back panel): 1x Thunderbolt 4 Type-C, 2x USB 3.2 Gen 2 Type-A, 3x USB 3.2 Gen 1, 4x USB 2.0 – Audio: Realtek ALC1220, 7.1-channel, S/PDIF optical out – Display outputs: 1x DisplayPort 2.1, 1x Thunderbolt 4 (DP Alt) – BIOS: AMI UEFI, 256 Mbit flash, Q-Flash Plus – OS Support: Windows 11 64-bit

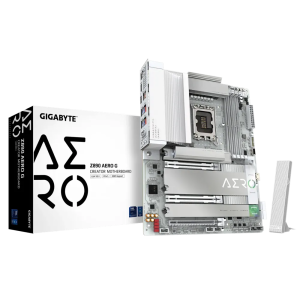

GIGABYTE Z890 AERO G DDR5 Intel Motherboard ( White )
₹38,845.00
MSI B550M Pro-VDH Wifi DDR4 AMD Motherboard
₹10,605.00
GIGABYTE Z890 AORUS Elite Wifi 7 DDR5 Intel Motherboard
₹31,875.00
The GIGABYTE Z890 AORUS Elite WiFi 7 is an ATX motherboard for Intel Core Ultra Series 2 processors (LGA1851), featuring PCIe 5.0, four M.2 slots, DDR5 support up to 256 GB, Wi-Fi 7, Thunderbolt 4, and a 16+1+2 phase VRM. Shop now to build a high-performance Intel platform

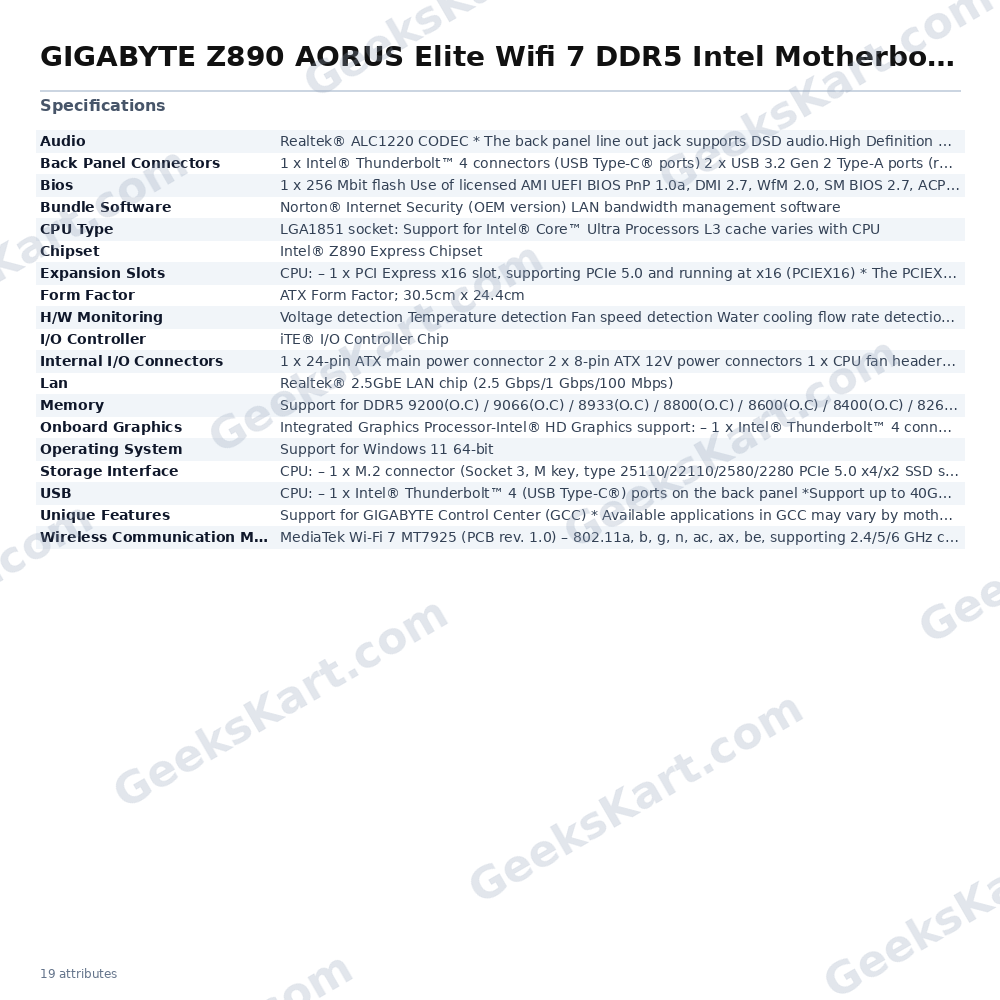

Additional information
| Form Factor | ATX |
|---|---|
| Chipset | Intel® Z890 Express Chipset |
| CPU Type | LGA1851 socket: Support for Intel® CoreTM Ultra Processors L3 cache varies with CPU |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | CPU: – 1 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel *Support up to 40Gbps with Thunderbolt devices *Support up to 20Gbps with USB4 devices *Support up to 10Gbps with USB 3.2 devicesChipset: – 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel – 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: – 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio.High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| Memory | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| I/O Controller | iTE® I/O Controller Chip |
| Bundle Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Expansion Slots | CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset: – 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: – 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120×2880@60 Hz with 24 bpp (single display output). When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840×2160@240 Hz (single display output). * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, “Back Panel Connectors,” for more information.) * Support for DisplayPort 2.1 version and HDCP 2.3- 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz * Support for HDMI 1.4 version – 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 2.1 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time |
| Operating System | Support for Windows 11 64-bit |
| Storage Interface | CPU: – 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: – 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) – 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) – 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Back Panel Connectors | 1 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x DisplayPort (Note) 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks(Note) Actual support may vary by CPU |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper(Note) Actual support may vary by CPU |
| Wireless Communication Module | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations |
