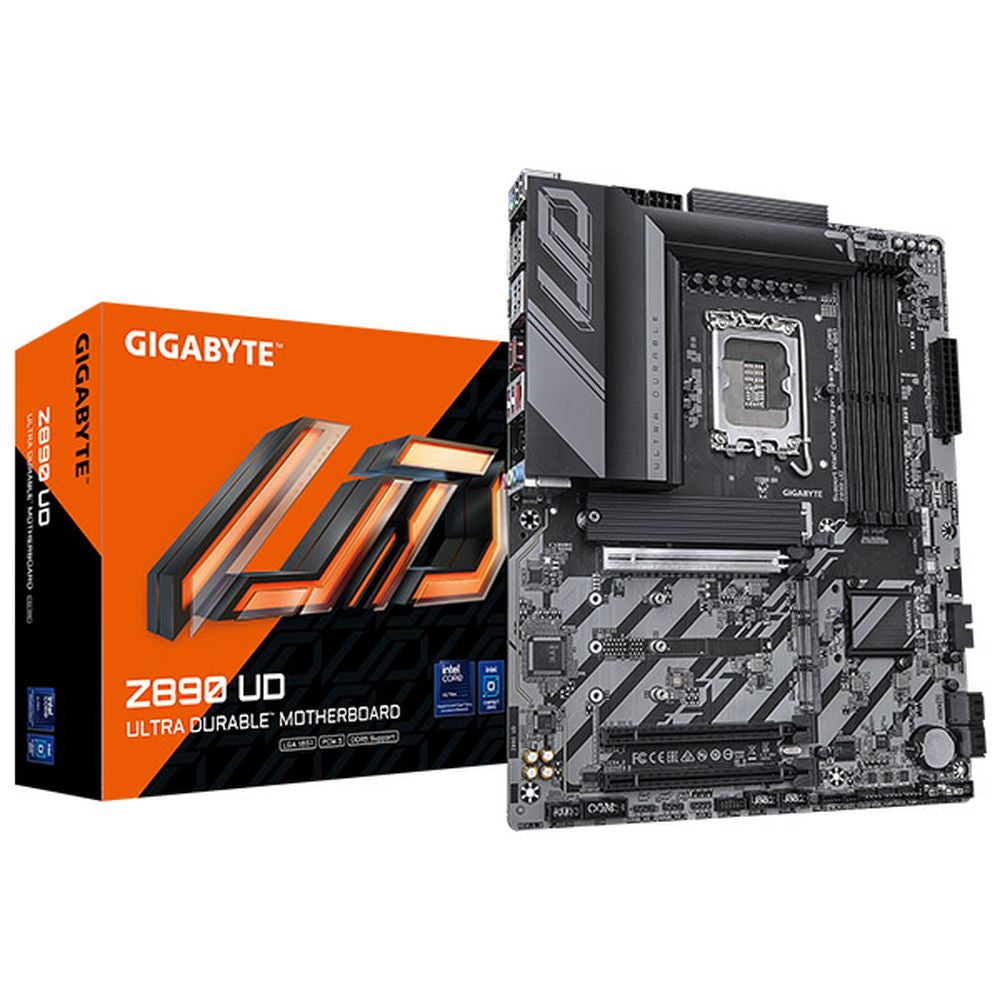

GIGABYTE Z890 UD ATX DDR5 Intel Motherboard
MPN GIGABYTE-Z890-UD · Brand GIGABYTE · ATX
The GIGABYTE Z890 UD is an ATX motherboard for Intel Core Ultra Series 2 processors, featuring LGA1851 socket, DDR5 support up to 9200 MT/s OC, PCIe 5.0, four M.2 slots, and USB4 40Gbps connectivity
Inclusive of GST · GST invoice available
Overview
The GIGABYTE Z890 UD is a full-size ATX motherboard built on Intel's Z890 Express Chipset with an LGA1851 socket, engineered to support Intel Core Ultra processors (Series 2). Its 12+1+2 digital twin phase VRM design delivers stable and consistent power delivery for demanding workloads and overclocking sessions, backed by a fully covered MOSFET heatsink featuring a one-piece integrated design with multi-cut channels for improved airflow. Memory support is extensive: four DDR5 DIMM slots accommodate up to 256 GB of system memory (64 GB per DIMM) in dual-channel configuration, with native speeds from 5600 MT/s and overclocked profiles reaching up to DDR5-9200 via XMP. The board also supports CUDIMM and ECC Un-buffered DIMM modules (operating in non-ECC mode), offering broad compatibility for both enthusiast and workstation-adjacent builds. Storage is handled by four M.2 connectors — one PCIe 5.0 x4 slot (M2A_CPU, supporting up to type 25110 drives) and three additional PCIe 4.0 x4 slots — complemented by four SATA 6 Gb/s ports with RAID 0/1/5/10 support for both NVMe and SATA arrays. The primary x16 PCIe 5.0 slot serves the discrete GPU, while two additional chipset-connected PCIe 4.0 x4 slots (in x16 physical form) expand peripheral options. Connectivity on the rear panel includes one USB4 Type-C port (40 Gbps with DisplayPort Alt mode), one USB 3.2 Gen 2 Type-A port, four USB 3.2 Gen 1 Type-A ports, four USB 2.0 ports, a Realtek 2.5GbE LAN port, one DisplayPort 2.1 output (up to 3840×2160@144 Hz), and three audio jacks backed by a Realtek HD Audio CODEC with up to 7.1-channel support. Internal headers include three addressable RGB Gen2 headers, one RGB header, two Thunderbolt add-in card connectors, a Q-Flash Plus button for BIOS updates without a CPU installed, and fan/pump headers compatible with Smart Fan 6 control. The BIOS is AMI UEFI-based with AI Perfdrive for automated performance profiles, Q-Flash, and Q-Flash Plus support. VERIFIED SPECIFICATIONS: - Form Factor: ATX (30.5 cm × 24.4 cm) - Socket: LGA1851 - Chipset: Intel Z890 Express - Memory: 4× DDR5 DIMM, up to 256 GB, DDR5-5600 native / DDR5-9200 OC - M.2 Slots: 4× (1× PCIe 5.0 x4, 3× PCIe 4.0 x4) - SATA Ports: 4× SATA 6 Gb/s - PCIe Slots: 1× PCIe 5.0 x16 (CPU), 2× PCIe 4.0 x4 in x16 slot (Chipset) - USB: 1× USB4 40 Gbps Type-C, 1× USB 3.2 Gen 2, 6× USB 3.2 Gen 1, 8× USB 2.0 - Display Output: 1× DisplayPort 2.1, 1× USB4 Type-C with DP-Alt (max 3840×2160@144 Hz) - LAN: Realtek 2.5GbE - Audio: Realtek HD Audio CODEC, up to 7.1-channel - BIOS: AMI UEFI, 256 Mbit flash - OS Support: Windows 11 64-bit

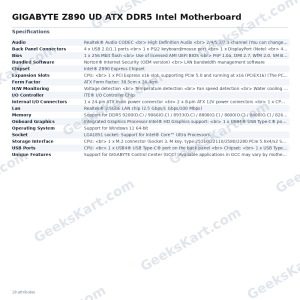

Datasheet
| Form Factor | ATX |
|---|---|
| Chipset | Intel® Z890 Express Chipset |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Bios | 1 x 256 Mbit flash <br> Use of licensed AMI UEFI BIOS <br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODEC <br> High Definition Audio <br> 2/4/5.1/7.1-channel (You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.) |
| Memory | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. <br> 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory <br> Dual channel memory architecture <br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) <br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules <br> Support for Extreme Memory Profile (XMP) memory modules <br> Support CUDIMM memory module |
| USB Ports | CPU: <br> 1 x USB4® USB Type-C® port on the back panel <br> Chipset: <br> 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header <br> 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel <br> 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) <br> Chipset + 2 USB 2.0 Hubs: <br> 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| H/W Monitoring | Voltage detection <br> Temperature detection <br> Fan speed detection <br> Water cooling flow rate detection <br> Fan fail warning <br> Fan speed control (Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.) |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | CPU: <br> 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) <br> Chipset: <br> 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) |
| Unique Features | Support for GIGABYTE Control Center (GCC) (Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.) <br> Support for Q-Flash <br> Support for Q-Flash Plus <br> Support for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) <br> LAN bandwidth management software |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: <br> 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz (Support for DisplayPort 2.1 version) <br> 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz (Support for DisplayPort 2.1 version) |
| Operating System | Support for Windows 11 64-bit |
| Storage Interface | CPU: <br> 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0×4/x2 SSD support) (M2A_CPU) <br> 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) <br> Chipset: <br> 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) <br> 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0×4/x2 SSD support) (M2M_SB) <br> 4 x SATA 6Gb/s connectors <br> RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices <br> RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Back Panel Connectors | 4 x USB 2.0/1.1 ports <br> 1 x PS/2 keyboard/mouse port <br> 1 x DisplayPort (Note) <br> 4 x USB 3.2 Gen 1 ports <br> 1 x USB4® USB Type-C® port (DisplayPort (Note)) <br> 1 x USB 3.2 Gen 2 Type-A port (red) <br> 1 x RJ-45 port <br> 3 x audio jacks (Note: Actual support may vary by CPU) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector <br> 2 x 8-pin ATX 12V power connectors <br> 1 x CPU fan header <br> 1 x CPU fan/water cooling pump header <br> 2 x system fan headers <br> 2 x system fan/water cooling pump headers <br> 3 x addressable RGB Gen2 LED strip headers <br> 1 x RGB LED strip header <br> 4 x M.2 Socket 3 connectors <br> 4 x SATA 6Gb/s connectors <br> 1 x front panel header <br> 1 x front panel audio header <br> 1 x USB Type-C® header, with USB 3.2 Gen 1 support <br> 1 x USB 3.2 Gen 1 header <br> 2 x USB 2.0/1.1 headers <br> 2 x Thunderbolt™ add-in card connectors <br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) <br> 1 x serial port header <br> 1 x power button <br> 1 x reset button <br> 1 x Q-Flash Plus button <br> 1 x reset jumper <br> 1 x Clear CMOS jumper |
| Socket | LGA1851 socket: Support for Intel® Core™ Ultra Processors |
