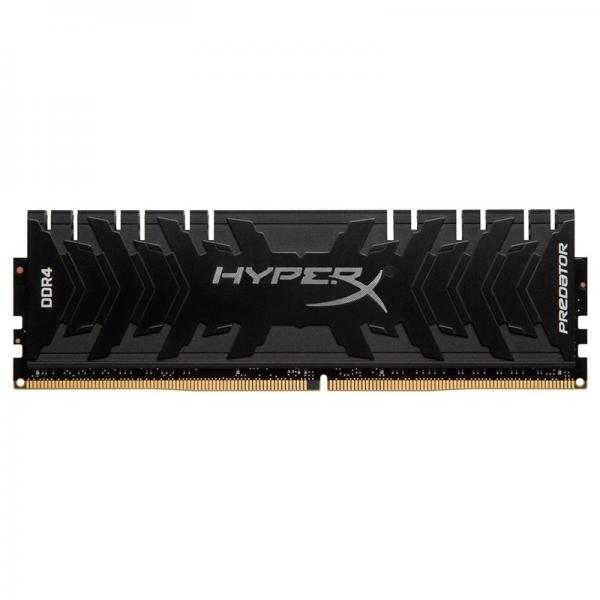

HYPERX Predator 8GB ( 8GB x 1 ) 3000MHz DDR4 RAM ( CL15 )
MPN HYPERX-PREDATOR-8GBX1-3000MHZ · Brand HyperX · UDIMM
Features of HYPERX Predator 8GB ( 8GB x 1 ) 3000MHz DDR4 RAM ( CL15 ) HyperX HX430C15PB3/8 is an 1G x 64-bit (8GB) DDR4-3000 CL15 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 1G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Each module has been tested to run at DDR4-3000 at a low latency timing of 15-17-17 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin D
Inclusive of GST · GST invoice available
Overview
Features of HYPERX Predator 8GB ( 8GB x 1 ) 3000MHz DDR4 RAM ( CL15 )
HyperX HX430C15PB3/8 is an 1G x 64-bit (8GB) DDR4-3000 CL15 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 1G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Each module has been tested to run at DDR4-3000 at a low latency timing of 15-17-17 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP - 2.5V Typical
- VDDSPD = 2.25V to 3.6V
- On-Die termination (ODT)
- 16 internal banks; 4 groups of 4 banks each
- Bi-Directional Differential Data Strobe
- 8 bit pre-fetch
- Burst Length (BL) switch the-fly BL8 or BC4(Burst Chop)
- Height 1.661” (42.20mm)
Specifications of HYPERX Predator 8GB ( 8GB x 1 ) 3000MHz DDR4 RAM ( CL15 )
| Model | HX430C15PB3/8 |
| Form Factor | UDIMM |
| Pins | 288 |
| XMP Ready | Yes |
| Plug N Play | No |
| Speeds | 3000MHz |
| Voltage | 1.35V |
| Module Capacities | 8GB |
| Kit Capacities | 8GB x 1 |
| Kit Configurations | Single Channel |
| Operating Temperature | 0° C to 85° C |
| Storage Temperature | -55° C to 100° C |
| PCB Color | Black |
| Heat Spreader Color | Black |
| Module Dimensions | 133.35mm x 42.2mm x 8.3mm |
| Warranty | Lifetime |
| Note | ***Features, Price and Specifications are subject to change without notice. |
Datasheet
| Pins | 288 |
|---|---|
| Model | HX430C15PB3/8 |
| Speeds | 3000MHz |
| Pcb Color | Black |
| Xmp Ready | Yes |
| Plug N Play | No |
| Kit Capacities | 8GB x 1 |
| Module Capacities | 8GB |
| Module Dimensions | 133.35mm x 42.2mm x 8.3mm |
| Kit Configurations | Single Channel |
| Heat Spreader Color | Black |
| Storage Temperature | -55° C to 100° C |
| Operating Temperature | 0° C to 85° C |
| Warranty | Lifetime |
| Form Factor | UDIMM |
| Voltage | 1.35V |
