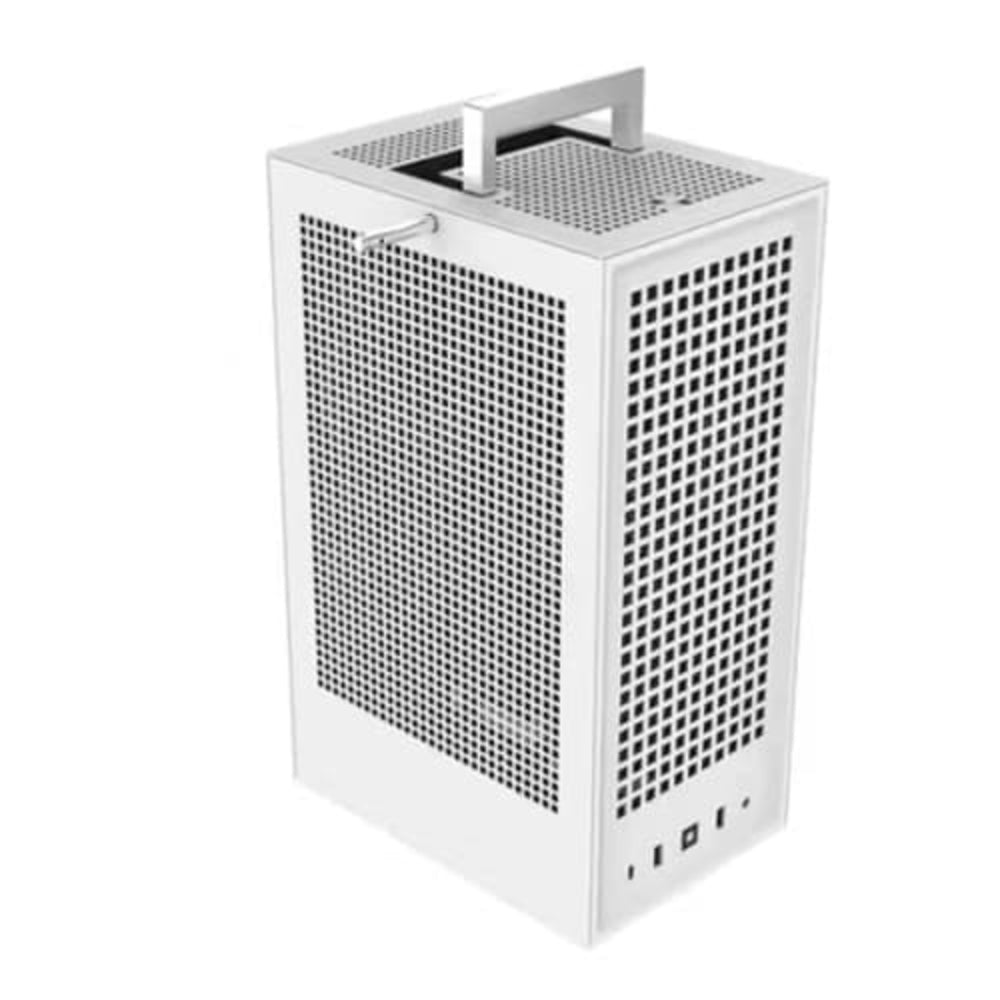

HYTE Revolt 3 ITX Mini Tower Cabinet ( White )
MPN HYTE-REVOLT-3-ITX-MINI-WHITE · Brand Hyte · Mini-ITX
Features of HYTE Revolt 3 ITX Mini Tower Cabinet ( White ) We designed the REVOLT 3 to be the ITX case you'll take anywhere, and upgrade for years. With an integrated handle and tool-free side panels, you'll love how easy it is to build in, modify, and travel with. Supports most full-size graphics cards, no riser cable needed. Tool-less side panels: pop them off for effortless access to build and upgrade Integrated handle and accessory holders, for easy travel. Downward-facing motherboard I/O ro
Inclusive of GST · GST invoice available
Overview
Features of HYTE Revolt 3 ITX Mini Tower Cabinet ( White )
We designed the REVOLT 3 to be the ITX case you'll take anywhere, and upgrade for years. With an integrated handle and tool-free side panels, you'll love how easy it is to build in, modify, and travel with.
- Supports most full-size graphics cards, no riser cable needed.
- Tool-less side panels: pop them off for effortless access to build and upgrade
- Integrated handle and accessory holders, for easy travel.
- Downward-facing motherboard I/O routes cables out the back of the case
- Bottom-front case I/O offers a cleaner desk setup and superior cable management.
- Supports 1 HDD and up to 2 x 2.5" SSDs
- Optional PSU with pre-measured and routed cables.
- Separated airflow channels for CPU and GPU cooling
Get yours today, and experience play before you hit the power button.

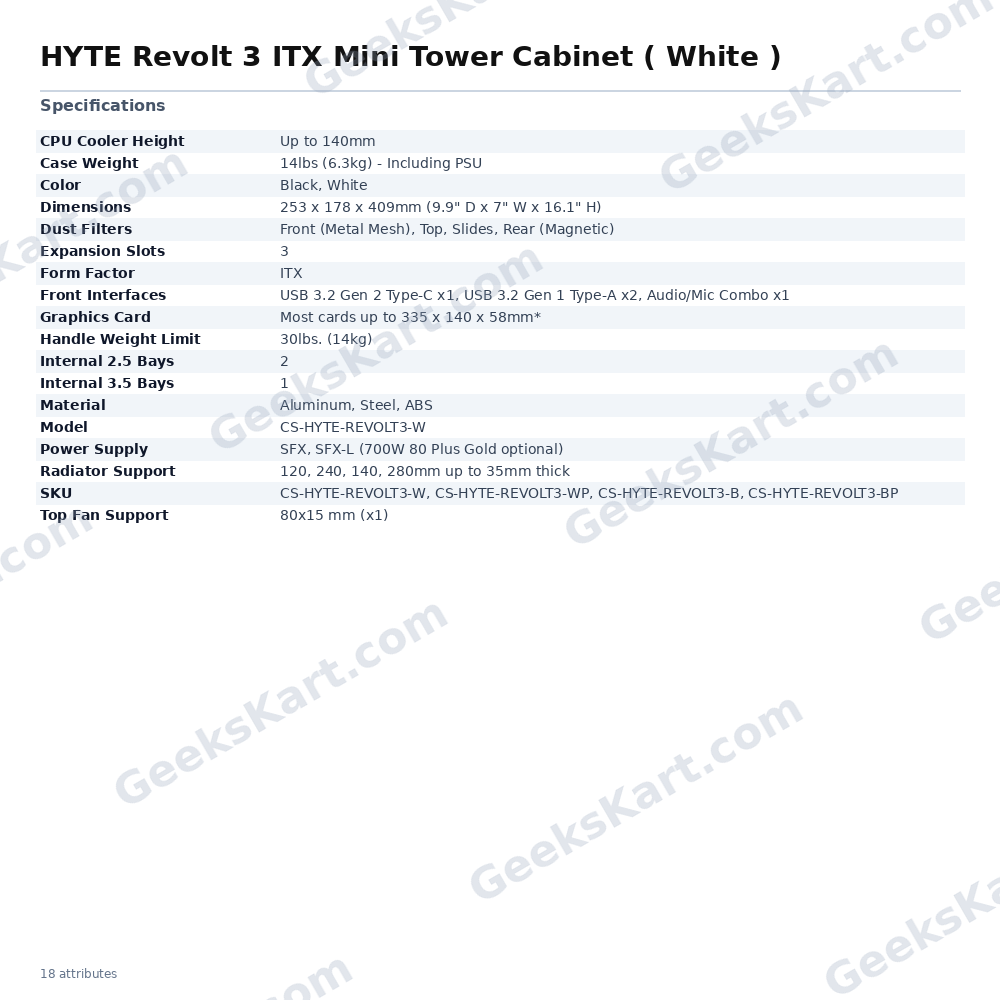

Specification of HYTE Revolt 3 ITX Mini Tower Cabinet ( White )
| Model No | CS-HYTE-REVOLT3-W |
| Material | Aluminum, Steel, ABS |
| Color | Black, White |
| Dimensions | 253 x 178 x 409mm (9.9" D x 7" W x 16.1" H) |
| Motherboard Size | ITX |
| Graphics Card | Most cards up to 335 x 140 x 58mm* |
| Radiator Support | 120, 240, 140, 280mm up to 35mm thick |
| CPU Cooler Height | Up to 140mm |
| Top Fan Support | 80x15 mm (x1) |
| Handle Weight Limit | 30lbs. (14kg) |
| Expansion Slots | 3 |
| Internal 3.5 Bays | 1 |
| Internal 2.5 Bays | 2 |
| Front Interfaces | USB 3.2 Gen 2 Type-C x1, USB 3.2 Gen 1 Type-A x2, Audio/Mic Combo x1 |
| Dust Filters | Front (Metal Mesh), Top, Slides, Rear (Magnetic) |
| Case Weight | 14lbs (6.3kg) - Including PSU |
| Power Supply | SFX, SFX-L (700W 80 Plus Gold optional) |
| Sku | CS-HYTE-REVOLT3-W, CS-HYTE-REVOLT3-WP, CS-HYTE-REVOLT3-B, CS-HYTE-REVOLT3-BP |
Datasheet
| Form Factor | Mini-ITX |
|---|---|
| color | Black, White |
| SKU | CS-HYTE-REVOLT3-W, CS-HYTE-REVOLT3-WP, CS-HYTE-REVOLT3-B, CS-HYTE-REVOLT3-BP |
| Material | Aluminum, Steel, ABS |
| Model | CS-HYTE-REVOLT3-W |
| Dimensions | 253 x 178 x 409mm (9.9" D x 7" W x 16.1" H) |
| Case Weight | 14lbs (6.3kg) – Including PSU |
| Dust Filters | Front (Metal Mesh), Top, Slides, Rear (Magnetic) |
| Power Supply | SFX, SFX-L (700W 80 Plus Gold optional) |
| Graphics Card | Most cards up to 335 x 140 x 58mm* |
| Expansion Slots | 3 |
| Top Fan Support | 80×15 mm (x1) |
| Front Interfaces | USB 3.2 Gen 2 Type-C x1, USB 3.2 Gen 1 Type-A x2, Audio/Mic Combo x1 |
| Radiator Support | 120, 240, 140, 280mm up to 35mm thick |
| CPU Cooler Height | Up to 140mm |
| Internal 2.5 Bays | 2 |
| Internal 3.5 Bays | 1 |
| Handle Weight Limit | 30lbs. (14kg) |
