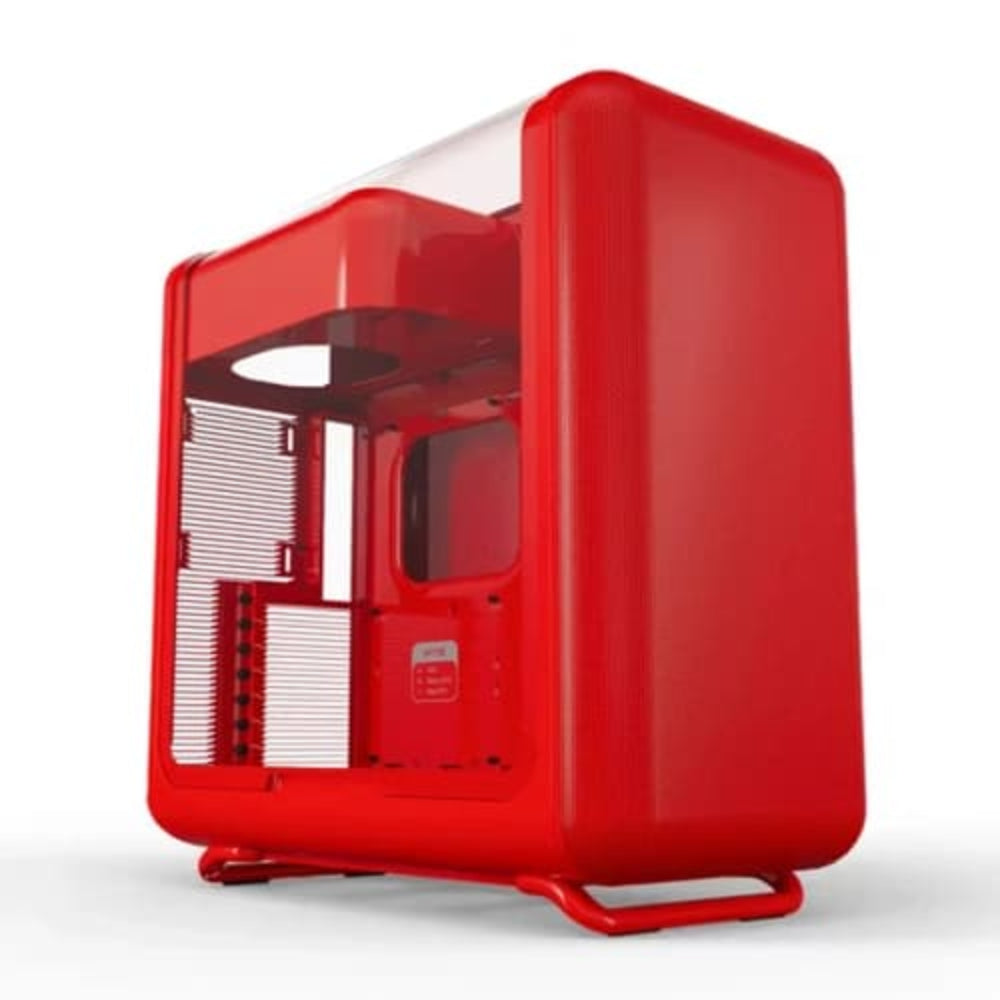

HYTE X50 ATX Mid Tower Cabinet ( Cherry Red )
MPN HYTE-X50-ATX-MID-TOWER-CHERRY-RED · Brand Hyte · ATX Mid-Tower
Features of HYTE X50 ATX Mid Tower Cabinet ( Cherry Red ) Full-Coverage Micro-Mesh Serves as a low pressure and low resistance air intake for optimal temps & noise levels Patent-Pending Louvered Blade Ventilation Reduces exhaust impedance by slicing through hot air while reinforcing chassis rigidity 4mm Thick Laminated Acoustic Glass Significantly enhances passive noise damping by reducing transmission of sound with a Shatter-Proof(ish) bonding layer ensuring the glass doesn’t splinter into
Inclusive of GST · GST invoice available
Overview
Features of HYTE X50 ATX Mid Tower Cabinet ( Cherry Red )
Full-Coverage Micro-Mesh
Serves as a low pressure and low resistance air intake for optimal temps & noise levels
Patent-Pending Louvered Blade Ventilation
Reduces exhaust impedance by slicing through hot air while reinforcing chassis rigidity
4mm Thick Laminated Acoustic Glass
Significantly enhances passive noise damping by reducing transmission of sound with a Shatter-Proof(ish) bonding layer ensuring the glass doesn’t splinter into a million pieces
Cold-Floor Cooling
Keeps your graphics card comfortably cool with direct airflow from up to 3x 120mm extra thick fans
Structural PSU Canopy
Ideally positioned for hassle-free cable management with meticulously placed tie-down points with included velcro straps both inside and outside the chassis
Disciplined Multi-Dimensional Design
Seamlessly blends premium materials such as steel and tempered glass with exquisite craftsmanship, resulting in simple, soft, perfect forms across every curve inside the case

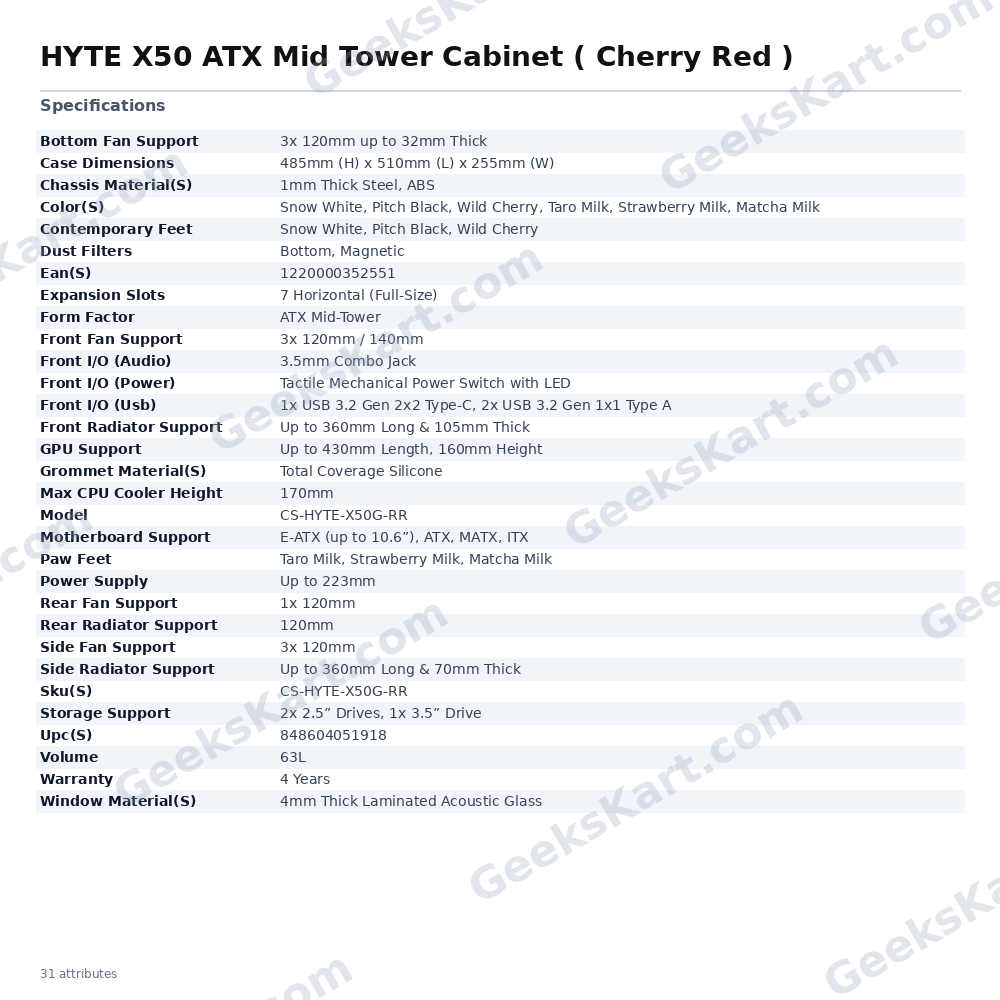

Specification of HYTE X50 ATX Mid Tower Cabinet ( Cherry Red )
| Model No | CS-HYTE-X50G-RR |
| Form Factor | ATX Mid-Tower |
| Volume | 63L |
| Case Dimensions | 485mm (H) x 510mm (L) x 255mm (W) |
| Chassis Material(s) | 1mm Thick Steel, ABS |
| Window Material(s) | 4mm Thick Laminated Acoustic Glass |
| Grommet Material(s) | Total Coverage Silicone |
| Motherboard Support | E-ATX (up to 10.6”), ATX, MATX, ITX |
| Power Supply | Up to 223mm |
| GPU Support | Up to 430mm Length, 160mm Height |
| Side Fan Support | 3x 120mm |
| Front Fan Support | 3x 120mm / 140mm |
| Bottom Fan Support | 3x 120mm up to 32mm Thick |
| Rear Fan Support | 1x 120mm |
| Side Radiator Support | Up to 360mm Long & 70mm Thick |
| Front Radiator Support | Up to 360mm Long & 105mm Thick |
| Rear Radiator Support | 120mm |
| Max CPU Cooler Height | 170mm |
| Storage Support | 2x 2.5” Drives, 1x 3.5” Drive |
| Expansion Slots | 7 Horizontal (Full-Size) |
| Front I/O (Audio) | 3.5mm Combo Jack |
| Front I/O (USB) | 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 1x1 Type A |
| Front I/O (Power) | Tactile Mechanical Power Switch with LED |
| Dust Filters | Bottom, Magnetic |
| Contemporary Feet | Snow White, Pitch Black, Wild Cherry |
| Paw Feet | Taro Milk, Strawberry Milk, Matcha Milk |
| Warranty | 4 Years |
| Color(s) | Snow White, Pitch Black, Wild Cherry, Taro Milk, Strawberry Milk, Matcha Milk |
| SKU(s) | CS-HYTE-X50G-RR |
| UPC(s) | 848604051918 |
| EAN(s) | 1220000352551 |
Datasheet
| Warranty | 4 Years |
|---|---|
| Ean(S) | 1220000352551 |
| Sku(S) | CS-HYTE-X50G-RR |
| Upc(S) | 848604051918 |
| Volume | 63L |
| Color(S) | Snow White, Pitch Black, Wild Cherry, Taro Milk, Strawberry Milk, Matcha Milk |
| Model | CS-HYTE-X50G-RR |
| Paw Feet | Taro Milk, Strawberry Milk, Matcha Milk |
| GPU Support | Up to 430mm Length, 160mm Height |
| Dust Filters | Bottom, Magnetic |
| Power Supply | Up to 223mm |
| Case Dimensions | 485mm (H) x 510mm (L) x 255mm (W) |
| Expansion Slots | 7 Horizontal (Full-Size) |
| Front I/O (Usb) | 1x USB 3.2 Gen 2×2 Type-C, 2x USB 3.2 Gen 1×1 Type A |
| Storage Support | 2x 2.5” Drives, 1x 3.5” Drive |
| Rear Fan Support | 1x 120mm |
| Side Fan Support | 3x 120mm |
| Contemporary Feet | Snow White, Pitch Black, Wild Cherry |
| Front Fan Support | 3x 120mm / 140mm |
| Front I/O (Audio) | 3.5mm Combo Jack |
| Front I/O (Power) | Tactile Mechanical Power Switch with LED |
| Bottom Fan Support | 3x 120mm up to 32mm Thick |
| Window Material(S) | 4mm Thick Laminated Acoustic Glass |
| Chassis Material(S) | 1mm Thick Steel, ABS |
| Grommet Material(S) | Total Coverage Silicone |
| Motherboard Support | E-ATX (up to 10.6”), ATX, MATX, ITX |
| Max CPU Cooler Height | 170mm |
| Rear Radiator Support | 120mm |
| Side Radiator Support | Up to 360mm Long & 70mm Thick |
| Front Radiator Support | Up to 360mm Long & 105mm Thick |
| Form Factor | ATX Mid-Tower |
