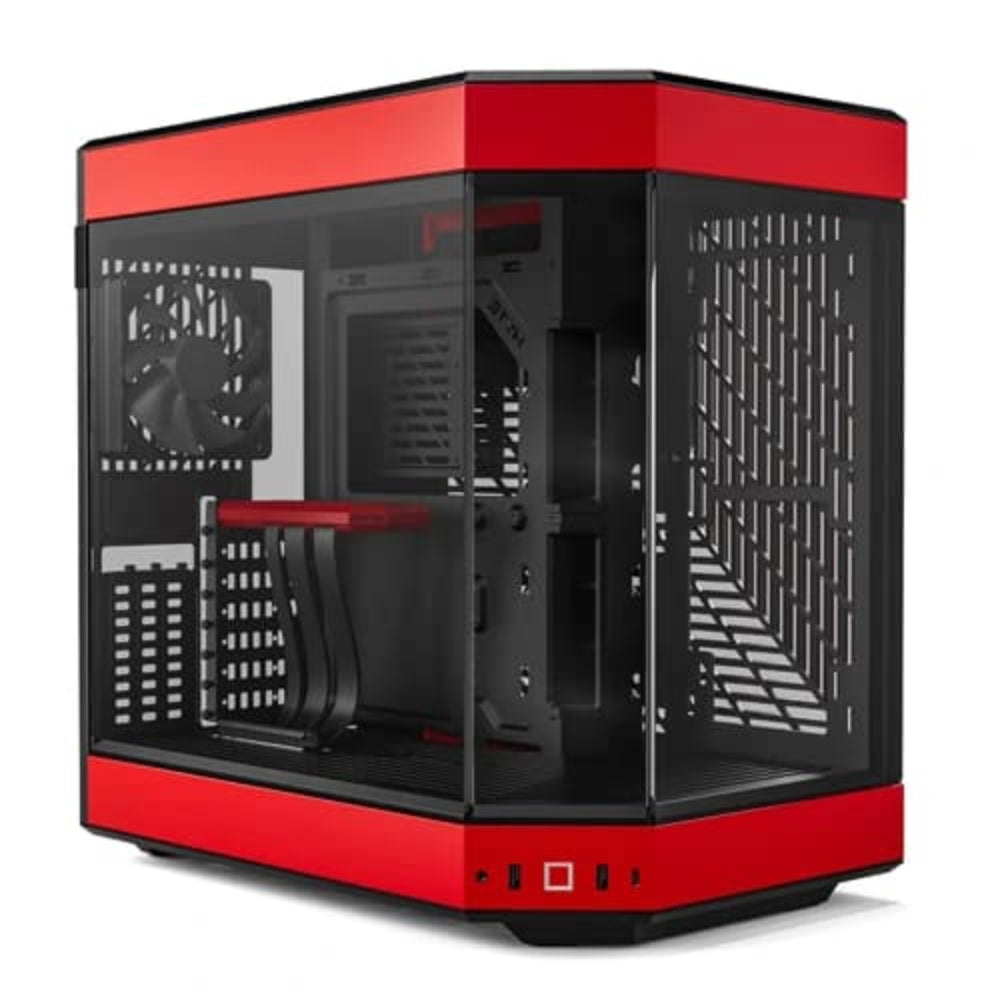

HYTE Y60 ATX Mid Tower Cabinet ( Black / Red )
MPN HYTE-Y60-ATX-MID-TOWER-BLACK-RED · Brand HYTE
Features of HYTE Y60 ATX Mid Tower Cabinet ( Black / Red ) Panoramic Views No corner pillar. HYTE Y60 Mid Tower ATX Cabinet ( Black / red ) features a 3-piece panoramic tempered glass design for the ultimate photo and display potential. See your build the way it was meant to be seen from the left or right side of your desk with a simple turn. Exclusively Vertical GPU Mounted Why would you want to see your graphics card any other way? Included PCIE 4.0 Riser Cable A protective riser cable canopy
Inclusive of GST · GST invoice available
Overview
Features of HYTE Y60 ATX Mid Tower Cabinet ( Black / Red )
Panoramic Views
No corner pillar. HYTE Y60 Mid Tower ATX Cabinet ( Black / red ) features a 3-piece panoramic tempered glass design for the ultimate photo and display potential. See your build the way it was meant to be seen from the left or right side of your desk with a simple turn.
Exclusively Vertical GPU Mounted
Why would you want to see your graphics card any other way?
Included PCIE 4.0 Riser Cable
A protective riser cable canopy integrates beautifully into the case, allowing for half-height PCIE cards behind the throne of the vertical graphics card. The protective shroud is the first of its kind, made specifically for the Y60.
Antechamber Construction
Segment cables from thermal components and turn your PC into a work of art.
Cold Floor Cooling
Eliminate hot spots with sweeping lateral vents from fans tastefully tucked into the basement of the Y60.
Included Fans
This HYTE Cabinet have three pre-installed Flow FE12 fans with fluid-dynamic bearings provide whisper-quiet operation.
Specification of HYTE Y60 ATX Mid Tower Cabinet (Black / Red )
| Model: | CS-HYTE-Y60-BR |
| Colour: | Black and Red |
| Type: | Dual Chamber Mid-Tower ATX Case |
| Volume: | 60L |
| Case Dimensions: | 456mm (L) x 285mm (W) x 462mm (H) |
| Case Weight: | 9.6 kg |
| Case in Box Dimensions: | 535mm (L) x 372mm (W )x 540mm (H) |
| Case in Box Weight: | 11.3 kg |
| Case Materials: | Tempered Glass, Steel, ABS |
| Motherboard Support: | EATX, ATX, mATX, ITX |
| Power Supply: | ATX up to 235mm in length |
| Video Card Max Dimensions: | 375mm length, 75mm width (60mm or less recommended for best cooling) |
| Fan Support (Side): | 2x 120/140mm |
| Fan Support (Top): | 3x 120mm |
| Fan Support (Rear): | 1x 120mm (1x 120mm, 1300 RPM included) |
| Fan Support (Bottom): | 2x 120mm/140mm (2x 120mm, 1300 RPM included) |
| Radiator Support (Side): | 120, 140, 240, 280mm up to 150mm thick |
| Radiator Support (Top): | 120, 240, 360mm up to 30mm thick |
| Radiator Support (Rear): | 120mm |
| CPU Cooler Height: | 160mm* * When using an air cooler rather than liquid cooler, HYTE recommends the installation of 2 additional intake fans (not included) on the side mount of the Y60 for optimal airflow. |
| Storage: | 2x 3.5" HDD or 4x 2.5" SSD |
| Expansion Slots: | 3 + 7 half-height |
| PCI Express Riser: | 4.0 x 16 (included) |
| Front USB 3.0: | 2 |
| Front USB 3.2 Gen 2 Type-C: | 1 |
| Audio/Mic Jack: | 1 |
| Dust Filters: | Bottom, Side, Top |
| RGB Lighting: | None |
| Warranty: | 2 years |
| Note: | *** Features, Price, Specifications are subject to change without notice. *** Images are for representation purpose only |

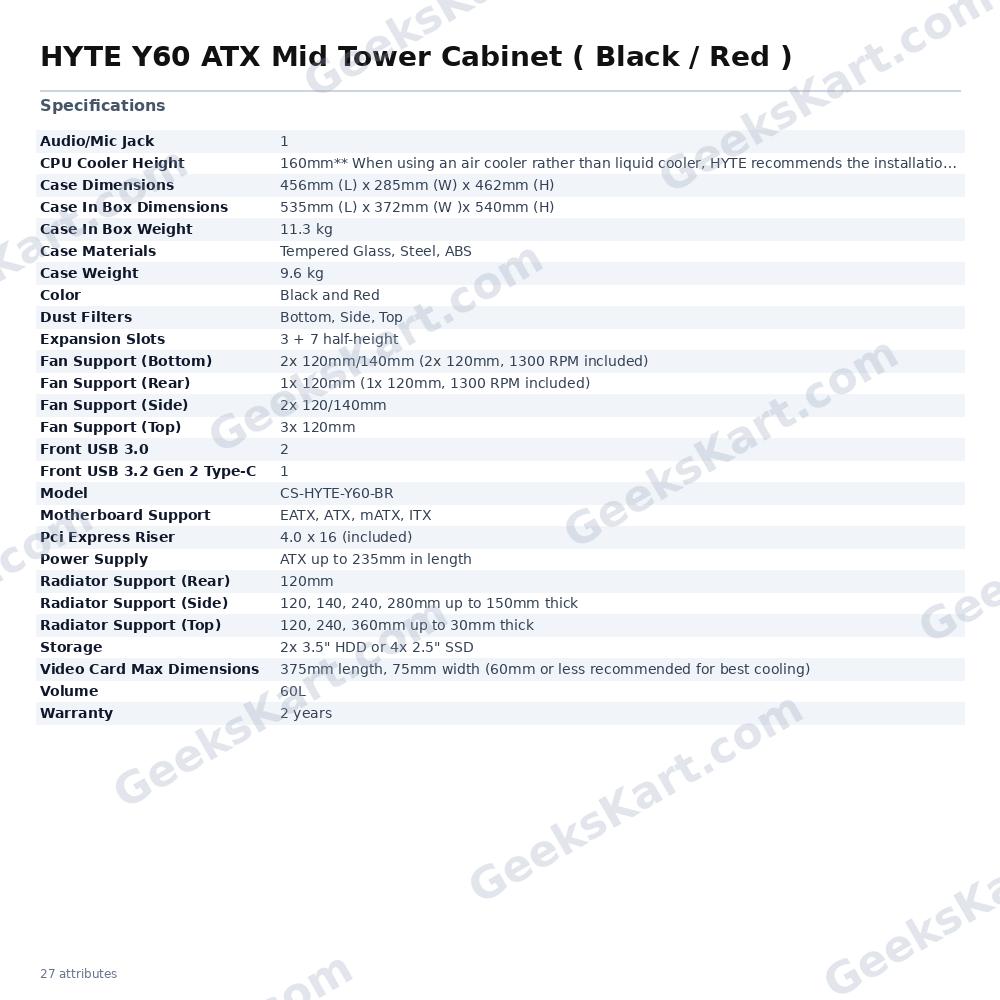

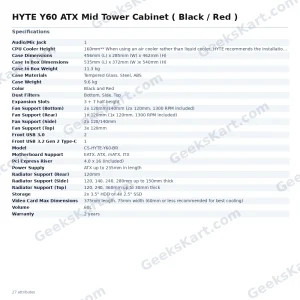

Datasheet
| Warranty | 2 Years |
|---|---|
| color | Black, Red |
| Model | CS-HYTE-Y60-BR |
| Volume | 60L |
| Storage | 2x 3.5" HDD or 4x 2.5" SSD |
| Case Weight | 9.6 kg |
| Dust Filters | Bottom, Side, Top |
| Power Supply | ATX up to 235mm in length |
| Front USB 3.0 | 2 |
| Audio/Mic Jack | 1 |
| Case Materials | Tempered Glass, Steel, ABS |
| Case Dimensions | 456mm (L) x 285mm (W) x 462mm (H) |
| Expansion Slots | 3 + 7 half-height |
| CPU Cooler Height | 160mm** When using an air cooler rather than liquid cooler, HYTE recommends the installation of 2 additional intake fans (not included) on the side mount of the Y60 for optimal airflow |
| Fan Support (Top) | 3x 120mm |
| Pci Express Riser | 4.0 x 16 (included) |
| Case In Box Weight | 11.3 kg |
| Fan Support (Rear) | 1x 120mm (1x 120mm, 1300 RPM included) |
| Fan Support (Side) | 2x 120/140mm |
| Motherboard Support | EATX, ATX, mATX, ITX |
| Fan Support (Bottom) | 2x 120mm/140mm (2x 120mm, 1300 RPM included) |
| Case In Box Dimensions | 535mm (L) x 372mm (W )x 540mm (H) |
| Radiator Support (Top) | 120, 240, 360mm up to 30mm thick |
| Radiator Support (Rear) | 120mm |
| Radiator Support (Side) | 120, 140, 240, 280mm up to 150mm thick |
| Video Card Max Dimensions | 375mm length, 75mm width (60mm or less recommended for best cooling) |
| Front USB 3.2 Gen 2 Type-C | 1 |
