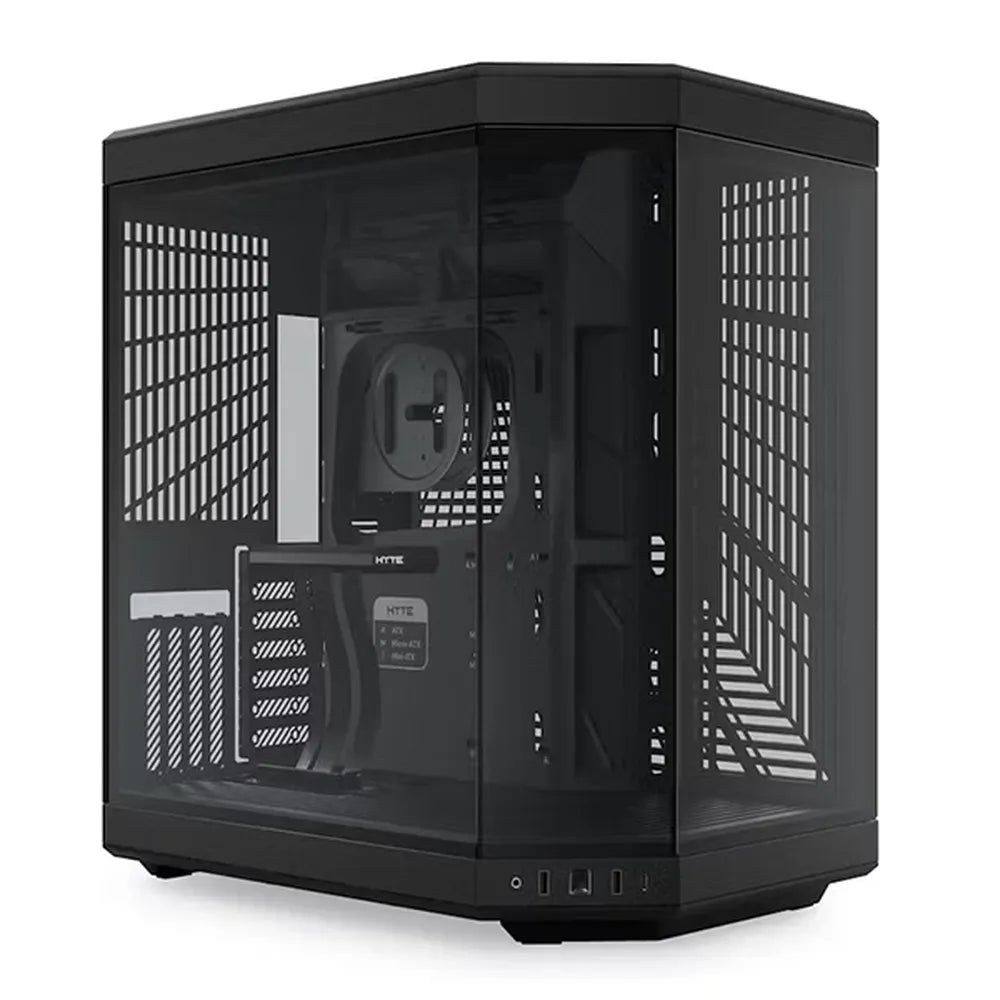

HYTE Y70 E-ATX Mid Tower Cabinet (Black)

The HYTE Y70 (Non Touch) is a dual-chamber mid-tower cabinet designed for E-ATX, ATX, mATX, and ITX motherboards. Its standout feature is a three-piece panoramic tempered glass panel that wraps around the front and side of the chassis, giving an unobstructed view of your components. The black colourway (model CS-HYTE-Y70-B) measures 470 × 320 × 470 mm with an internal volume of 70.7 litres, offering a spacious yet purposeful footprint. The case supports vertical GPU installation through a 4-slot mount, accommodating graphics cards up to 422 mm long and 105 mm thick. A PCIe 4.0 x16 riser cable is included in the box, making vertical installation straightforward without requiring additional purchases. Above the GPU, the dual-chamber layout cleanly separates the primary component area from the cable management zone at the rear, aided by an L-shaped rubber grommet, dedicated routing channels, tie-down points, and reusable Velcro straps. Cooling flexibility is a core strength. The side panel accepts a radiator up to 360 mm long and 125 mm thick, while the adjustable top bracket supports a second radiator up to 360 mm long and 68 mm thick. The bottom cold-floor zone accommodates three 120 mm or two 140 mm fans up to 32 mm thick, directing fresh air directly toward the GPU. A single 120/140 mm fan position sits at the rear. In a fully populated configuration the chassis supports up to ten fans in total. CPU coolers up to 180 mm tall are compatible. Dust filters are fitted at the top, side, and bottom intakes. Front-panel I/O includes one USB-C 3.2 Gen 2 port, two USB-A 3.2 Gen 1 ports, and a combined 3.5 mm audio/microphone jack. Storage provisions cover two 3.5-inch HDD bays or up to four 2.5-inch SSD trays, accessible via tool-less floating sleds that eject from the rear panel. The PSU bay accepts units up to 235 mm long. Expansion slot count is seven half-height plus four full-height positions. Key Specifications: • Model: Y70 (Non Touch) | SKU: CS-HYTE-Y70-B • Form Factor: Dual Chamber Mid-Tower | Colour: Black • Exterior Dimensions: 470 × 320 × 470 mm | Volume: 70.7 L • Motherboard Support: ITX, mATX, ATX, E-ATX • Expansion Slots: 7 half-height + 4 full-height • Riser Cable: PCIe 4.0 x16 (included) • Top Fans: 3× 120 mm / 2× 140 mm | Top Radiator: up to 360 mm @ 68 mm thick • Side Fans: 3× 120 mm / 2× 140 mm | Side Radiator: up to 360 mm @ 125 mm thick • Bottom Fans: 3× 120 mm / 2× 140 mm @ 32 mm thick • Rear Fan/Radiator: 1× 120/140 mm • Max GPU Length: 422 mm | Max GPU Thickness: 105 mm • Max CPU Cooler Height: 180 mm | Max PSU Length: 235 mm • Storage: 2× 3.5-inch HDD or 4× 2.5-inch SSD • Front I/O: 1× USB-C 3.2 Gen 2, 2× USB-A 3.2 Gen 1, 1× 3.5 mm combo jack • Dust Filters: Top, Side, Bottom • Warranty: 2 Years
