HYTE Y70 EATX Mid Tower Cabinet (Black / White)

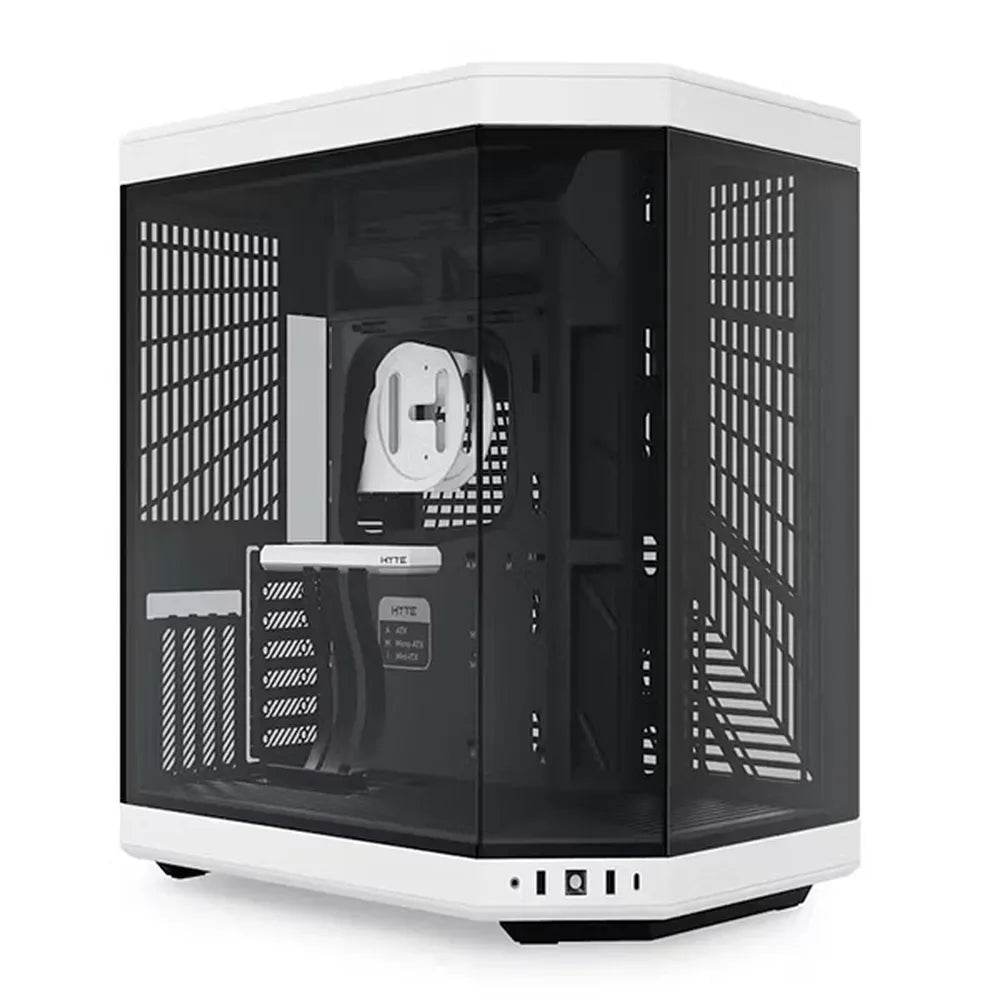

The HYTE Y70 (Non-Touch) is a dual-chamber E-ATX mid-tower cabinet finished in Black and White (SKU: CS-HYTE-Y70-BW). Its panoramic 3-piece tempered-glass side panel puts your components on full display while the dual-chamber interior keeps the primary build area clean by routing power cables and storage into a separate rear compartment. Vertical GPU mounting is a defining feature of the Y70. The case accommodates graphics cards up to 422 mm long and 105 mm thick across 4 full-height expansion slots, giving modern triple-fan or quad-fan cards room to breathe. A PCIe 4.0 x16 riser cable with a colour-matched canopy ships in the box, so vertical installation is straightforward from the first build. Cooling headroom is equally generous. The side panel position supports radiators from 120 mm to 360 mm (up to 125 mm thick) or up to three 120 mm / two 140 mm fans. The adjustable top bracket accepts a second radiator up to 360 mm long and 68 mm thick, or the same fan configurations. The bottom “cold floor” zone fits up to three 120 mm or two 140 mm fans (max 32 mm fan thickness) to channel fresh air directly toward the GPU. A single 120/140 mm fan or matching radiator completes the rear position, bringing the total chassis fan capacity to 10 positions. With 180 mm of CPU cooler clearance, both air and liquid cooling configurations are well catered for. Front-panel connectivity consists of one USB-C 3.2 Gen 2 port, two USB-A 3.2 Gen 1 ports, and a 3.5 mm audio/mic combo jack. Dust filtration is provided at the top, side, and bottom openings. Storage support covers two 3.5-inch HDD bays or up to four 2.5-inch SSD sleds, which eject from the rear of the case for tool-less drive maintenance. The PSU bay accommodates units up to 235 mm in length. The case also offers 7 half-height and 4 full-height expansion slots, providing room for additional PCIe add-in cards alongside the vertically mounted GPU. Cable management is aided by an L-shaped moulded rubber grommet, dedicated routing channels, tie-down points, and reusable Velcro straps. The top and side panels are tool-less for quick access. Key Verified Specifications: • Model: Y70 (Non Touch) | SKU: CS-HYTE-Y70-BW • Form Factor: Dual-Chamber Mid-Tower | Motherboard Support: ITX, mATX, ATX, E-ATX • Exterior Dimensions: 470 × 320 × 470 mm | Volume: 70.7 L • GPU Clearance: up to 422 mm length, 105 mm thickness, 4-slot width • CPU Cooler Clearance: 180 mm • PSU Clearance: 235 mm • Side Radiator: up to 360 mm × 125 mm thick | Top Radiator: up to 360 mm × 68 mm thick • Total Fan Positions: 10 • Front I/O: 1× USB-C 3.2 Gen 2, 2× USB-A 3.2 Gen 1, 3.5 mm audio/mic • Storage: 2× 3.5″ HDD or 4× 2.5″ SSD • Riser Cable: PCIe 4.0 x16 (included) • Dust Filters: Top, Side, Bottom • Warranty: 2 Years
