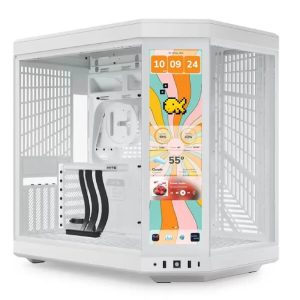

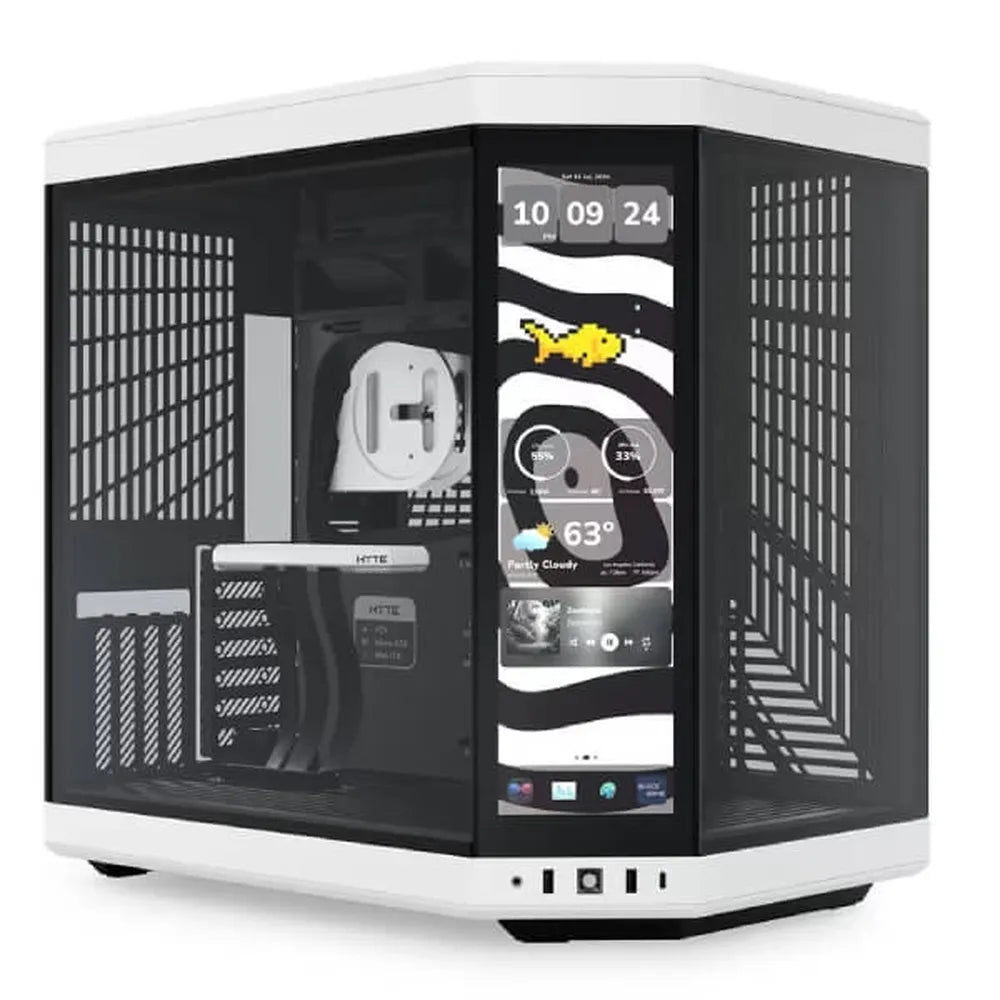

HYTE Y70 Touch Infinite E-ATX Mid Tower Cabinet (Black / White)

The HYTE Y70 Touch Infinite E-ATX Mid-Tower Cabinet in Black/White (P/N: CS-HYTE-Y70TTI-WB) is a dual-chamber mid-tower enclosure designed for enthusiast PC builders who want a combination of expansive cooling headroom, large-GPU compatibility, and an integrated interactive display. The defining feature of the Touch Infinite variant is its second-generation 14.5-inch capacitive touchscreen, built directly into the chassis structure and driven by HYTE Nexus software. The panel operates at 688 × 2560 (2.5K) resolution at 60 Hz, supports 5-point multi-touch, and is rated at 350 nits brightness, a 1500:1 contrast ratio, an 89-degree viewing angle, and a 20 ms pixel response time at 183 PPI. The interior is engineered around vertical GPU presentation. A 4-slot vertical graphics mount accommodates cards up to 422 mm long and 105 mm thick, with airflow space between the card edge and the tempered glass panel. A PCIe 4.0 x16 riser cable is included in the box for a straightforward installation. The chassis also supports up to seven half-height and four full-height expansion slots in total. Cooling flexibility is a primary strength of the Y70 Touch Infinite. The side position accepts a radiator up to 360 mm long and 125 mm thick (3× 120 mm or 2× 140 mm fans). The adjustable top bracket fits a radiator up to 360 mm long and 68 mm thick (3× 120 mm or 2× 140 mm fans). The cold-floor bottom accommodates up to three 120 mm or two 140 mm fans at 32 mm thickness. A single 120/140 mm fan position at the rear rounds out the layout, bringing the total populated-chassis fan capacity to ten. CPU coolers up to 180 mm tall are supported. The three-piece panoramic tempered glass side panel provides an unobstructed view of the build. Cable management is handled through a dual-chamber layout, L-shaped molded rubber grommets, routed cable channels, tie-down points, and reusable Velcro straps. Tool-less top and side panels and floating storage sleds that eject from the rear simplify maintenance. Front I/O includes 1× USB-C 3.2 Gen 2, 2× USB-A 3.2 Gen 1, and a 3.5 mm audio/mic combo jack. Dust filters are present on the top, side, and bottom. Verified Specifications: - Form Factor: Dual Chamber Mid-Tower ATX - Motherboard Support: ITX, mATX, ATX, E-ATX - Exterior Dimensions: 470 × 320 × 470 mm | Volume: 70.7 L - Display: 14.5″ 688×2560 (2.5K) 60 Hz capacitive touchscreen, 5-point multi-touch, 183 PPI, 350 nits, 1500:1 contrast, 89° viewing angle, 20 ms response - GPU Clearance: Up to 422 mm length, 105 mm thickness, 4-slot vertical - CPU Cooler Clearance: Up to 180 mm - PSU Clearance: Up to 235 mm - Riser Cable: PCIe 4.0 x16 (included) - Expansion Slots: 7 half-height + 4 full-height - Storage: 2× 3.5″ HDD or 4× 2.5″ SSD - I/O: 1× USB-C 3.2 Gen 2, 2× USB-A 3.2 Gen 1, 1× 3.5 mm combo jack - Top Fan/Rad: 3× 120 mm or 2× 140 mm / up to 360 mm @ 68 mm thick - Side Fan/Rad: 3× 120 mm or 2× 140 mm / up to 360 mm @ 125 mm thick - Bottom Fan: 3× 120 mm or 2× 140 mm @ 32 mm thick - Rear Fan/Rad: 1× 120 or 140 mm - Dust Filters: Top, Side, Bottom - Software: HYTE Nexus Touch - Warranty: 3 Years
