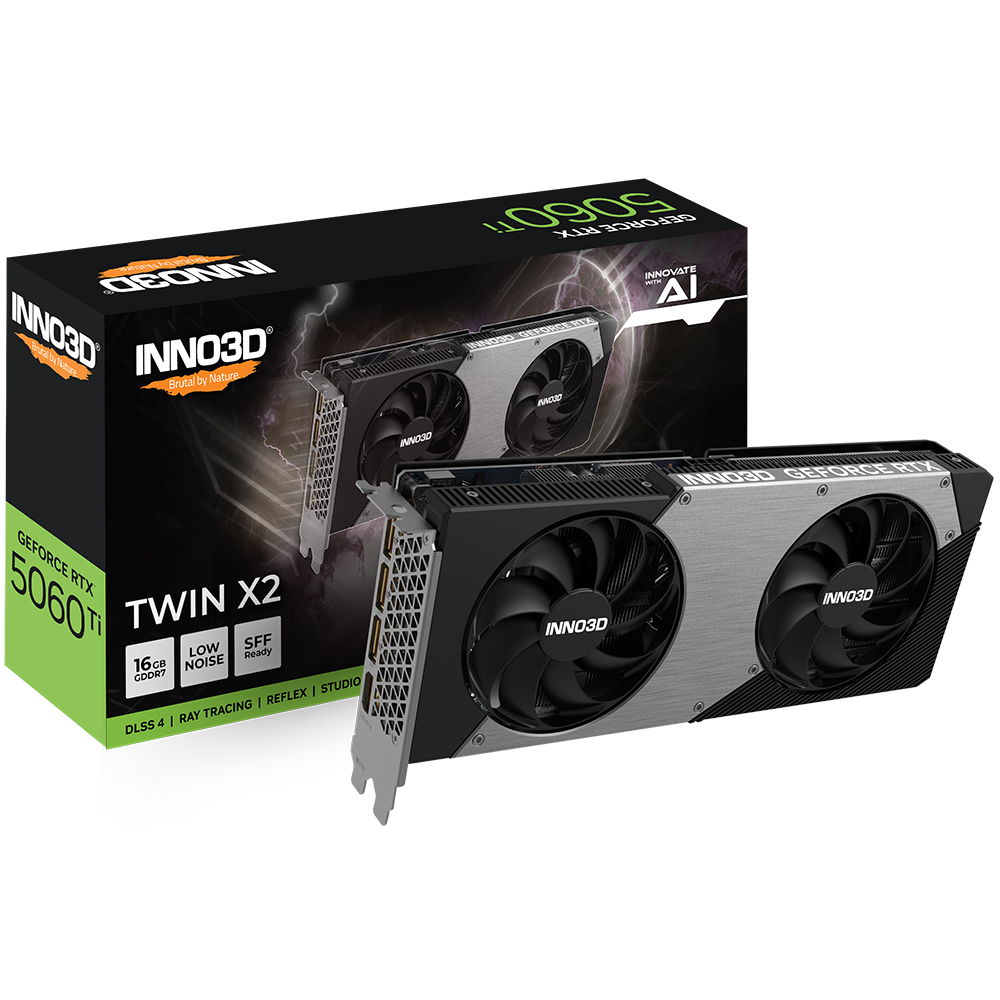

INNO3D GeForce RTX 5060 Ti Twin X2 16GB Nvidia Graphic Card

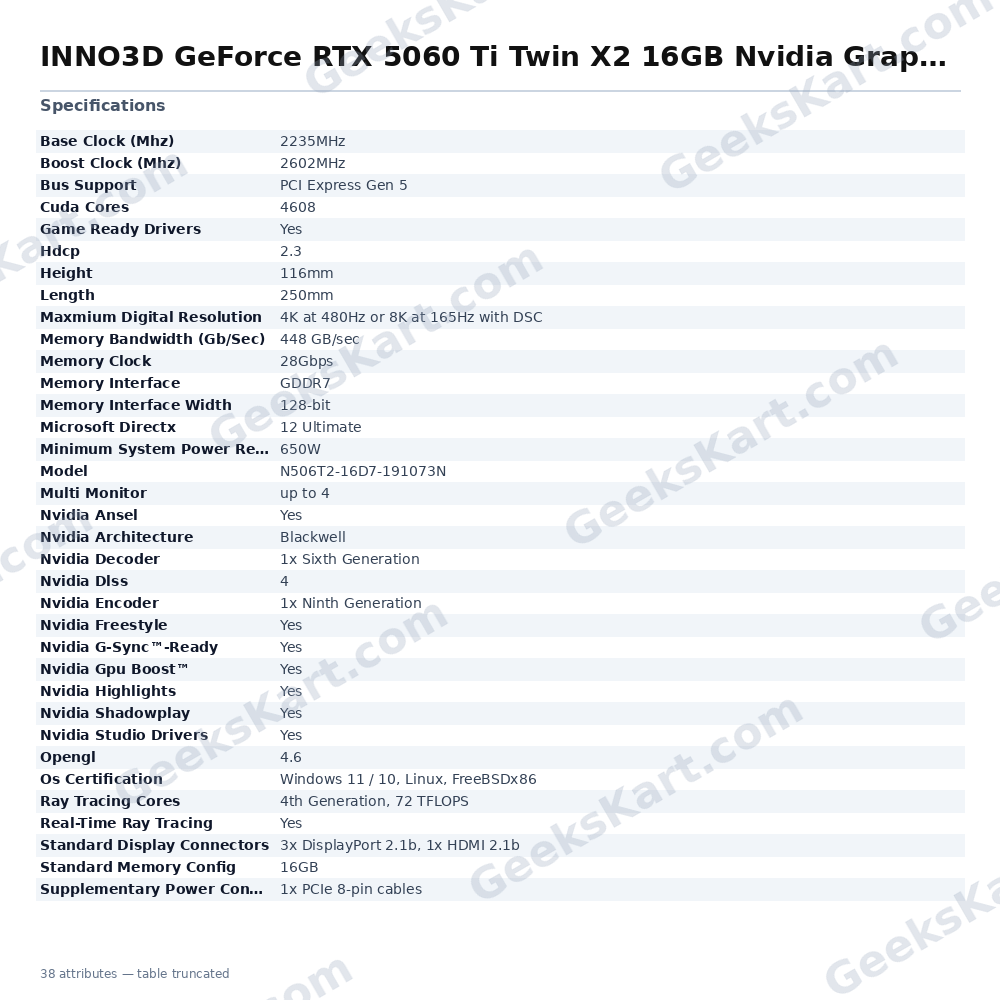

The Inno3D GeForce RTX 5060 Ti Twin X2 16GB is a dual-slot graphics card built on NVIDIA’s Blackwell architecture, purpose-designed for enthusiasts who need capable next-generation performance without sacrificing case compatibility. Its compact 250 mm length and 41 mm width make it an excellent fit for Micro-ATX and ITX small-form-factor builds, while the dual-slot profile keeps neighbouring expansion slots free. At its core sit 4,608 CUDA Cores paired with 16 GB of GDDR7 memory running at 28 Gbps across a 128-bit bus, delivering 448 GB/s of memory bandwidth. The GPU boosts to 2,602 MHz from a 2,235 MHz base clock. Fourth-generation RT Cores (rated at 72 TFLOPS) handle real-time ray tracing workloads, while fifth-generation Tensor Cores (759 AI TOPS) power DLSS 4 — including Multi Frame Generation and enhanced Ray Reconstruction — to help sustain high frame rates with strong image fidelity. The Twin X2 cooler pairs two 88 mm scythe-blade fans (with detachable blades for easy maintenance) with a copper base plate for full GPU coverage, heatpipes that spread heat outward, and aluminium coverage over the memory modules. Optimised fin thickness and spacing increase airflow through the heatsink stack for consistent thermal headroom during extended gaming or creative workloads. Connectivity covers up to four simultaneous displays via three DisplayPort 2.1b and one HDMI 2.1b outputs, supporting resolutions up to 4K at 480 Hz or 8K at 165 Hz with DSC. The card sits on a PCIe Gen 5 interface and draws supplementary power through a single 8-pin connector; a minimum system PSU of 650 W is recommended. Software support includes NVIDIA G-SYNC compatibility, Reflex 2 (with Frame Warp for reduced latency), ShadowPlay, Ansel, Highlights, FreeStyle, GPU Boost, and both Game Ready and NVIDIA Studio driver tracks. API coverage spans DirectX 12 Ultimate, Vulkan 1.4, and OpenGL 4.6, with OS support for Windows 11/10, Linux, and FreeBSD x86. Verified Specifications: • Model: N506T2-16D7-191073N • CUDA Cores: 4,608 • Architecture: NVIDIA Blackwell • Memory: 16 GB GDDR7, 128-bit, 28 Gbps, 448 GB/s bandwidth • Base / Boost Clock: 2,235 MHz / 2,602 MHz • RT Cores: 4th Gen, 72 TFLOPS | Tensor Cores: 5th Gen, 759 AI TOPS • DLSS: Version 4 | DirectX: 12 Ultimate | Vulkan: 1.4 | OpenGL: 4.6 • Display Outputs: 3× DisplayPort 2.1b, 1× HDMI 2.1b (max 4 displays) • Max Resolution: 4K @ 480 Hz or 8K @ 165 Hz (DSC) • Power Connector: 1× 8-pin PCIe | Recommended PSU: 650 W • Dimensions: 250 mm × 116 mm × 41 mm (L × H × W) • Encoder: 9th Gen (×1) | Decoder: 6th Gen (×1) • Bus: PCIe Gen 5 | HDCP: 2.3
