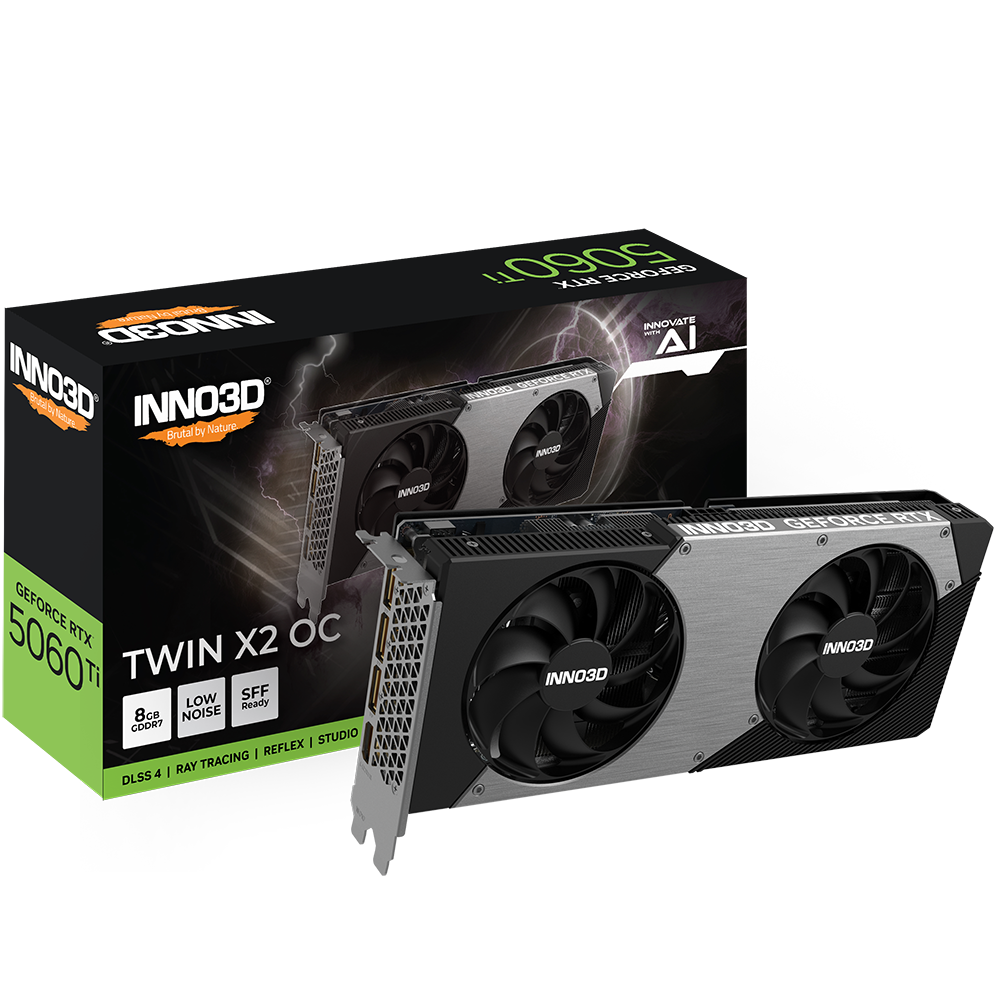

INNO3D GeForce RTX 5060 Ti Twin X2 OC 8GB Nvidia Graphic Card

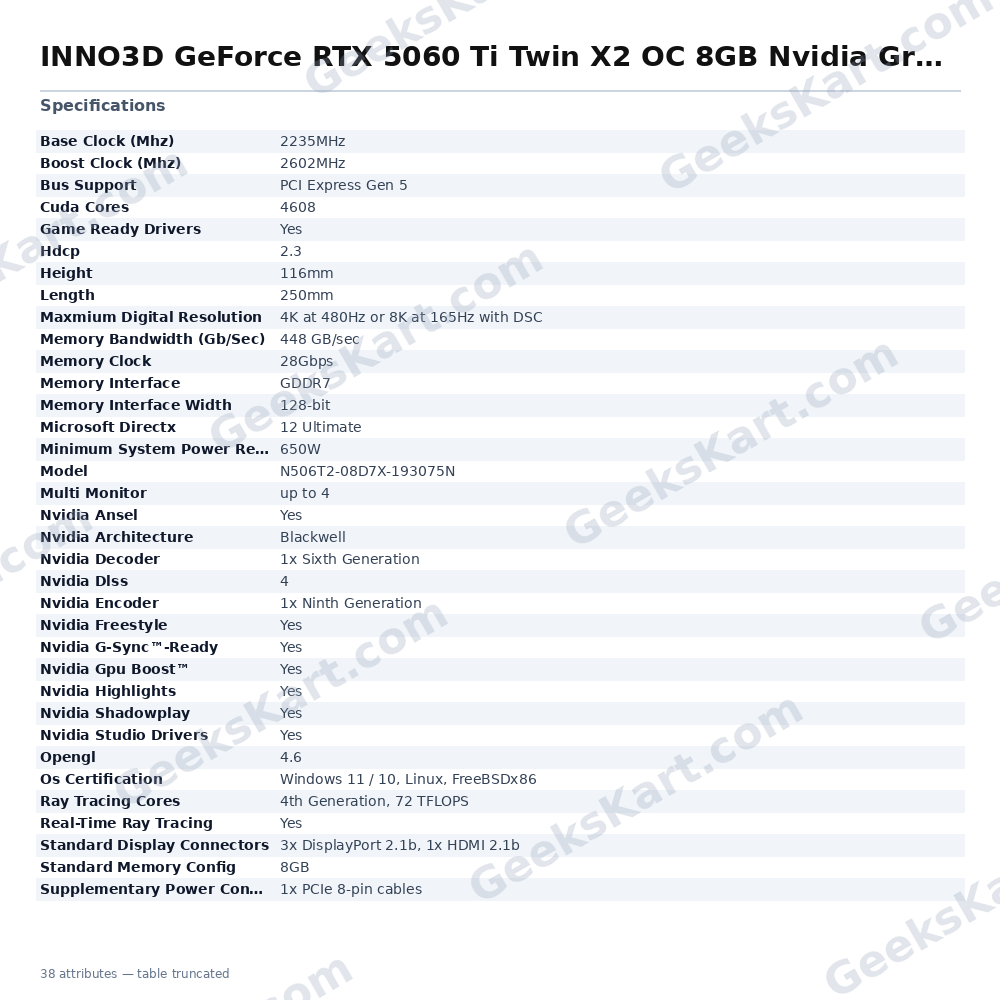

The Inno3D GeForce RTX 5060 Ti Twin X2 OC 8GB is a compact, dual-slot graphics card built on Nvidia’s Blackwell architecture. It is aimed at gamers and creators who need capable next-generation performance in space-constrained mid-tower, micro-ATX, or ITX small-form-factor systems. The card carries model number N506T2-08D7X-193075N and ships with 4,608 CUDA cores, a base clock of 2,235 MHz, and a factory overclocked boost clock of 2,602 MHz. Memory configuration consists of 8 GB of GDDR7 across a 128-bit interface, running at an effective 28 Gbps, which translates to 448 GB/s of memory bandwidth. Ray-tracing workloads are handled by fourth-generation RT Cores rated at 72 TFLOPS, while AI inference and DLSS tasks leverage fifth-generation Tensor Cores delivering up to 759 AI TOPS. These hardware blocks enable full support for Nvidia DLSS 4, including Multi Frame Generation, as well as Nvidia Reflex 2 with Frame Warp for reduced input latency in competitive titles. The Twin X2 cooler pairs two 88 mm scythe-blade fans with a copper base plate that covers the GPU die and transfers heat through heatpipes to an aluminium fin stack. A separate aluminium base plate provides full coverage for the GDDR7 memory modules. The optimised fin thickness and spacing increase airflow between fins for quieter sustained operation. Physical dimensions are 250 mm (length) × 116 mm (height) × 41 mm (width), occupying exactly two expansion slots. Connectivity is provided by three DisplayPort 2.1b outputs and one HDMI 2.1b port, supporting up to four monitors simultaneously. The card can drive displays at up to 4K 480 Hz or 8K 165 Hz with Display Stream Compression enabled. Power is supplied via a single PCIe 8-pin connector, and Nvidia recommends a minimum 650 W system power supply. The card connects via a PCI Express Gen 5 slot and is certified for Windows 11, Windows 10, Linux, and FreeBSD x86. Software feature support includes Nvidia GPU Boost, G-SYNC compatibility, ShadowPlay, Ansel, FreeStyle, Highlights, Game Ready Drivers, and Studio Drivers. API support covers DirectX 12 Ultimate, Vulkan 1.4, and OpenGL 4.6. The onboard encoder is ninth-generation and the decoder is sixth-generation, making the card well-suited to video editing and streaming workflows in addition to gaming. Verified Specifications: • Model: N506T2-08D7X-193075N • Architecture: Nvidia Blackwell • CUDA Cores: 4,608 • Boost / Base Clock: 2,602 MHz / 2,235 MHz • Memory: 8 GB GDDR7, 128-bit, 28 Gbps, 448 GB/s • RT Cores: 4th Gen — 72 TFLOPS • Tensor Cores: 5th Gen — 759 AI TOPS • TDP / PSU Requirement: 650 W minimum • Power Connector: 1× PCIe 8-pin • Dimensions: 250 × 116 × 41 mm (2-slot) • Display Outputs: 3× DisplayPort 2.1b, 1× HDMI 2.1b • Max Resolution: 4K @ 480 Hz or 8K @ 165 Hz (DSC) • Bus: PCIe Gen 5
