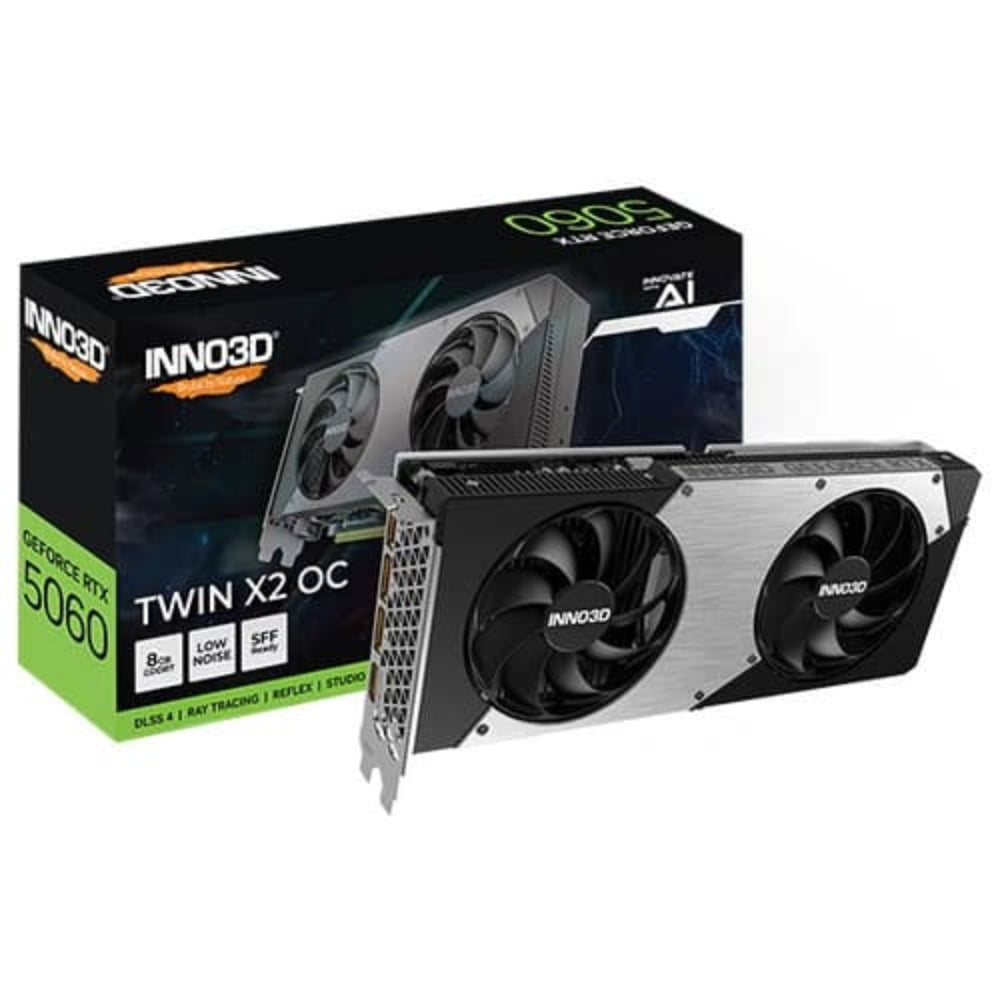

INNO3D GeForce RTX 5060 Twin X2 OC SFF 8GB Nvidia Graphic Card
MPN INNO3D-RTX-5060-TWIN-X2-OC-SFF-8GB-BLACK · Brand Inno3D
The Inno3D GeForce RTX 5060 Twin X2 OC SFF delivers NVIDIA Blackwell performance in a compact 2-slot form factor, featuring 3,840 CUDA cores, 8 GB GDDR7 memory at 28 Gbps, and a dual-fan cooler — ideal for small-form-factor PC builds
Inclusive of GST · GST invoice available
Overview
The Inno3D GeForce RTX 5060 Twin X2 OC SFF is a small-form-factor graphics card built on NVIDIA's Blackwell architecture, making it a practical upgrade for compact desktop builds where space is at a premium without sacrificing modern GPU capabilities. At its core, the card houses 3,840 CUDA cores running at a base clock of 2,280 MHz and a boost clock of 2,527 MHz, providing solid throughput for 1080p and 1440p gaming workloads. It is paired with 8 GB of GDDR7 memory operating at 28 Gbps across a 128-bit interface, delivering meaningful memory bandwidth improvements over previous-generation GDDR6 solutions. The Twin X2 OC cooler uses two 88 mm fans with low-noise blade profiles to draw heat away from the GPU die, assisted by two nickel-plated composite heatpipes that spread thermal load across the heatsink fins. A metal backplate protects the PCB and provides structural rigidity, while the backplate design also assists with hot-air extraction from the card's exhaust. The 2-slot profile ensures compatibility with SFF chassis that cannot accommodate wider cooler designs. Connectivity is handled via HDMI and DisplayPort outputs, supporting up to four simultaneous displays at resolutions up to 7680 × 4320 (8K). The card connects to the motherboard via a PCIe Gen 5 slot and draws supplementary power through a single 8-pin connector. A 550 W power supply is recommended by Inno3D for a complete system using this card. Software support includes DirectX 12 Ultimate and OpenGL 4.6. Being part of the GeForce RTX 50 Series, the card supports NVIDIA DLSS 4 with Multi Frame Generation, Ray Reconstruction, and AI-based Super Resolution features, as well as NVIDIA Reflex 2 for latency reduction in supported titles. Verified Specifications: - Model number: N50602-08D7X-195070N - GPU: NVIDIA GeForce RTX 5060 (Blackwell) - CUDA cores: 3,840 - Boost clock: 2,527 MHz | Base clock: 2,280 MHz - Memory: 8 GB GDDR7, 128-bit, 28 Gbps - Interface: PCIe Gen 5 - Power connector: 1 × 8-pin | Recommended PSU: 550 W - Display outputs: HDMI + DisplayPort (up to 4 displays, max 7680 × 4320) - Cooler: Dual 88 mm fans, 2 × nickel-plated heatpipes, metal backplate, 2-slot SFF - DirectX: 12 Ultimate | OpenGL: 4.6 - Warranty: 3 years

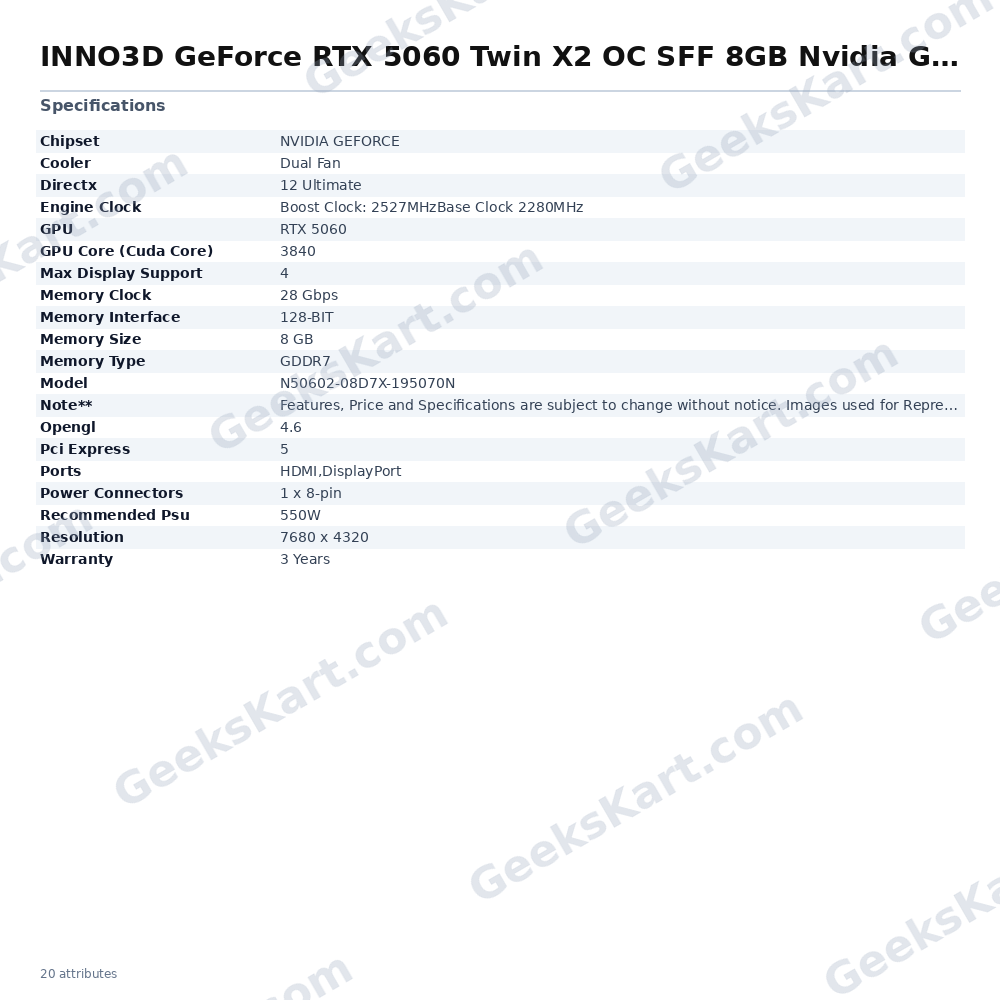

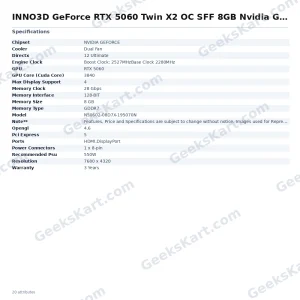

Datasheet
| Memory Type | GDDR7 |
|---|---|
| Warranty | 3 Years |
| Chipset | NVIDIA GEFORCE |
| Memory Size | 8 GB |
| GPU | RTX 5060 |
| Memory Clock | 28 Gbps |
| Recommended PSU | 550W |
| Resolution | 7680 x 4320 |
| Model | N50602-08D7X-195070N |
| Ports | HDMI,DisplayPort |
| Cooler | Dual Fan |
| Note** | Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only |
| Opengl | 4.6 |
| Directx | 12 Ultimate |
| Pci Express | 5 |
| Engine Clock | Boost Clock: 2527MHzBase Clock 2280MHz |
| Memory Interface | 128-BIT |
| Power Connectors | 1 x 8-pin |
| Max Display Support | 4 |
| GPU Core (Cuda Core) | 3840 |
