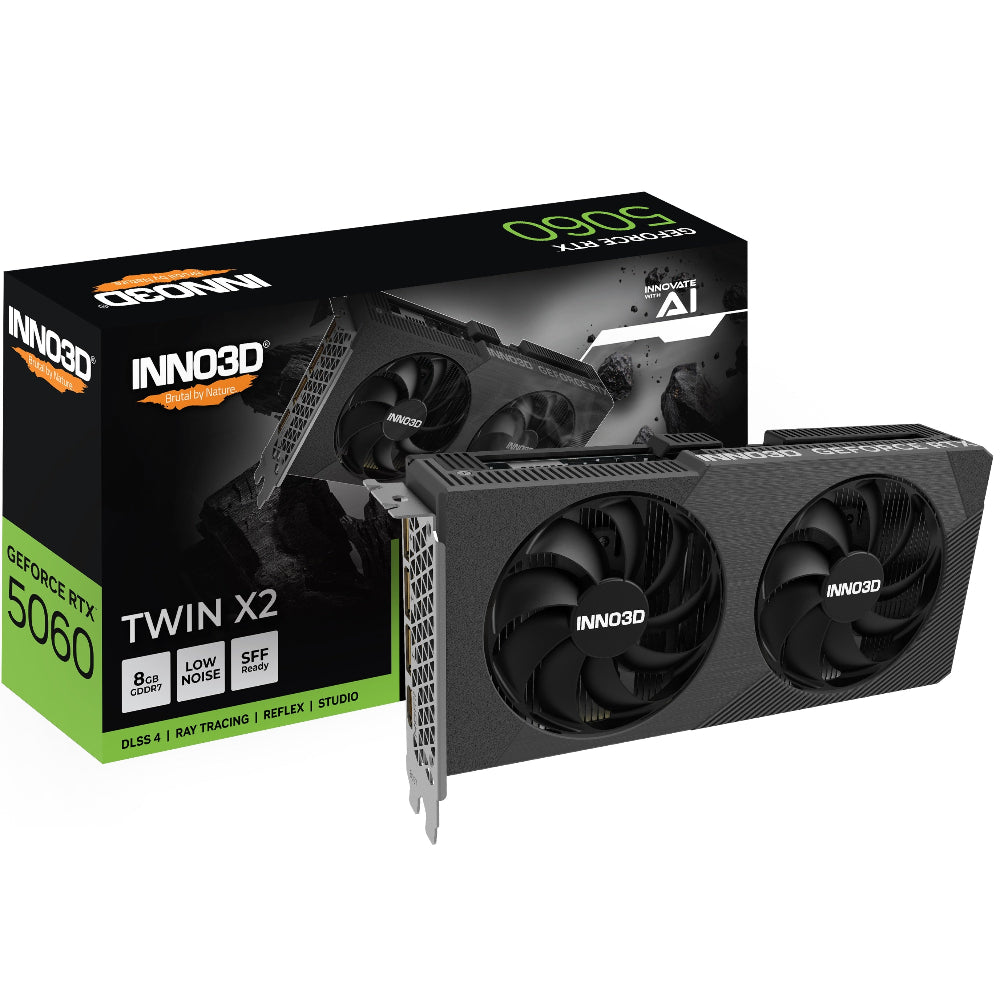

INNO3D GeForce RTX 5060 Twin X2 SFF 8GB Nvidia Graphic Card

The Inno3D GeForce RTX 5060 Twin X2 SFF is a compact, dual-slot graphics card built on NVIDIA’s Blackwell architecture. At just 225 mm in length and 41 mm in width, it is engineered specifically for small form factor (SFF) builds where space is at a premium, without sacrificing the GPU performance enthusiasts expect from NVIDIA’s RTX 50 Series generation. Powered by 3,840 CUDA Cores and 8 GB of GDDR7 memory running at 28 Gbps across a 128-bit interface, the card delivers a memory bandwidth of 448 GB/s. The GPU runs at a base clock of 2,280 MHz and boosts up to 2,497 MHz, providing responsive performance across modern games, creative workloads, and AI-accelerated tasks. The card carries model number N50602-08D7-195071N. The Twin X2 cooling system features dual 88 mm scythe fan blades with a direct heat pipe (DHT) contact base that efficiently transfers heat from the GPU die to the fin array. Fan blades are detachable for easier maintenance. A multifunctional backplate aids hot-air extraction and protects the PCB. On the feature side, the card supports NVIDIA DLSS 4 with Multi Frame Generation, fourth-generation RT Cores rated at 58 TFLOPS for real-time ray tracing, and fifth-generation Tensor Cores delivering 614 AI TOPS. NVIDIA Reflex 2 with Frame Warp helps reduce system latency in competitive titles. Additional supported technologies include NVIDIA Ansel, FreeStyle, ShadowPlay, Highlights, G-SYNC compatibility, GPU Boost, and both Game Ready and Studio driver tracks. Display output is handled by three DisplayPort 2.1b and one HDMI 2.1b connector, supporting up to four monitors simultaneously. Maximum digital resolution reaches 4K at 480 Hz or 8K at 165 Hz (with DSC). The card connects via PCI Express Gen 5 and requires a single 8-pin PCIe power connector. Minimum recommended system power supply is 550 W. API support covers DirectX 12 Ultimate, Vulkan 1.4, and OpenGL 4.6. HDCP 2.3 is supported. The card is certified for Windows 11, Windows 10, Linux, and FreeBSD x86. Encoder generation is ninth (1x NVENC) and decoder generation is sixth (1x NVDEC). Verified Specifications: – Model: N50602-08D7-195071N – CUDA Cores: 3,840 – Architecture: Blackwell – Memory: 8 GB GDDR7, 128-bit, 28 Gbps, 448 GB/s bandwidth – Base Clock: 2,280 MHz | Boost Clock: 2,497 MHz – RT Cores: 4th Gen, 58 TFLOPS | Tensor Cores: 5th Gen, 614 AI TOPS – Display: 3x DisplayPort 2.1b, 1x HDMI 2.1b (max 4 monitors) – Max Resolution: 4K@480 Hz / 8K@165 Hz (DSC) – Bus: PCIe Gen 5 | Power Connector: 1x 8-pin PCIe – Min PSU: 550 W – Dimensions: 225 mm × 116 mm × 41 mm (L×H×W) – OS: Windows 11/10, Linux, FreeBSD x86
