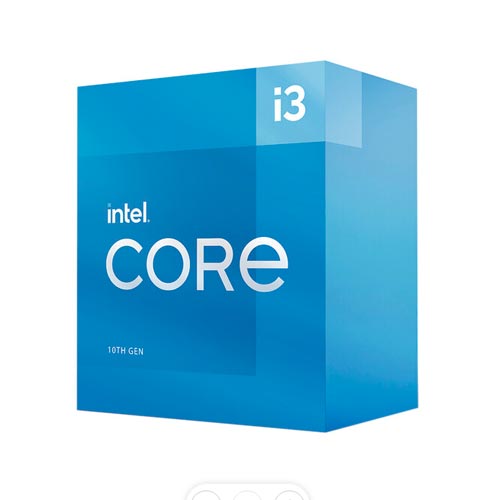

INTEL Core i3 10105 10th Generation Processor ( 4.4 GHz / 4 Cores / 8 Threads )

The Intel Core i3-10105 is a 10th Generation desktop processor built on Intel’s 14 nm process technology. Designed for the LGA 1200 socket, it fits motherboards with Intel’s 400-series chipset, making it a straightforward upgrade path for existing Comet Lake platforms. At its core, the i3-10105 delivers four physical cores and eight threads thanks to Intel Hyper-Threading technology. The processor operates at a base clock speed of 3.7 GHz and can reach a maximum turbo frequency of 4.4 GHz via Intel Turbo Boost 2.0, giving it enough headroom for everyday computing tasks, light content creation, and casual gaming sessions. For memory, the i3-10105 supports dual-channel DDR4 at 2666 MHz with a maximum capacity of 128 GB, and a maximum memory bandwidth of 41.6 GB/s. Storage and peripheral connectivity are handled through 16 PCIe 3.0 lanes and a DMI3 interface running at 8 GT/s. The processor includes integrated Intel UHD Graphics 630, with a base GPU frequency of 350 MHz and a dynamic (boost) frequency of 1.15 GHz. The iGPU supports up to three simultaneous displays, a maximum resolution of 4096 x 2304 at 60 Hz, and output via eDP, DisplayPort, and HDMI. DirectX 12 and OpenGL 4.5 are both supported. Security features include Intel Boot Guard, Execute Disable Bit, Identity Protection, OS Guard, Secure Key, and Software Guard Extensions. Virtualisation is covered by Intel VT-x, VT-x with Extended Page Tables (EPT), and VT-d for directed I/O. Intel Optane Memory is also supported. The processor ships in a boxed (BX) configuration with an included PCG 2015C thermal solution, making it ready to install without a separate cooler purchase. Its 65 W TDP keeps thermal demands modest, with a maximum operating temperature of 100 °C. Verified Specifications: – Model: Intel Core i3-10105 (BX8070110105) – Socket: LGA 1200 – Cores / Threads: 4 / 8 – Base Clock: 3.7 GHz | Max Turbo: 4.4 GHz (Turbo Boost 2.0) – L3 Cache: 6 MB – Manufacturing Process: 14 nm – TDP: 65 W | Max Temperature: 100 °C – Memory: DDR4-2666, Dual Channel, up to 128 GB, 41.6 GB/s – PCIe Lanes: 16 (PCIe 3.0) – Integrated Graphics: Intel UHD Graphics 630 (350 MHz base / 1.15 GHz boost) – Max Display Resolution: 4096 x 2304 @ 60 Hz | Displays: 3 – Instruction Extensions: AVX 2.0, SSE 4.1/4.2, AES-NI, 64-bit – Included Cooler: PCG 2015C | Unlocked: No | vPro: No
